Tough jobs demand tough products and Giant-Vac skid mount truck loaders are ready to meet the challenge. Utilizing all-welded steel construction along with commercial grade quality throughout the entire line helps us maintain our time-proven reputation for rugged, durable and dependable products that are built to last and perform.

The TLS Skid Mount Truck Loader is packed with usable features the debris management professional needs. The TLS skid mount is versatile and fits into a wide variety of unique applications. It features removeable skid mounts that can be utlized in the mounting process or removed. Operators also have the option of mounting their truck loader on the optional swing-away, Hitch-Mount Accessory. Flexibility.

The TLS Loader from Scag Giant-Vac is made to adapt to your particular debris collection application.

Contact your local Scag dealer today and see for yourself how the Scag Skid Mount Truck Loader stands in a class by itself, above the competition. Check out our social media page and our testimonials page to see what real Scag customers are saying about their Scag mowers.

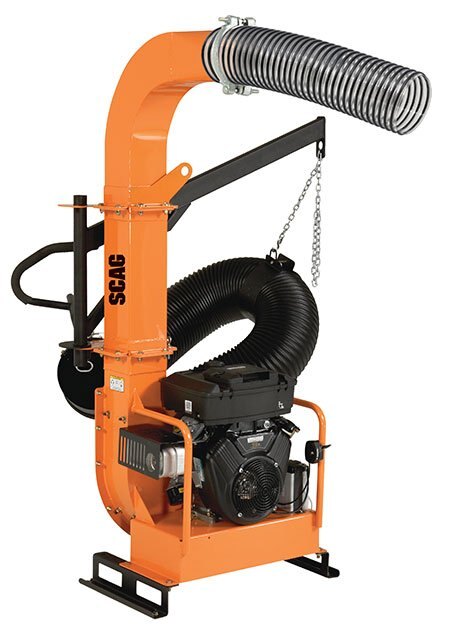

PRODUCT WALKAROUND

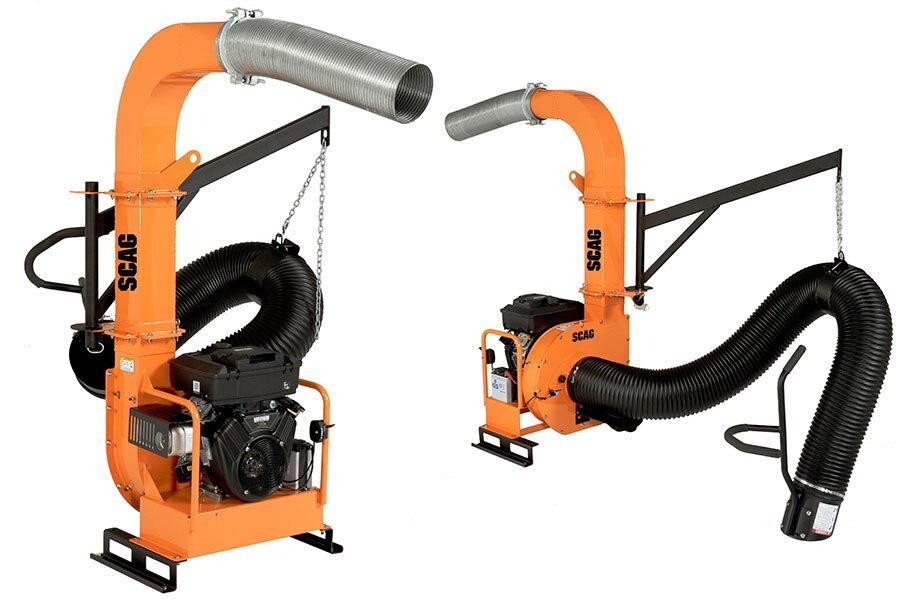

Front / Back View


PRODUCT DETAILS

//    Powerful, electric-start, commercial-grade 18hp V-Twin Vanguard engine
//   Heavy-duty welded steel engine platform for long, reliable unit life
//   3/8" thick , 4-blade, welded, steel, dynamically balanced, high-CFM, debris reducing impeller design
//   Tapered impeller hub standard equipment
//   10 gauge welded steel blower housing
//   1/4" replaceable steel wear plates in the blower housing extend life and add to serviceability.
//   10" diameter intake hose, .045 black thermoplastic rubber, wire helix with wearstrip. 144" length.
//   Quick-detach feature allows the intake hose to be removed from the blower housing for storage, transport or cleaning.  No tools required.
//   16 gauge, angle-cut intake nozzle with 7-gauge reinforcement plate at handle mount
//   Ergonomic, ambidextrous, one or two-handed intake handle with thick, comfort foam grip
//   Easy rear access to the impeller and the wear plates for cleaning and servicing
//   All steel, welded boom arm features nylon 66 bearing for smooth movement
//   Boom features a transport position with spring-loaded locking pin that keeps the boom secure during transport.
//   Intake nozzle can be secured to the loader for transport with an innovative transport pin system.
//   Hose support chain is easily height adjustable, without tools, for quick hose height changes
//   Commercial-grade remote throttle control for easy adjustment of engine RPM.
//   Skid mount features removeable skid risers with fork pockets and multiple install points to fit a wide variety of applications.  Or just take them off.  You have flexibility for your unique application.
//   Additional lift point on the output stack to make lifting your loader into place easy.
//   Approx. 1.75 gallon fuel tank mounted directly to the engine
//   Remote engine oil drain for easy and clean maintenance; easy access to the engine oil filter
//   Optional Truck Loader Halogen light kit available (part number: 9602)



Product Dimensions
