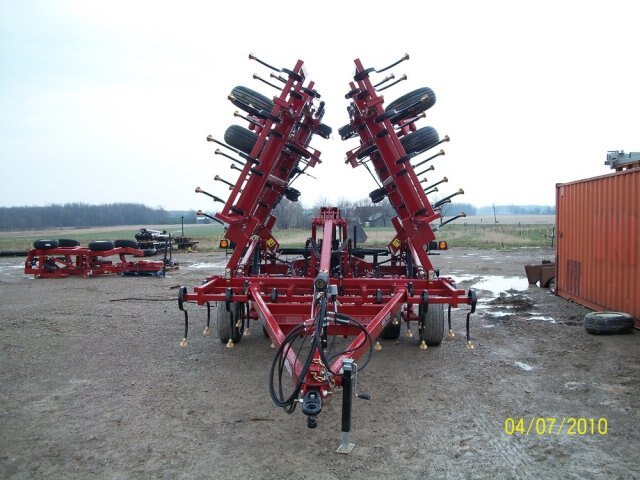

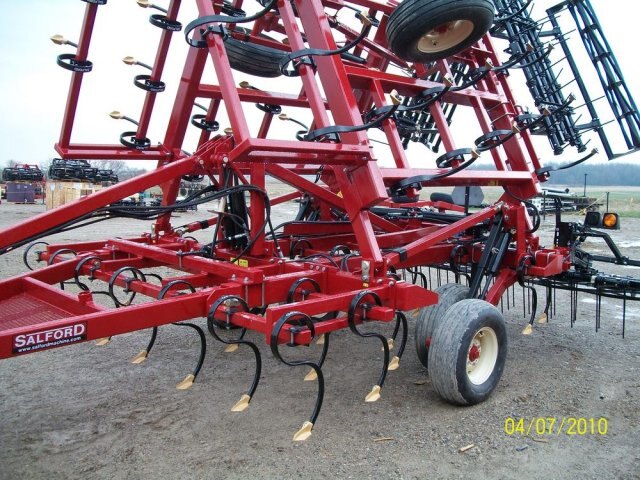

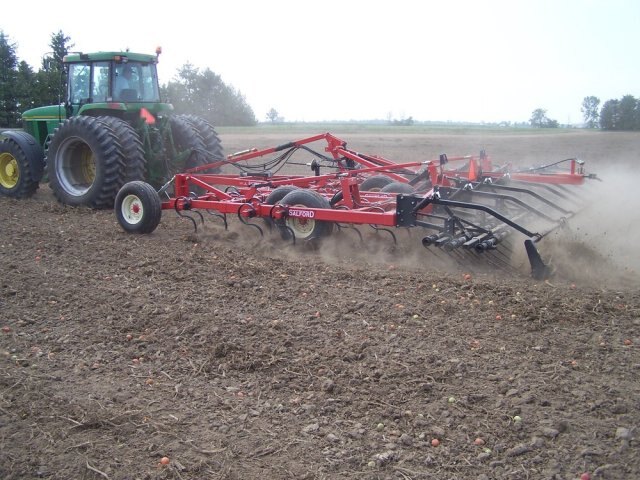

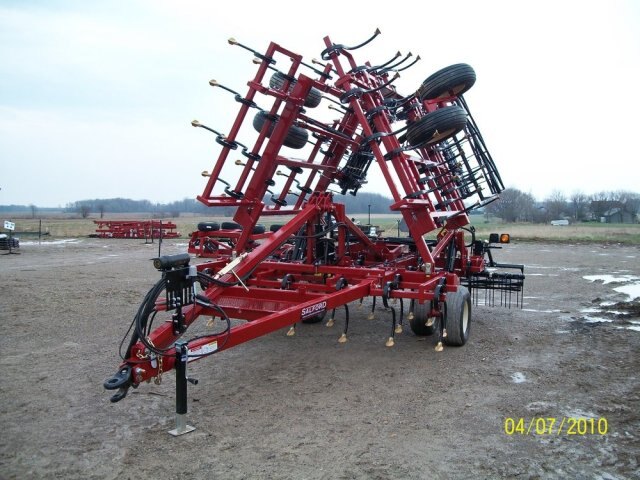

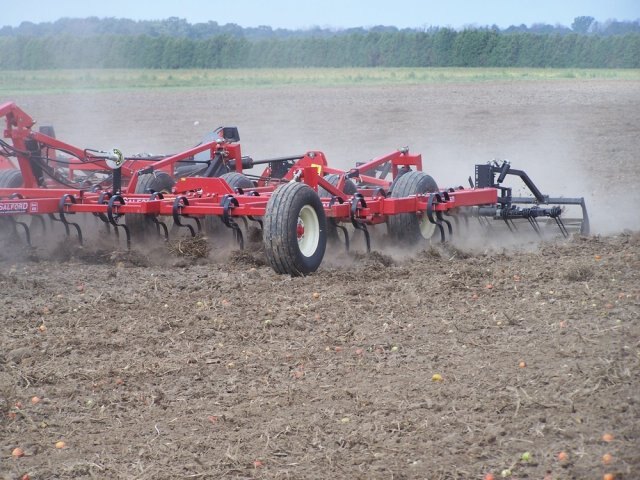

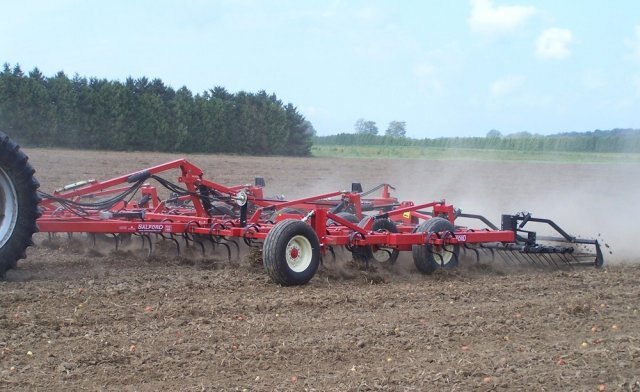

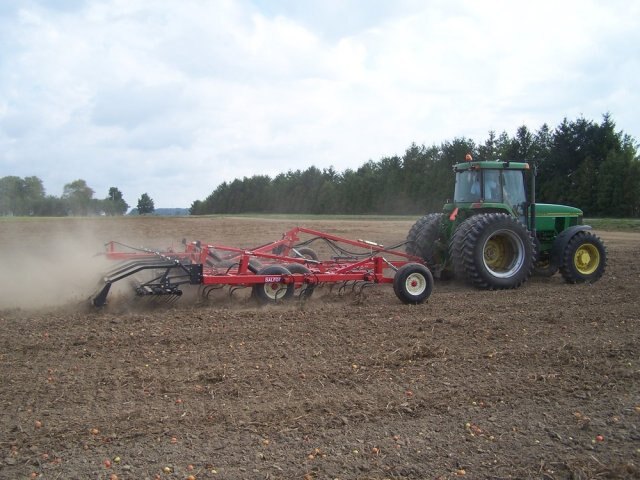

Salford 450 S-Tine and C-Shank Cultivators

  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
  • Salford 450 S Tine and C Shank Cultivators
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
450 S-TINE, TWO-PIECE S-TINE, AND C-SHANK CULTIVATORS

Strength, durability, and performance are standard features on Salford field cultivators. Hydraulic self-leveling frames and fine-adjust single-point depth control are also standard features. Capped, all-tubular steel frames add to the strength of the machine, and 4" x 6" main beams and 2.5" x 2.5" tine bars stand up to the toughest operating conditions. Fewer hinge points greatly reduce wear on Salford cultivators, lowering maintenance costs over the life of these durable machines.
Specifications
Model
450 S-Tine and C-Shank Cultivators
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Salford
features

Standard Features:

  • Tandem wheels on main frame & wings on all models

  • Adjustable tip pressure to 270 lbs on C-shank models

  • 110 lbs - 200 lbs operating pressure (S-Tine tip pressure varies during operation as the tine vibrates in the soil)

  • 4” x 6” main beam with 2 1/2” tine/shank bar

  • Cast hitch cat. III with clevis adapter

  • Hydraulic self-leveling frame

  • Safety chain, SMV sign, safety lights

  • Single-point depth control

Options:

  • Adjustable tow hitch with one-man hook-up

  • Hydraulic lines and quick coupler to tow hitch
specifications

Salford 450 S Tine and C Shank Cultivators

450 Field Cultivators
Working Width

6-Bar S-Tine and 2 Piece S-Tine models

4.5" Tine spacing with Long Life Cast Point

# of Tines

 C-Shank Models
# of Tines
7" (0.18 m)		 H.P. Required
12' (3.66 m) 32 21 60 - 80
17' (5.18 m) 48 31 85 - 110
19' (5.79 m) 52 33 95 - 120
21' (6.40 m) 56 37 105 - 130
23' (7.01 m) 60 39 115 - 140
25' (7.62 m) 66 43 125 - 150



Operation and Application S-Tine C-Shank
Operating Depth 1.5" - 4" (0.04 - 0.10 m) 2" - 6" (0.05 - 0.15 m)
Operating Speed 5.5 - 9 mph (8.85 - 14.48 kph) 4.5 - 7 mph (7.24 - 11.27 kph)
% of Residue Bured in one pass 20 - 30 40 - 50
Seed Bed Preparation Excellent Excellent
Primary Tillage Poor Average
Field Leveling Excellent Excellent
Weed Control Excellent Excellent
Incorporation of Chemical/Fertilizer Excellent Excellent
Residue Management Average Good
Surface Compaction Removal Excellent Excellent
Deep Compaction Removal (12"+) N/A N/A
Land Reclamation Poor Average
