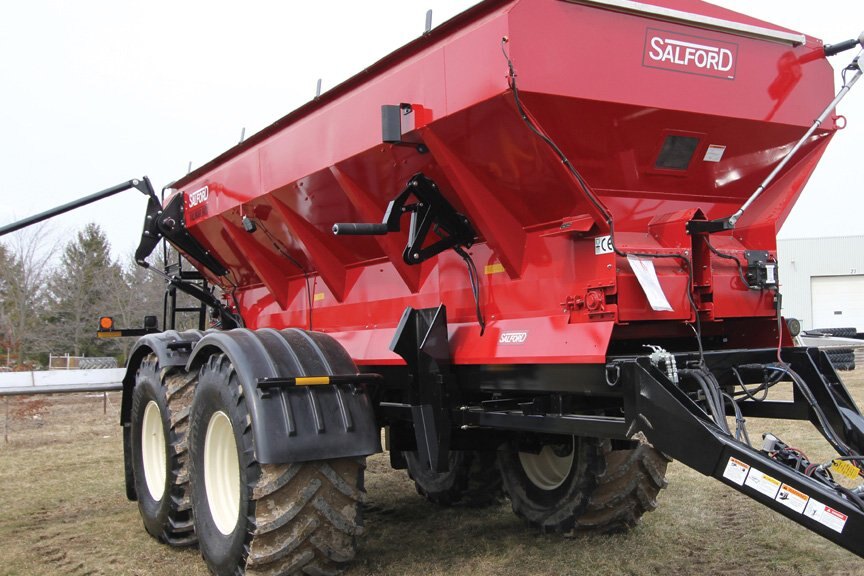

CARRY UP 20 TONS & TWO PRODUCT BLENDS! -
TOTAL CAPACITY: 660 cu. ft.
-
2ND HOPPER CAPACITY: 60 cu. ft.
-
UP 20 TON CAPACITY & TWO PRODUCT BLENDS.
-
EACH MODEL IS EQUIPED WITH A MICRO HOPPER.
|
MAXIMIZE YIELDS AND MINIMIZE WASTE -
HYDRAULIC DRIVE
- FOLLOW PRESCRIPTION MAPS WITH LEFT / RIGHT SECTION CONTROL.*
-
OPTIONAL SECONDARY METERING FOR CUSTOM BLENDS.
- 500 lbs / acre @ 12 mph
-
*Electronics required. Unit shown with optional equipment.
|
|

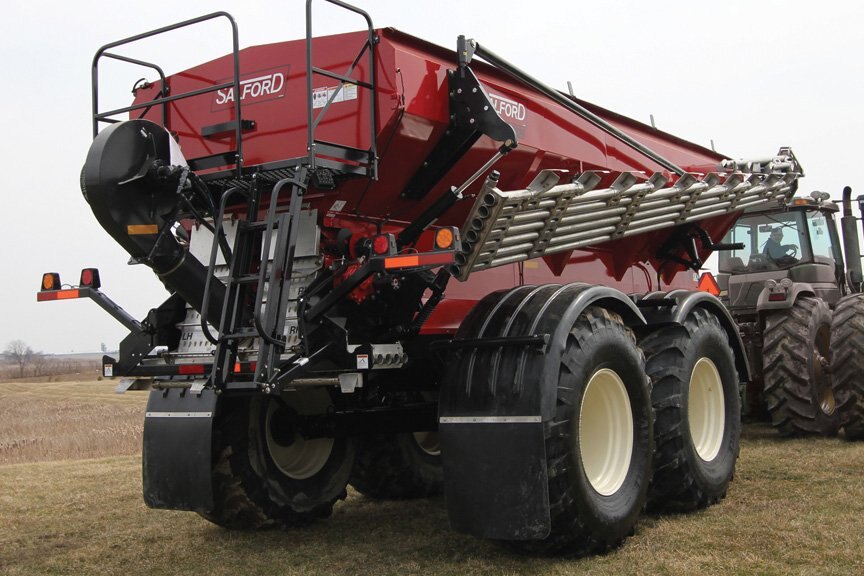

CARRY MORE FERTILIZER WITH LESS COMPACTION -
20-TON WALKING TANDEM AXLE
-
800/65R32 LUG TREAD TIRES
|
|

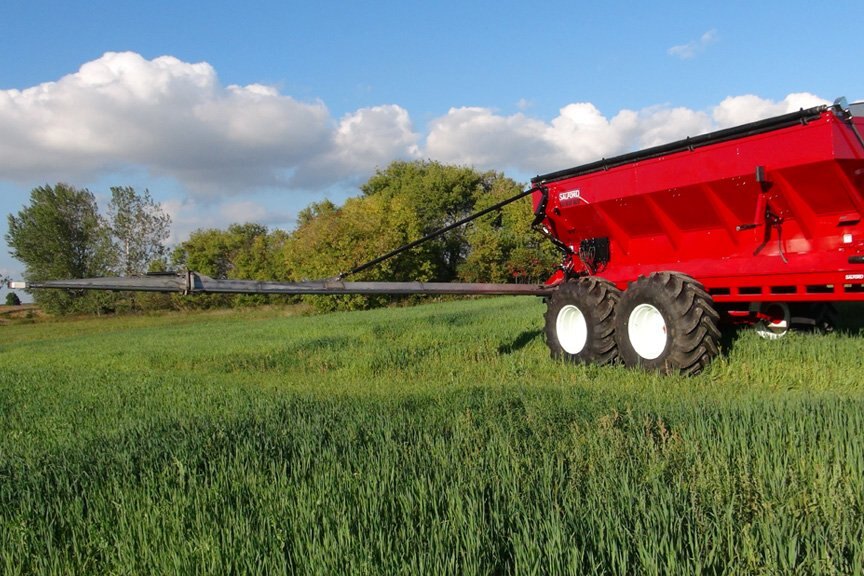

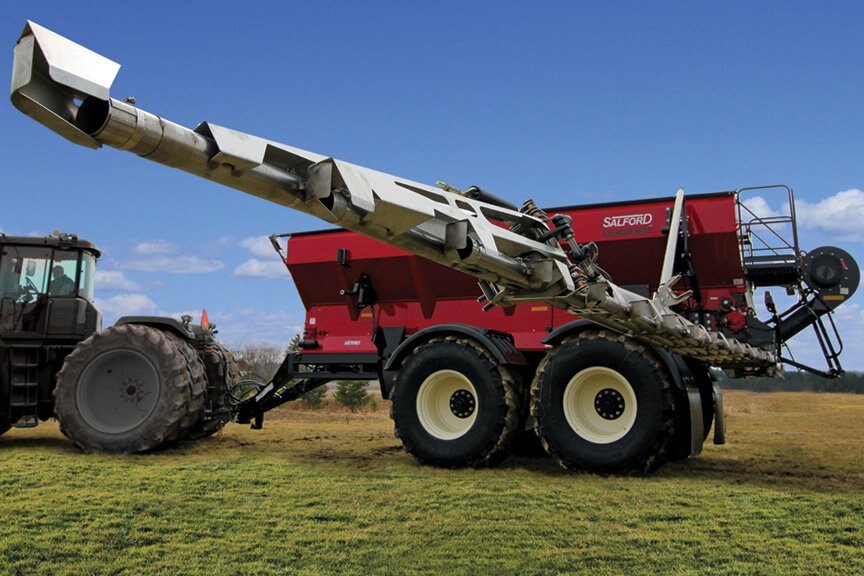

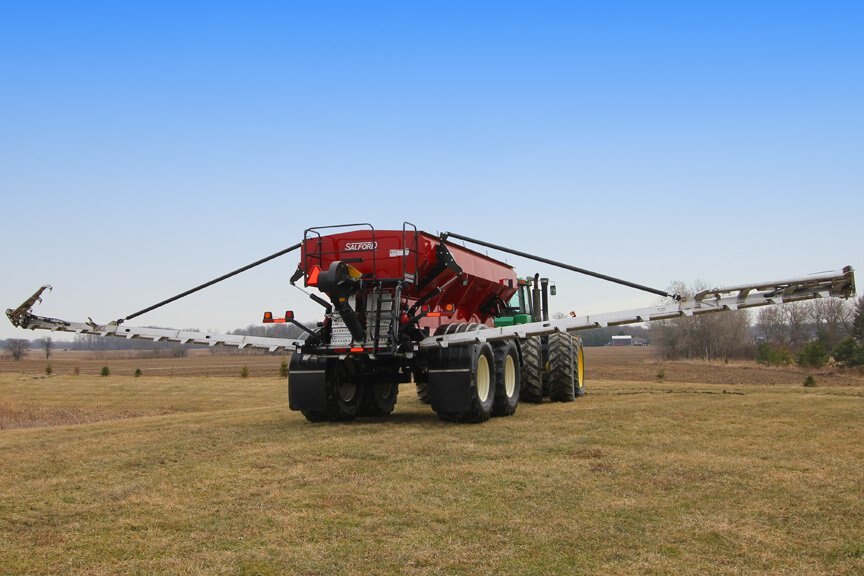

THE LEADER IN AIR BOOM DELIVERY -
70' BOOM WIDTH
-
HYDRAULICALLY FOLDED PRIMARY AND WING TIPS
-
HYDRAULIC CONTROLLED LEVELING
-
BREAK AWAY BOOM TIPS
|
| |
|
Technical Specs |
|
- |
--9620 |
--8600 |
--5500 |
|
TOTAL CAPACITY |
--660 cu. ft. (includes sales) |
--260 - 327 cu. ft. |
--170 cu. ft. |
|
SECONDARY HOPPER |
--60 cu. ft. |
--37 cu. ft. |
--n/a |
MATERIAL
(409 stainless steel with 2 component urethane primer & 2 component urethane top coat paint.) |
Yes |
Yes |
Yes |
|
--
OPTIONS |
- (2) 16 in., 28 groove or (2) 16 in., 12 groove metering rollers |
-
- Second metering system
-- Adjustable built-in hopper panel
-
- Electrically engaged clutches for operation either left, right or both booms |
- Hydraulic Fan Drive
- Hopper Screen | |
| |
|
- |
--9620 |
--8600 |
--5500 |
|
BOOM WIDTH OPTIONS |
--70 ft. spread width |
--66 ft., 60 ft. |
--40 ft. |
|
MATERIAL |
--
304 stainless steel construction |
-
304 stainless steel construction |
-
304 stainless steel construction |
|
AIR BOOM OUTLET DIAMETER |
--
3" (8 per side). |
--
3" (6 per side) |
--
2.5" |
|
AIR BOOM FOLD |
--
-Hydraulic fold primary
-
-
-Hydraulic fold secondary |
-
--
-Primary: Hydraulic fold
-
-
-Secondary: Manual fold |
--
Manual fold |
|
FOLD & LOCK |
--
Yes |
-
Yes |
-
No | |
| |
|
-- |
--9620 |
--8600 |
--5500 |
|
HYDRAULIC REMOTES |
-4 outlets required to operate standard functions. |
-4 outlets required to operate standard functions. |
-4 outlets required to operate standard functions. | |
| |
|
- |
--9620 |
--8600 |
--5500 |
|
CONVEYER CHAINS |
(2) 16-in., 304 stainless steel conveyor chains |
(2) 12-in., 304 stainless steel conveyor chains |
304 stainless steel, self cleaning metering rollers, cleaning wipers available |
|
RATE |
500 lbs / acre @ 12 mph |
Maximum rates 1000 lbs/acre at 8 M.P.H. |
Up to 500 lb./acre at 5 MPH | |
| |
|
- |
--9620 |
--8600 |
--5500 |
|
HYDRAULIC |
ISO BUS Section Control Kit* |
ISO BUS Section Control Kit* |
A basic drive supplied with hydraulic motor only for completion by customer with system of their choice. |
|
INDEPENDENT DRIVE |
Two motor independent drive LH/RH hydraulic main metering. |
Two motor independent drive LH/RH hydraulic main metering. |
-Does not include radar, servo valve, encoders, controller/monitor, cables, etc.
Variable rate control packages available. |
|
OPTIONAL 2nd METERING SYS. |
(2) 16 in., 28 groove metering rollers
or
(2) 16 in., 12 groove metering rollers |
(2) 12 in., 28 groove metering rollers
or
(2) 12 in., 12 groove metering rollers |
n/a | |
| |
|
-- |
--9620 |
--8600 |
--5500 |
|
IMPELLER |
20 in impeller / 4600 rpm |
17 in. impeller / 4700 RPM |
20 in. impeller |
|
OUTLETS |
9 |
4 |
2.5 |
|
MOTOR |
16 cc hydraulic / 21 gpm / 2800 psi |
--
Yes |
--
- Requires 1 remote to engage metering system
--
- Requires additional remotes for optional hydraulic drives for fan and/or metering |
|
PTO FAN DRIVE |
n/a |
- 1000 RPM CV, 13⁄8 or 13⁄4 in. 21 spline driveline
- 14:4.5 pulley ratio
- 1.5 ratio PTO gearbox |
- 1000 RPM CV driveline, 13⁄8 in. 21T spline
- 19:4.12 pulley drive ratio | |
| |
|
-- |
--9620 |
--8600 |
--5500 |
|
WALKING BEAM |
-20 Ton axle |
--Single 3¾ in. axle with 10 bolt hub |
--Tandem walking beam | |
| |
