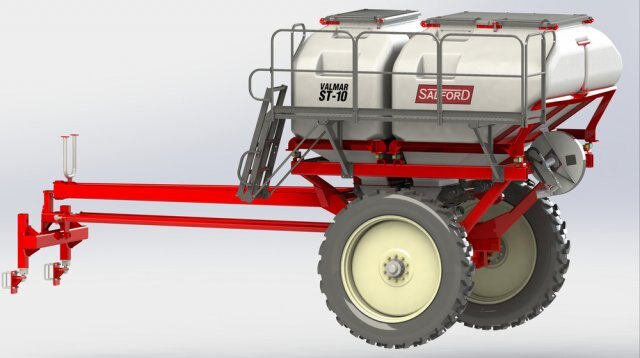

Salford Pathfinder 10-ton steerable cart & St-10 applicator

  • Salford Pathfinder 10 ton steerable cart & St 10 applicator
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

NEW for 2017 – Salford is expanding its range of steerable carts and fertilizer systems for 2017 with the addition of the Pathfinder 10-Ton cart and the ST-10 dual product applicator.  These will serve as flagship products in a range that already includes the successful Pathfinder 8-Ton cart along with the ST-6 single product and ST-8 dual product applicators.

St-10 – Poly, Individually Scaled Tanks & 4-section Metering

The ST-10 offers new capabilities and new level of refinement.  Its new, Light weight polymer bins are translucent and allow an additional visual indicator of the bin level along with standard bin level sensors.  The overall capacity of 10-tons of fertilizer is split between a forward 4-Ton tanks and rear 6-Ton tank – both of which can be scaled individually.  Large, easy to open lids and sloped sides makes filling with tender trucks simple and efficient.
Pathfinder ST-10 Mechanical Component Pathfinder ST-10 Mechanical Diagram Pathfinder ST-10 Mechanical Component
Pathfinder ST-10 Mechanical Component Pathfinder ST-10 Mechanical Component Pathfinder ST-10 Mechanical Component
Snap-in meter rollers, spring-loaded gates and a full-width removable panel below the air manifold take the hassle out of unloading.  The meter rollers themselves are now an accurate pegged style rollers similar to Salford’s air seeding systems.  The new rollers offer a wider range of application rates and are available with standard and low rate peg sizes.

The new 4-section metering system retains the reliable, low maintenance and user-friendly aspects of the Valmar-designed ST6 and ST8 with the added ability to turn up to 4-sections per product on or off based on application maps.  An optional ISOBUS control system allows connectivity to ISOBUS compliant cab consoles*.  Mechanical engagement of the meters is achieved via electric clutches; a proven approach that has already seen extensive use on other Salford Valmar products.

*Options must be requested at order.
Both metering systems deliver product to a single funnel that drops in to a common venturi air stream for the highest possible blending accuracy and efficiency.  There is no need to run two sets of air lines to the application knife as all the blending happens right at the metering system.  The air manifold and funnels are only connected to one metering system to maintain Scale reading integrity.
Pathfinder ST-10 Mechanical Diagram Pathfinder ST-10 Mechanical Diagram
The number of air outlets is determined by the funnel/air manifold assembly, which can be easily changed by simply unbolting it from the metering system.  Updating from a 12-outlet to 16-outlet system can be achieved in a matter of minutes.  A 20” fan driven by a 12cc hydraulic motor spins at up to 5900 rpm to provide plenty of air at high rates.  By maintaining a set pressure in the air plenum behind the venturi manifold, a constant, reliable airflow can be achieved regardless of the number of outlets.
Available in a Skid Mount Package

The ST-10 is available independently as a skid-mounted system for use on 3rd party implements such as strip-till and applicator toolbars.

The polymer tanks are designed to be configured for multiple  applications. They will soon be available with liquid fertilizer or pressurized air system upgrade kits. In the case of the liquid upgrade, the ST-10 will have the unique capability to deliver liquid and dry product on the same steerable frame. The pressurized upgrade brings the highly accurate Salford air seeding metering system to the ST-10 and allow product to be delivered reliably to wider implements.

Heavy Duty Cart

The 5-link mechanical steering uses the Ackerman steering principal by which the inner wheel turns more sharply than the outer wheel.  This combined with a long hitch allows the cart to mimic the travel of the leading implement with a higher degree of precision.

The high clearance axle allows the cart to follow application toolbars in standing crop without causing damage to the rows.  Large diameter tires allow for row-crop tracking while minimizing compaction.

A tow hitch can be added for towing anhydrous ammonia tanks as well.
  Features
Upcoming Ag Shows: Farm Progress 2016

Why You Should Attend: The Farm Progress Show is the largest outdoor farm show in the United States, held in rotating locations in Iowa and Illinois. This year’s Iowa-based event promises to be bigger and better than ever.
Upcoming Ag Shows: MAGIE 2016

Why You Should Attend: The premier outdoor show dedicated to the Illinois farming community, MAGIE is an annual event sponsored by the Illinois Fertilizer & Chemical Association. MAGIE brings together thousands of farmers from Illinois and surrounding states to meet with exhibitors from every corner of agricultural equipment, electronics, services, and more.
Mike Dopp & Jim Danielsen take Salford Group to WFTD

Salford Group Demonstration Machines: Salford I-1200 with Valmar 2455 for tillage/cover crop seeding in a single pass. Why You Should Attend: The Wisconsin Farm Technology Days is the largest agricultural show in Wisconsin and one of the largest in the nation.



Specifications
Model
Pathfinder 10-ton steerable cart & St-10 applicator
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Salford
