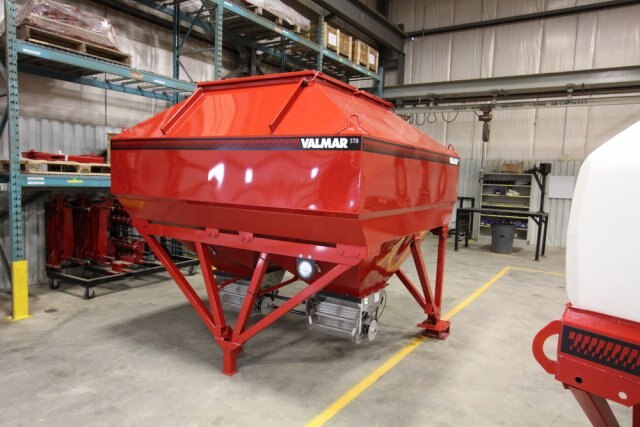

Hopper

• 250 cu.ft., 8-ton capacity
• 304 stainless steel with two-component urethane primer and two-component urethane top coat paint
• Use as single meter hopper or dual meter with 60/40 split hopper
• Product level sight glass
• Easy-to-use lid on linkage and track opener
• Opening size - 51” wide x 37” deep
• Available bin screen
• Standard mounting legs and hardware (scale ready)

  Metering and delivery system

• Individual venturi, open feed system

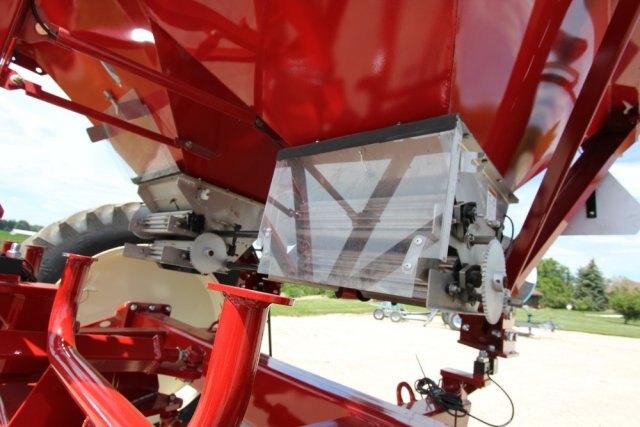

• Two 304 stainless steel metering assemblies
• 8, 12, 16, and 18 outlets

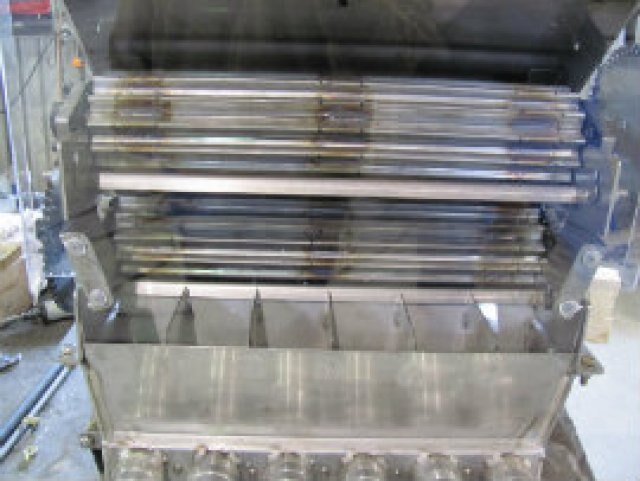

• 4” diameter, 12-groove, 304 stainless steel metering roller
• 400 lbs/acre @ 6 mph at 30 in. row spacing
• 40-650 lb. per acre metering range

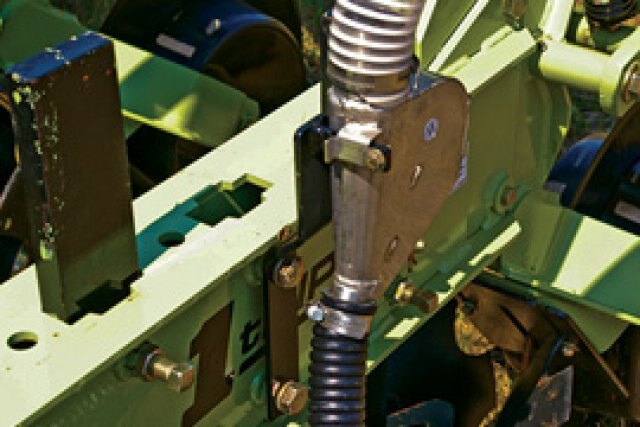

• 2” or 2 ½” ID flex hose, depending on number of outlets
• Hydraulic motor metering drive for use with VRT
• Optional air diffuser kit available for 8, 12, 16, and 18 row

  Dimensions

• Height 95.1”
• Width 96”

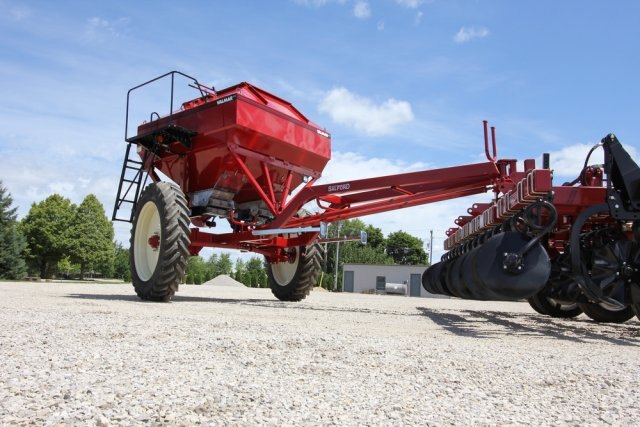

• Depth 96” hopper, 102” overall including ladder and platform
• Weight (empty) 2039 lbs

  Other

• For hopper clean out: remove roller and venturi plate, open hopper bottom slide gate, product drops trough venturi
• For calibration: remove venturi plate, turn metering, collect product as it drops through venture, and weigh
