Brabus

ID # 29590600

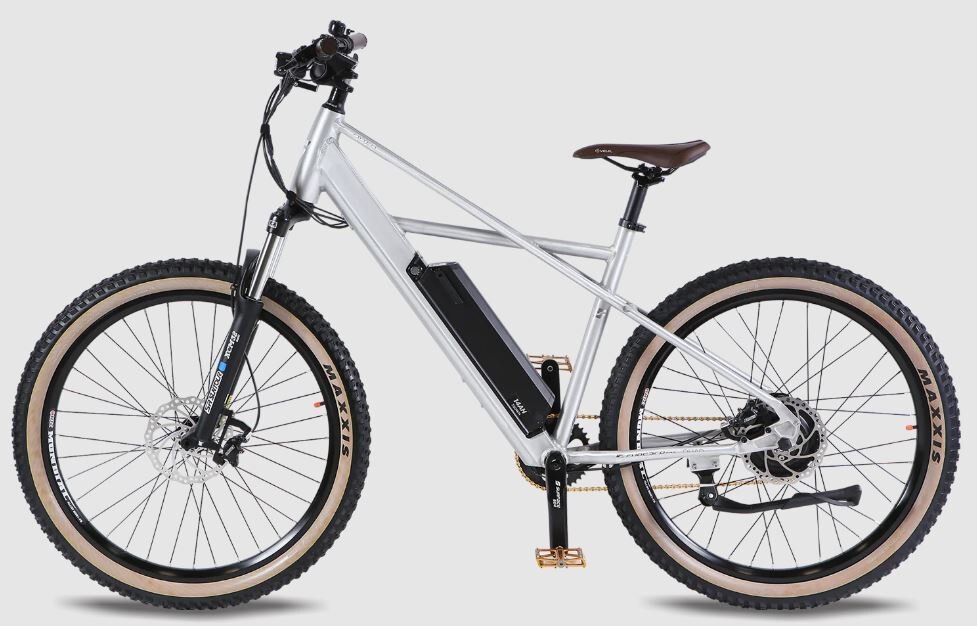

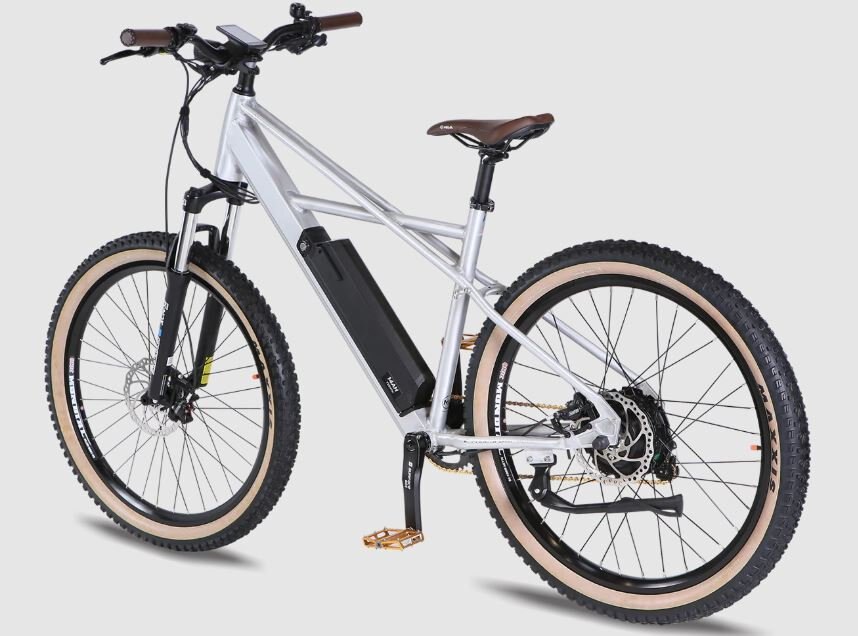

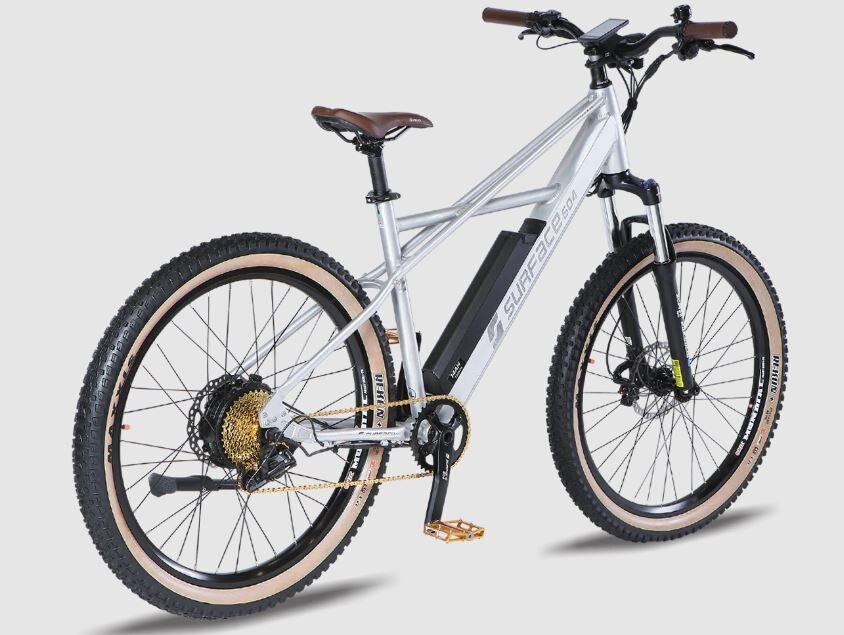

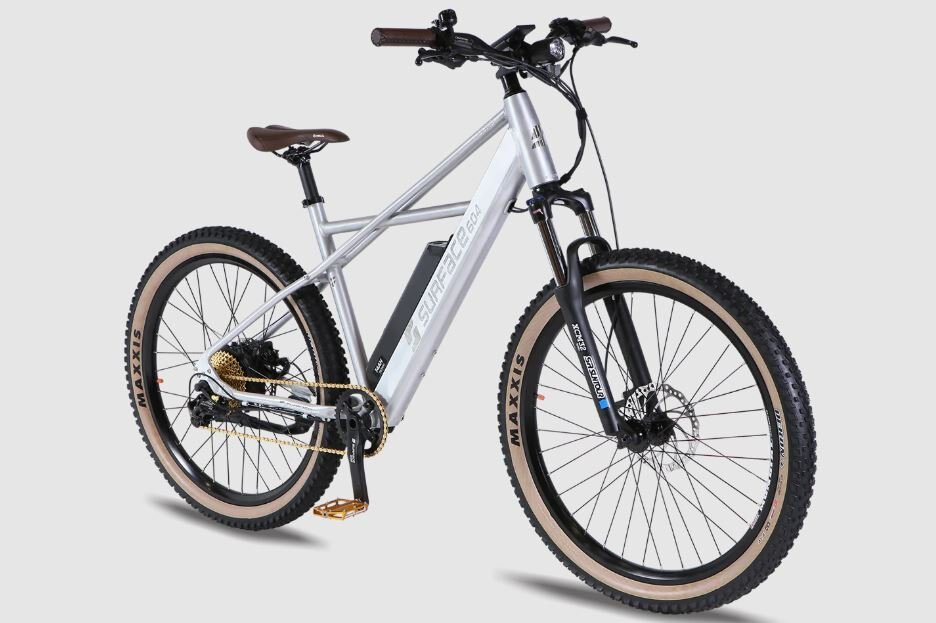

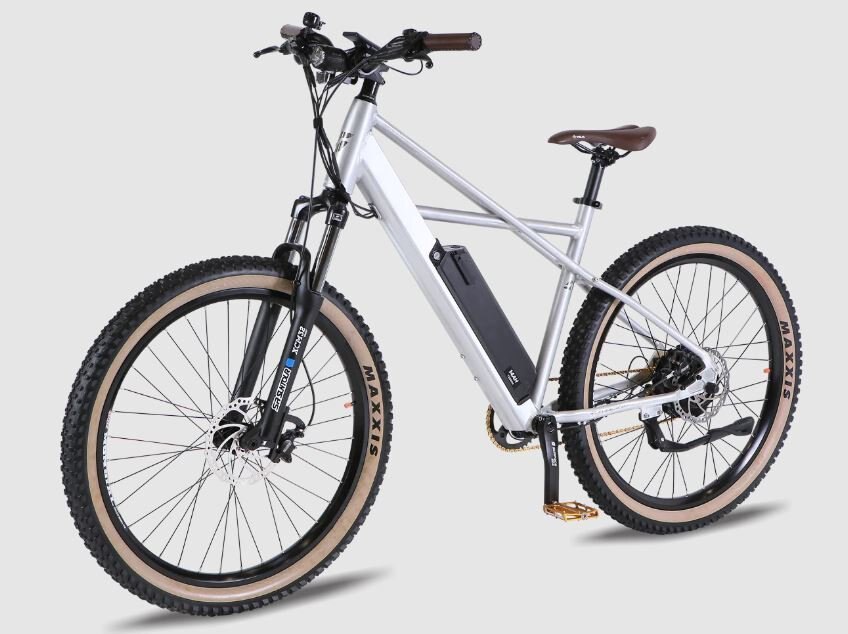

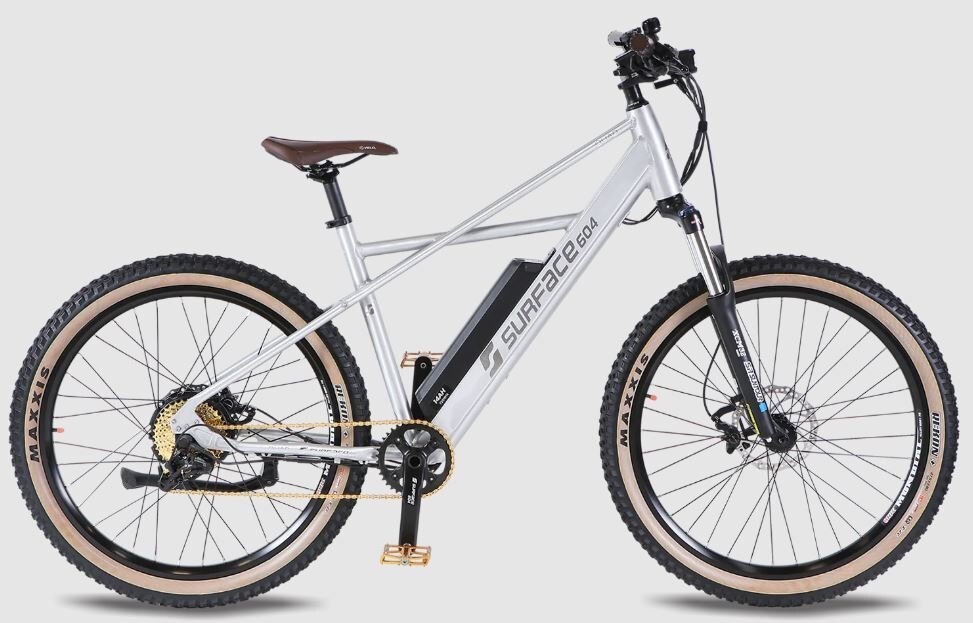

2021 SURFACE604 THE QUAD SILVER

Videos
Call for Price
Overview

A streamlined, ergonomic design with robust tires and a comfortable saddle—venture off the beaten path and look great doing it.

Specifications
Model
THE QUAD
Category Name
E-Bikes
Year
2021
Sale Type
New
Manufacturer
SURFACE604
Color
SILVER
updates
2021 SURFACE604 THE QUAD SILVER

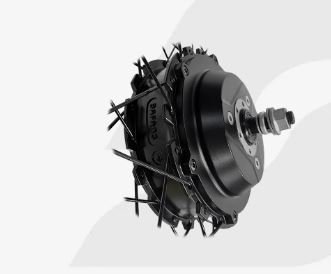

POWERFUL 500W MOTOR

  • Purpose built for top speed Bafang 500W 48V electric motor (Bafang RM G360.500.DC)
  • Feel the surge of quiet, consistent power distribution at higher speeds - vibration-free.
  • Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller, so Shred delivers unmatched torque and speed.
2021 SURFACE604 THE QUAD SILVER

WHISPER SMOOTH TORQUE SENSING PEDAL ASSIST

Because an electric bike is only as good as it’s power distribution.

  • Shred’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.
  • Custom drop out design delivers whisper smooth torque sensor sensation at any assist level. In fact, you’ll swear it’s as so smooth as a mid-drive motor.
  • Gone are the days of simple cadence sensors!
2021 SURFACE604 THE QUAD SILVER

REDESIGNED COCKPIT

Now with an extra-large colour LCD display to show all vital information and provide added security.
SURFACE604 Color LCD Display with USB Jack, bigger display: 3.5" for 2022.
Set a passcode and the bike won’t start without it, just like your phone.
2021 SURFACE604 THE QUAD SILVER

LONG RANGE BATTERY

Offering two high-capacity battery options:

48V14ah (672wh) 3500mah cell size

Samsung Cells 18650, Made in Korea, USB Plug, capacity indicator button

Range up to 45 Miles (72 Kms), Weight: 7.59 LBS (3.45 KG)

48V20ah (960wh) 5000mah cell size (Same as in Tesla)

Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button

Range up to 65 Miles (105 Kms), Weight: 10.23 LBS (4.65 KG)

*Proprietary design

frame size
M/L
19.5" FRAME FOR RIDERS 5'8" - 6'6"
S/M
17.5" FRAME FOR RIDERS 5'2" - 5'7"
battery
STOCK
48V-14AH
EXTENDED RANGE
48V-20AH
key tech specs

SR SUNTOUR XCM 32, 29ER SUSPENSION FORK (100MM WITH AXLE THRU HUB

MAXXIS REKON+ 27.5” X 2.8” SKINWALL TIRES (3C, EXO CASING TECH)

TEKTRO DORADO HYDRAULIC QUAD PISTON DISC BRAKES
EMTB SPECIFIC, WITH MOTOR INHIBITORS

SRAM X5 9-SPEED DRIVETRAIN

TORQUE SENSOR SYSTEM

VELO ERGONOMIC STREAMLINED DESIGN

LARGE FIXED-COLOR LED DISPLAY WITH USB JACK

POWERFUL BÜCHEL SHINY 120 LED FRONT LIGHT (INCLUDED)
REAR LED LIGHT (OPTIONAL)
