Brabus

ID # 29590130

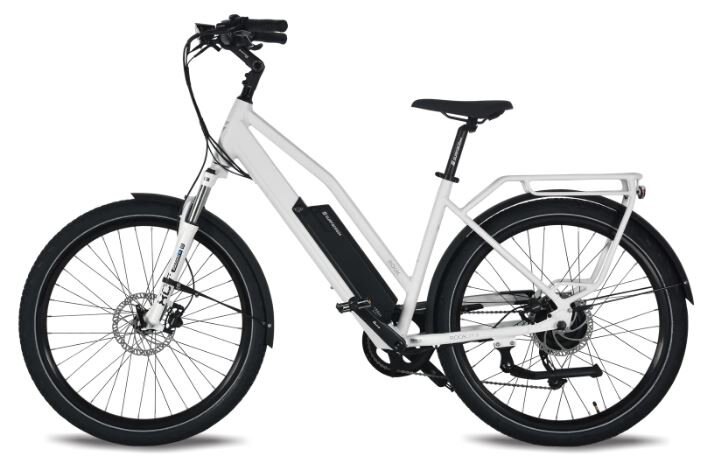

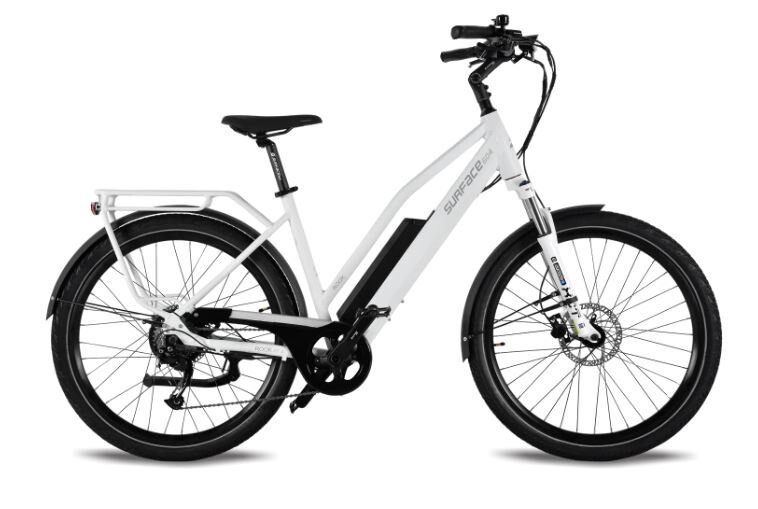

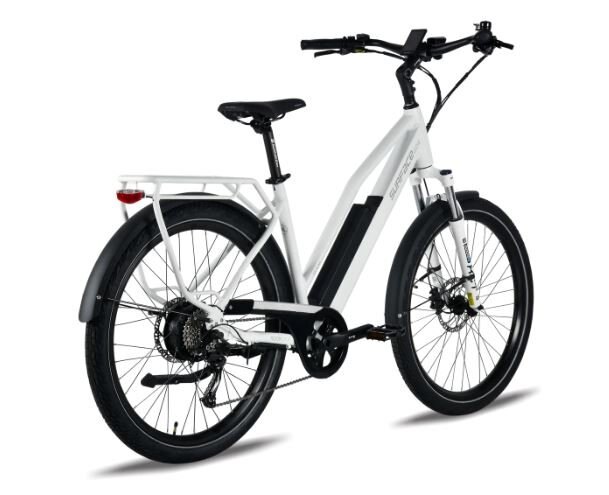

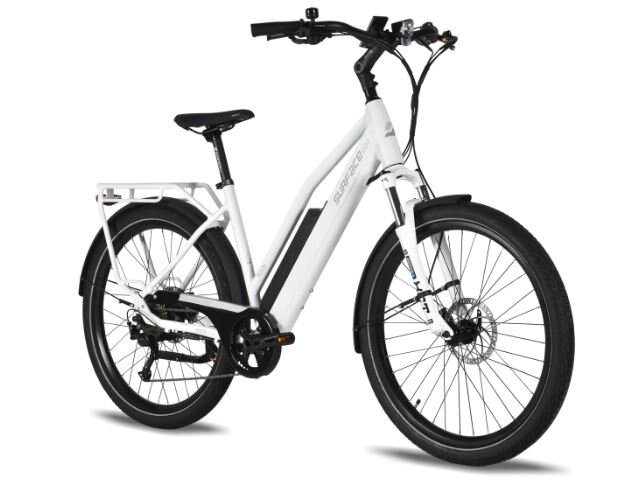

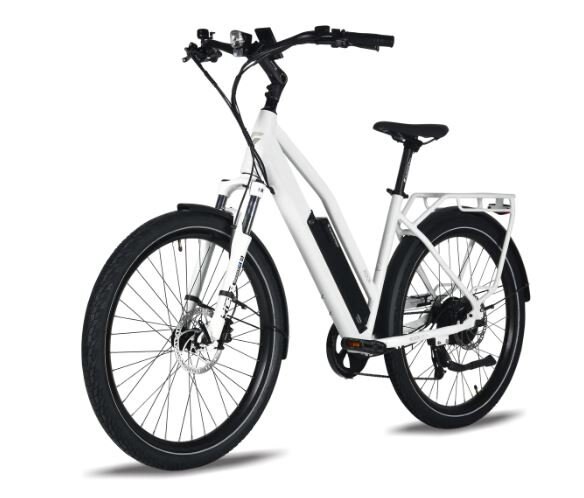

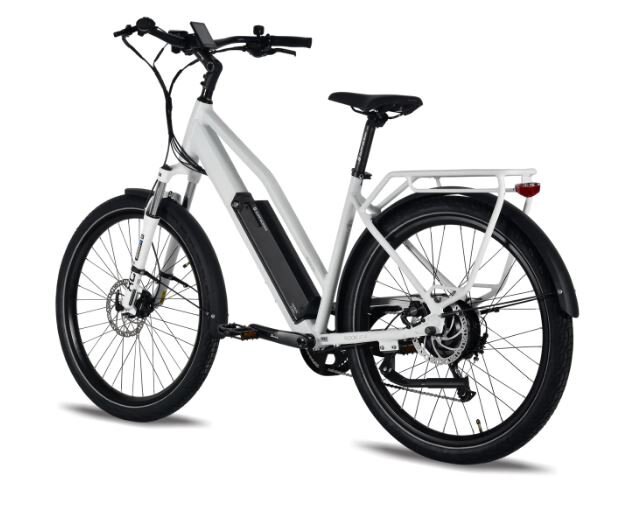

2022 SURFACE604 ROOK WHITE

Videos
Call for Price
Overview

The Surface 604 Rook Step-Thru Commuter eBike. 48V 500W electric motor built for speed and power. Available today for fast nationwide shipping.

Specifications
Model
ROOK
Category Name
E-Bikes
Year
2022
Sale Type
New
Manufacturer
SURFACE604
Color
WHITE
RIMS
Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H
STEM
SATORI Up2+, Adjustable
CHAIN
KMC 9-Speed
MOTOR
500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 15° Backsweep 700mm Wide
TOP SPEED
20mph (32kmh)*, Comes as Class 2 (Unlocked) 30mph (48kmh), as Class 3
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
FRONT HUBS
Surface604 Aluminum
WHEELS/TIRE
27.5" X 2.4" Custom S604 Panaracer Tires With Puncture Protections With Reflective Sidewall
FRAME MATERIAL
6061 Aluminum Alloy
SEAT POST DIAMETER
30.4mm
updates

2022 SURFACE604 ROOK WHITE HANDLEBAR

Re-designed handle bar on 2023 bikes. The bar has more curve to it, for more comfortable riding and hand position.

2022 SURFACE604 ROOK WHITE SEAT

Selle Royale saddle "Essenze Plus", with elastometer, for seat angle up to 9° (Relaxed), suitable for City/Tour use.

2022 SURFACE604 ROOK WHITE HEADLIGHT

Redesigned headlight positioning and a new Büchel Shiny 120 ebike LED headlight with 120 lumens.

2022 SURFACE604 ROOK WHITE SOFTWARE UPDATE

SURFACE604 Display Updated Software: Select your desired pedal assist range, adjustable torque settings,
bug fixes, and more.

2022 SURFACE604 ROOK WHITE

TORQUE SENSING PEDAL ASSIST

World class torque sensing pedal assist - because an electric bike is only as good as it’s power distribution.

Precision torque sensing performance at 104 cadence pulses per revolution; 1,000 torque samples per second.

Twist's incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.

Custom drop out design delivers whisper smooth assist at any level.

2022 SURFACE604 ROOK WHITE

POWERFUL 500W MOTOR

48V 500W electric motor purpose built for speed and power. Enjoy the quiet and
consistent distribution at any speed.

Geared for performance - we paired all that power with an industry-leading 12mosfet, 25A controller giving the Shred unmatched torque and speed.

Leave other riders envious as you effortlessly fly past.

2022 SURFACE604 ROOK WHITE

LONG RANGE BATTERY

Twist's high capacity 48V14Ah Samsung lithium-ion battery provides maximum range.

Twist can handle heavy loads and travel up to 45 miles on a single charge.

As an added bonus the battery also features a USB plug for charging a mobile device on the go.

frame size
M/L
19.5" FRAME FOR RIDERS 5'8" - 6'6"
S/M
17.5" FRAME FOR RIDERS 5'2" - 5'7"
battery
STOCK
48V-14AH
EXTENDED RANGE
48V-20AH
key tech specs

SR SUNTOUR XCM 27.5 SUSPENSION FORK
(80MM WITH QUICK RELEASE)

27.5" X 2.4" CUSTOM S604 PANARACER TIRES WITH PUNCTURE
PROTECTION & REFLECTIVE SIDEWALL

TEKTRO AURIGA HYDRAULIC DISC BRAKES WITH 180MM ROTOR

SHIMANO ALIVIO 9-SPEED DRIVETRAIN

TORQUE SENSOR SYSTEM

SELLE ROYALE ERGONOMIC GEL SADDLE

LARGE FIXED-COLOR LED DISPLAY WITH USB JACK

POWERFUL BÜCHEL LED HEADLIGHT

WELDED REAR RACK
