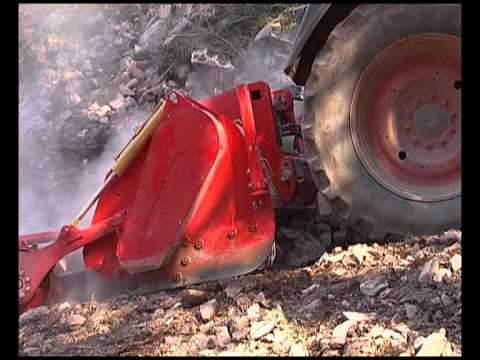

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

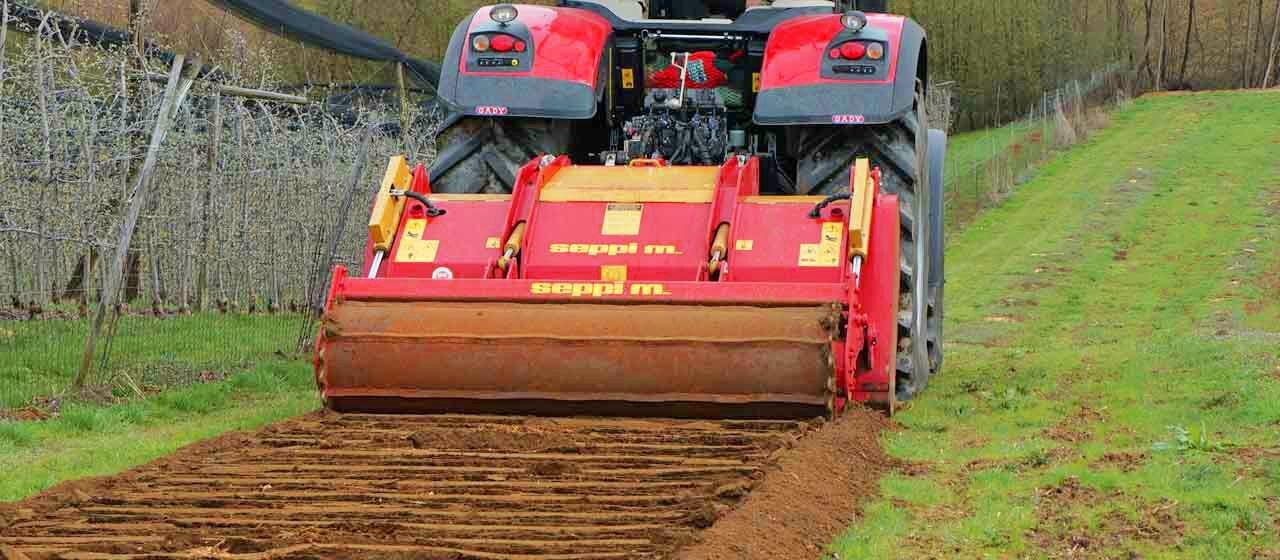

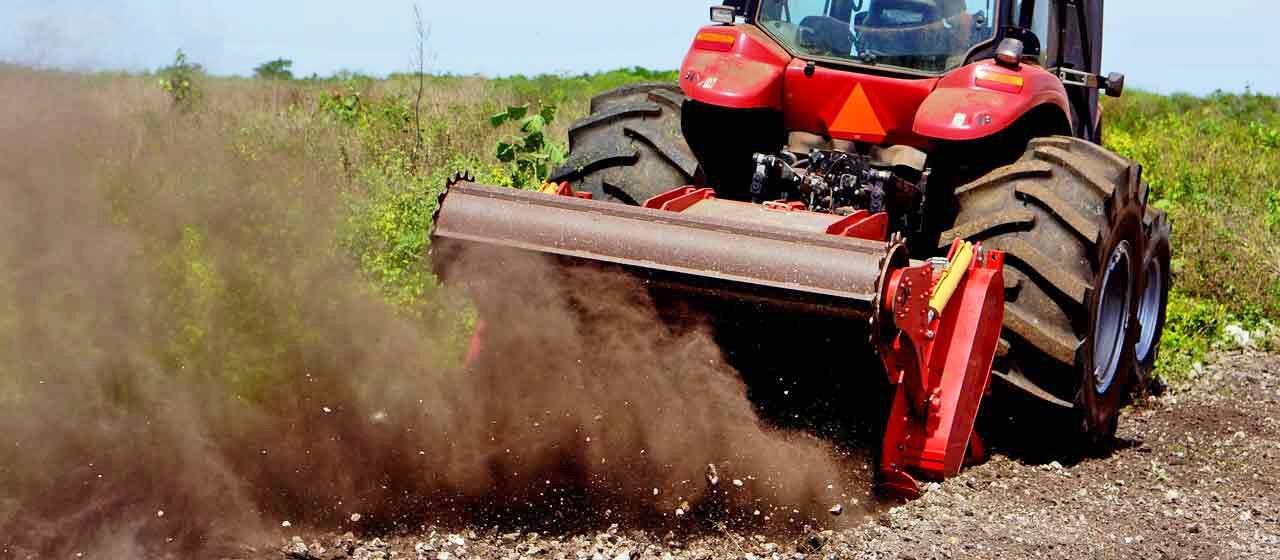

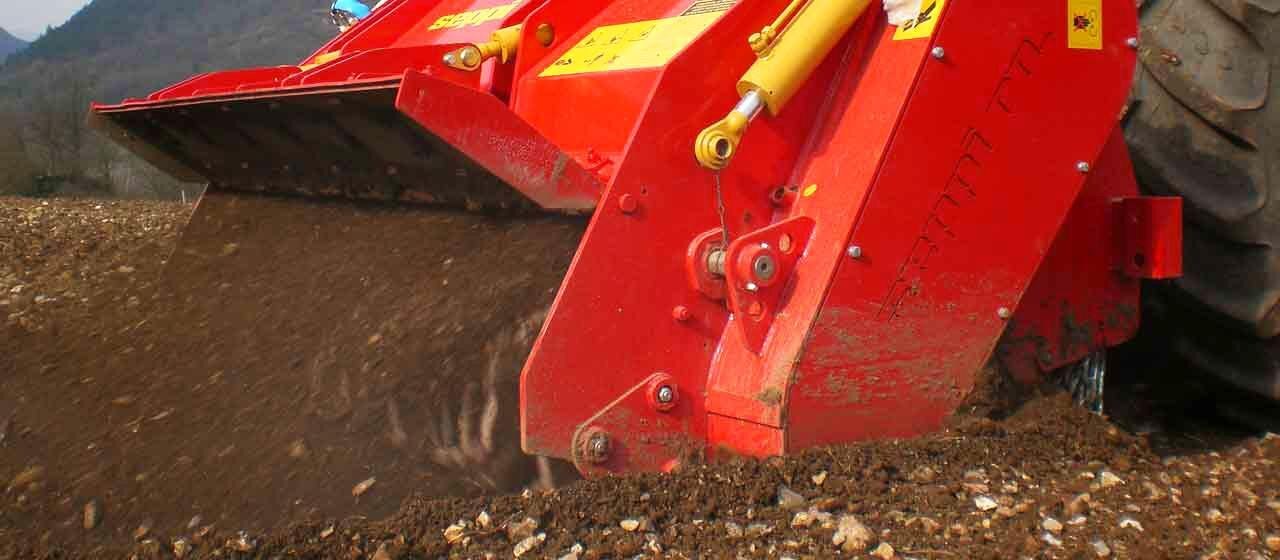

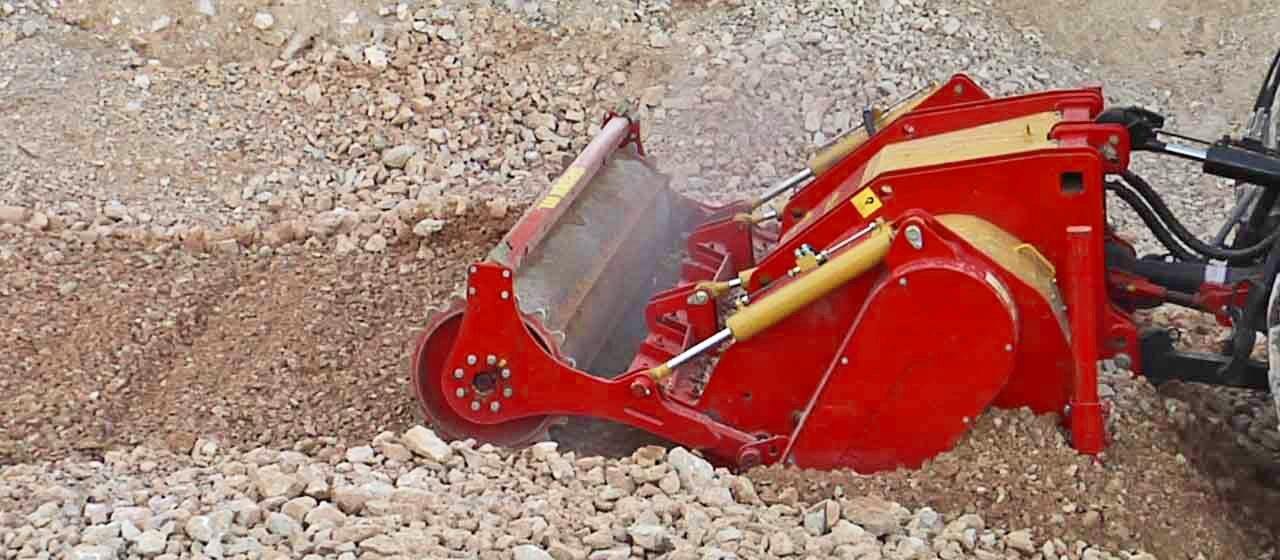

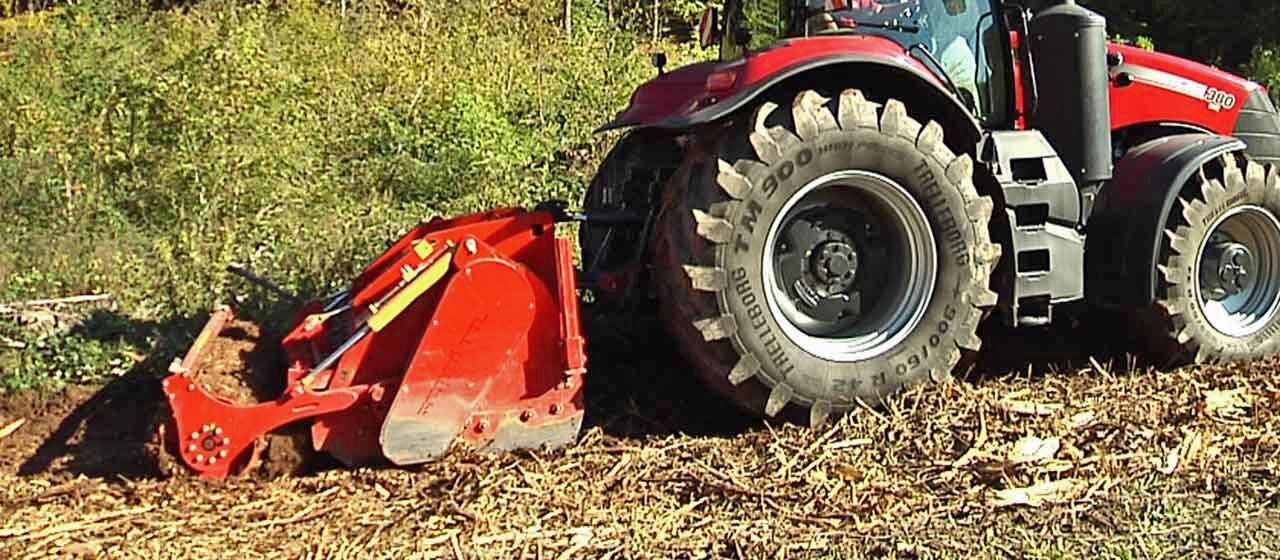

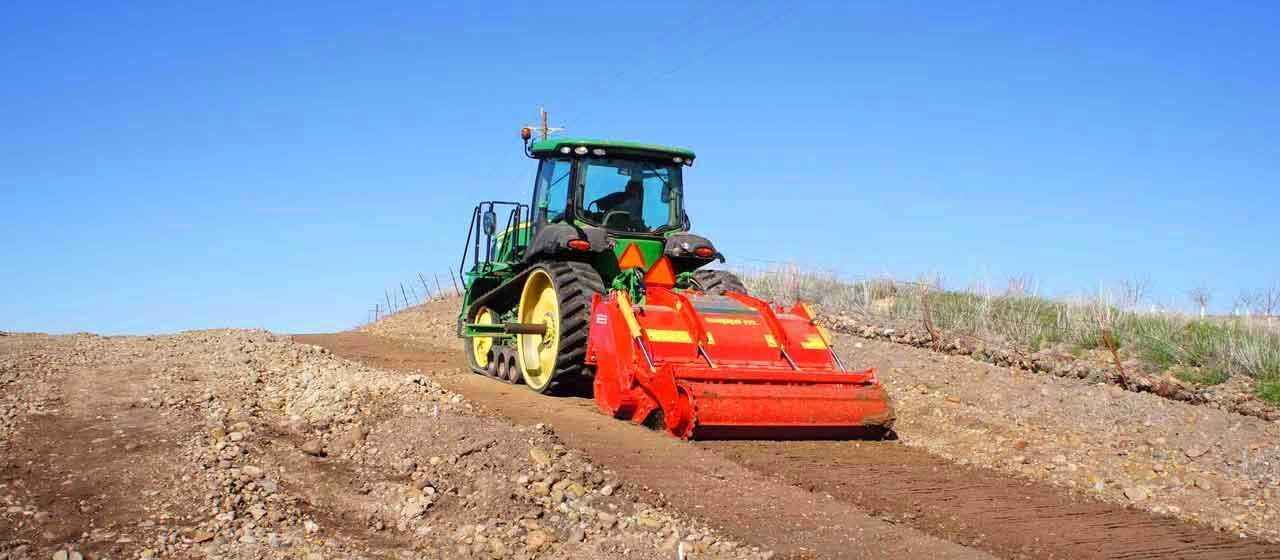

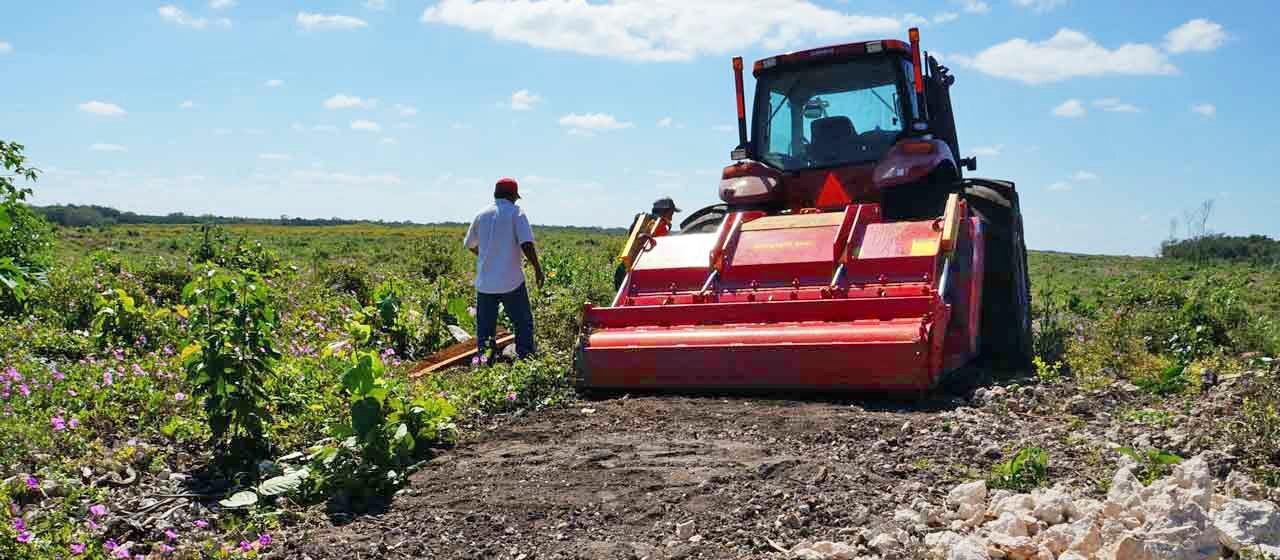

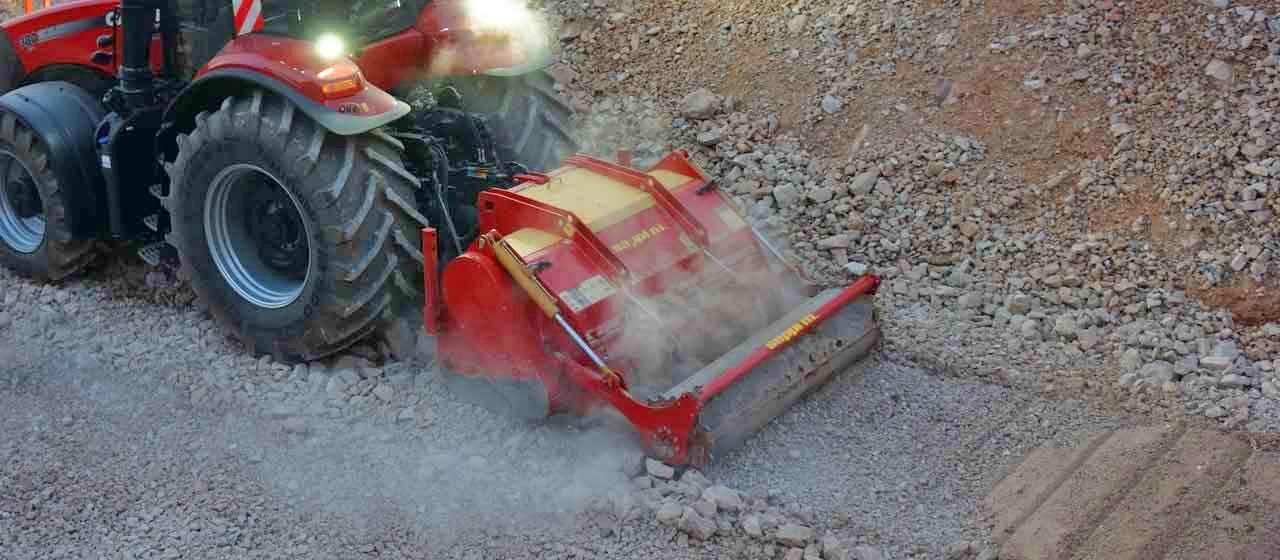

stone crusher - forestry tiller 250-390 HP

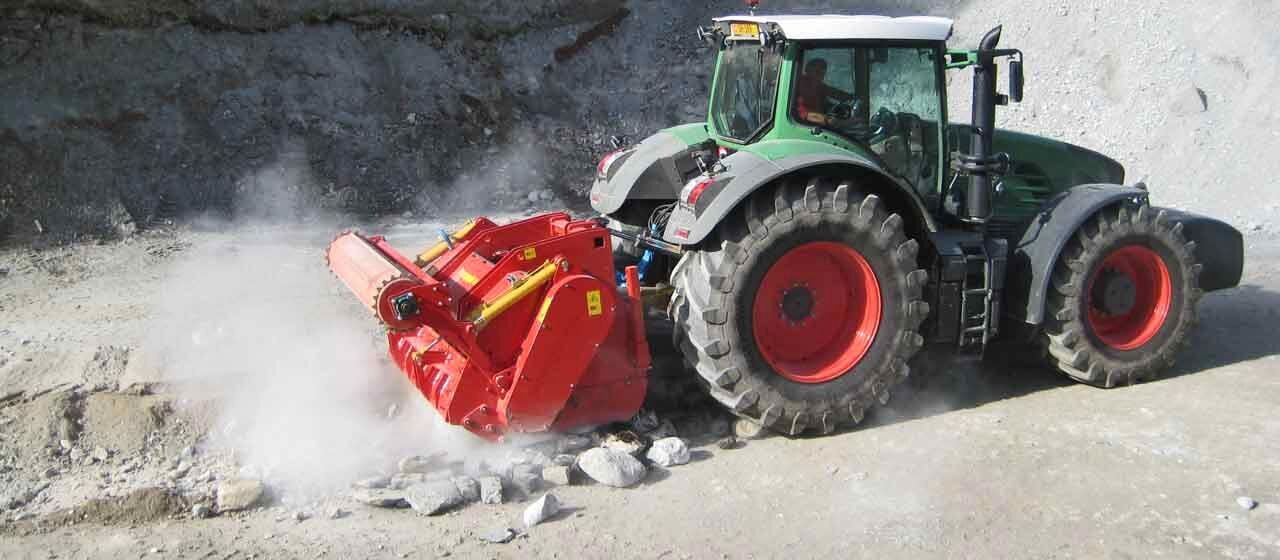

  • Crushes stones up to 40 cm [16”] Ø
  • Mulches wood up to 50 cm [20”] Ø
  • Tills the soil as deep as 30 cm [12”]
  • ADAM™ alignment system


SEPPI Forestry tiller and soil stabiliser SUPERSOIL = more power, more lifetime, more productivity! May also till the soil at depth and mulch woods and grind stumps.

Basic SUPERSOIL features: Very strong frame, for a very long life with reinforced frame made of wearresistant steel AR400; Chassis with internal replaceable plates. New generation patented rotor V-LOCK with efficient combination of tungsten carbide tips hammers the new type, ULTRA MONO PROTECT + MONO & ULTRA MONO EXTREME. Hydr. operated compacting roller for depth control, may also be used as guard frame. Hydraulic controlled roller (option): down as compacting roller / depth control, up usable as guard frame. CARBONCHAIN gear belts provide high strength and length stability with high flexibility.

The SUPERSOIL innovative ADAM™ alignment system for PTO shaft is in standart version, to improve the adaptation of the machine to the soil. This feature of "angular compensation" is used to protect the cardan shaft and the tractor PTO from unnecessary stress caused by differences in soil.

SUPERSOIL - the powerful stone crusher and soil tiller incorporates the finely mulched material into the soil, where it will easily decompose. Even stones as large as 40 cm [16“] may be processed easily. The more passes, the finer the material. Usually, however, one pass already satisfies the user.

Available working width: 225, 250 cm [89", 98"].
APPLICATION
  • Crush stones on roads, farms and other areas;

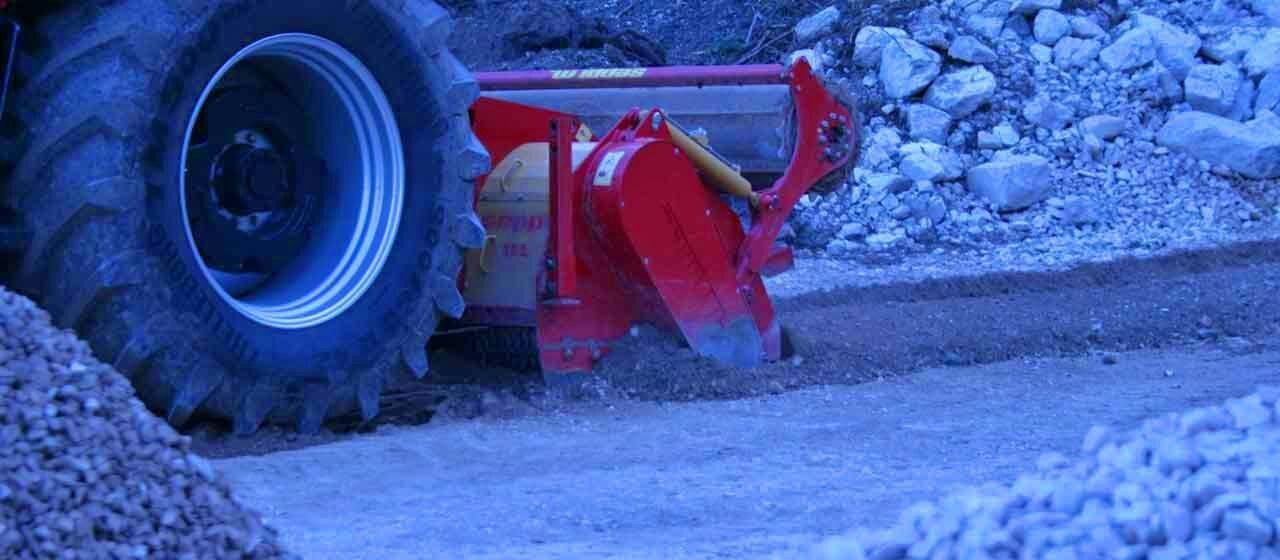

  • Create and maintain gravel roads;
  • Maintaining of power and communication lines
  • Grind building rubble on construction sites;
  • Rip and remove old layers of tarmac;
  • Reclaim land for agricultural use;
  • Improve arable fields and other land;
  • Prepare soil for (re)planting;
  • Clear forests after harvesting wood
  • And much more...
 STANDARD VERSION
  • Crushes stones up to 40 cm [16”] Ø
  • Mulches stumps and roots up to 50 cm [20”] Ø
  • Tills the soil as deep as 30 cm [12”] and deeper, depending on the working conditions

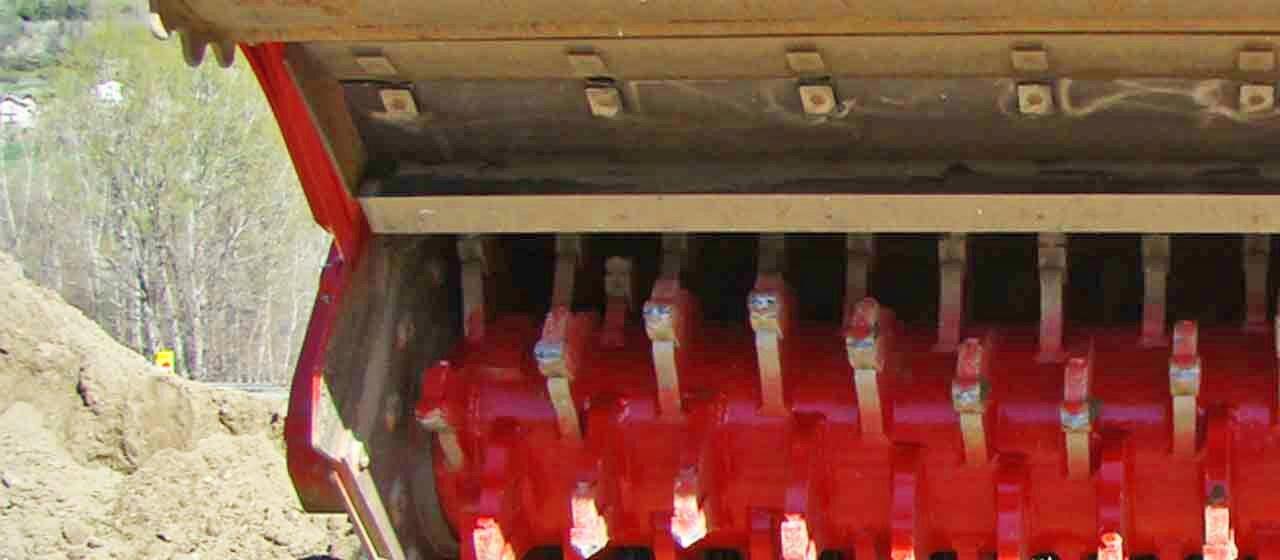

  • Rotor V-LOCK: combination of tungsten carbide tips hammers ULTRA MONO PROTECT + MONO & ULTRA MONO EXTREME
  • Antiwear knife supports
  • Bolt-on-rotor shaft
  • Working speed 0–2 km/h
  • ISO 3-point rear linkage cat. 3 central fixed
  • Gearbox 1000 rpm
  • Input shaft: 1 3/4” Z=20
  • Dual side CARBONCHAIN gear belt drive
  • ADAM™ alignment system - Hydraulic tilting of the mulcher with PTO shaft alignment while keeping equal and W-shaped PTO shaft angles
  • Hydraulically operated hood
  • Adjustable anvil bar & crushing grid to adjust the degree of crushing
  • Chassis made of wear-resistant steel AR 400 with replaceble wear plates
  • Narrow in-depth skids

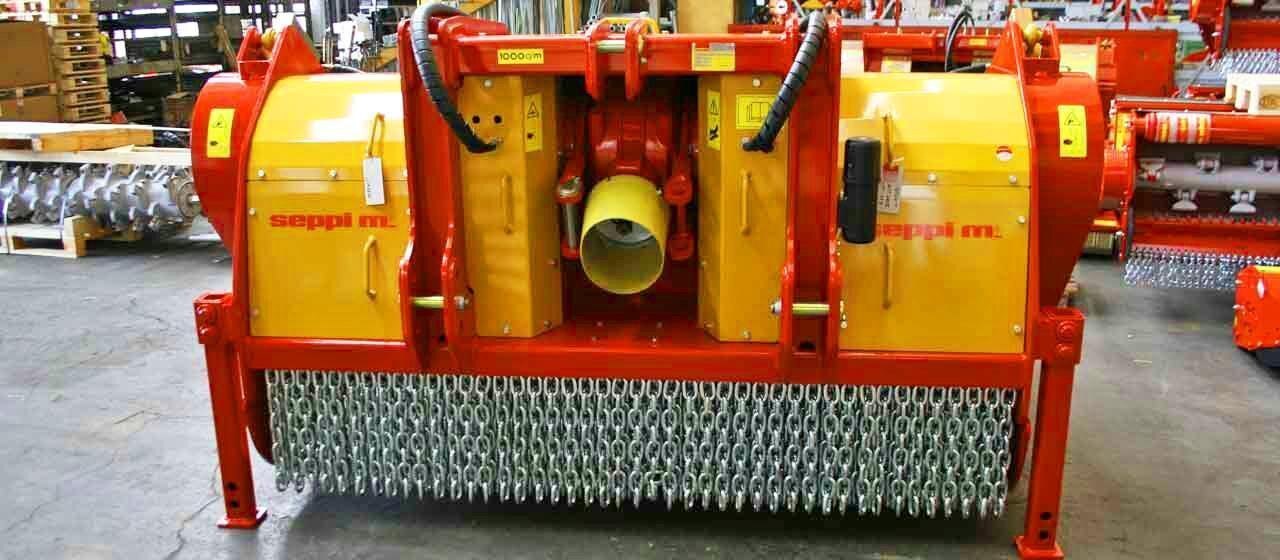

  • Protection: double chains
  • Colour: red RAL 3020
 OPTIONS
  • PTO drive shaft

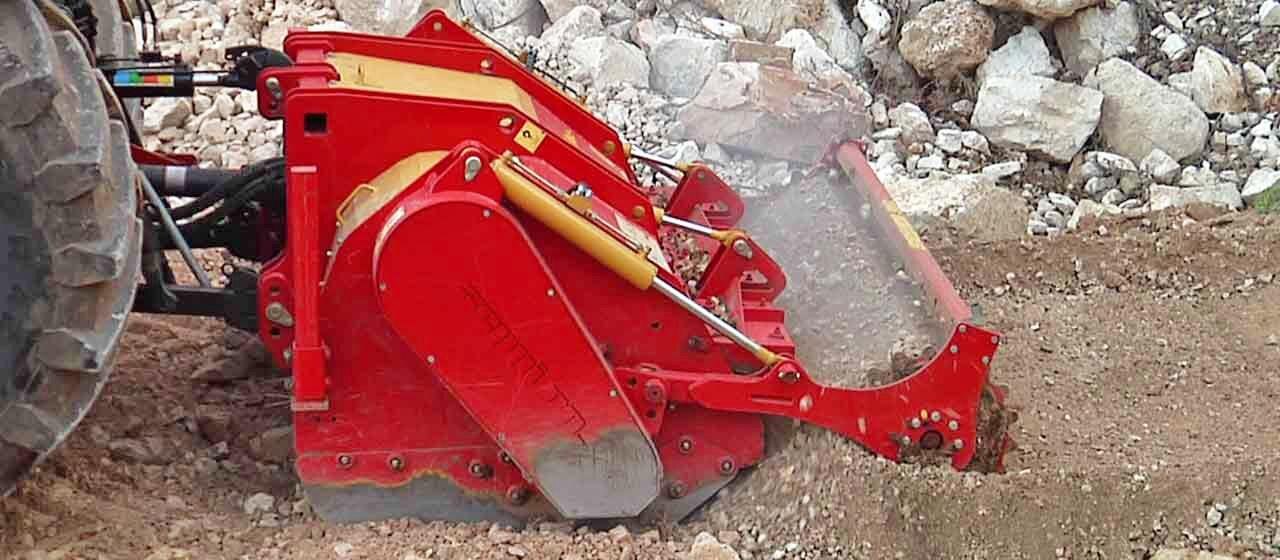

  • Hydr. operated compacting roller, also suitable for depth control
  • Skids with dig in leading edge
Specifications
Model
SUPERSOIL
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Seppi
