Overview
universal stone crusher 100-170 HP

  • NEW universal STONE CRUSHER and tiller!

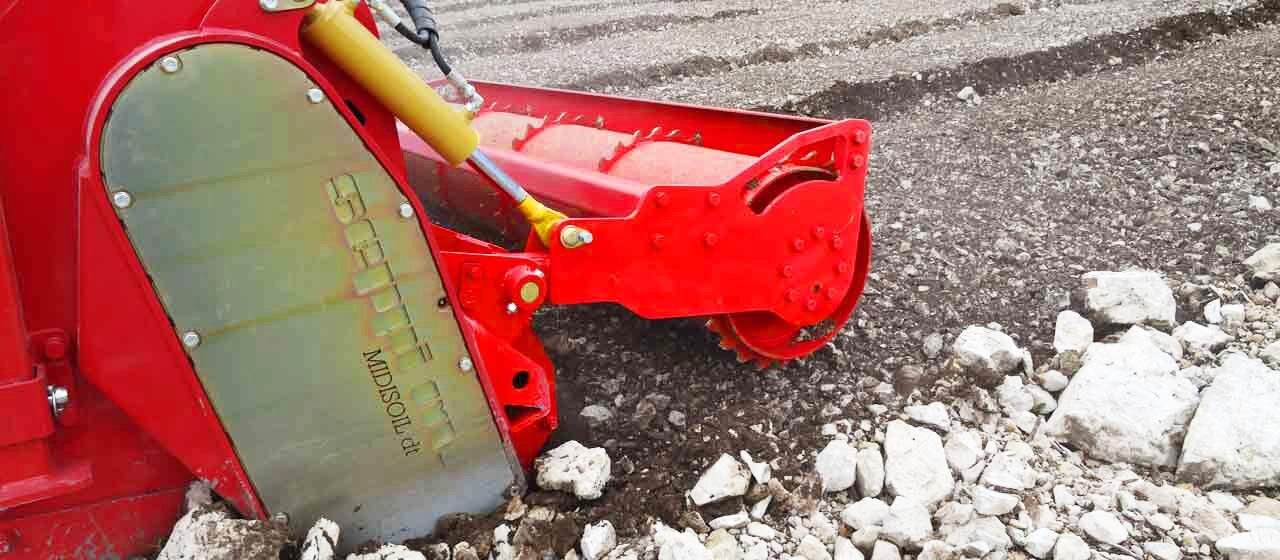

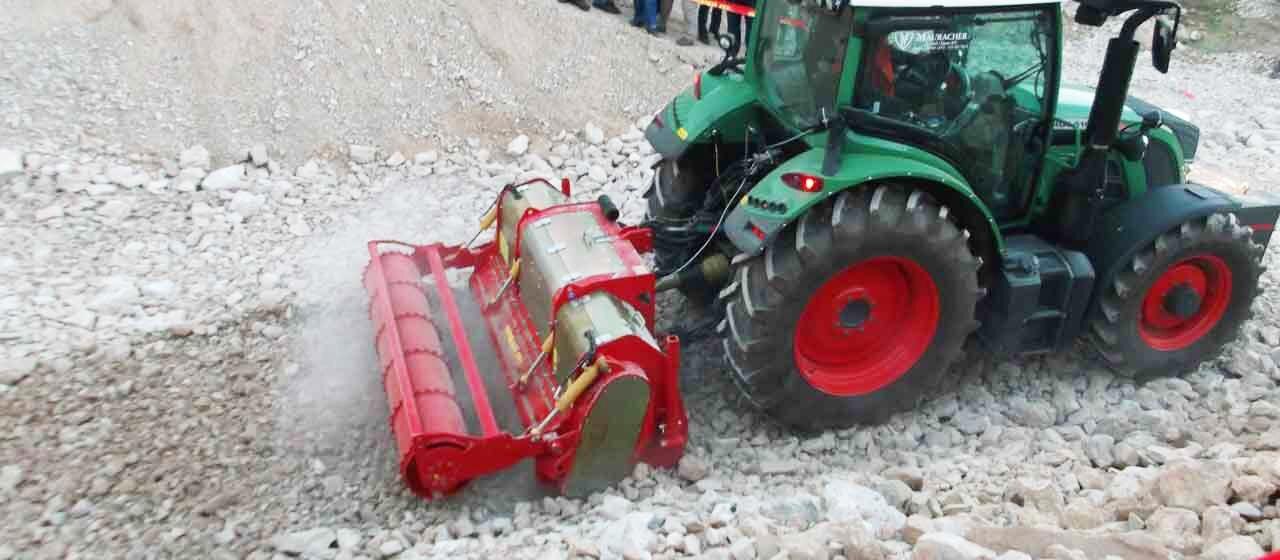

  • Crushes stones up to 25 cm [10”] Ø

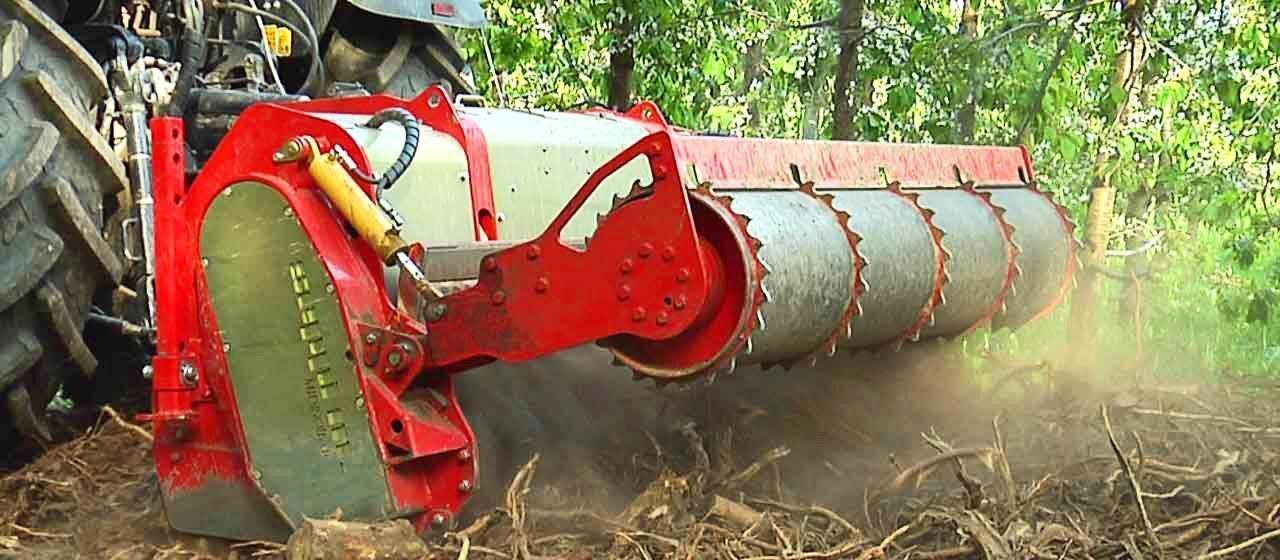

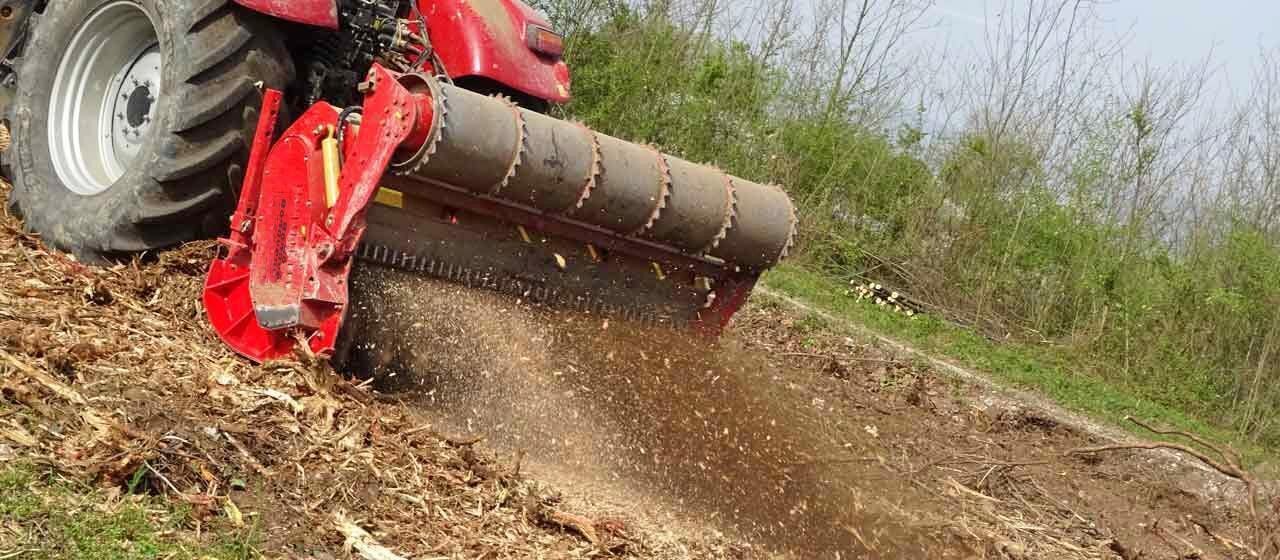

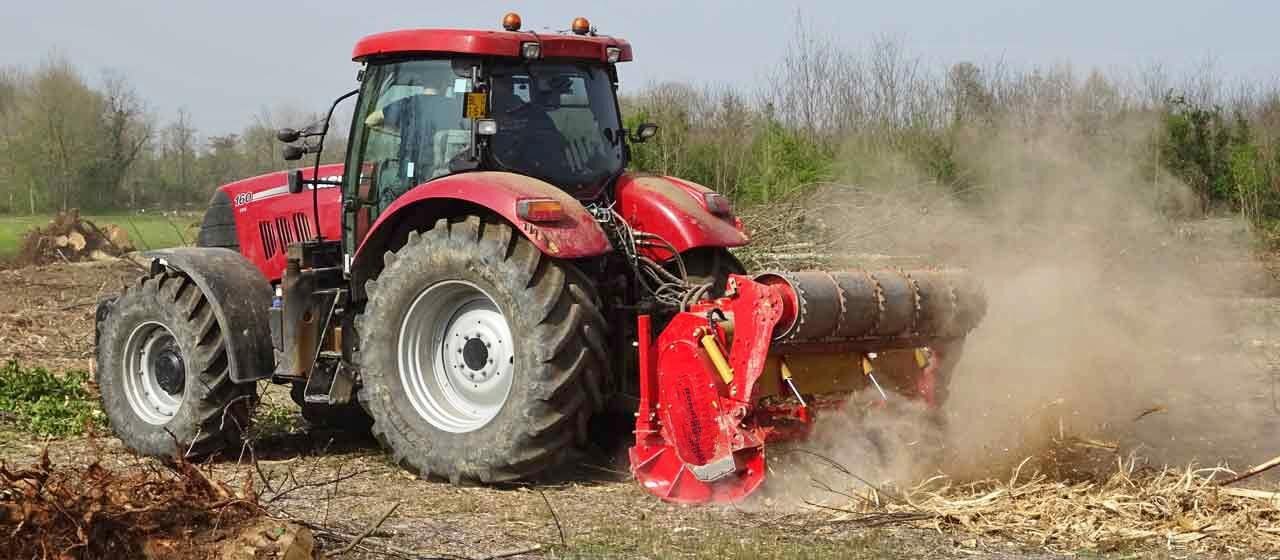

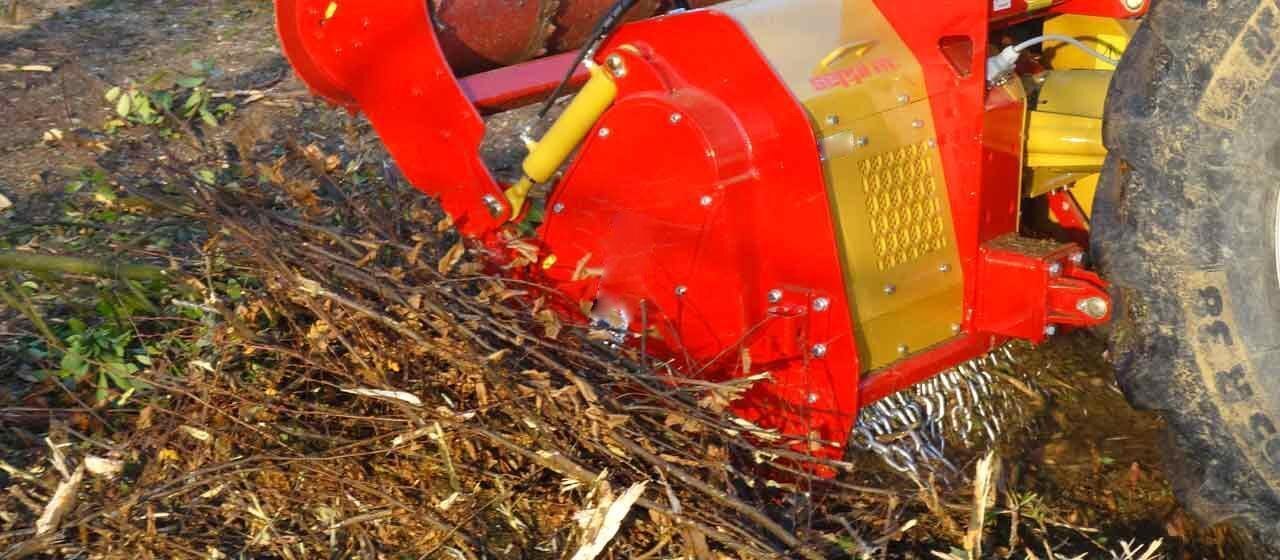

  • Mulches wood up to 25 cm [10”] Ø

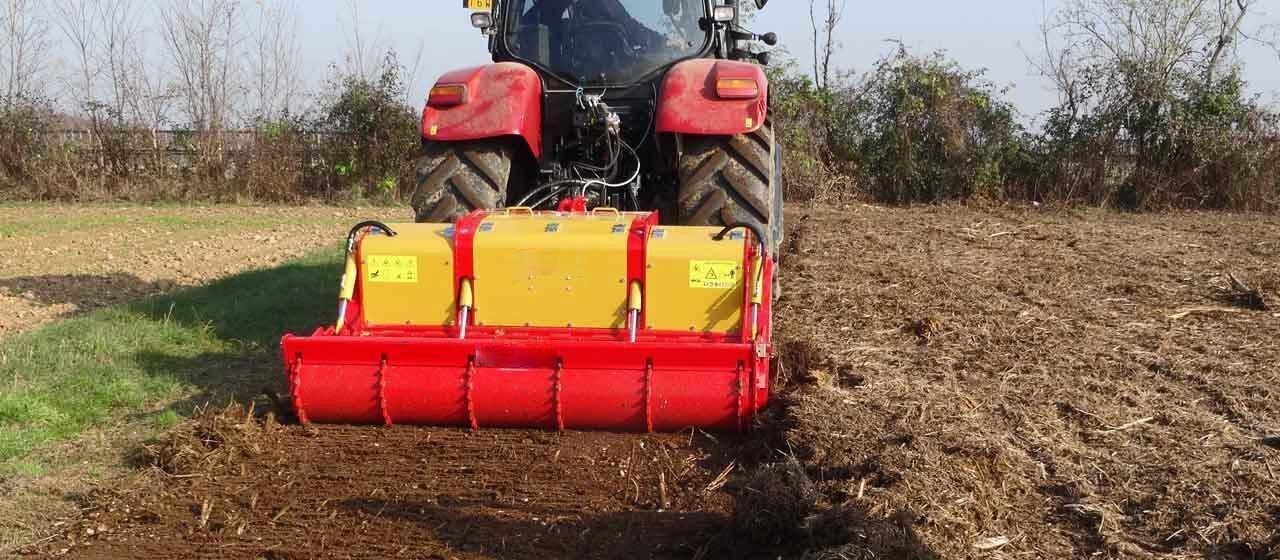

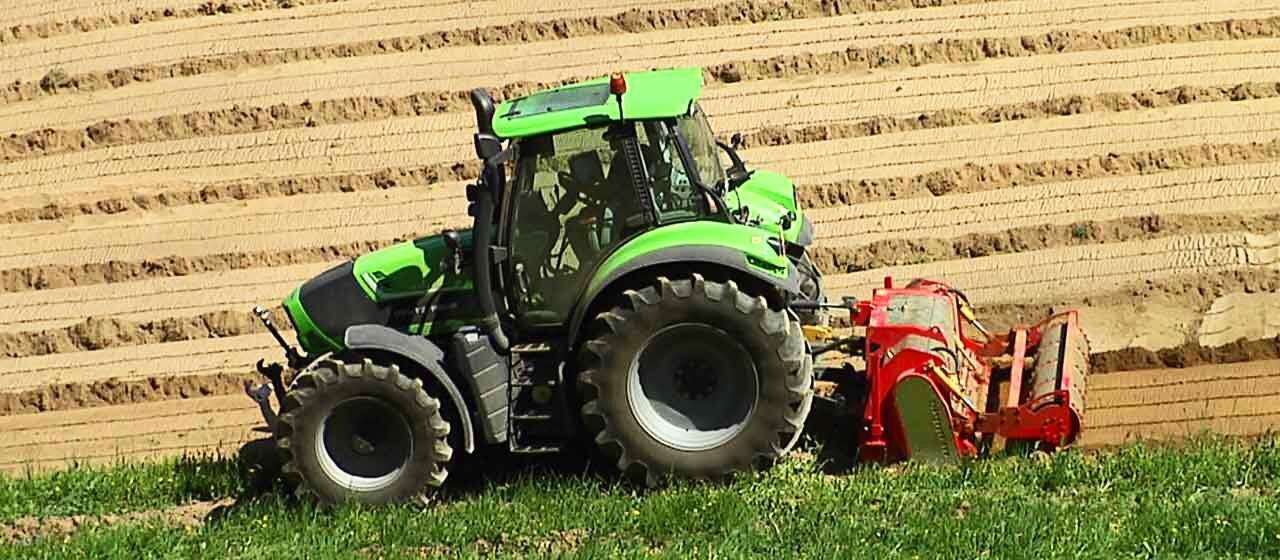

  • Tills the soil as deep as 25 cm [10”]

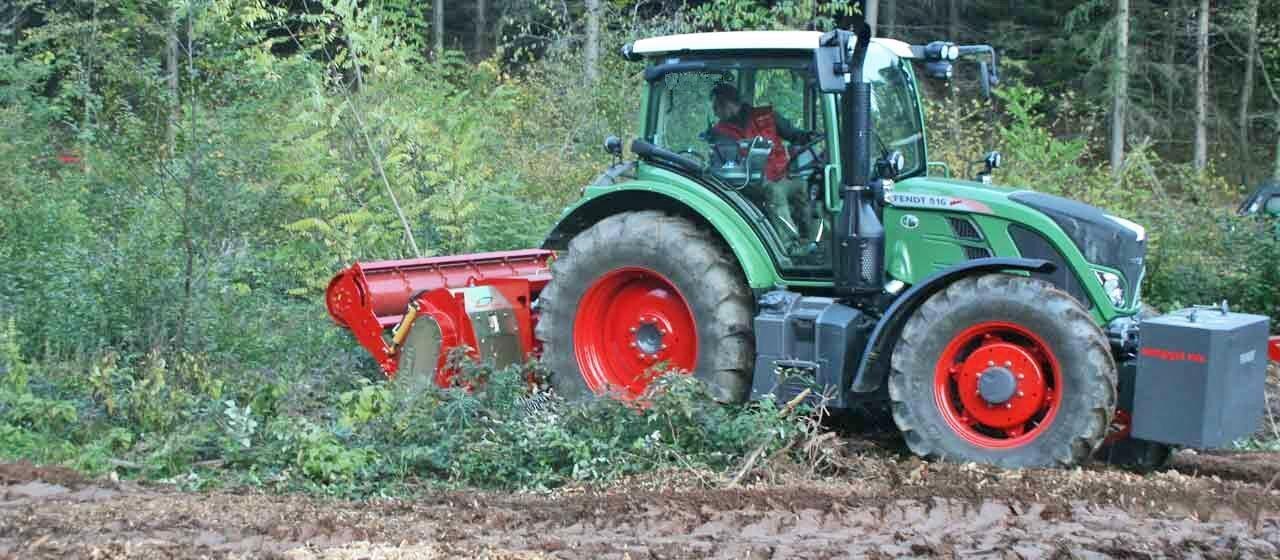

With the NEW universal STONE CRUSHER and soil tiller MIDISOIL dt - the little brother of the STARSOIL, you can do many things: crush rock, stabilize the soil, grind stumps, mulch wood, and recycle paving material.

The MIDISOIL dt is an new multifunctional crusher-tiller-mulcher for middle PTO-tractors. It comes with a new, innovative two-option linkage hitch, with a stronger transmission and additional crushing bars.

It features:

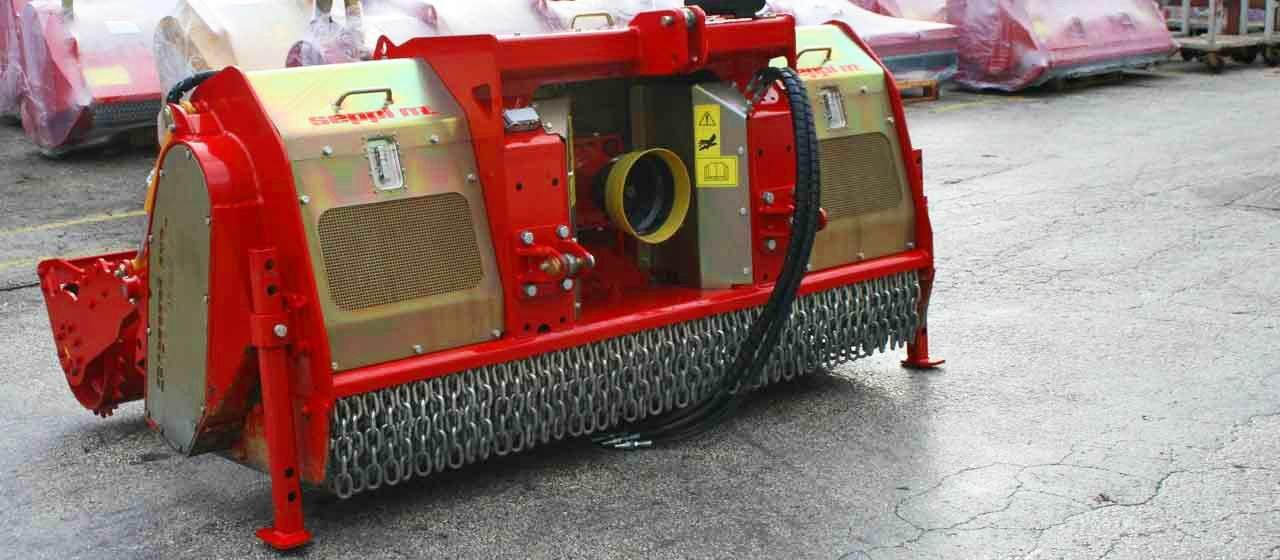

Reinforced frame made of wear-resistant steel for a very long life
Chassis with internal replaceable plates.
Row of tempered counter knives for a perfect crushing result
New generation patented rotor with efficient tool combination of the new type, SUPER MONO PROTECT™ and SUPER MONO EXTREME™ with additional tungsten carbide inserts at points most subject to wear.
Anti-wear knife supports.

MIDISOIL dt can work at 1000 rpm with 1 or 2 speeds. That means that the rotor system can be changed depending on the job from approx. 1000 rev/min (mulching wood) to 540 rev/min (for stone crushing and soil tilling) maintaining the speed of the PTO shaft of the tractor at 1000 rev/min.This feature allows for a higher torque and hence better processing both during mulching wood (fast pace) and milling rocks and soil (slow pace).

In the 2 speed version the MIDISOIL dt is (225 and 250 cm working width) equipped with an ADAM™ alignment system - hydraulic tilting of the mulcher with PTO shaft alignment while keeping equal and W-shaped PTO shaft angles. This prevents damage to the PTO shaft and supports an ideal adjustment to the conditions of the ground -> faster working, better results, longer lifetime of the PTO shaft, and higher lifting.

Available working widths: 175, 200, 225, 250 cm [69", 79", 89", 99"].
APPLICATION

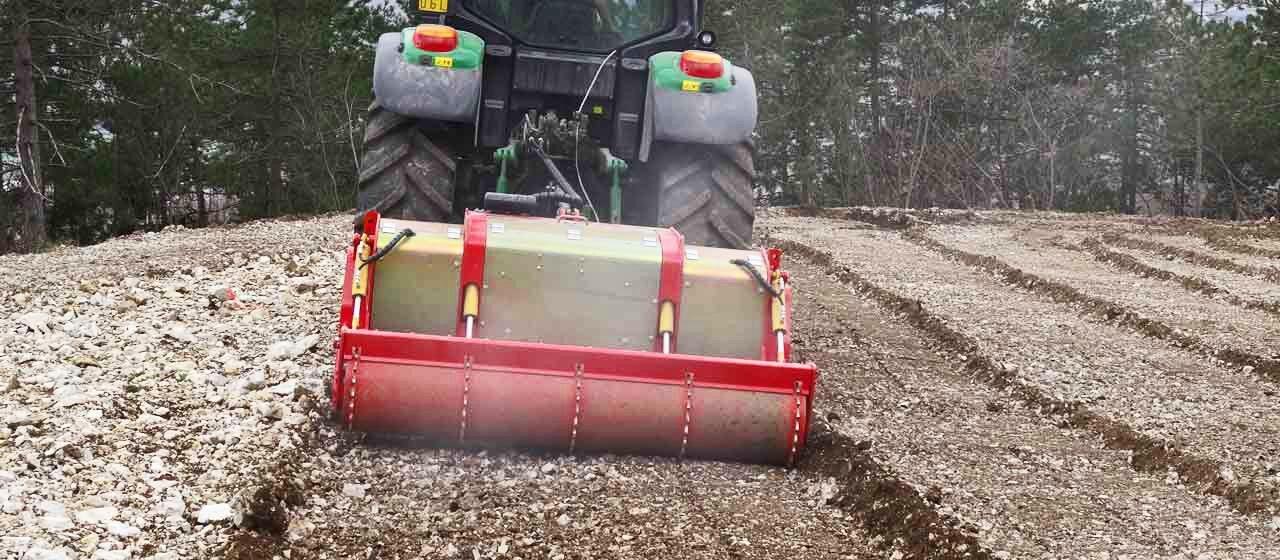

  • Crushing stones on roads, farms and other areas
  • Creating and maintaining gravel roads
  • Land clearing for the oil and gas industry
  • Maintaining power and communication lines
  • Improving arable fields and other land
  • Preparing soil for (re)planting
  • Vegetation management
  • Clearing forests after harvesting wood
  • Right-of-way clearing
 STANDARD VERSION
  • Crushes stones up to 20 cm [8”] Ø

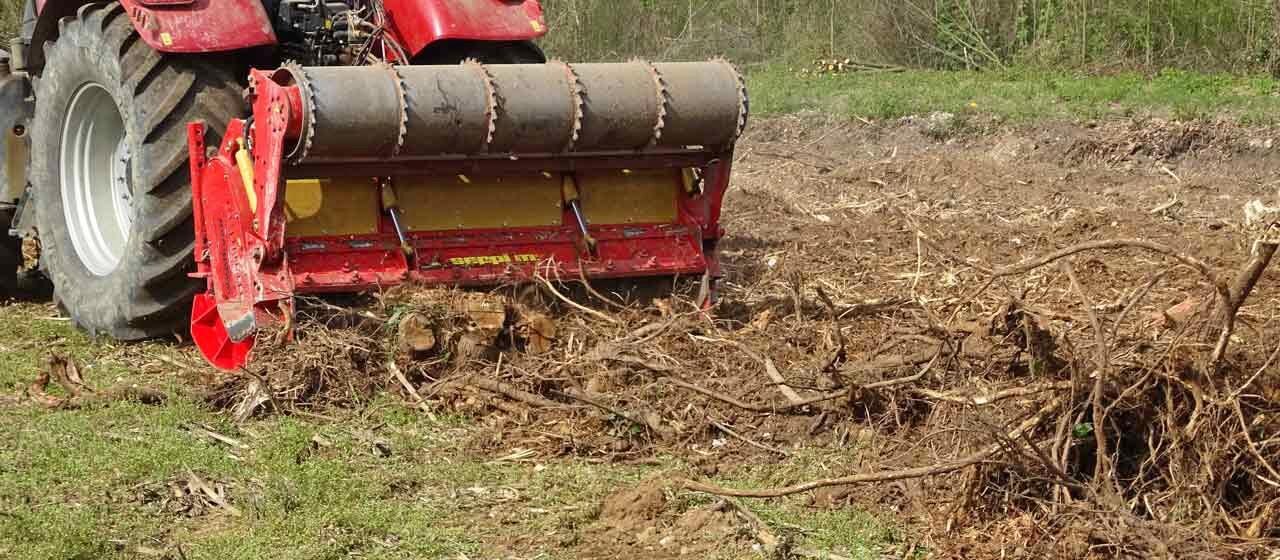

  • Mulches wood and stumps up to 30 cm [12”] Ø
  • Tills the soil as deep as 20 cm [8”] and deeper, depending on the working conditions
  • Rotor combination of tungsten carbide tips hammers SUPER MONO PROTECT™ + SUPER MONO EXTREM™ with anti-wear knife support
  • Bolt-on-rotor shaft
  • Working speed 0–2 km/h
  • Required creeper gear: max. 0,5 km/h
  • ISO 3-point rear linkage cat. 3 central fixed
  • 1000 rpm gearbox
  • Input shaft: 1 3/4” Z=6
  • Double drive with parallel gear transmission and integrated cooling circuit
  • Integrated torque limiter
  • Hydraulically operated hood with grader blade
  • Adjustable anvil bar & crushing grid to adjust the degree of crushing
  • Replaceable anti-wear chassis
  • Narrow in-depth skids
  • Protection: double chains
  • Colour: red RAL 3020
 OPTIONS
  • PTO drive shaft
  • 2 SPEED gear + ADAM™ alignment system - Hydraulic tilting of the mulcher with PTO shaft alignment while keeping equal and W-shaped PTO shaft angles
  • (available for 225 and 250 cm working width)

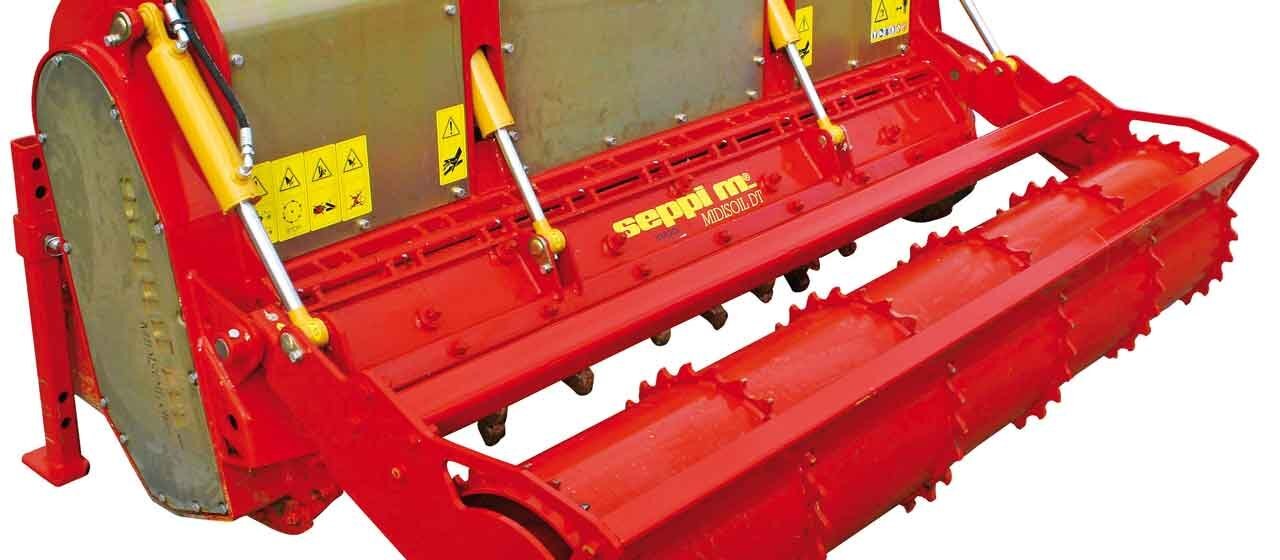

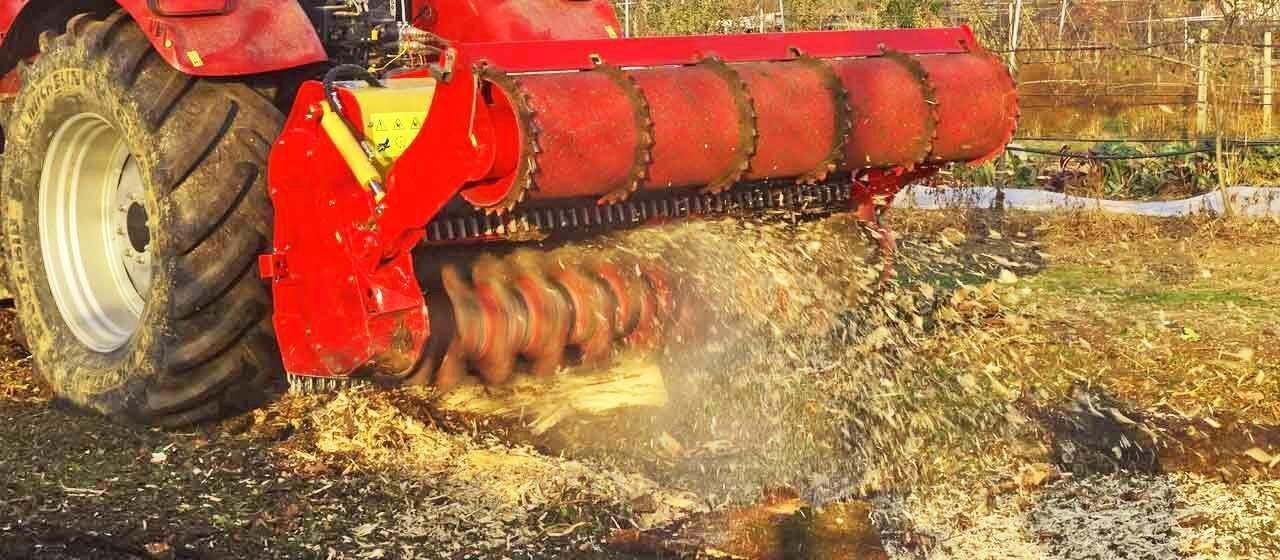

  • Hydraulically operated compacting roller for depth control, may also be used as guard frame
  • Adjustable grader blade
  • Skids with dig in leading edge
Specifications
Model
MIDISOIL dt
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Seppi
