Seppi SMWA s

Videos
Call for Price
Overview

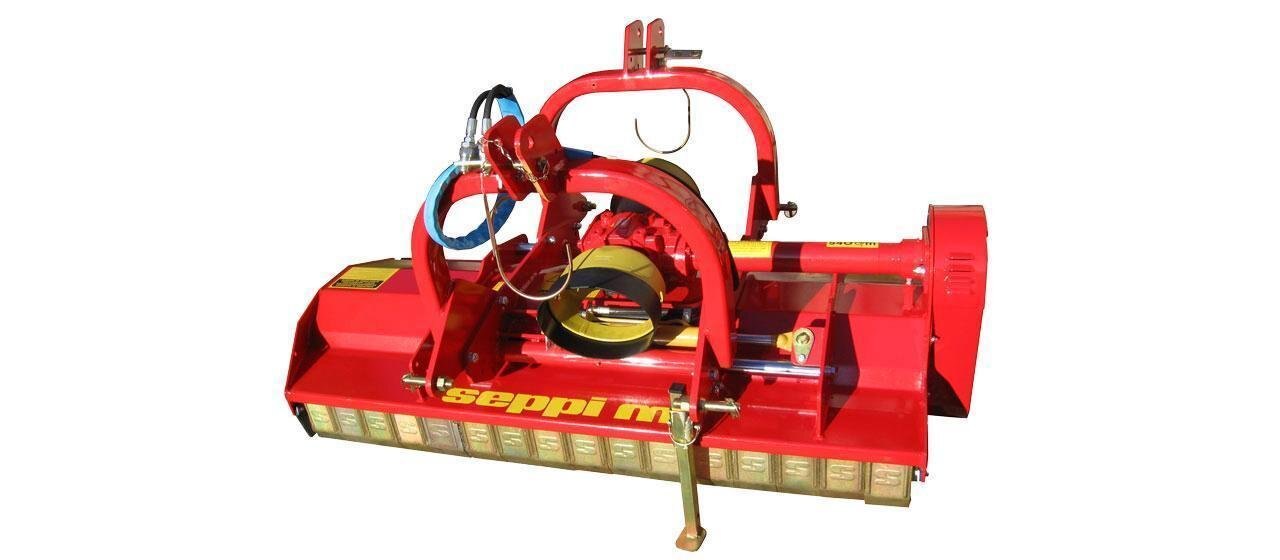

SMWA s

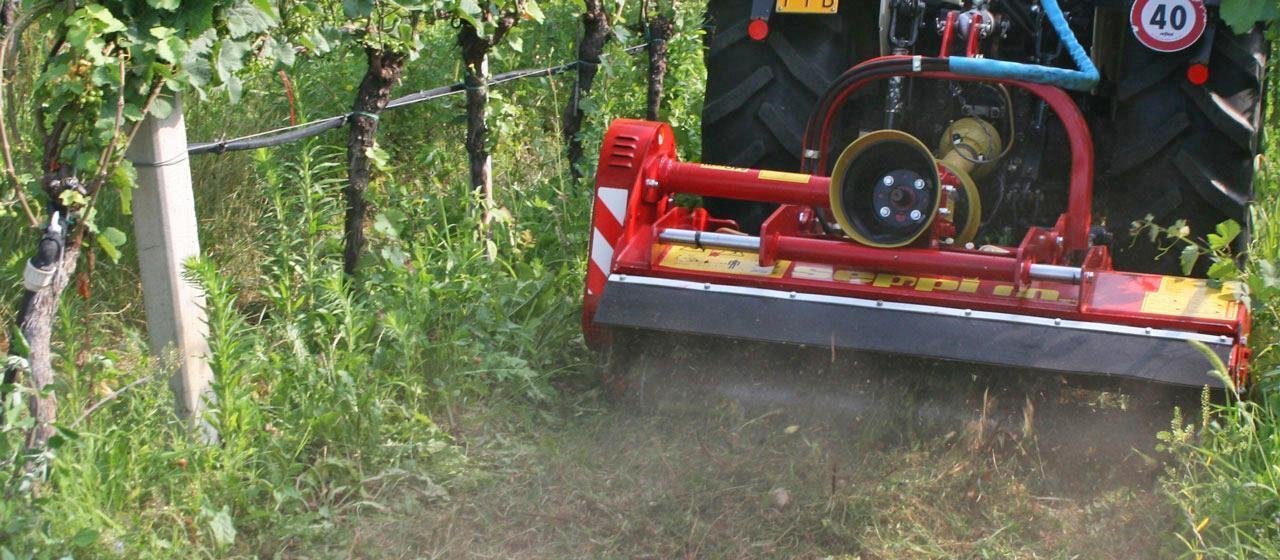

flail mulcher for PTO/Tractor 30-90 HP

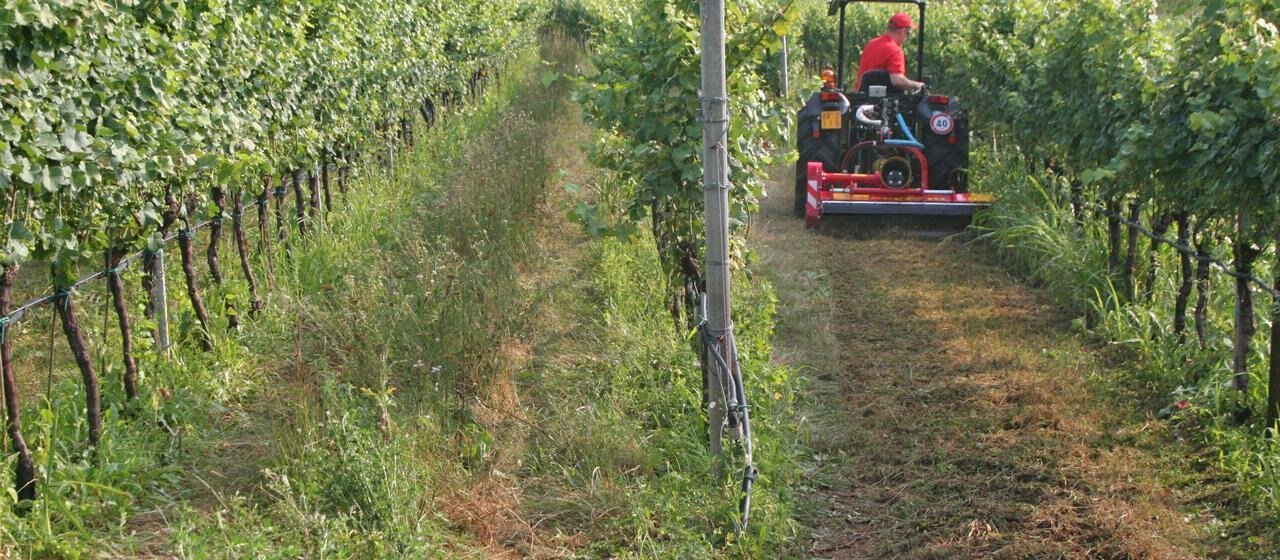

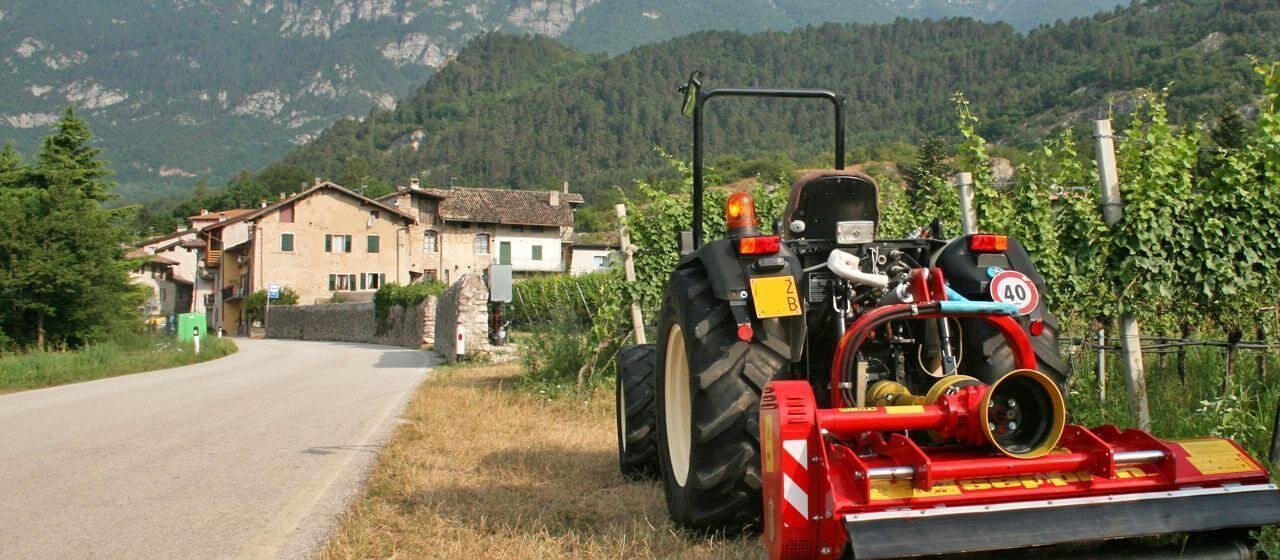

  • Mulching mower for orchards and vineyards.
  • Mulches grass and prunings up to 5 cm [2"] Ø
  • In agriculture for vineyards and orchards or greenspace maintanance

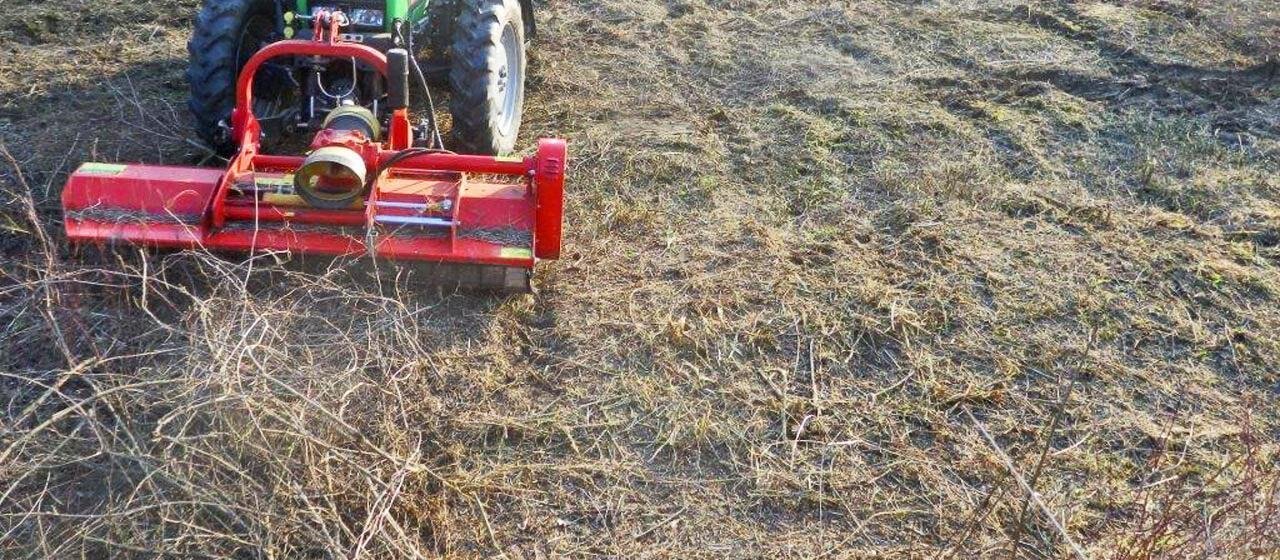

Agriculture or greenspace maintenance easy with the 30-90 HP tractor and the strong flail mower SMWA s. This versatile mulcher is available available in different working widths up 105 [41"] to 200 cm [79"]. Mulching grass, prunings and bushes up to 5 cm [2"] in diameter.

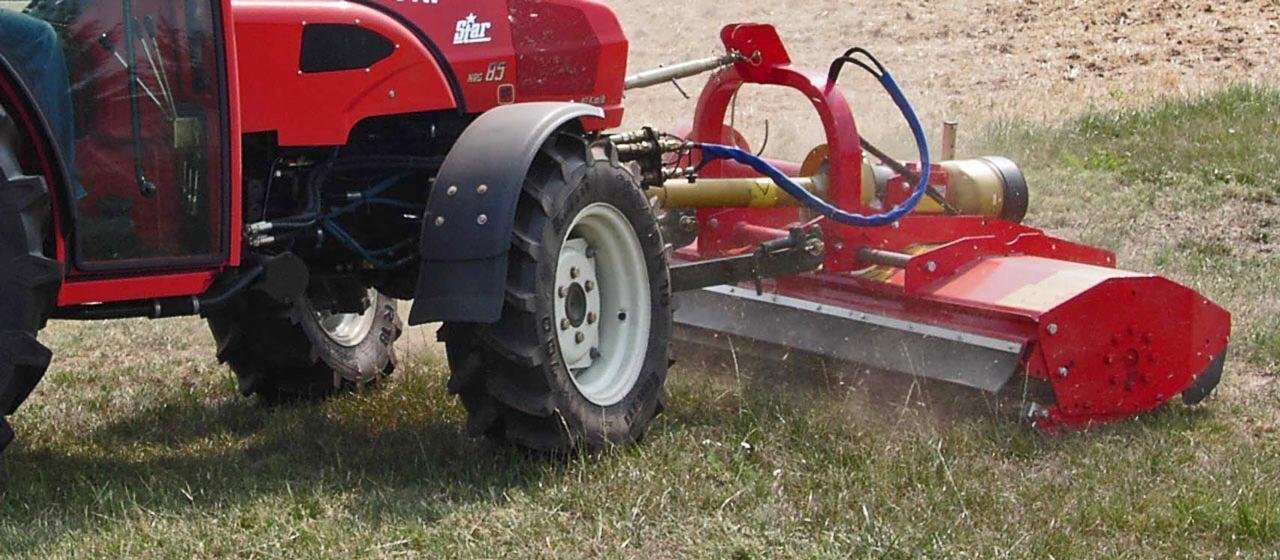

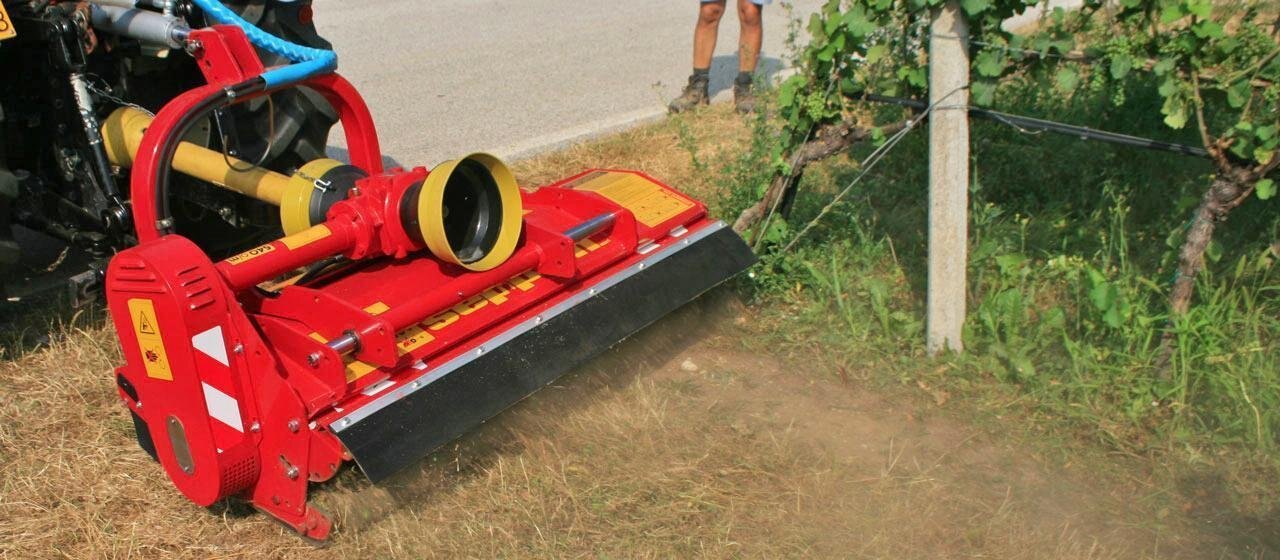

The PTO/Tractor mulcher SMWA s can be shifted to the right up to a maximum of 27 cm [10.6"]. The hyd. side shift is linear and works even while the machine is mowing, with hydraulic control from the tractor seat. The reversibility of this mulcher makes possible to fit the machine on the front or back of tractor.

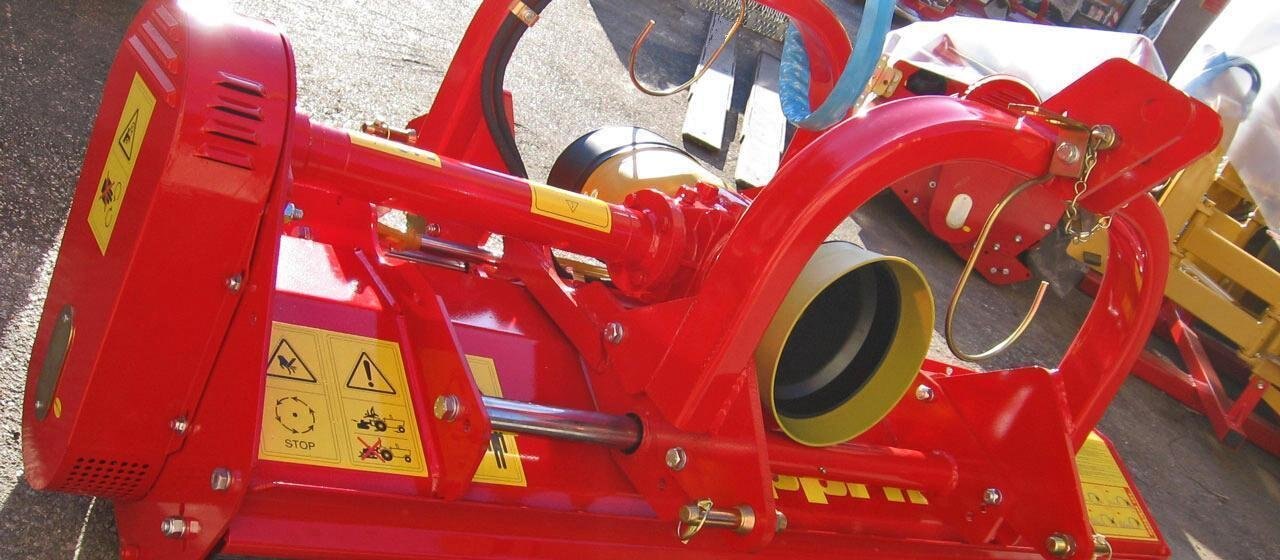

Helical distributed and high resistent SMW-flails for universal use are for high cutting quality at uniformly distributed power. SMWA s casing is very resistent, made of high-tensile steel. Double counterknives inside the casing will give a perfect result when mulching. Adjustable roller with double tapered roller bearings unit for a long life and the low maintenance costs. Adjustable roller is positioned close to the rotor improves mulching on uneven ground and prevents scalping.

Available working width: 105, 115, 125, 135, 145, 155, 175, 200 cm [41", 45", 49", 53", 57", 61", 69", 79"].
 STANDARD VERSION
  • mulches grass and prunings up to 5 cm [2”] Ø
  • standard rotor with SMW flails
  • working speed 3–10 km/h
  • ISO 3-point linkage cat. 1&2 central fixed reversible
  • manual side shift 17 cm [6.7”]
  • 540 rpm gearbox with freewheel and through shaft
  • input shaft 1 3/8” Z=6
  • belts: ≤ 155: 3, ≥ 175: 4

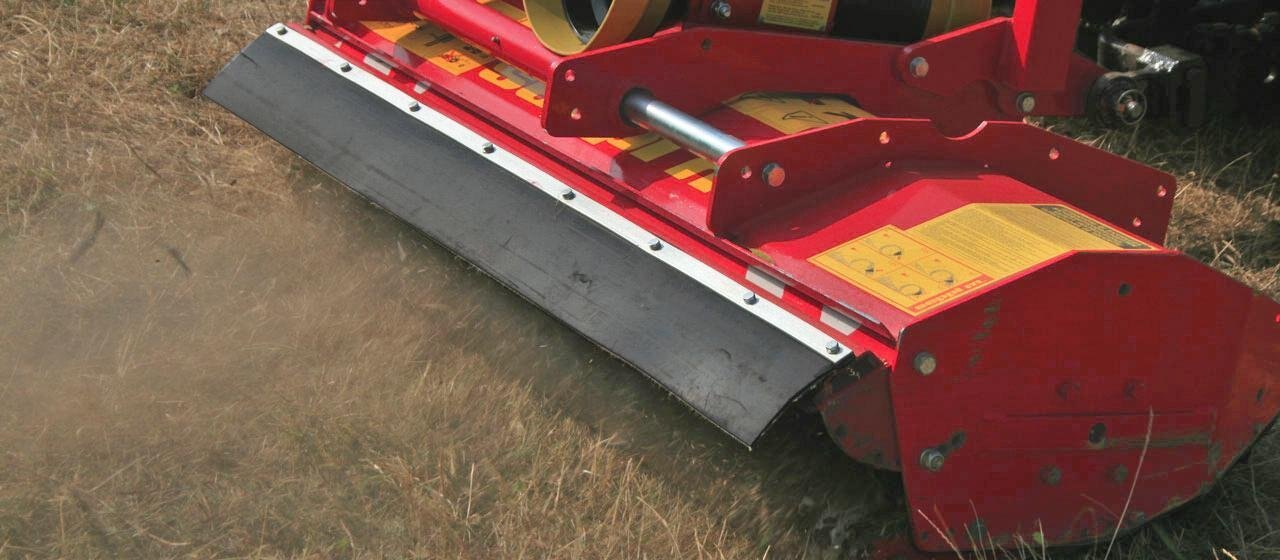

  • adjustable rear hood with rubber protection
  • front protection: metal flaps
  • reinforced support roller, adjustable in height by 5 cm [2”]
  • colour: red RAL 3020
 OPTIONS
  • PTO drive shaft
  • rotor with Y knives
  • 1000 rpm or 750 rpm gearbox
  • gearbox with automatic inverter and double freewheel
  • additional 3-point linkage frame
  • roller scraper
  • rake hood complete with rakes
  • metal front wheels
  • herbicide spraying system XID
  • X-FAST™ single or double -  coupling system   for under-canopy equipment





Specifications
Model
SMWA s
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Seppi
