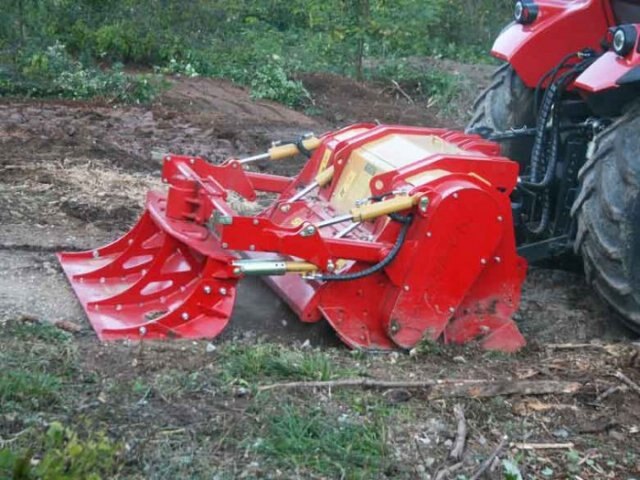

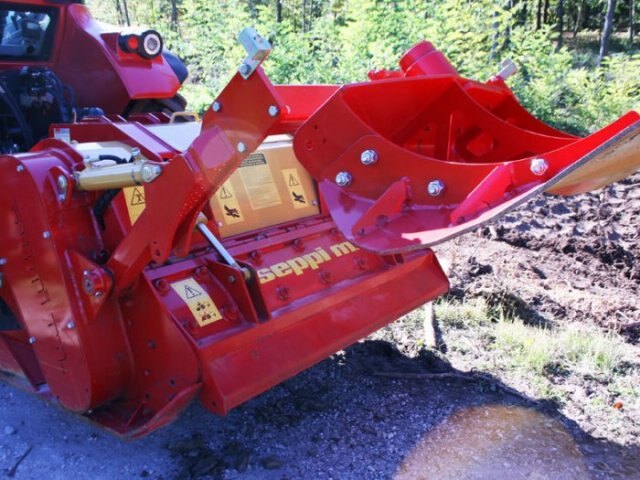

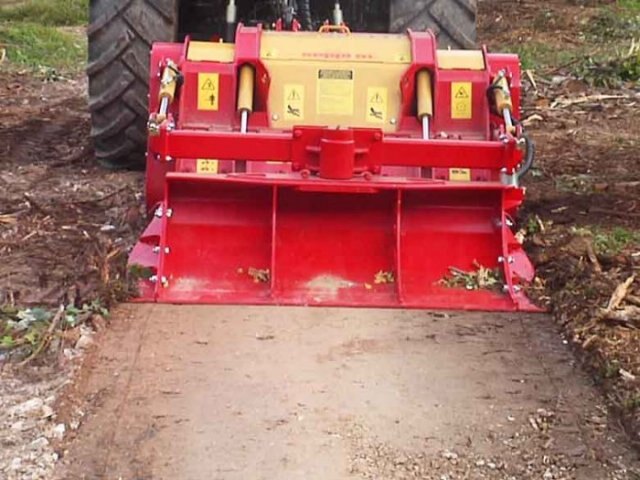

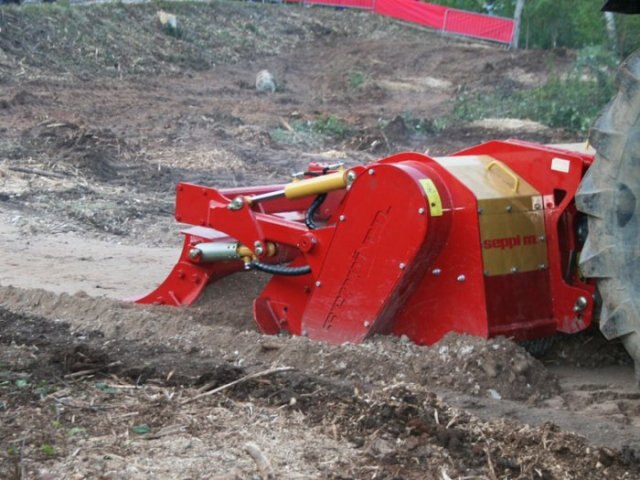

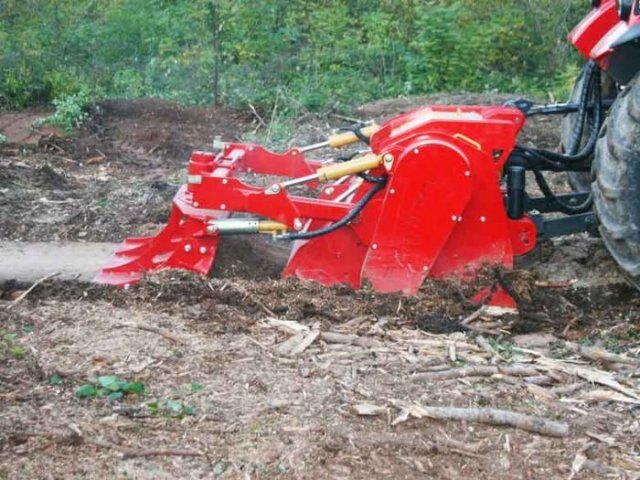

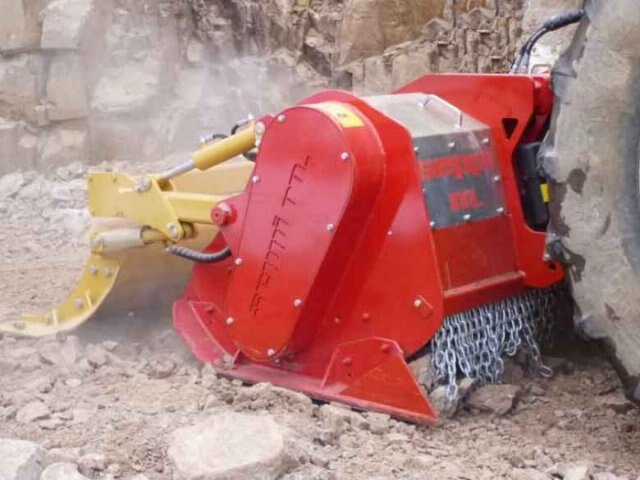

Seppi MidiPierre D/T Model

  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model
  • Seppi MidiPierre D/T Model

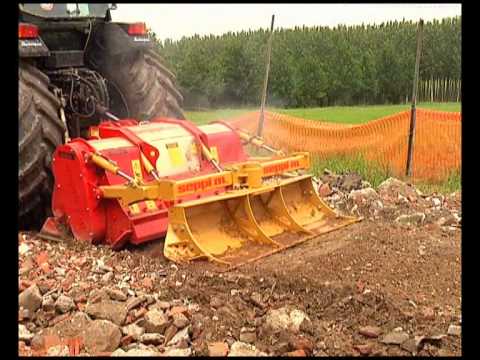

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
stone crusher
100-180 HP

The new rock crusher!

  • Crushes stones up to 20 cm [8”] Ø
  • Tills the soil as deep as 12 cm [4.7”]

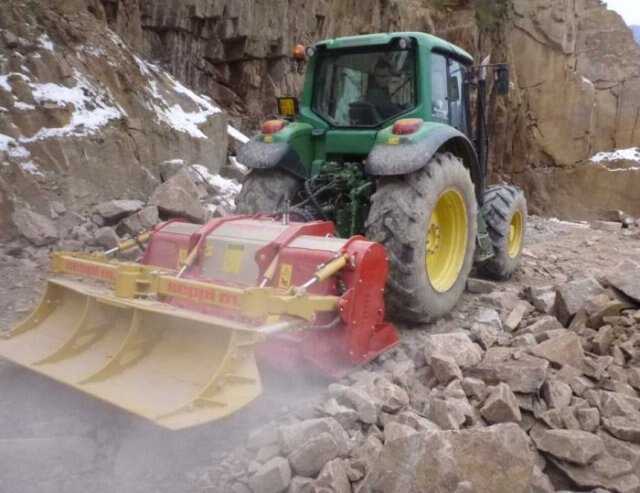

With this stone crusher you can do so many things: crush rock, stabilize the soil and recycle paving material as solid road base. Save huge material and material transport costs with this very efficient machine!

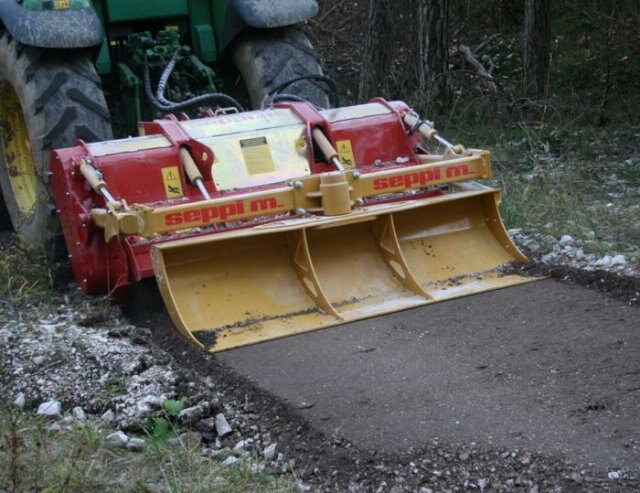

The MIDIPIERRE dt is an upgraded version of the former MIDIPIERRE way. It comes with a new, innovative two-option linkage hitch, with a stronger transmission and additional crushing bars. The highlight is a new and more inclinable grader blade with pressure gauge.  Very strong frame, for a very long life  with reinforced frame made of wear-resistant steel. Available with Grader blade (option) with hydr. height and rotation adjustment and hydraulic-pneumatic damping incl. lateral extensions.
New generation patented rotor with efficient tool combination of the new type, SUPER DUO PROTECT™ and   SUPER DUO EXTREM ™ with additional tungsten carbide inserts at points most subject to wear. Anti-wear knife supports.

Technical requirements for operating a stone crusher on a tractor are creep speeds (max. 0,5 km/h) and a hydraulic three-point tractor linkage.

Available working width:  150, 175, 200, 225 cm [59", 69", 79", 89"].
 APPLICATIONS
  • creation and maintenance of gravel roads
  • renewal of parking lots and other public areas
  • preparation of the soil on ski slopes
  • milling ice on roads
  • prepare soil for (re)planting
  • right-of-way clearing
  • brush on construction sites
 STANDARD VERSION
  • Crushes stones up to 20 cm [8”] Ø
  • Tills the soil as deep as 12 cm [4.7”] and deeper, depending on the working conditions

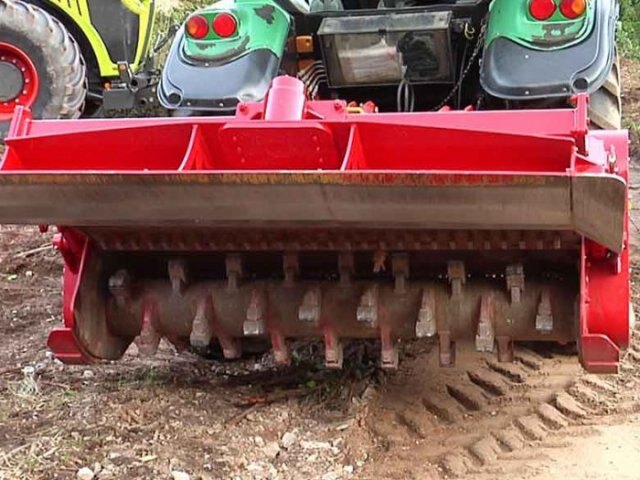

  • Rotor: combination of tungsten carbide tips hammers SUPER DUO™, anti-wear knife supports
  • Bolt-on-rotor shaft
  • working speed 0–2 km/h
  • cat. 2 central fixed ISO 3-point linkage - asymmetric for two attachment options
  • 1000 rpm gearbox
  • double drive
  • hydraulically operated hood
  • chassis with internal replaceable plates made of wear-resistant steel
  • adjustable anvil bar & crushing grid to adjust the degree of crushing
  • skids, adjustable in height
  • side skids for collecting material
  • front and rear protection: double chains
  • colour: red RAL 3020
 OPTIONS
  • PTO drive shaft

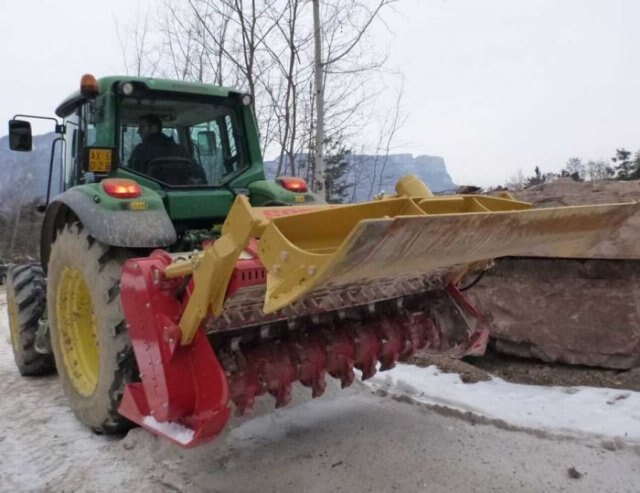

  • adjustable grader blade, includes pressure gauge and lateral extensions
  • hydraulic top link
  • 750 rpm or 540 rpm gearbox
Specifications
Model
MidiPierre D/T Model
Category Name
Equipment
Year
2017
Sale Type
New
Manufacturer
Seppi
