SEPPI

ID # 13569302

Seppi SAV Model

Videos
Call for Price
Overview
roadside mulcher SAV
80-150 HP

Offsetting mulcher for ditches and large areas.

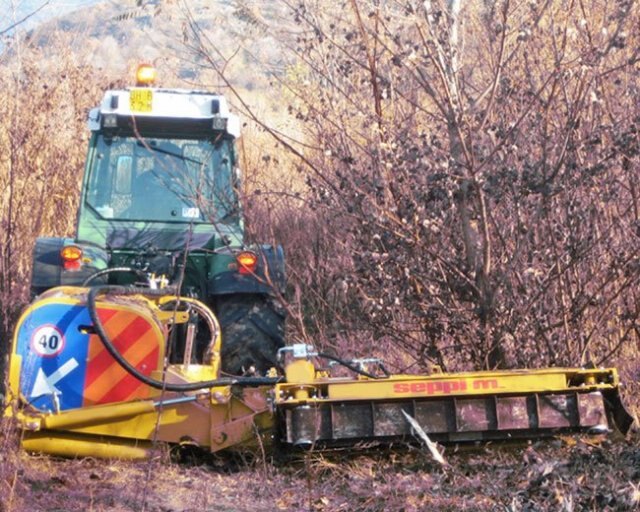

  • Also forestry version available

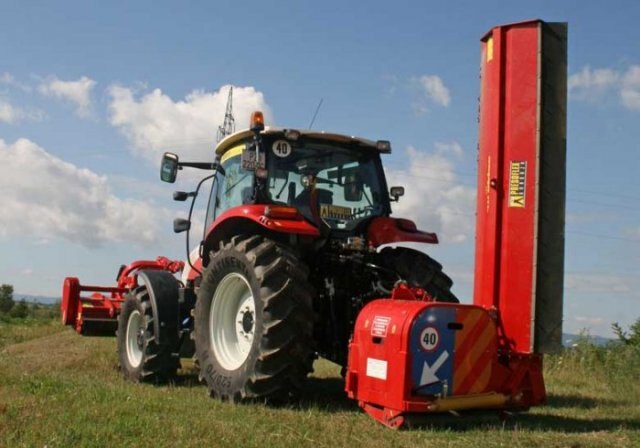

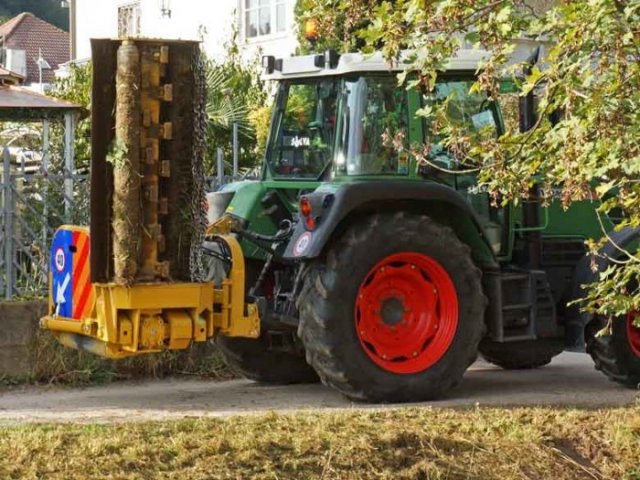

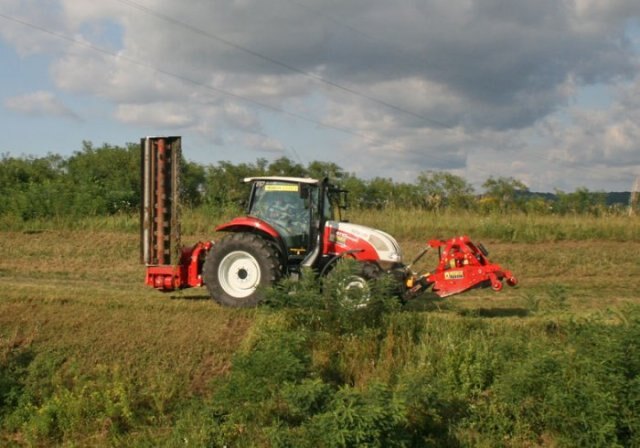

  • Hyd. positioning from +90° to -65°
  • Mulches grass and bushes up to 12 cm [4.7”] Ø

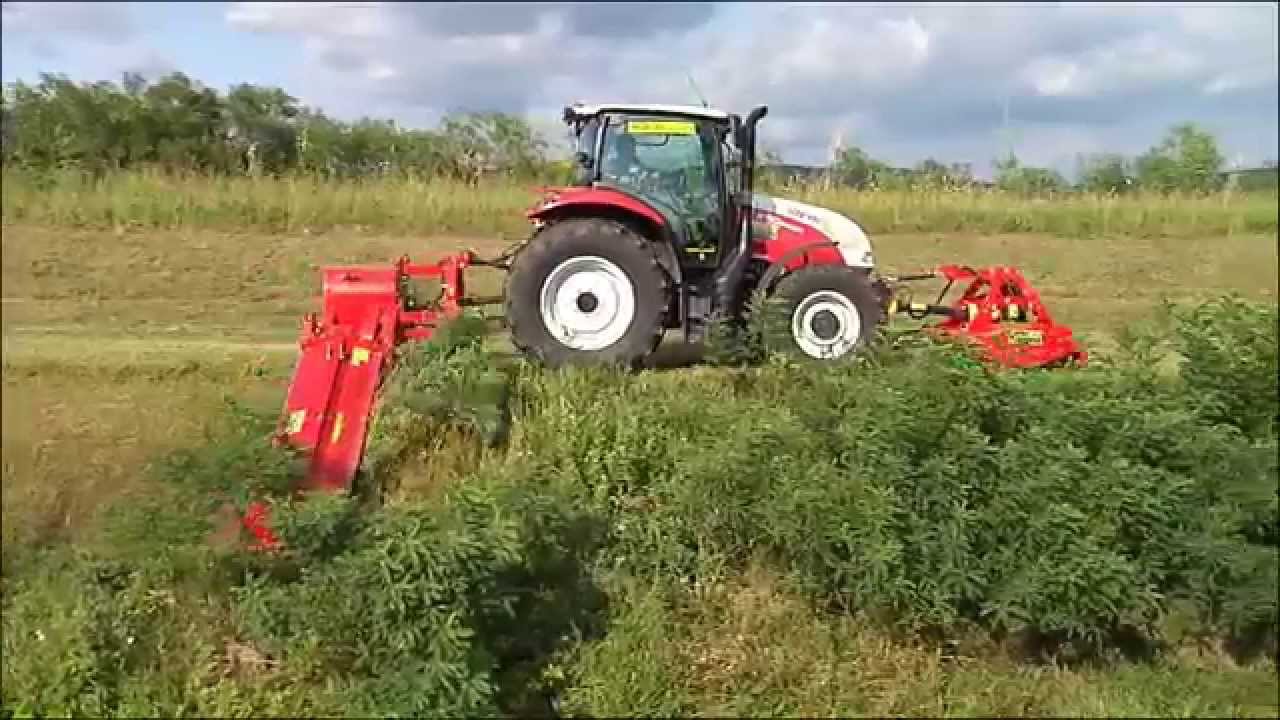

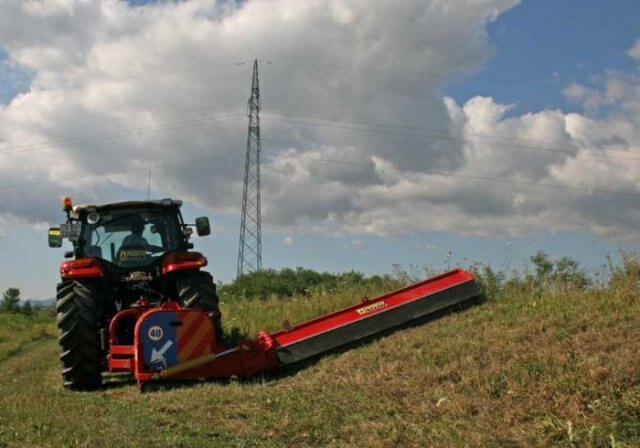

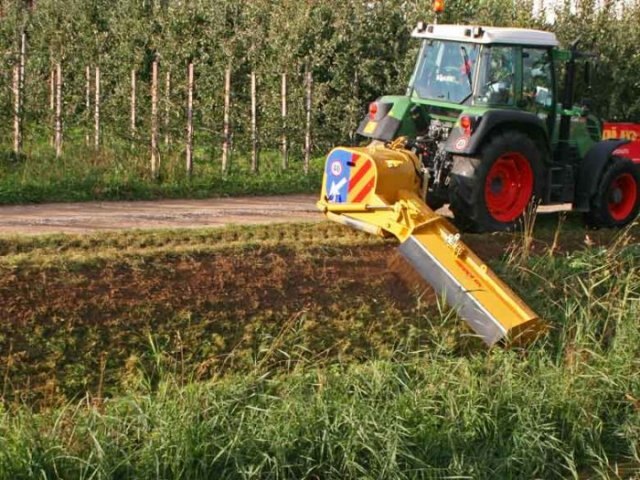

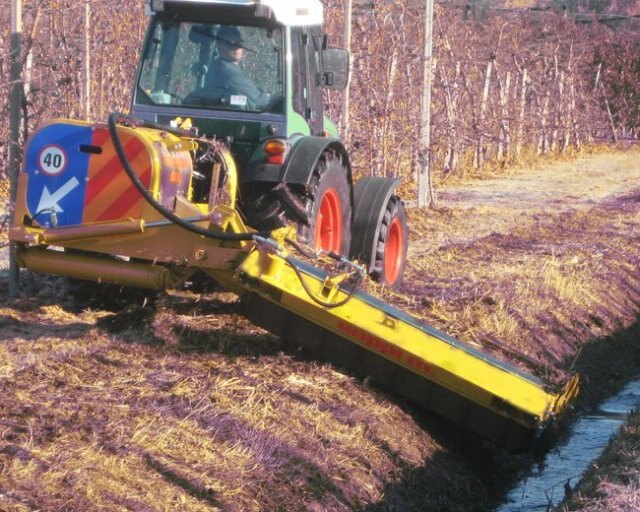

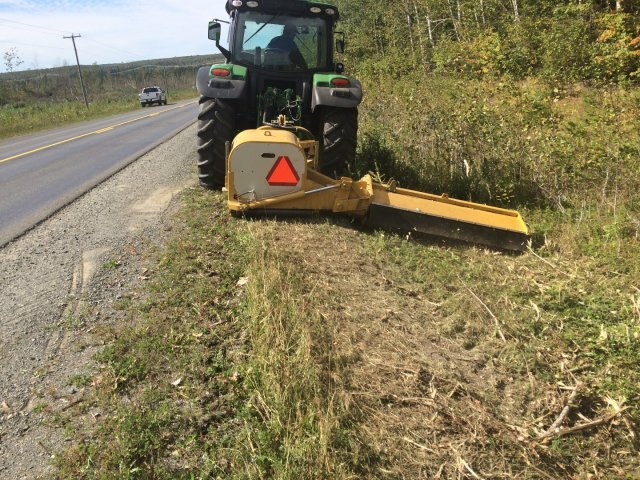

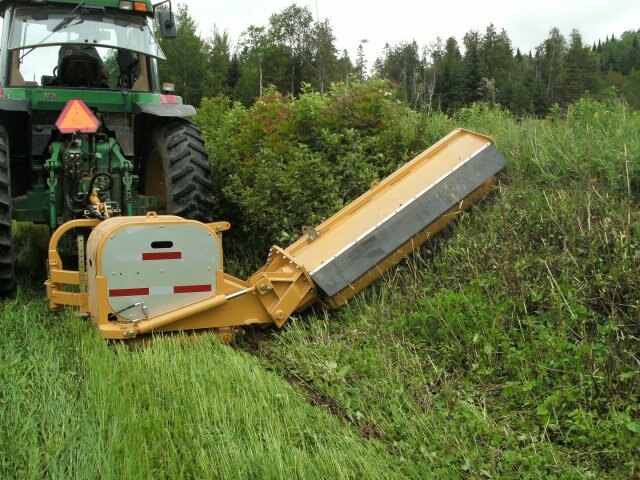

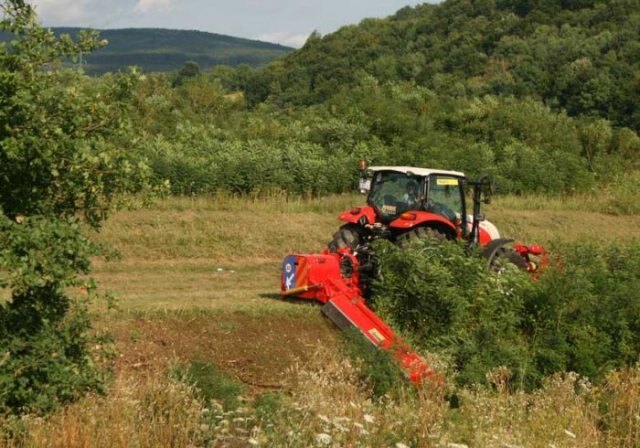

SAV is a professional side mulcher for ditches, canals and river banks. This universal mulcher also does a great mulching job on steep road sides, orchards and vineyards or also in forestry.

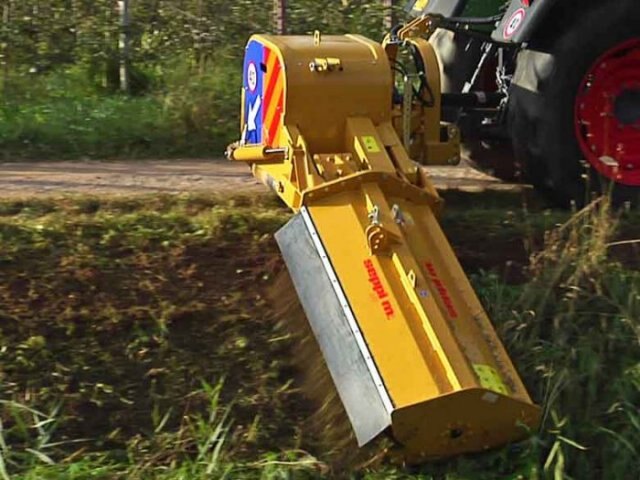

Great versatility is achieved by ample hyd. side shift in addition to hydraulic angling from 90° up to 65° down SAV mulches grass and brush up to 7 cm [2.8“] in diameter, or up to 12 cm [4.7“], if equipped with forestry rotor. Rear flap with direct discharge. The large diameter roller, helps mulching on uneven ground. Cover with easy access to the drive system provides extra protection and keeps out dirt. Belt transmission with spring tension and safety coupling.


According to the working width, the mulcher reaches a maximum position of 472 cm [186”] to the right.

Available working width: 150, 175, 200, 225, 250, 275 cm [59", 69", 79", 89",  98", 108"].

 STANDARD VERSION
  • mulches grass and bushes up to 7 cm [2.8”] Ø; up to 12 cm [4.7"] Ø with forestry rotor
  • standard rotor with flails:≤ 200: SMO · ≥ 225: SMW
  • working speed 3 -10 km/h
  • ISO 3-point rear linkage  cat. 2

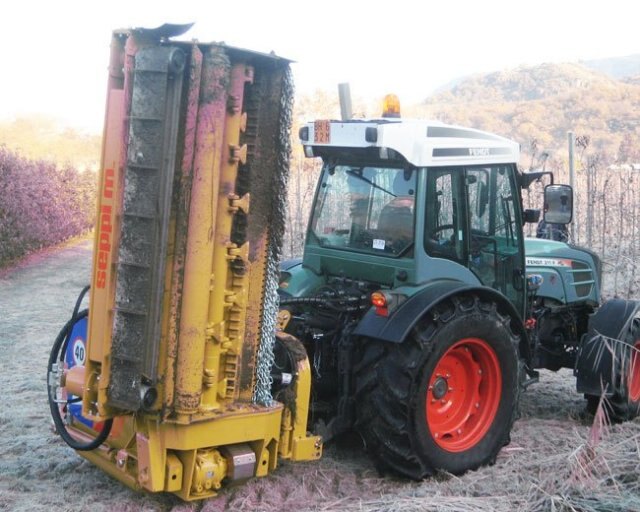

  • hyd. positioning from +90° to -65°
  • hyd. side shift to the right
  • gearbox
    up to L=200: 540 rpm;  from L=225: 1000 rpm
  • input shaft 1 3/8” Z=6
  • transmission with 6 "Power-Belts"
  • belt cover including chevrons
  • adjustable support rollers on hitch and mulching mower
  • front protection: chains
  • rear protection: rubber flap
  • breakaway device
  • NEW! colour: red RAL 3020
 OPTIONS
  • PTO drive shaft with freewheel
  • rotor with Y knives
  • forestry rotor with fixed carbide hammers MINI DUO (up to 200)
  • forestry rotor with swinging hammers (up to 200)
  • 540 rpm gearbox or 1000 rpm gearbox
  • suspension with accumulator to adapt the contours of the ground
  • conveyer belt for side discharge - XTR
Specifications
Model
SAV Model
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Seppi
