SEPPI

ID # 13569059

Seppi SMWA Rev CF

Call for Price
Overview

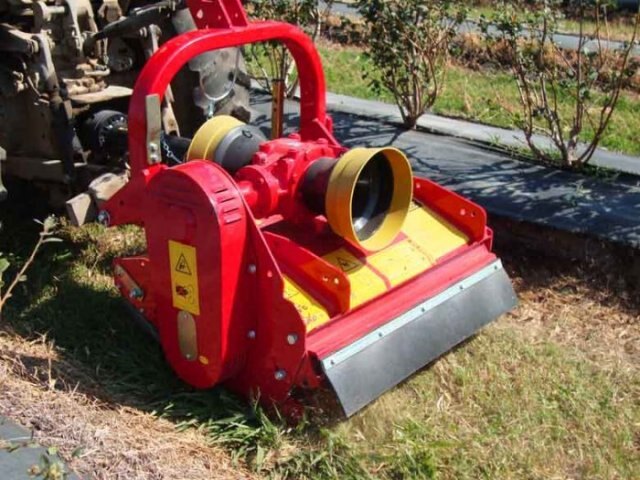

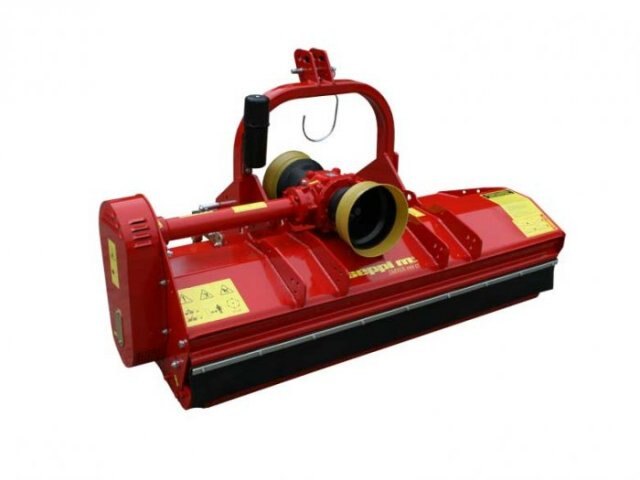

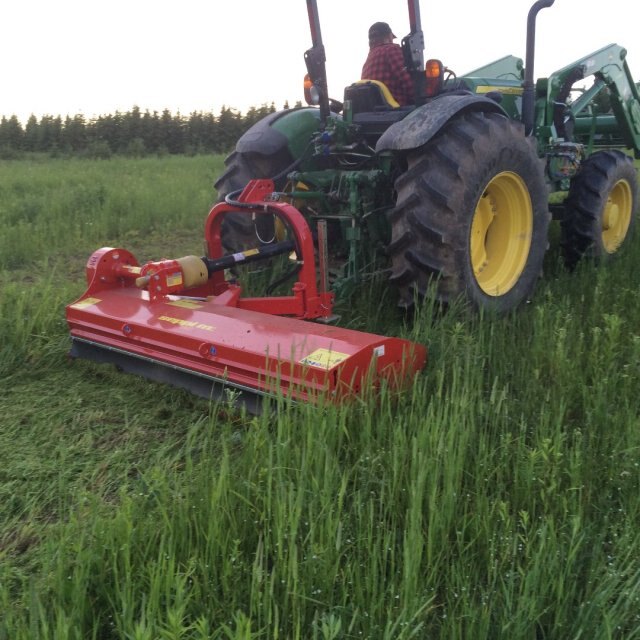

medium duty flail mulcher for PTO/tractor
30-90 HP

Versatile, agile, strong, reliable.
Mulches grass and prunings up to 5 cm [2”] Ø

The SMWA rev cf mulcher has in standard version manual side shift with two position bolt-on hitch: central and 17 cm [6.7"] to the right.

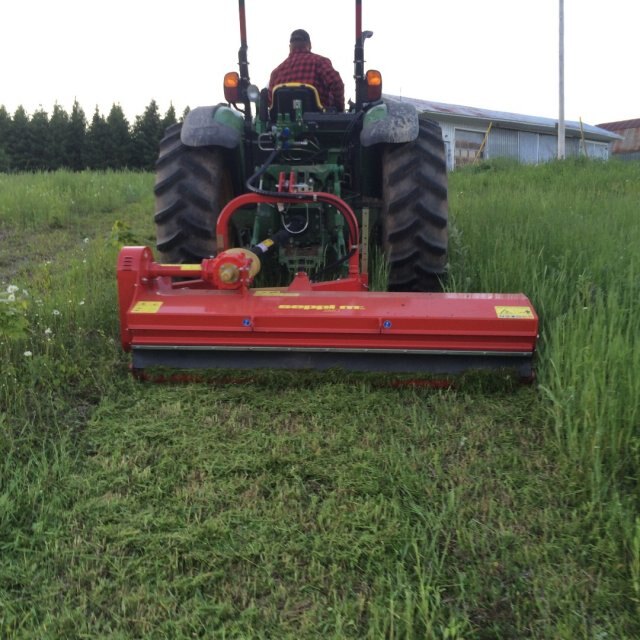

Agriculture or greenspace maintenance easy with the 30-90 HP tractor and the strong flail mower SMWA rev cf. This versatile mulcher is available available in different  working widths up 95   [37"]  to 225 cm  [89"] Mulching grass, prunings and bushes up to 5 cm [2“] in diameter.

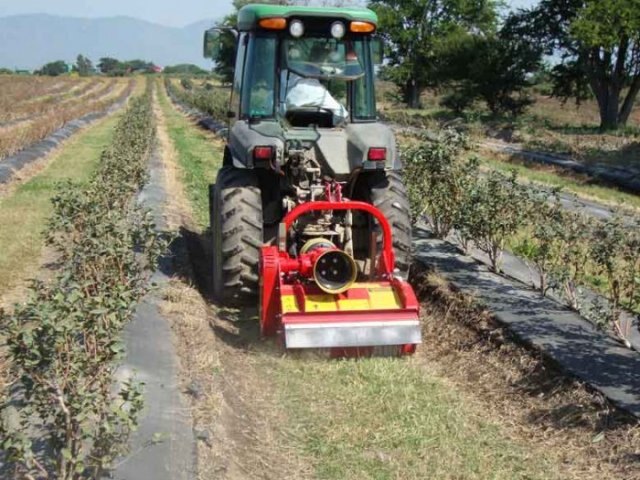

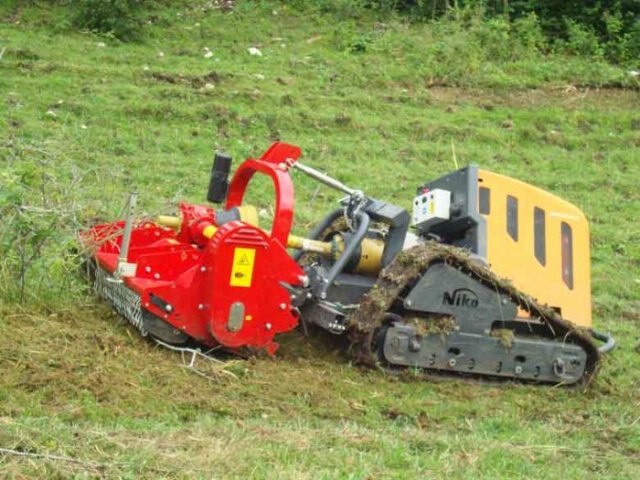

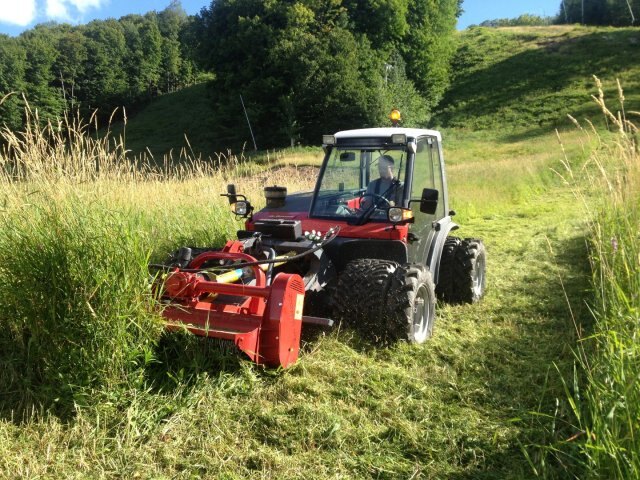

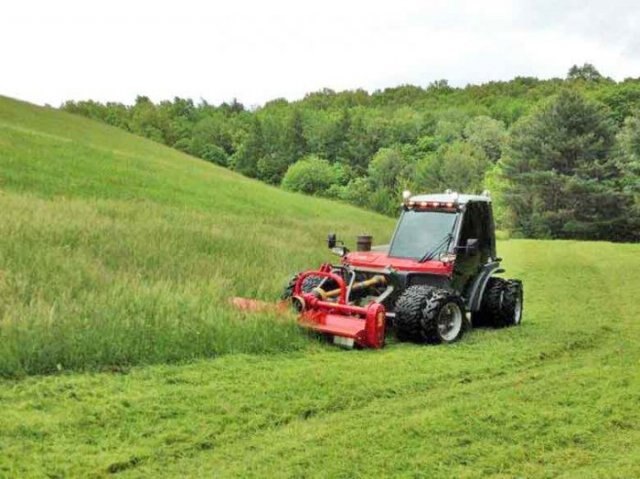

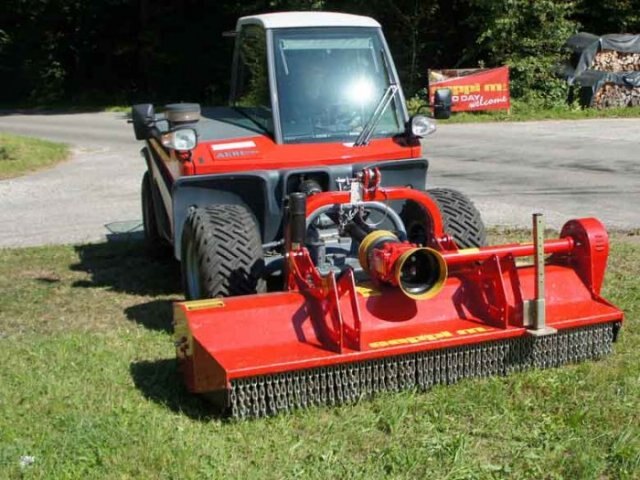

The reversibility of this mulcher makes possible to fit the machine on the front or back of tractor.

Helical distributed and high resistent SMW-flails for universal use are for high cutting quality at uniformly distributed power. SMWA rev cf c asing is very resistent, made of high-tensile steel. Double counterknives inside  the casing will give a perfect result when mulching Adjustable roller  with  double tapered roller bearings  unit for a long life and  the low maintenance costs. The roller is positioned close to the rotor improves mulching on uneven ground and prevents scalping.  Certified safety: GS EN13524 (types 175/200 + OPT 006) rubber protection against impact of stones.

Available working width: 95, 105, 115, 125, 135, 145, 155, 175, 200, 225 cm [37", 41", 45", 49", 53", 57", 61", 69", 79", 89"].

 STANDARD VERSION
  • mulches grass and prunings up to 5 cm [2”] Ø
  • standard rotor with SMW flails
  • working speed 3–10 km/h
  • ISO 3-point linkage cat. 1&2 central fixed reversible
  • manual side shift 17 cm [6.7”]
  • 540 rpm gearbox with freewheel and through shaft
  • input shaft 1 3/8” Z=6
  • belts: ≤ 155: 3, ≥ 175: 4
  • adjustable rear hood with rubber protection
  • front protection: metal flaps
  • reinforced support roller, adjustable in height by 5 cm [2”]
  • colour: red RAL 3020
 OPTIONS
  • PTO drive shaft
  • rotor with Y knives
  • 1000 rpm or 750 rpm gearbox
  • gearbox with automatic inverter and double freewheel
  • additional 3-point linkage frame
  • roller scraper
  • rake hood complete with rakes
  • metal front wheels
  • herbicide spraying system XID
  • X-FAST™ single or double -  coupling system   for under-canopy equipment





Specifications
Model
SMWA Rev CF
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Seppi
