RENN Roller Mill RBA 30

Videos
Call for Price
Overview

You can roll and store high-moisture grain all at the same time with a RENN Bagger Mill for ultimate grain processing efficiency.

RENN Bagger Mills offer the same durability and advanced grain rolling technology of RENN Roller Mills, combined with the smooth and efficient grain bag loading capabilities of a RENN Grain Bagger.

RENN Roller Mill RBA 30Maximum Production with Less Horsepower

The RENN Bagger Mill allows you to roll and store high-moisture grain economically in 4', 5’, 6.5’, or 8’ diameter grain bags, while choosing from a full range of options to precisely match your grain processing needs.

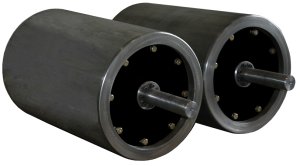

The heart of the Bagger Mill features precision-machined, dynamically-balanced 16” diameter steel rolls with large diameter removable shafts that provide maximum production with less horsepower. Rolls are available in steel and chill-cast. Roll configurations range from 4 to 15 grooves per square inch.

Rolling high-moisture grain prior to storage allows nutrients to become readily available and ensures high-quality silage feed is produced.

RENN Roller Mill RBA 30Smooth, Efficient Loading and Storage

Over the past 15 years, RENN has developed a unique grain tunnel and loading system that allows for smooth and efficient loading and packing of high-moisture grain. Grain placement, hydraulic brake pressure, and loading pressure create a well-packed, consistent product.

RENN Bagger Mills are available in 24”, 30”, and 36” Roller Mill configurations and a 5’, 6.5’, or 8’ grain tunnel.

RENN Roller Mill RBA 30

Optional RENN 40% Differential Drive

An optional RENN 40% Differential Drive can be added with idler and driver rolls positively driven at two separate speeds for optimal particle reduction. The largest differential in the industry, the RENN 40% Differential Drive also provides self-cleaning to prevent plugging.

Specifications
Model
RBA
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Renn
Corn
68
Oats
10.4
Rolls
30" x 16"
Wheat
32.6
Barley
17.4
Bag Size
4', 5', 6.5', 8'
Belt Drive
CCx8
PTO 1:1 Drive
540
Packing Auger
10"
Differential Drive
115
PTO Differential Drive
540 or 1000
Shaft Diameter, 1:1 Drive
2 7⁄16"
Shaft Diameter, Speed Differential
2 15⁄16"
features of a renn bagger mill

       16″ diameter dynamically-balanced rolls
        Removable roll shafts with industrial ball bearings
        Heavy-duty leaf spring roll protection
        Worm drive roll adjustment
        540 PTO with shear protection
        Cut away frame allows for fast and simple removal of rolls

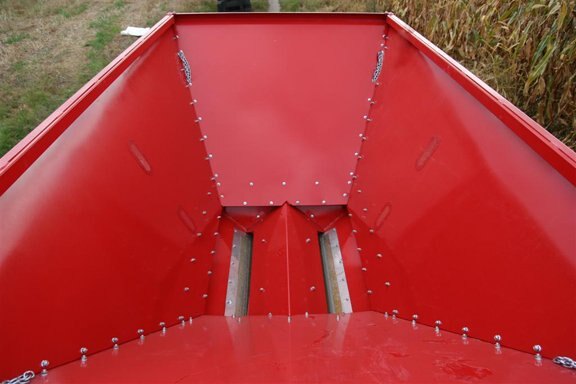

        Tip-up top hopper hinged for fast and easy access to rolls
        Plate magnets
        Top hopper feed gate control
        Belt-driven packing auger
        Hydraulic height adjustmentBelt-Drive2-300x243.png
        Traction tires with hydraulic disc brakes
        Over center locking bag pan adjustment
        Bag control harness with ratchet straps

literature
Name Link
Baggermill Download
