Get the Grain Processing Quality You Want with RENN Roller Mills
RENN Roller Mills can be tailored to meet the needs of any grain processing application.
We offer two different types of rolls – steel or cast; multiple roll configurations ranging from 4 to 15 grooves per square inch depending on the particle size you require – and a variety of input and discharge options, including our Elevator Discharge or Crimper Mill, Blower Discharge Mill, Conveyor Discharge Mill, Electric Roller Mill, and Auger Discharge Mill. We offer so many choices so that we can build a Roller Mill that is perfectly designed to consistently meet the specific grain processing needs of your dairy or beef herd.
Whether you need a coarse crack or a fine grind, our Roller Mills consistently produce the high-quality feed that farmers have come to expect from RENN.
Features
Maximize Productivity
RENN Roller Mills have a proven record of excellence in the grain processing industry for maximizing productivity while providing durable, consistent performance and easy serviceability.
For 60 years the heart of the RENN Roller Mill has been its precision-machined 16” diameter rolls, which provide more grain rolling area per revolution compared to other brands of roller mills with smaller diameter rolls. RENN Roller Mills save time and money year after year by rolling more grain per hour with less horsepower.
RENN’s unique, centrifugally-poured, chill-cast rolls are its latest advancement in rolling technology, giving you the long-wearing durability of cast rolls with the enhanced serviceability of removable shafts and end plates.
Lower Power Requirement
Unlike conventional, solid-core cast rolls, our 16” diameter casting with a 3” thick sidewall provides the performance of chill-cast rolls with the advantage of a lower power requirement and better economics, as you are no longer paying for the unusable centre core of the roll.

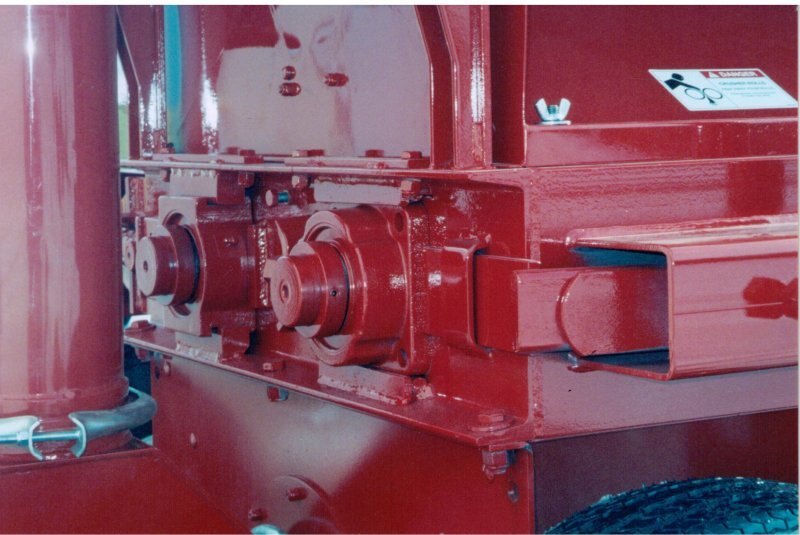

The RENN Roller Mill design ensures operator efficiency and time-saving serviceability. The RENN worm drive roll adjustment allows for easy roll gap adjusting while the RENN leaf spring holds the rolls in place for maximum rolling capacity. The rolls can be pulled for service in minutes due to RENN’s tip-up top hopper and split frame design, making it fast and easy to re-groove and re-install them, for thousands more tonnes of trouble-free rolling.
RENN Roller Mill Features
Elevator Discharge Mill/Crimper Mill

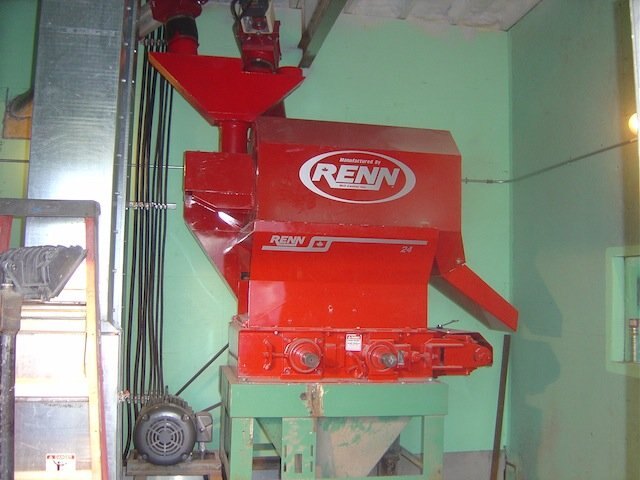

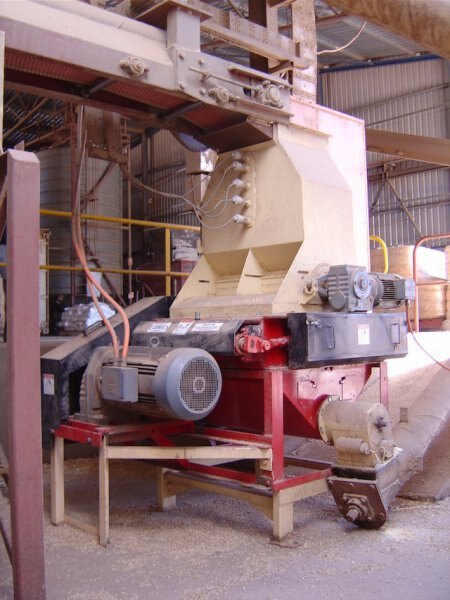

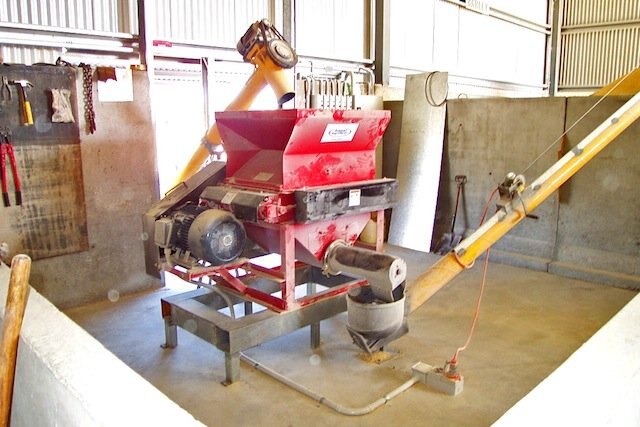

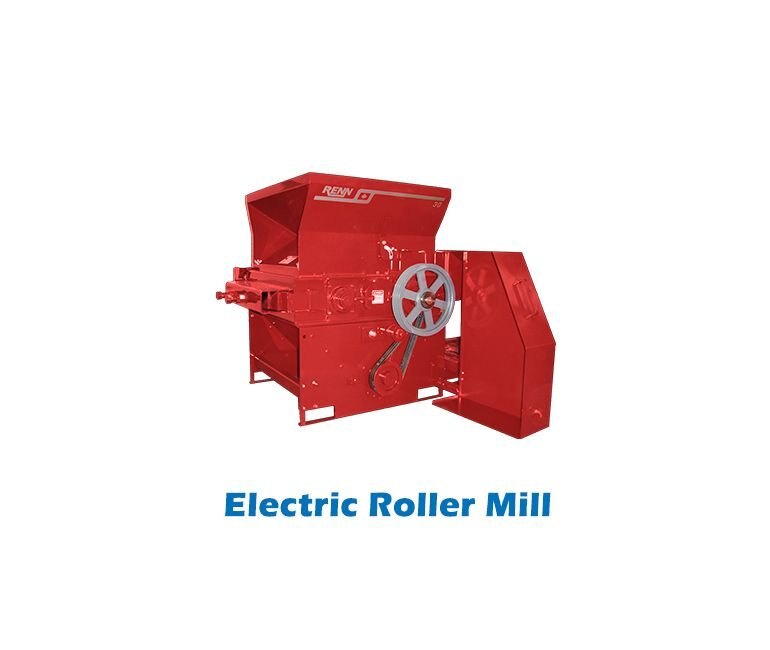

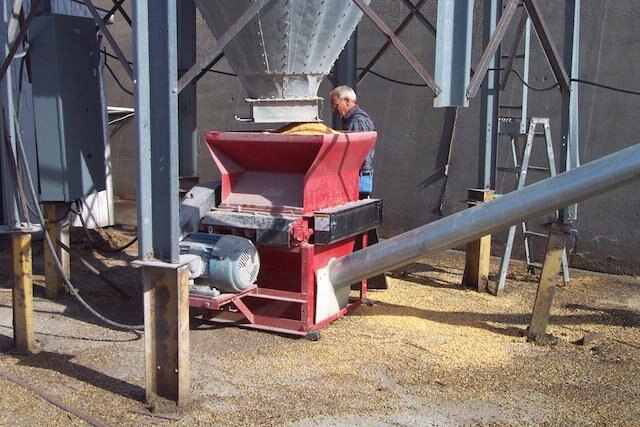

The optional RENN 40% Differential Drive has idler and driver rolls positively driven at two different speeds for optimal particle reduction or high moisture rolling. It is also self-cleaning to prevent plugging. RENN Roller Mills are available in PTO powered trailer or Electric Stationary models, and offer various input, power, and discharge options. PTO models have a minimum power requirement of 15 to 120 horsepower, while Electric Stationary units operate with a minimum power requirement of 5 to 50 horsepower.
Discharge Systems

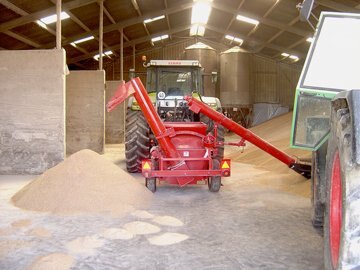

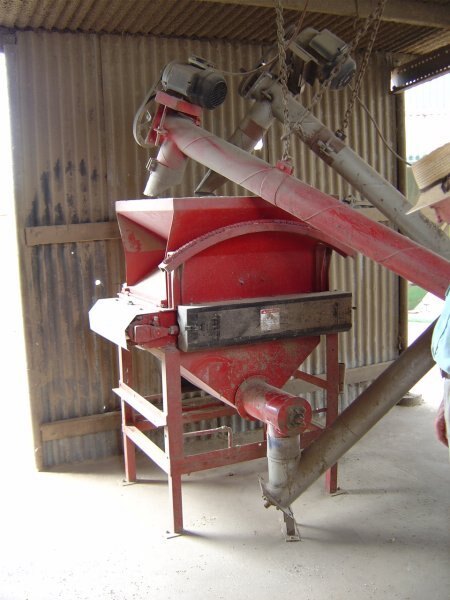

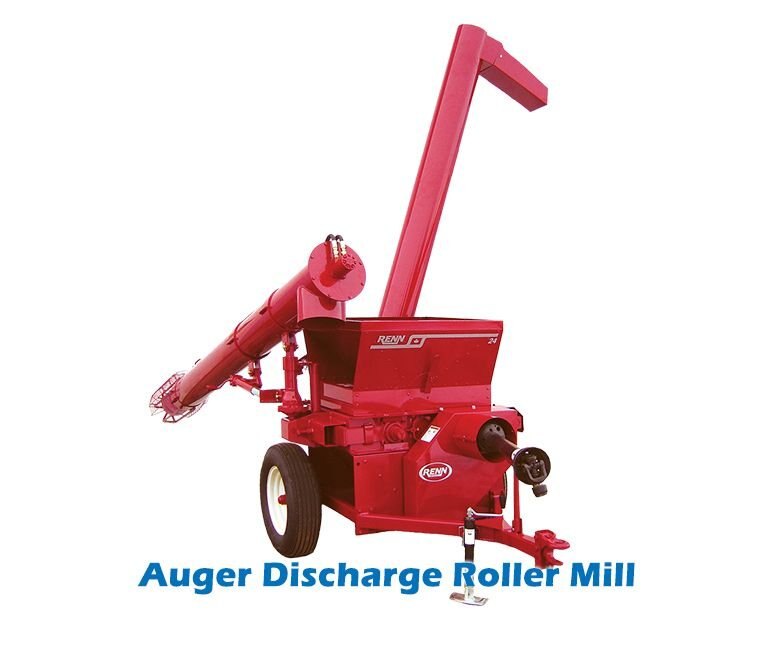

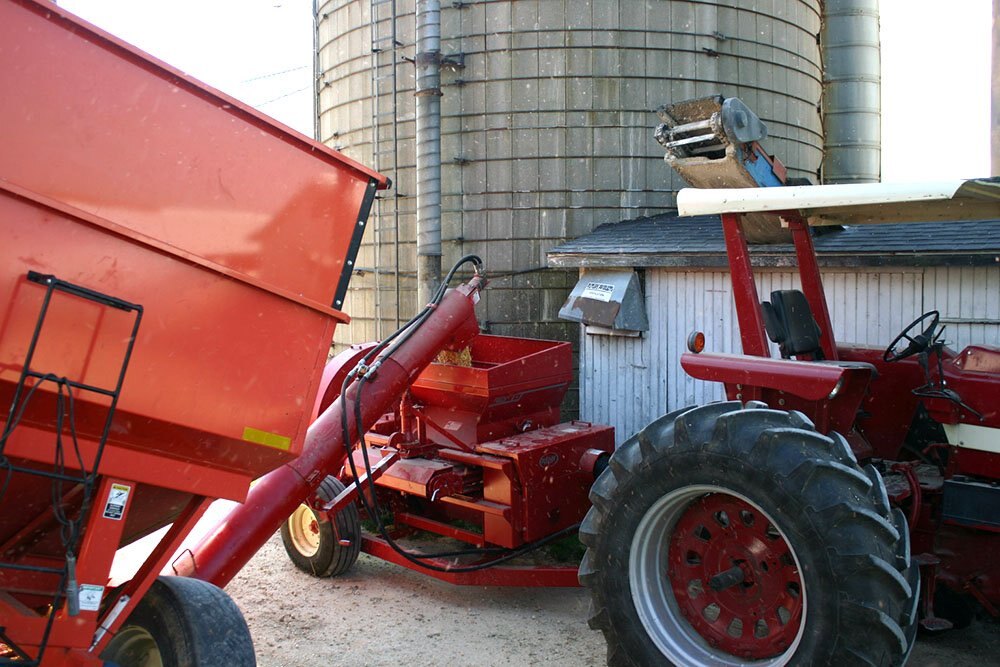

Auger Discharge Built for operator efficiency and serviceability, it comes in 7”, 8”, 10” and 12” diameter sizes and is available in most RMC models.

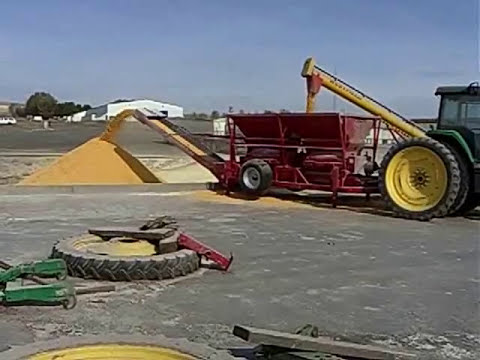

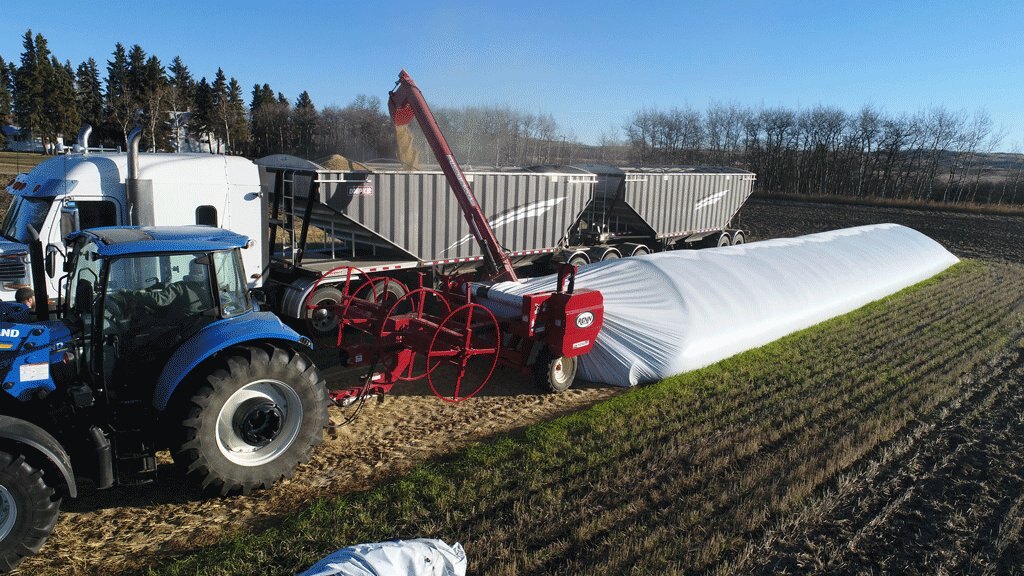

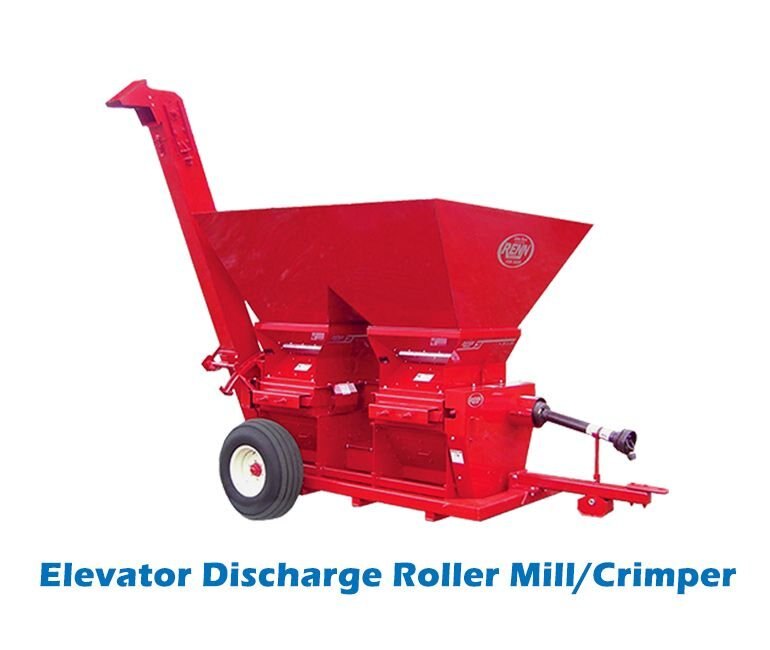

Elevator Discharge/Crimper With exceptional capacity in extreme high moisture rolling conditions, the unit is 8” wide X 10’ high and is available in most RMC models.

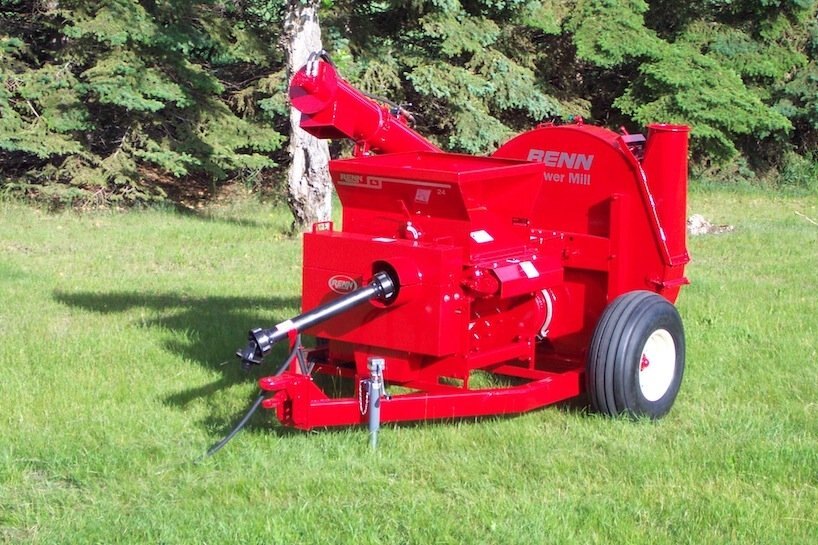

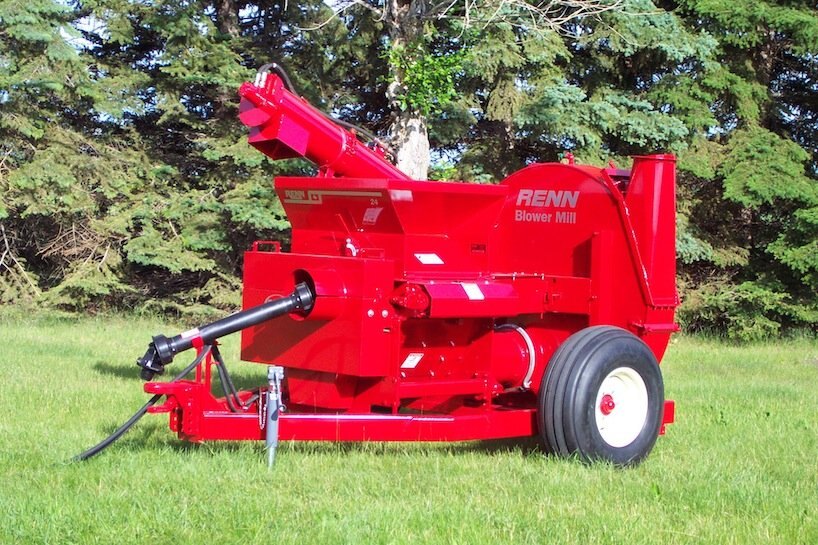

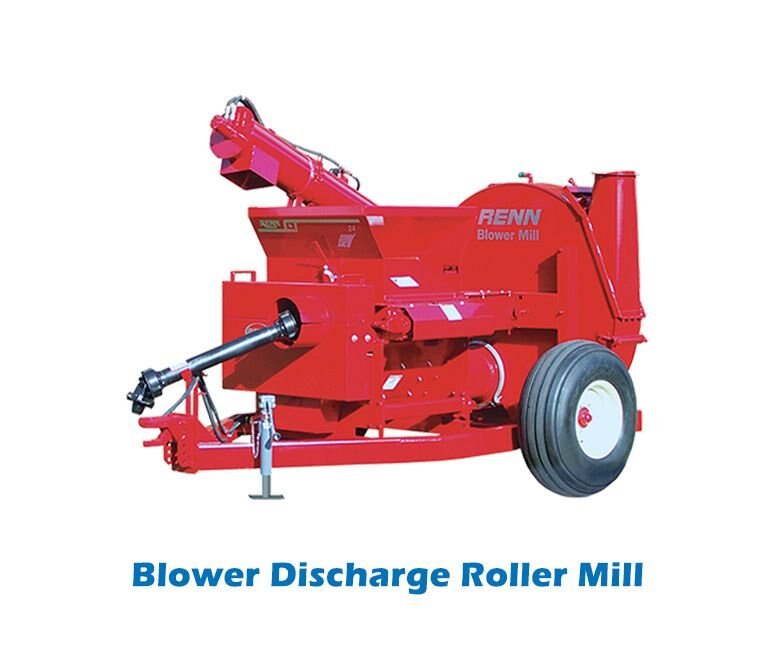

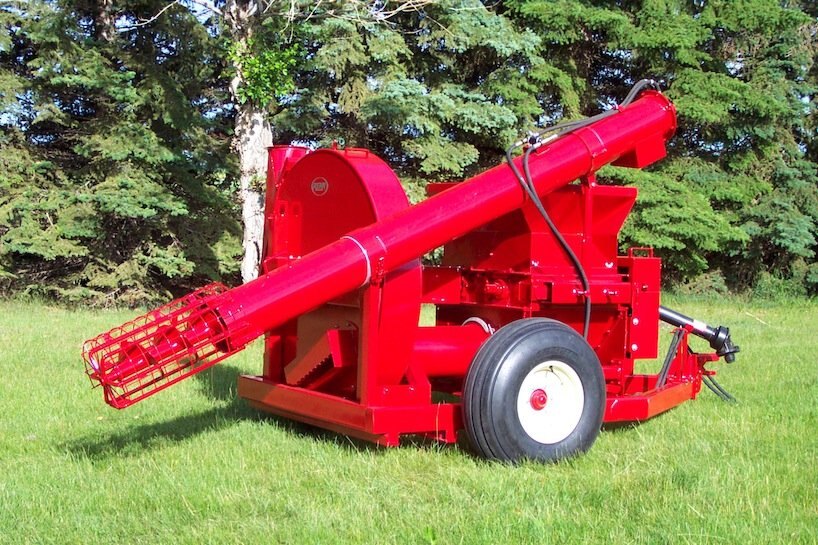

Blower Discharge RENN offers the industry’s largest and heaviest unit with a high-capacity 59” diameter, 8 blade blower that is available in most RMC models.

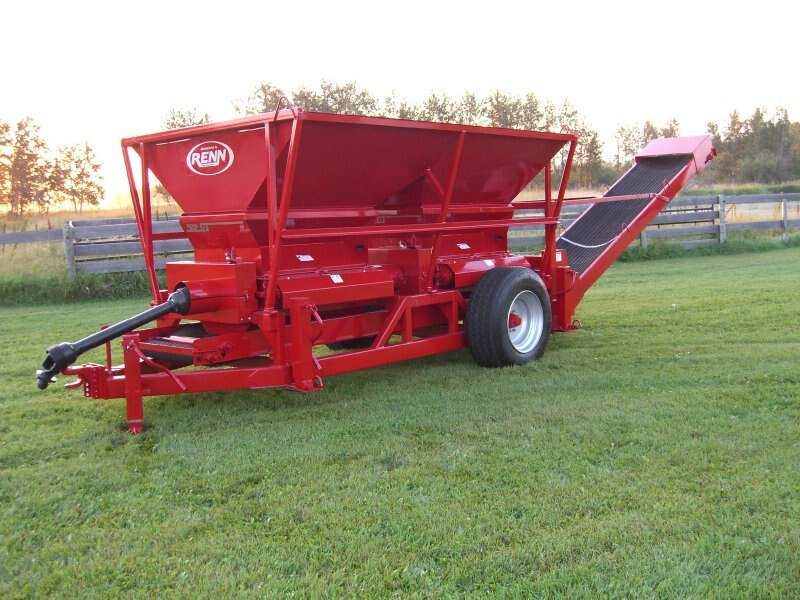

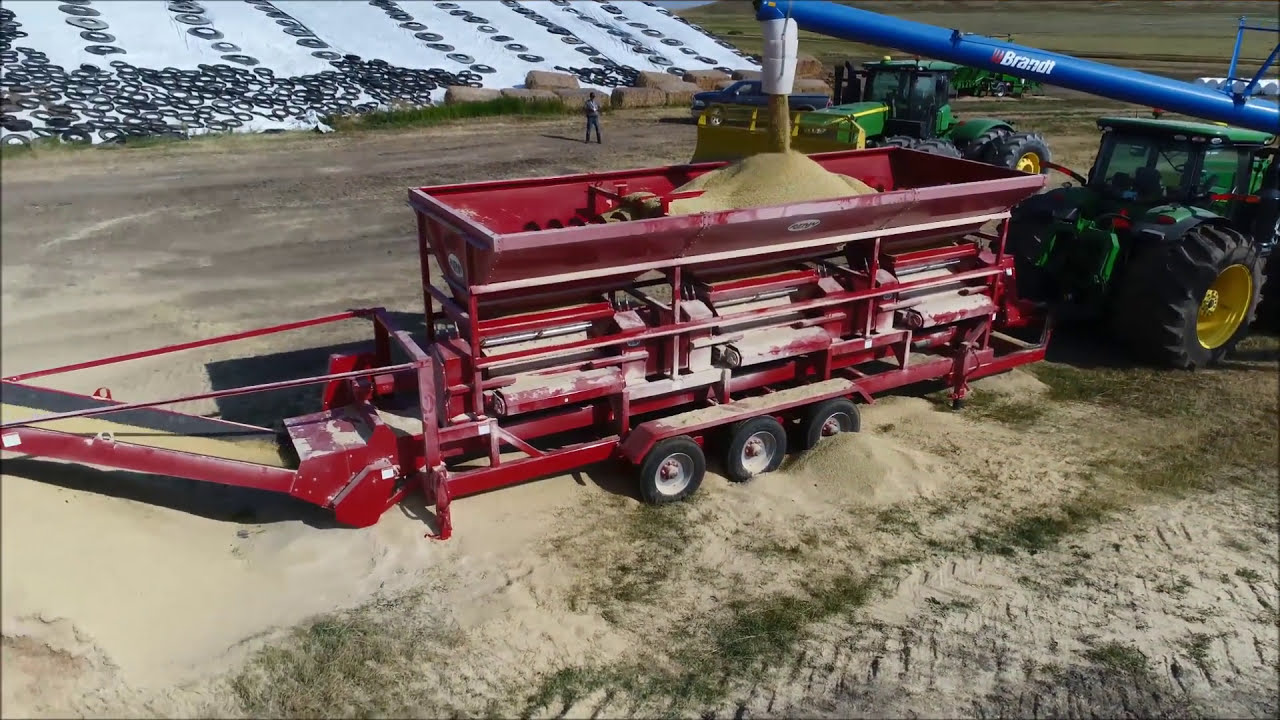

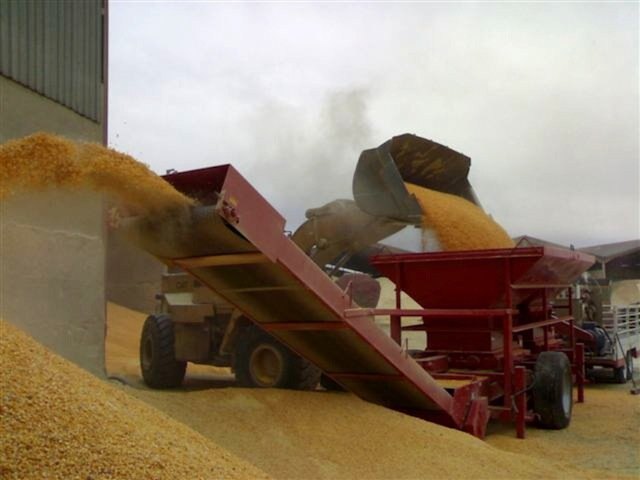

Conveyor Discharge Designed to process large volumes of high moisture grains quickly, the 18” wide conveyor is available with RMC 36” and 48” models. Our 24” wide conveyor is available with RMC 36” and 48” tandem models.
Roller Mill Specifications and Configurations
RENN Roller Mill Model
Roll WxD (in.)
Shaft Dia. (in.)
Min. Elec. HP
Min. (PTO) HP
PTO Std. *
Auger Discharge
Elevator Discharge
Blower Discharge
Conveyor Discharge
Hyd. Feed Auger
Differential Roll Speed **
RMC 3x 48
Three 48x16
2 15⁄16
N/A
210
1000
N/A
N/A
N/A
36"
N/A
N/A
RMC 48T
Two 48x16
2 15⁄16
N/A
180
540/1000
N/A
N/A
N/A
36"
N/A
2x 16 cc belt
RMC 48
48x16
2 15⁄16
N/A
110
540/1000
12" or 14"
8" x 10'
N/A
18"
12"
2x 8cc belt
RMC 36
36x16
2 15⁄16
N/A
95
540/1000
10" or 12"
8" x 10'
59" dia.
N/A
10" or 12"
12 cc belt
RMC 24
24x16
1 15⁄16
20
60
540
7" or 10"
8" x 10'
59" dia.
N/A
6" or 8"
8 cc belt
RMC 12
12x16
1 15⁄16
10
30
540
7" or 8"
N/A
N/A
N/A
6" or 8"
3 bb belt
RMC 12S
12¾ x 12
1 ¹?⁄??
10
N/A
N/A
7"
N/A
N/A
N/A
N/A
N/A
* PTO speeds can vary with rolling requirements (contact factory for details). ** Power requirement increases by 50% for differential drive units.
Maximum Dry Rated Grain Capacity
Model
Barley
Corn
Oats
Wheat
t/hr
bu/hr
t/hr
bu/hr
t/hr
bu/hr
t/hr
bu/hr
RMC 3x 48
88
3600
402
15000
53
3000
162
6000
RMC 48T
52
2400
268
10000
36
2000
108
4000
RMC 48
26
1200
134
5000
17
1000
54
2000
RMC 36
19.5
900
101
3750
12.9
750
40.8
1500
RMC 24
13
600
67
2500
8.6
500
27.2
1000
RMC 12
6.5
300
33.5
1250
4.3
250
13.6
500
RMC 12S
4.9
225
25.1
935
3.2
185
10.2
375
Capacity will change with moisture, roll configuration, and particle size desired.
