ID # 21534007

Red Max - ST 224

  • Red Max ST 224
  • Red Max ST 224
  • Red Max ST 224
  • Red Max ST 224
  • Red Max ST 224
  • Red Max ST 224
  • Red Max ST 224
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

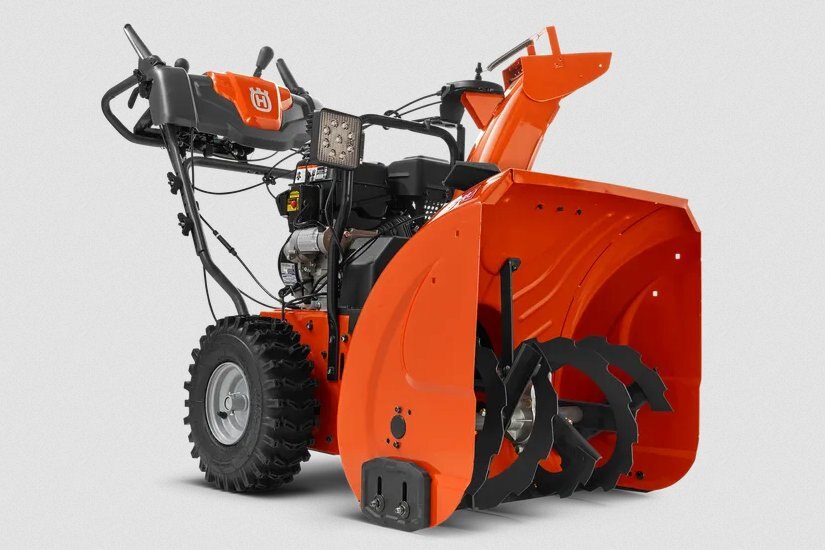

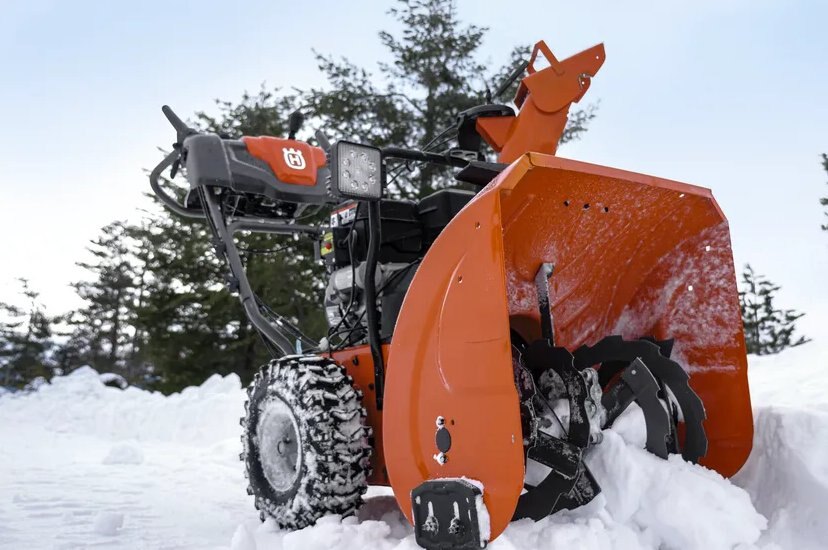

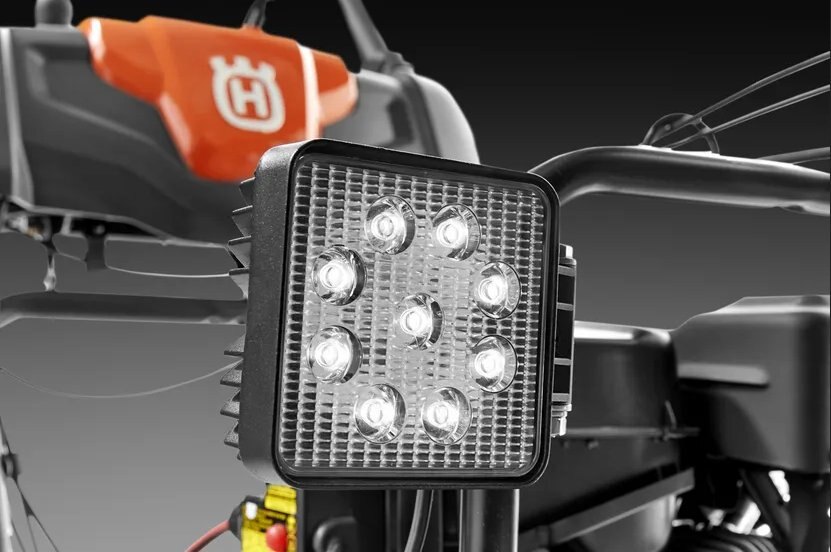

Husqvarna ST 224 has been developed for homeowners who need a high-performing snow blower to clear snow from large garage driveways and paths. It works regardless of surface type thanks to the adjustable skid shoes. Husqvarna ST 224 has been designed for occasional use in all snow conditions. It has an efficient two-stage system with high throwing capacity. The handle has adjustable height for comfortable use. Friction-disc transmission ensures smooth operation. Features heated handle grips, LED headlights and electric starter for work in all weather conditions.
Specifications
Model
ST 224
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Red Max
Art No
970 52 86‑02
Weight
206 lbs
Horsepower
5.9 hp
Working Width
24 in
Transmission Type
Friction Disc
Vibrations Handles
5.74 m/s²
Base Machine, Width
24 in
Base Machine, Height
40.5 in
Base Machine, Length
58.5 in
Cylinder Displacement
212 cm³
Motor/engine Manufacturer
Husqvarna
Transmission Steps Forward
6
Transmission Steps Reverse
1
Net Power At Preset Rpm Energy
4.4 kW
Fuel Tank Volume (with Reserve)
0.69 gal (US)
Sound Power Level, Guaranteed (LWA)
100 dB(A)
Sound Pressure Level At Operators Ear
85 dB(A)
features

Red Max ST 224 Two-stage system

Snow is fed into the housing by an auger and then discharged through the chute by an impeller.

Red Max ST 224 Handle height adjustment

Adjustable handle height for improved ergonomics.

Red Max ST 224 Friction disc transmission

For easy speed changes depending on snow conditions.

Ribbon auger

The ribbon auger mixes air into the snow, which makes the snow easy to handle and thereby ensures efficient clearing.

Red Max ST 224 Electric starter

Connect to a power outlet and start the engine by pressing a button. Our starter system ensures that you'll never have to worry about a dead battery.

Red Max ST 224 Oversized heavy tread tires

Better traction is achieved with 16" x 6.5" deep tread tires.

Red Max ST 224 X-trac, heavy-tread tires

X-trac, heavy-tread tires for extra good traction.

Red Max ST 224 Plastic skid shoes

For merciful treatment of delicate grounds. The skid shoes are reversible for long lifetime.

Red Max ST 224 Adjustable skid shoes

Makes it possible to adjust the space between the auger housing and the ground in order to protect the ground/surface.

Robust auger housing

For sturdy operation, efficient clearing and long product lifetime.

Aluminium auger gearbox

Durable auger gearbox with 5-year warranty.

Red Max ST 224 High speed impeller

Gives extra long snow throwing distance.

Red Max ST 224 Remote chute rotator

Control for horizontal throwing direction

Red Max ST 224 Remote chute deflector

Control the vertical throwing direction with a lever on the panel.

Red Max ST 224 Interlock handle

For single hand control and easy operation.

Red Max ST 224 Clearing stick

If the chute clogs, it is easy to clear it with the clearing stick.

Red Max ST 224 Quiet muffler

For user comfort.

Red Max ST 224 Throttle control

Makes it possible to idle down the engine when not clearing.

Red Max ST 224 Premium control cables

Durable cables for long lifetime, with improved resistance to cold weather.

Pin-lock wheels

For tool-less shifting and maintenance.
