Overview

When a typical lawnmower is not enough!

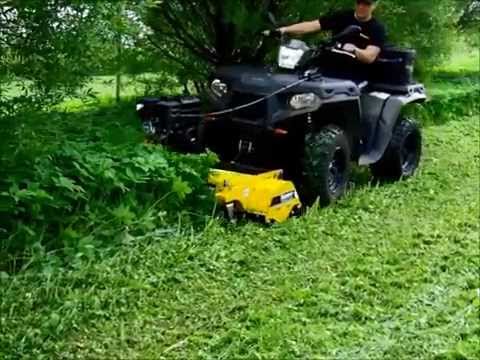

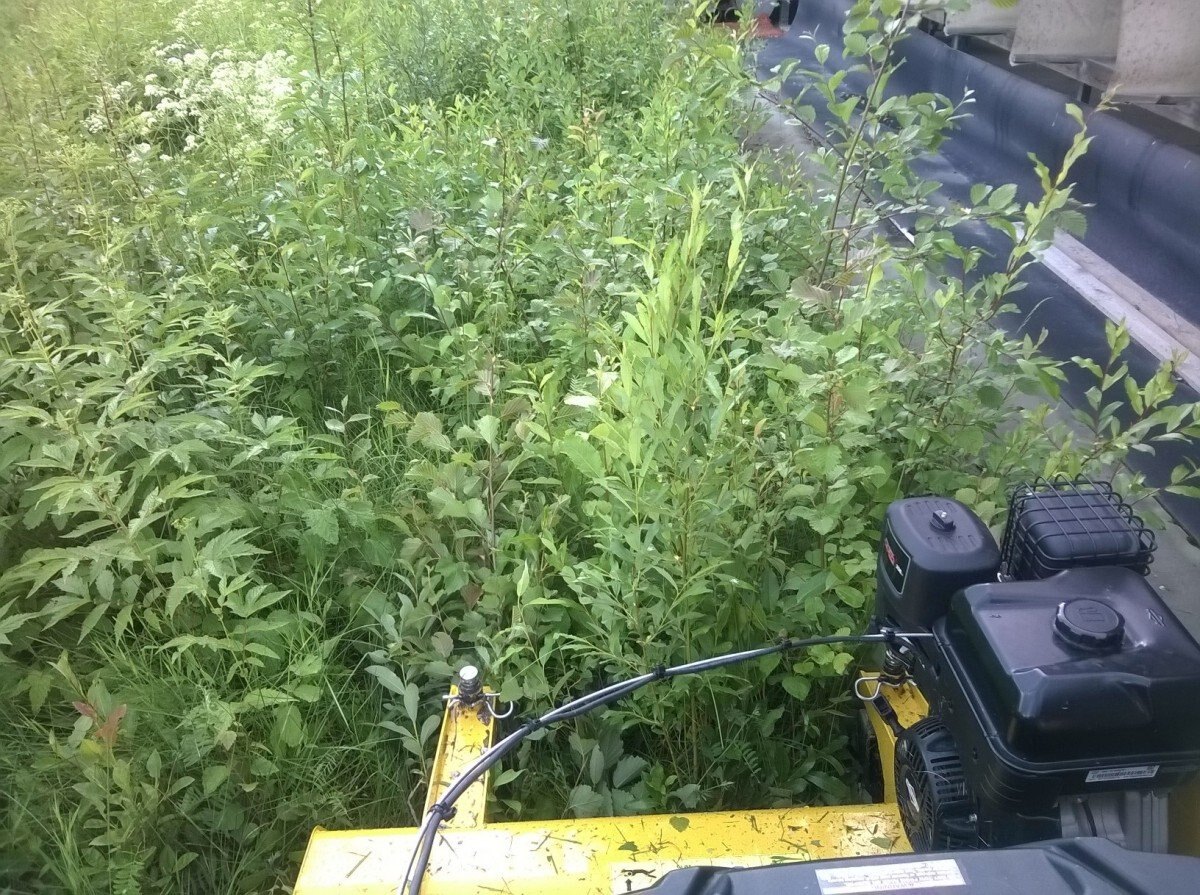

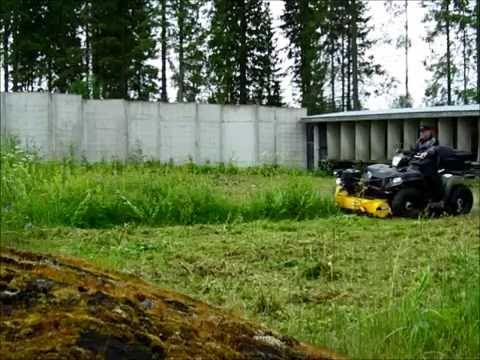

The Rammy Flail mower 120 ATV is an agile mower for cutting hay, meadow grass and small trees. With Rammy's front cutter you can cut grass on lawns, meadows and roadsides, efficiently and effortlessly. The Flail mower has its own engine.

It is possible to move the cutter 37 cm to the left, if it is fitted with a SIDE SHIFT KIT. (optional).

With the adjustable frame, this Rammy is suitable for almost all 4x4 ATV-s. If the CENTER MOUNTING KIT is on the bottom of your ATV, Rammy can be used with existing fasteners. If you need these (not included in the standard delivery), we have CENTER MOUNTING KITS.

The Rammy can also be attached with a LOCK HOOK 16-19-20 mm. (optional). Like Can-am, Arctic Cat, Polaris or Click&Go2.

Specifications
Model
Flail Mower 120 ATV
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Rammy
rammy flail mower 120 atv features

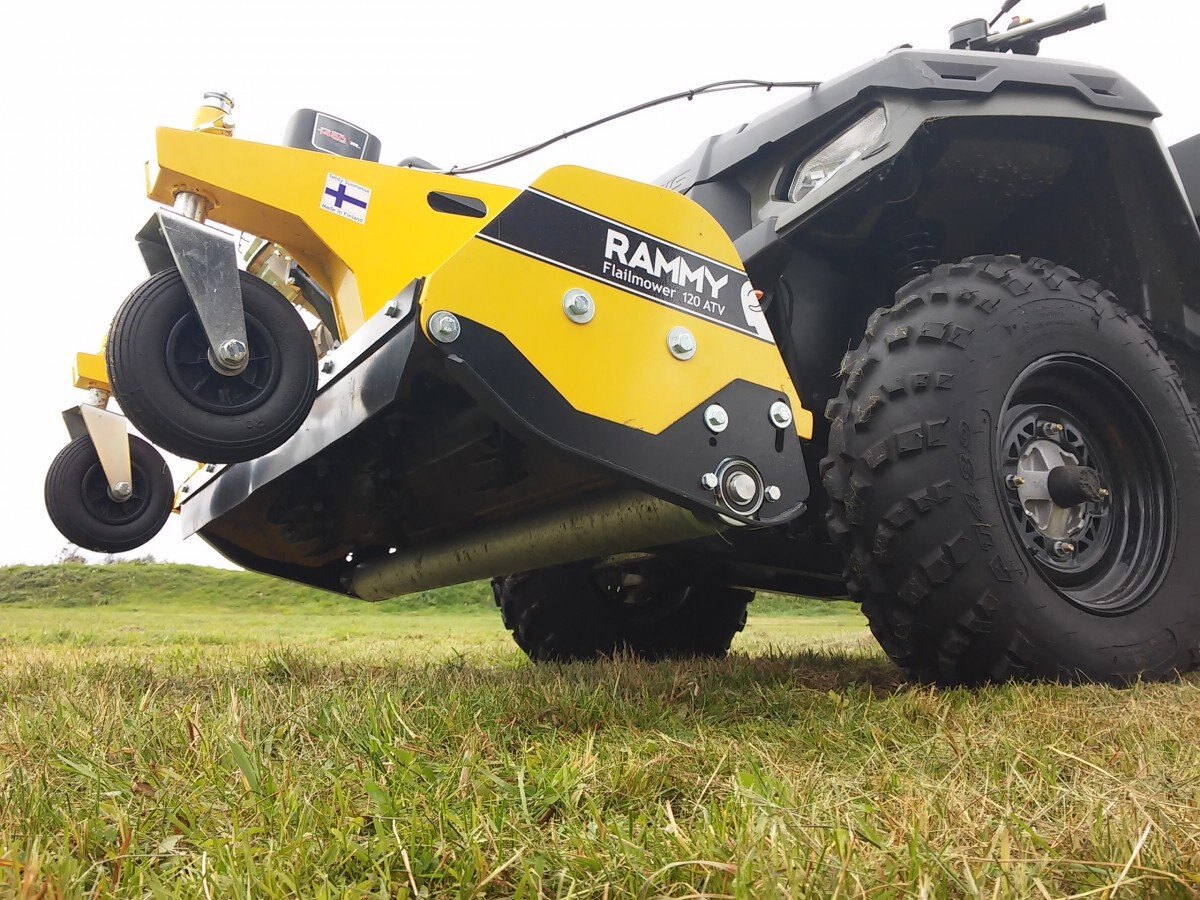

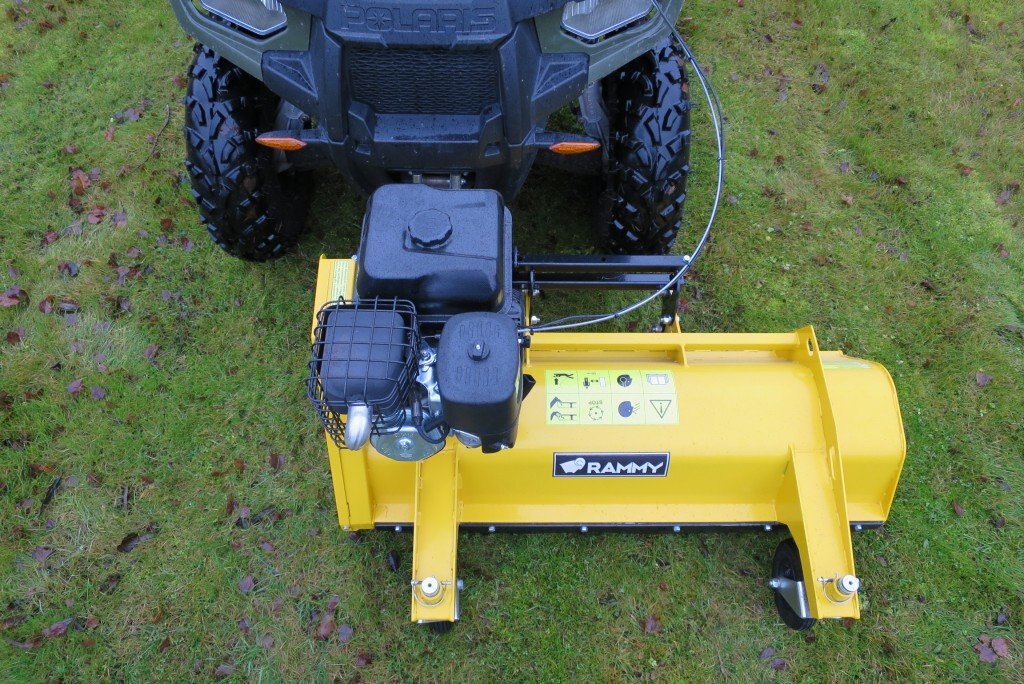

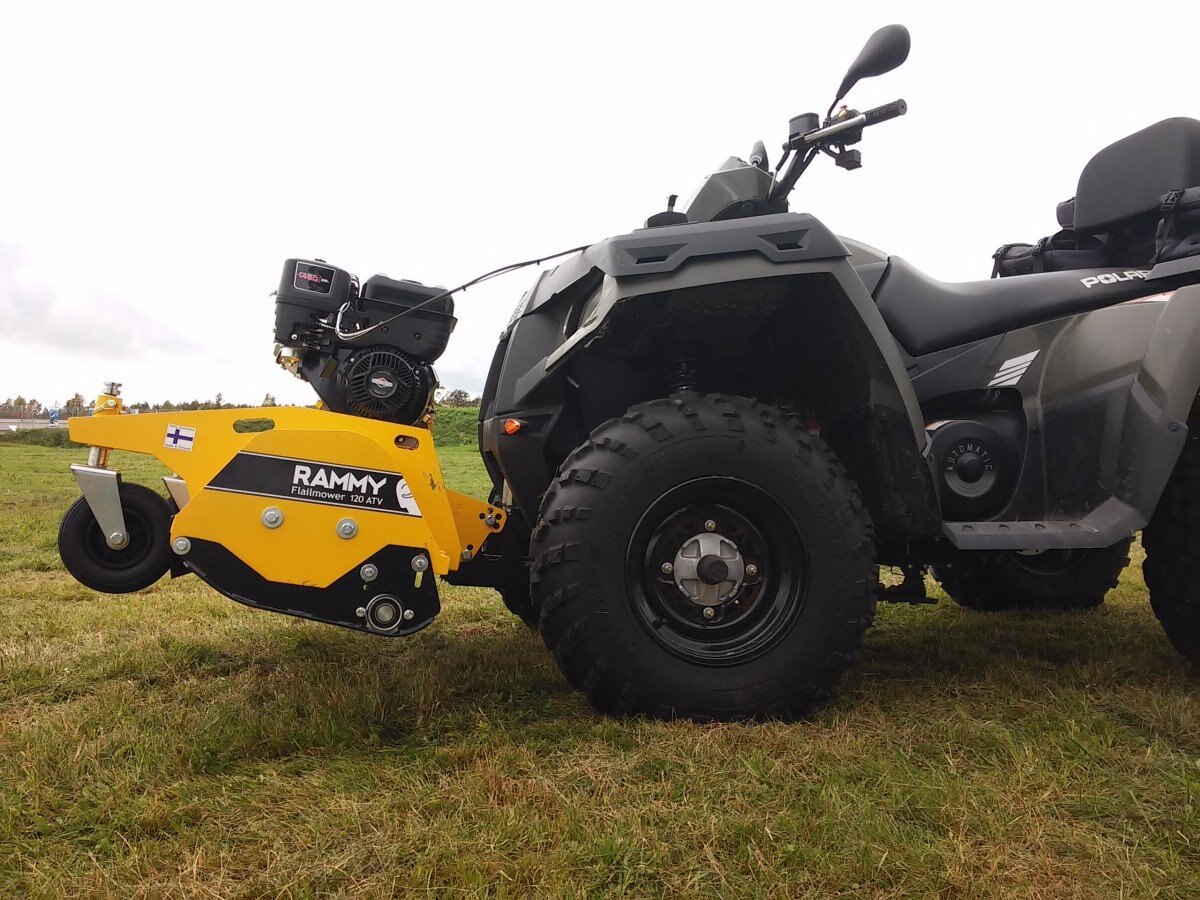

Front-mount flail mower. Rammy Flail Mower 120 ATV

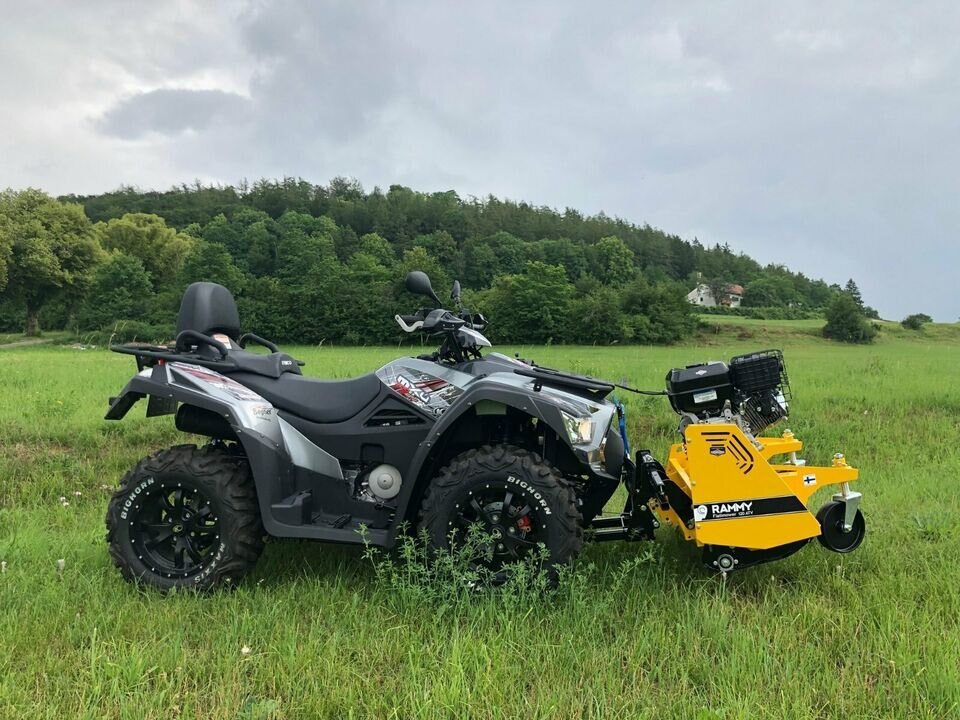

The Rammy is positioned in front of the ATV, so visibility and manoeuvrability are excellent. Cutting height adjustment: 2-10 cm with the front wheels and the back roller. Even higher with a winch

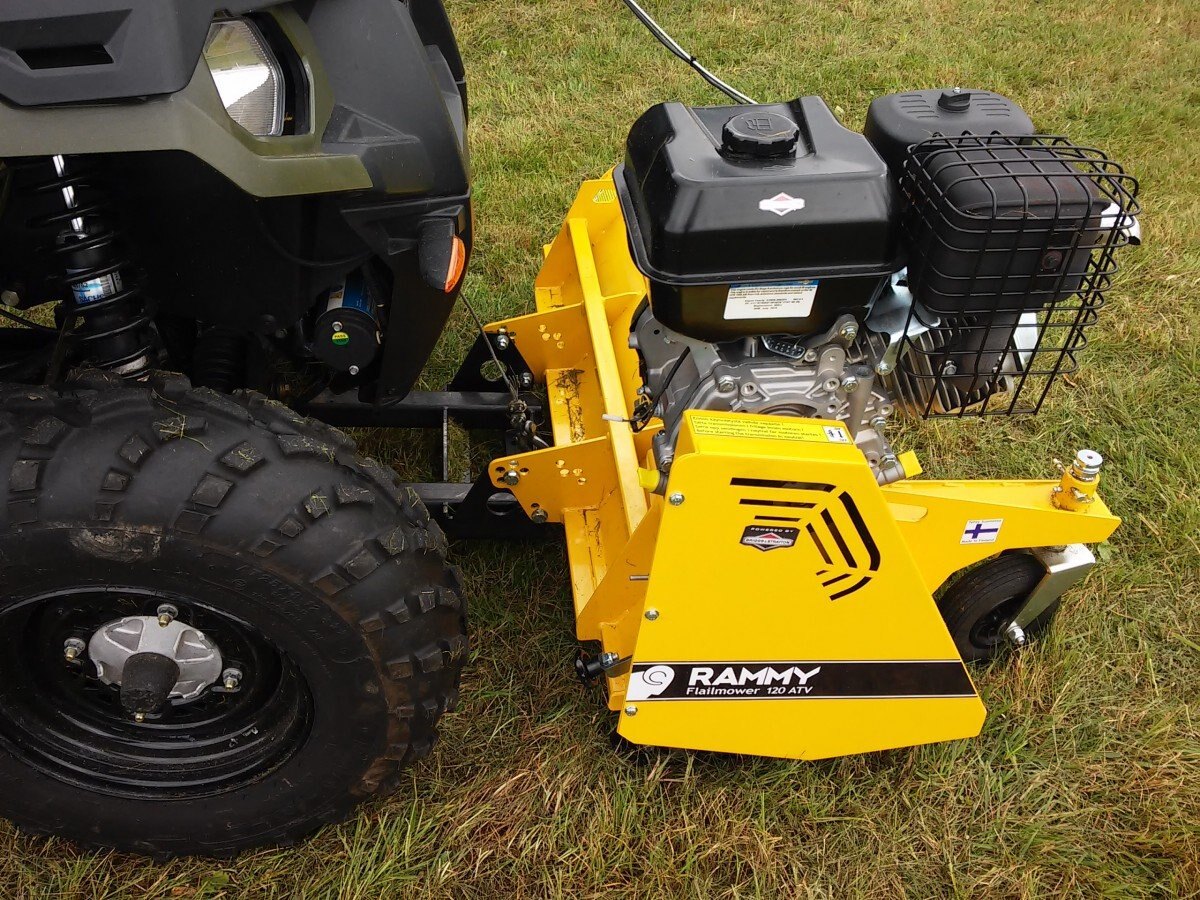

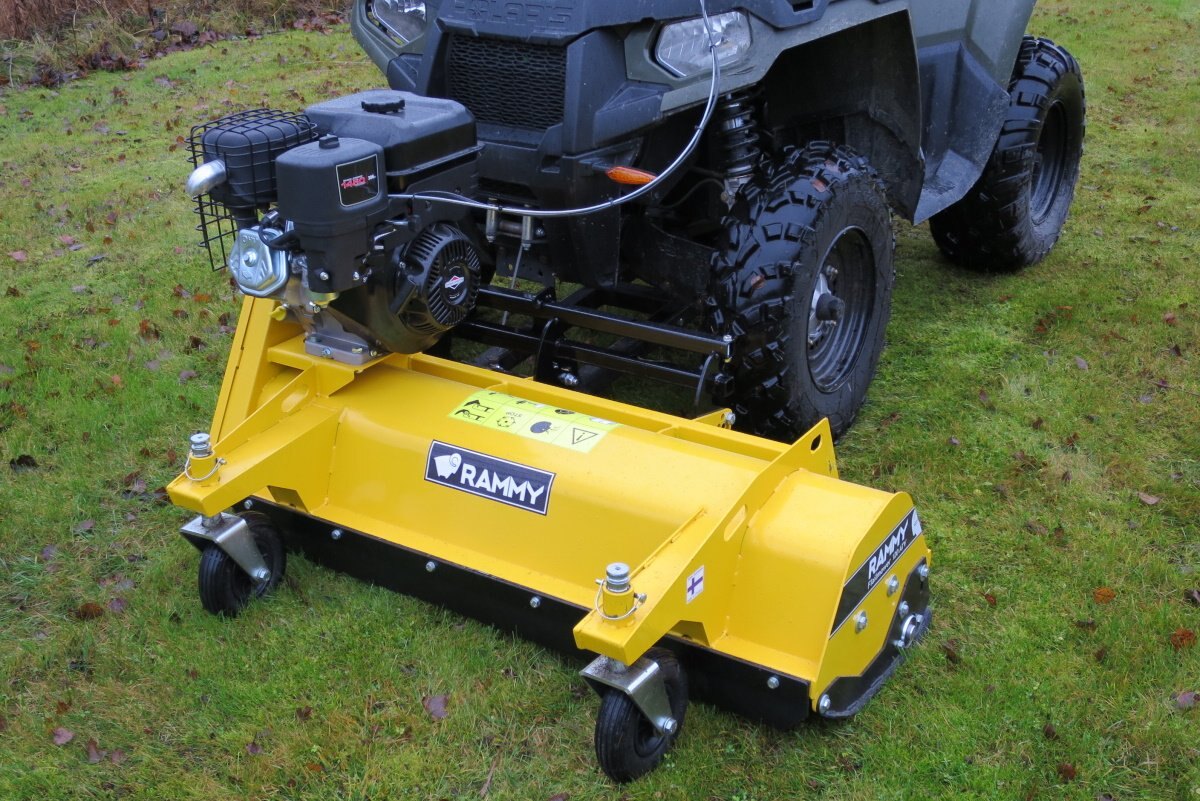

Briggs&Stratton engine.Rammy Flail Mower 120 ATV

The B&S 305 cm3 engine and the maintenance-free double belt transmission make the flail mower an efficient and reliable machine.

Lightweight and compact.Rammy Flail Mower 120 ATV

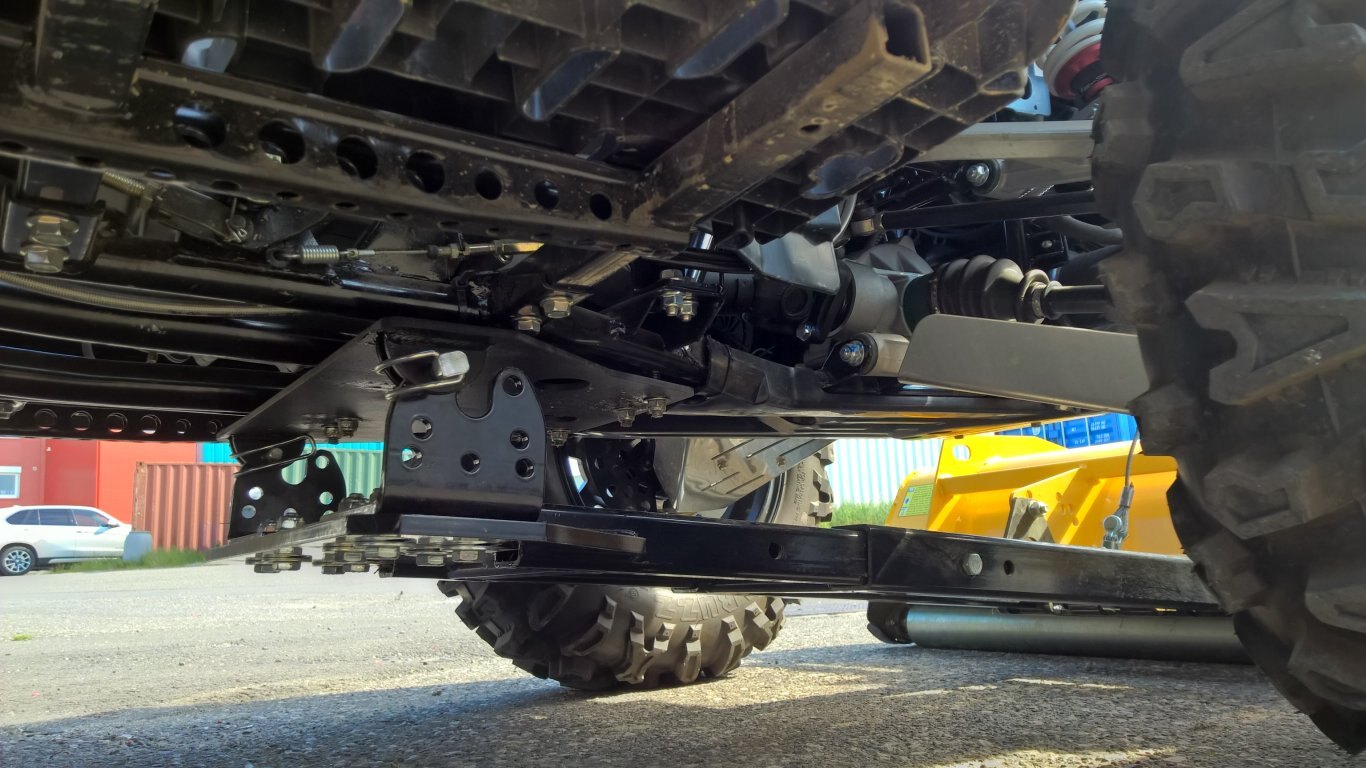

Rammy is lifted with the ATV's winch. The flail mower is attached to the ATV with two locking pins, to the centre mounting kit, like the snow plate (centre mounting kit, behind the front axle underneath the ATV).

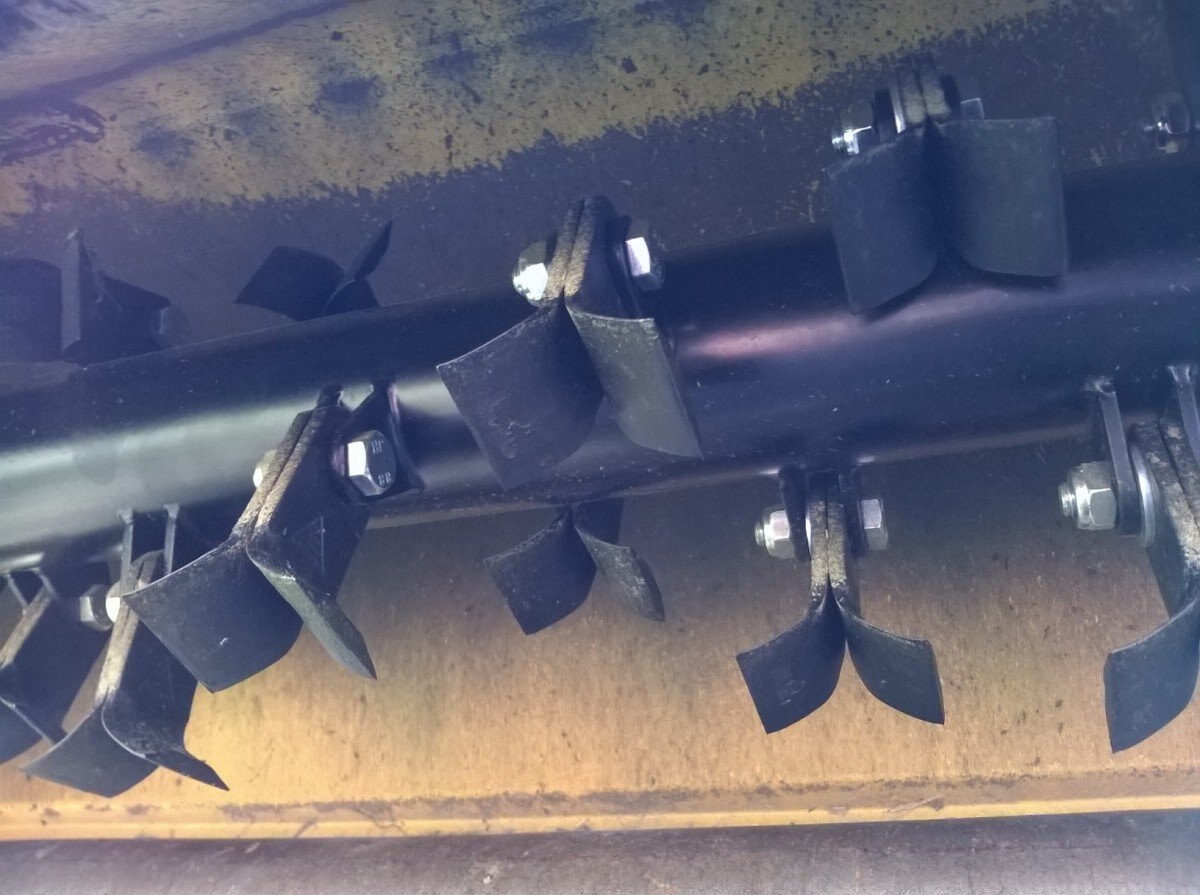

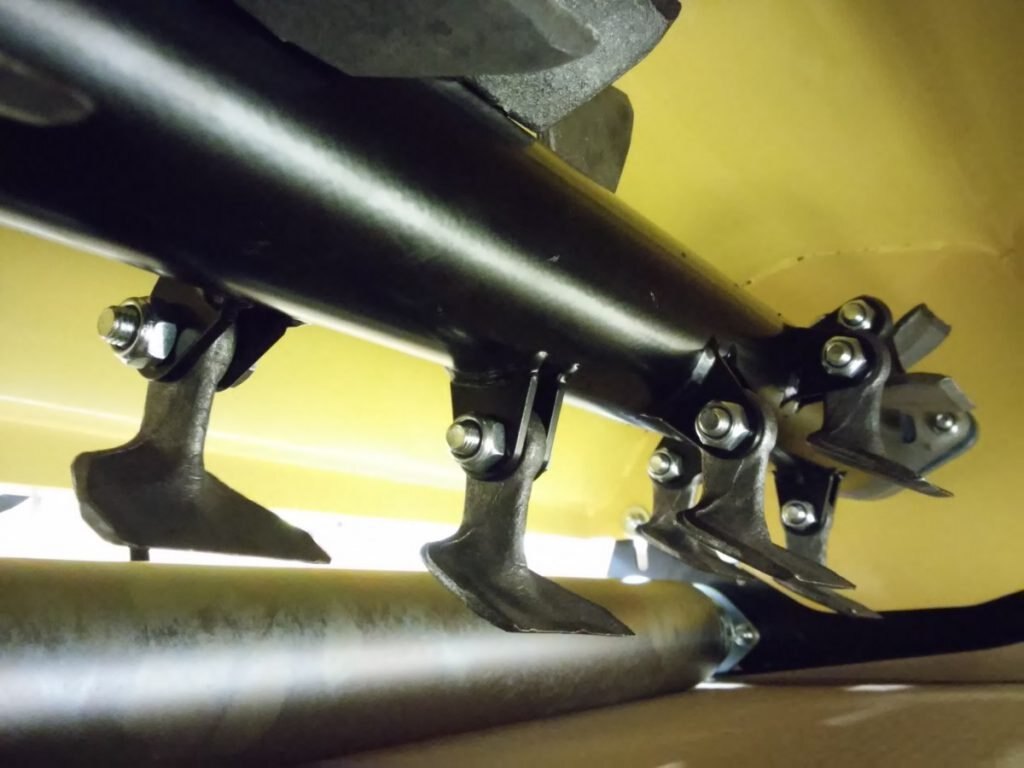

You can choose the suitable blades.Rammy Flail Mower 120 ATV

Y-blades for rough use included in the standard flail mower delivery. Available accessories (pictured): hammer blades for a fine cutting result.

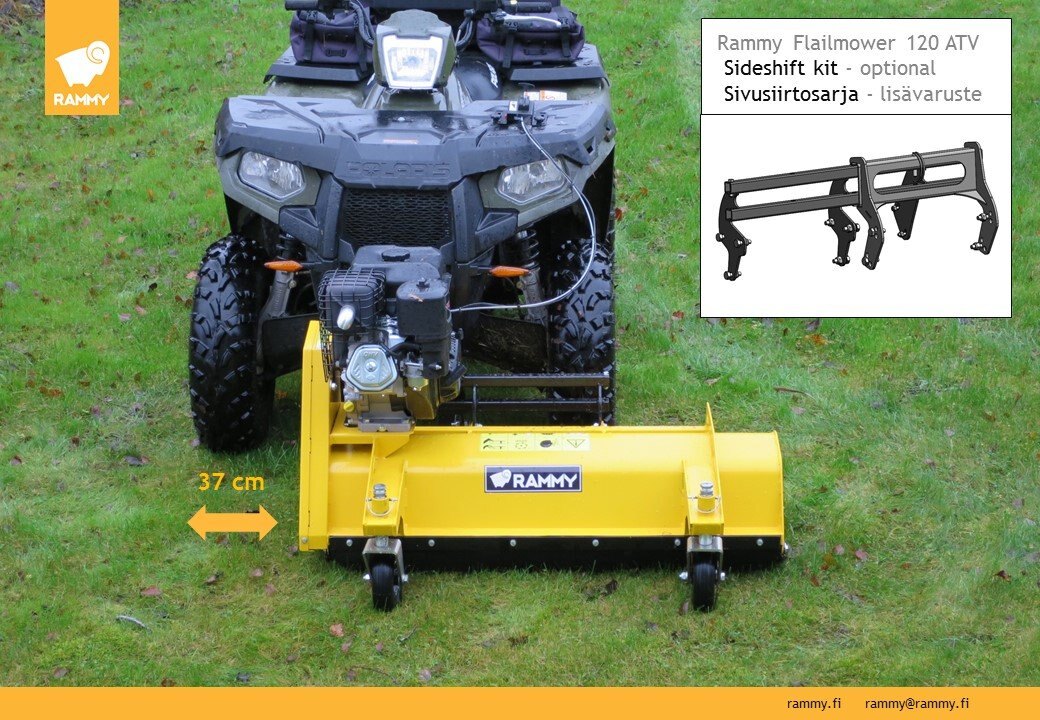

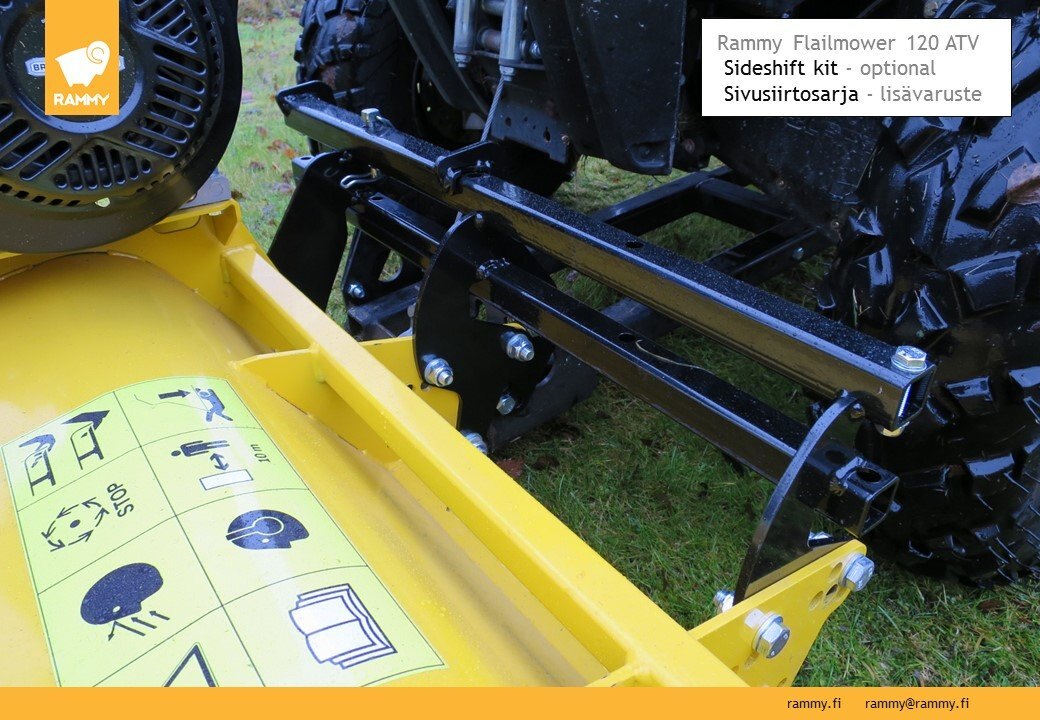

More possibilities with the sideshift kit.Rammy Flail Mower 120 ATV

If the mower is fitted with a sideshift kit (optional), the cutter can be moved 37 cm to the left during operation.

Ready-to-use package.Rammy Flail Mower 120 ATV

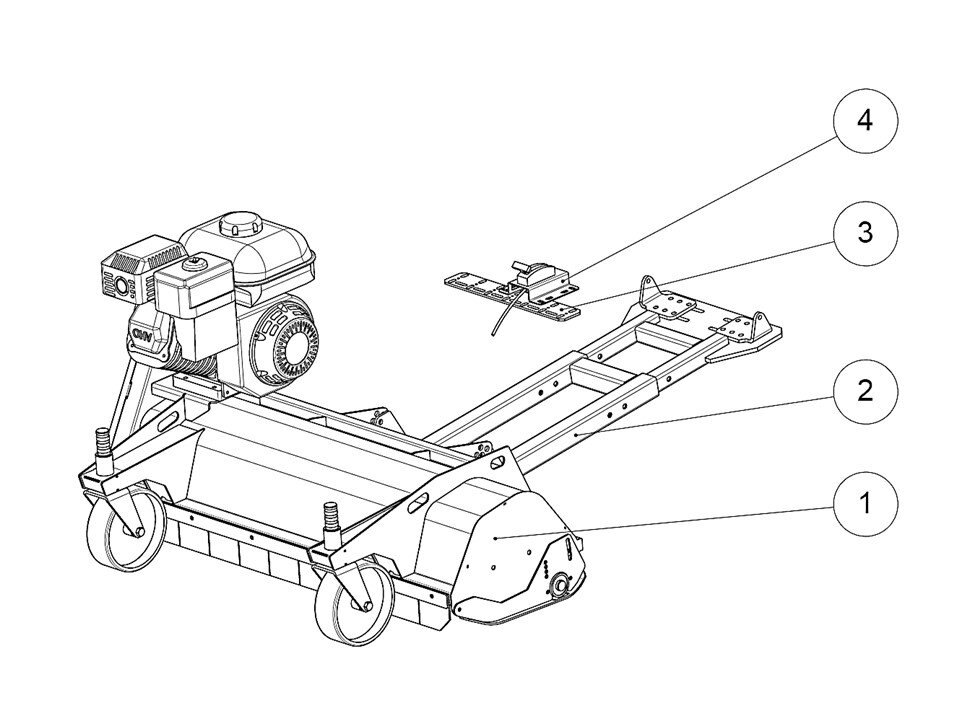

The flail mower comes in a ready-to-use package. 1 flail mower, 2 adjustable accessory frame, 3 mounting plate, 4 remote control. Every unit has been test-driven and inspected.



literature
RAMMY product catalog ENGLISH Download
CENTER MOUNTING KITS Download
Flail mower sideshift kit in ENGLISH Download



technical data
Dimensions Width 120 cm, Length 79 cm
Mowing width 100 cm
Weight Mower 95 kg, Auxiliary device frame 25 kg
Engine Briggs&Stratton 1450. 305 cm3. Power 9 hp 4 stroke engine.
Transmission With two belts. Neutral position clutch.
Cutting blade Y-blades standard for general use. Optional hammer blades for finishing. Drum rotation speed 3000 rpm.
Cutting height 20–100 mm, adjustable by wheels. More height adjustment with winch.
Mounting to ATV Mount brackets with holes on dozer blade on ATV, hole Ø10mm adjustable width of mount bracket (thickness of mount bracket is 8mm) 240-500mm (outer dimension) and the adjustable length is 750-1250mm. Watch standard mounting. Optional Arctic Cat, Can-am, Click&Go and Polaris 16-19 mm lock hook mounting.
Lifting/ lowering ATV winch
Contents of Delivery Mower, auxiliary device frame, remote control, operating manual and spare parts catalogue
Pack 80x120x100 cm. Weight 130 kg.
Warranty 2 years
Optional 1

Lock hook Ø16/19 mm Arctic Cat, Can Am, Polaris and Click&Go

EU price 69 € inc. VAT 24  %

out of EU 55,65 eur + customs duty
Optional 2

Hammer blades 22 pcs

EU price 330 € inc. VAT 24 %

out of EU: 266,13 eur + customs duty
Optional 3

Side shift kit

EU price 299 € inc. VAT 24 %

out of EU: 241,13 eur + customs duty
Price

EU price: 3390 € inc. VAT 24 %

out of EU: 2734,87 eur + customs duty


The customs duty is dependent on the country.

CE marking is affixed to the device.

Product is patented.
