ID # 14663583
Pronovost C9228
Videos
Overview
|

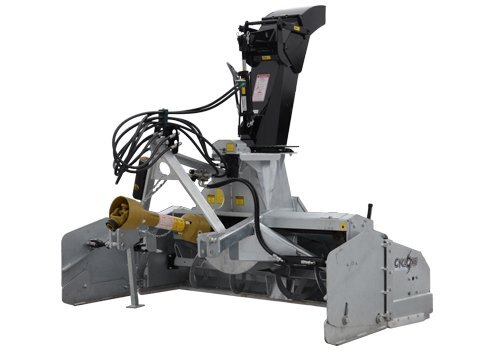

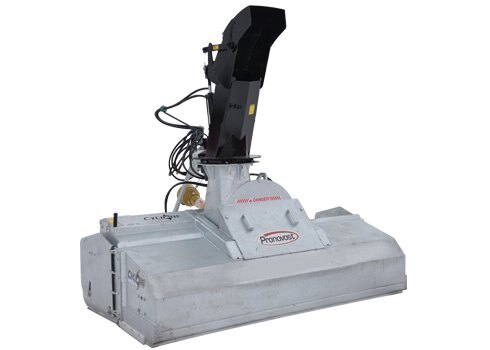

The effectiveness of the Cyclone concept combined with the performance of the Pronovost components. The new Cyclone by
Pronovost incorporates several Pronovost components such as: chute, chute rotation, impeller, chain tensioner, shear plate and
several mechanical parts such as gearbox, drive shaft, bearings, chain and more ... |
- Semi-industrial chute with greasable hinges and access panel (removable).
- Hydraulic cylinder and hose support for deflector adjustment.
- Chute rotation kit for hydraulic motor (motor included).
- T60 PTO.
-
High quality steel scraper blade, reversible.
- Hot dip galvanized snowblower.
|
| |
|
Specifications
Category Name
Snow Blowers
Color
Hot dip galvanized, chute black
Depth Of Drum
12'' / 305 mm
Working Width
92'' / 2337 mm
Cutting Height
23'' / 584 mm
Impeller Diameter
28'' / 711 mm
Weight Including Chute
1688 lbs / 766 kg
Impeller Shaft Diameter
1 9/16'' / 40 mm
Height Of Impeller Center
25 3/8'' / 645 mm
Number Of Impeller Blades
4
HP Recommended (min - Max )
75 to 100 HP PTO
Impeller Housing Contour : High Quality Steel
