ID # 13397449

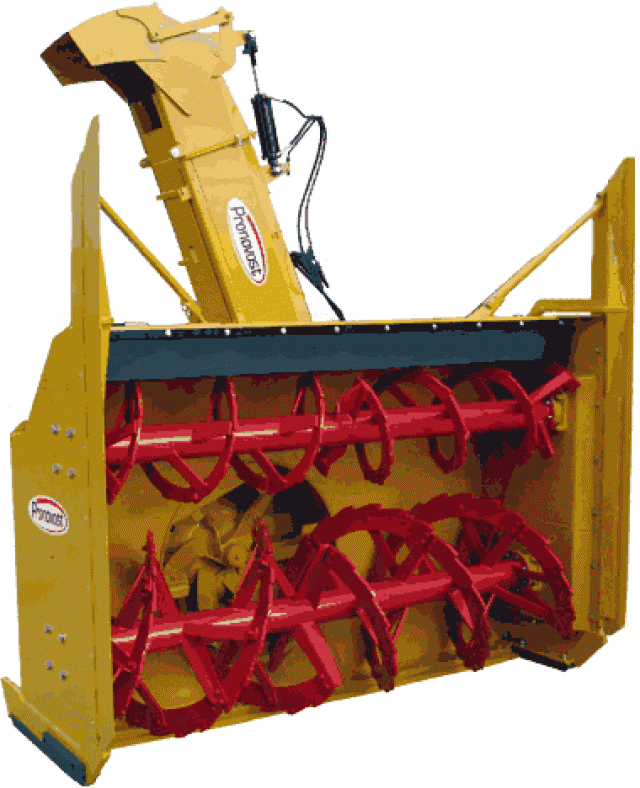

Pronovost PGV-1202TRC

  • Pronovost PGV 1202TRC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Included in base price
- Carbon steel 400 scraper blade, sharpened
- Industrial skid shoes (adjustment by spacers), carbide sole
- Hydrauliqc chute rotation kit for motor
- Hydraulic motor MLH-315 with cushion valve for chute rotation
- P.T.O. category V90, multilobe
- Hydraulic motor MLH-315 with cushion valve for drum rotation
- Reducer 1000/540 (250 HP at 1000 RPM) 2 gears-6 3/4" c/c
CHOICE OF CHUTE for PGV-1021TRC and PGV-1022TRC
Description
Item #
Hydraulic telescopicindustrial chute including deflector cylinder (25TR08), chute extension cylinders and 2 hose supports carbon steel chute and deflector backs, greasable hinges
PCTC-IND
Hydraulic telescopic industrial chute with rounded deflector especially for truck loading, greasablle hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders and hose support. Kit of two unidirectional restrictors RSP-1/16x 10 ORB included PCTC-INDR

N.B. Chutes from Group III may be used on the PGV-1021TRC and the PGV-1022TRC.
OPTIONS for PGV-1022TRC

Description
Item #
Lateral blades 5/8" x 5 3/4" x 60", standard steel
included
Lateral blades 5/8" x 5 3/4" x 78", carbon steel CL-1022PGV
Hydraulic Lateral blades 78" (cylinder 25TR08 included) CLH-1022PGV
Lateral skid shoe with carbide inserts for sidewalk (right side only) PHCT-PGV
Réducer 1000/540 (250 HP at 1000 RPM) 2 gears - 6 3/4" c/c* included
Optional oil cooler (pump and tank) recommended for 250 HP and over RH250-PGV1022
Welded carbon steel teeth on the open flight auger included

* The oil cooler option must be added for use at 300 HP


Specifications
Model
PGV-1202TRC
Category Name
Snow Blowers
Year
2015
Sale Type
New
Manufacturer
Pronovost
HP Recommended
175 to 300 HP
Height- Chute Base
54'' (1372 mm)
Frame Height
68 1/4'' (1829 mm)
Drum Diameter
37'' (940 mm)
Depth Of Drum
15'' (381 mm)
Drum Position
Offset 5'' (127 mm) to the right
Size Of Impeller Shaft
2 1/2'' (63,5 mm)
Height Of Impeller Shaft
24'' (610 mm)
Impeller Speed
540 rpm (CW)
P T O Speed Required
1000 rpm (CCW)
Reducer Inverter Included
1000/540 rpm (ratio 1.85@1)
Drive Chain
RENOLD No. 100 HV in oil bath
