ID # 13397446

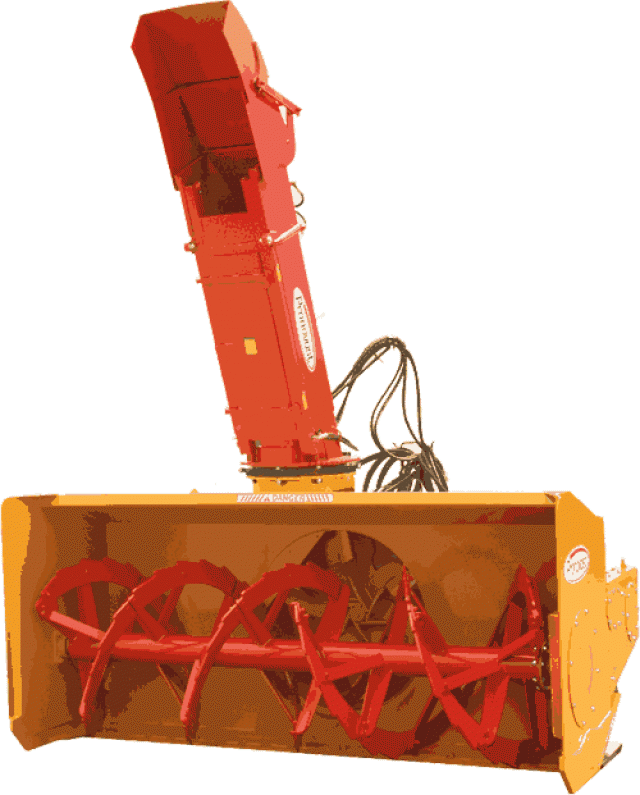

Pronovost PGS-1020TRC

  • Pronovost PGS 1020TRC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Included equipment
- Standard steel scraper blade, reversible
- Quick adjustment standard steel skid shoes
- Hydraulic chute rotation kit for motor (without motor)
- P.T.O. category T90 (choice of yoke as required)
- T1 drum liner
- Chain RENOLD #100HV in oil bath
- Open flight auger
- Frame "Industrial Yellow" (the auger and the chute are "Red Pronovost")
CHOIX DE CHUTE pour PGS-1020TRC
PSIG 5472w PCG 92104 2 PRP 92104( 2) PCT 92104 PCTC INDR
Description
Item #
Semi-industrial chute with greasable hinges and removable acces panel, including hose support for deflector cylinder
PSIG-92104
Quick attach industrial chute with greasable hinges and removable acces panel including hose support for deflector cylinder PCG-92104
- 24" extension for industrial chute
    - 48" extension for industrial chute
PRP-92104-2
PRP-92104
Hydraulic telescopic industrial chute with greasable hinges and acces panel, including extension cylinders and hose support + hose support for deflector cylinder PCT-92104
Hydraulic telescopic industrial chute with rounded deflector especially for truck loading, greasable hinges and access panel, including 2 extension cylinders and hose support and 2 deflector cylinders ans hose support Kit of two unidirectional restrictors RSP-1/16x10 ORB included PCTC-INDR
OPTIONS for PGS-1020TRC

Description
Item #
Hydraulic cylinder for chute deflector adjustment
25TR08
Kit of two unidirectional restrictors 3/8" NPT RSP-1/16x06 NPT
 Kit of two unidirectional restrictors 1/2" NPT RSP-1/16x08 NPT
Hydraulic motor for chute rotation
    for pump with less than 12 GPM (with cushion valve)
    for pump with more than 12 GPM (with cushion valve)
MLH-250
MLH-315
  Kit of two unidirectional restrictors RSP-1/16x10 ORB
Hydraulic motor for chute rotation
    for pump with less than 12 GPM (with cushion valve)
    for pump with more than 12 GPM (with cushion valve)
MLH-250
MLH-315
 Kit of two unidirectional restrictors RSP-1/16x10 ORB
T1gr3a SSTgr3a SIT1gr3a
Semi-industrial scraper blade, carbon steel 450, reversible, 1/2" x 4", not sharpened SIT1-102
Industrial scraper blade, carbon steel 450, reversible, 1/2" x 6", sharpened T1-102
Stainless dteel scraper blade, reversible, 1/2" x 4", not sharpened SST-102
Industrial skid shoes with carbon steel 450 sole PHD-GS
Industrial skid shoes with ROCKTEC sole PSHD-PGS
Skid shoes with stainless steel sole
PST-GS
Lateral blades (set of two) 3/8" x 4" x 66" CL-98104
Lateral blades (set of two) 3/8" x 5 1/2" x 78" with brace CL-1020PGS
P.T.O. multilobe PV-09
PRH 30M 2a PR3G200 2a
Speed reducer 1000/555 (220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c) PRH-30M-2
Speed reducer 1000/555 (200 HP at 1000 RPM - 3 gears - shafts 8" c/c) PR3G200-2


Specifications
Model
PGS-1020TRC
Category Name
Snow Blowers
Year
2015
Sale Type
New
Manufacturer
Pronovost
HP Recommended
100 to 150 HP
Working Width
102'' (2591 mm)
Height- Chute Base
50'' (1270 mm)
Chute Rotation
On UHMW, for hydraulic motor
Frame Height
47 1/2" (1207 mm)
Drum Diameter
34'' (864 mm)
Depth Of Drum
15'' (381 mm)
Drum Position
Centered
Drum Rotation
On UHMW, for hydraulic motor
Size Of Impeller Shaft
2'' (50,8 mm)
Height Of Impeller Shaft
22'' (559 mm)
Impeller Speed
540 rpm (CW)
