Overview
P-INV-74 & P-INV-80

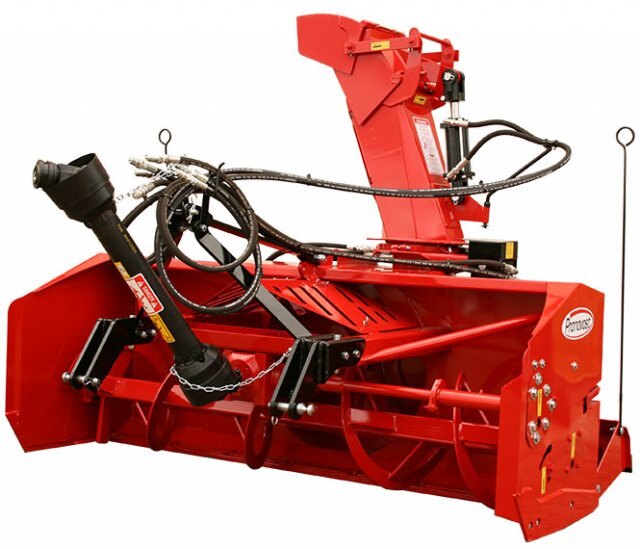

The draw behind snowblower allowing to blow snow while travelling foward. The gear box on this model is placed at the front of the snowblower which allows backing up closer to obstacles to remove the snow and reduces the load on the three point hitch.
HP Recommended 35 to 65 HP
Included in base price:
- Semi-industrial chute
- 25TR04 cylinder for deflector
- Hoses support
- Standard steel scraper blade, not reversible on snowblower
- Hydraulic chute rotation kit for motor
- Hydraulic motor MLH125 for chute rotation
- P.T.O. category T50
SPECIFICATIONS

MODEL
P-INV-80
Horse Power recommended
40 to 70 HP
Working width 80''
Cutting height 28"
Height - Chute base 30"
Impeller diameter 26''
Depth of drum 9''
Impeller blade 4 curved blades
Number of shear bolts 2 (impeller and auger)
Size of impeller shaft 1 9/16" (40 mm)
Impeller RPM 540 RPM
Number of auger 1 (16" diameter)
Drive chain No. 60
Scraper blade replaceable Standard steel (non-reversible)
Chute
Semi-industrial with greasable hinges, access panel and cylinder
for adjustment of deflector
Chute rotation Hydraulic with motor and cushion valve MLH-125 included
P.T.O. Category T50
Auger bearings 1 1/4"
Hitch Category 1 - 28 1/2" c/c
Hose support Included
Approx. weight Rear mount scraper blade & cyl 94 lbs
Approx. weight Snowblower with chute & cyl 957 lbs
