ID # 24835945

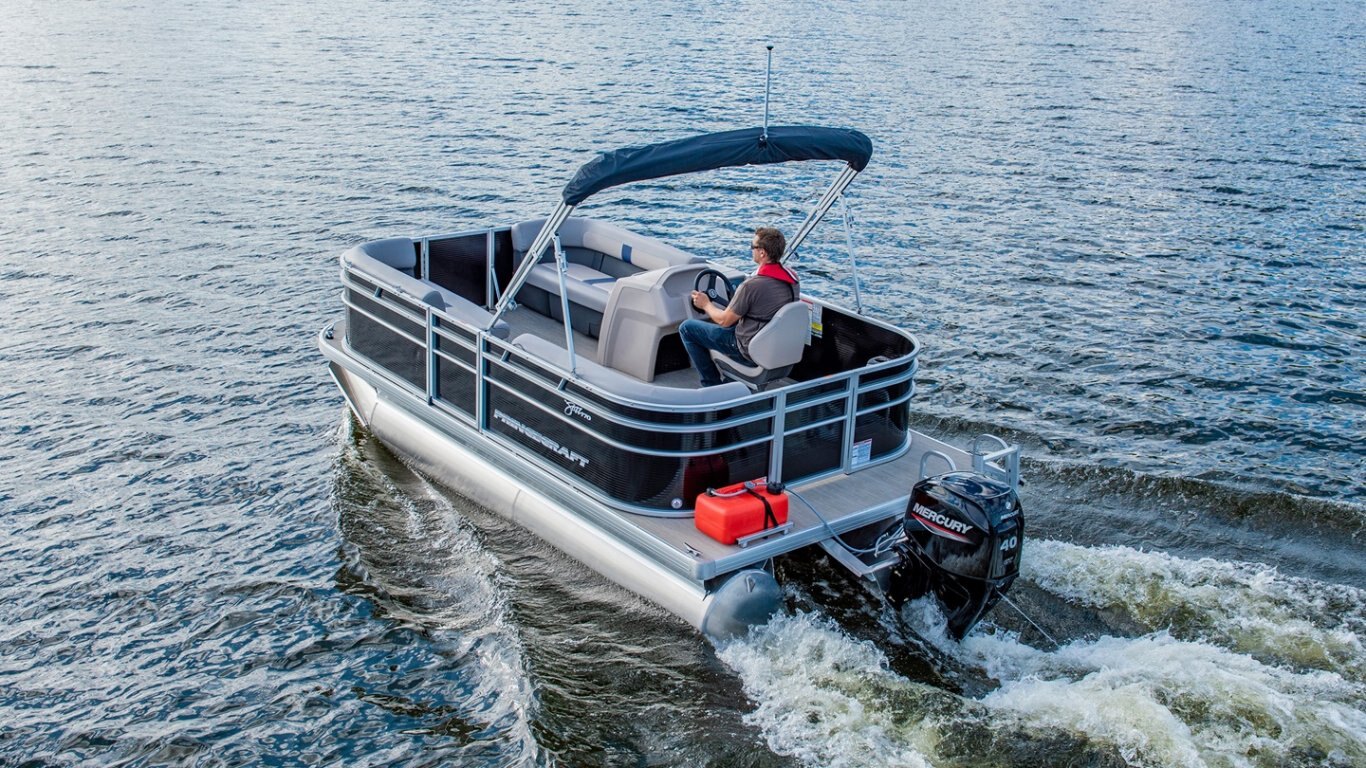

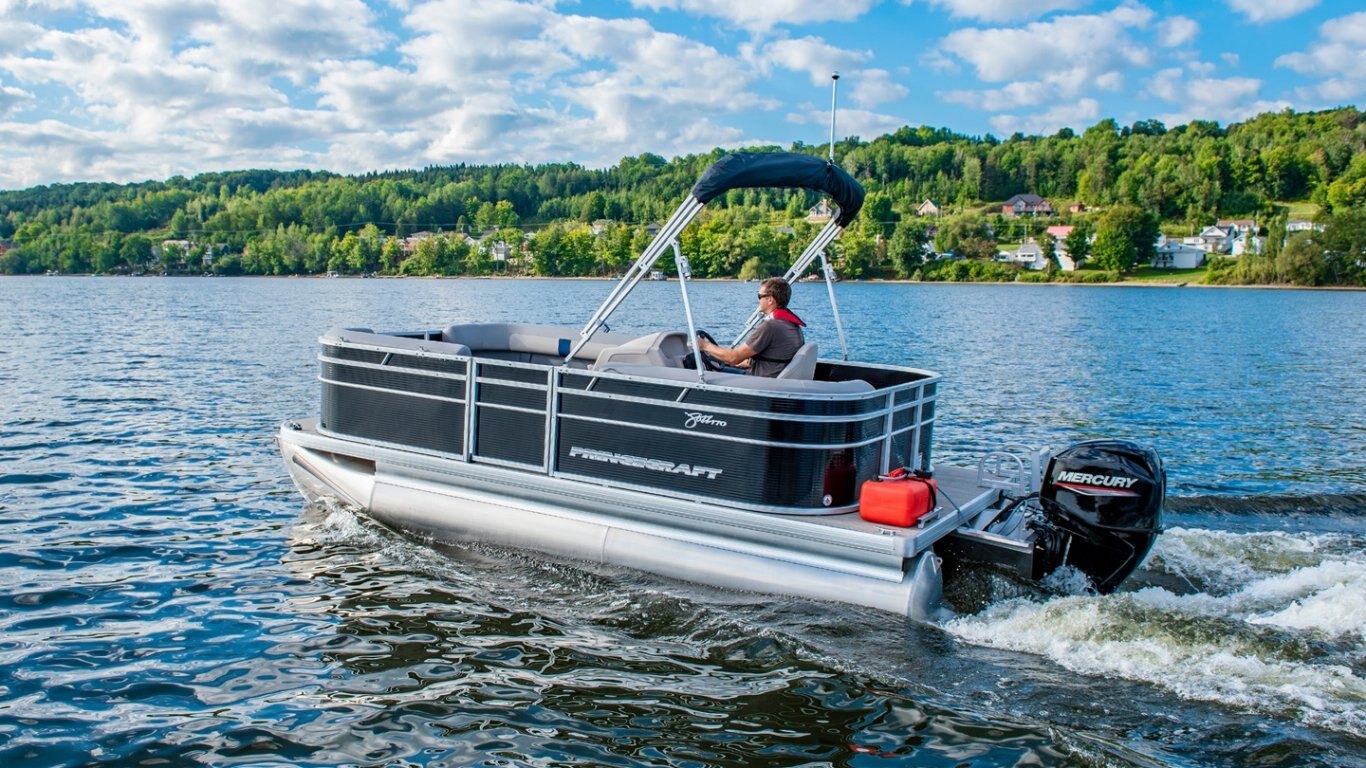

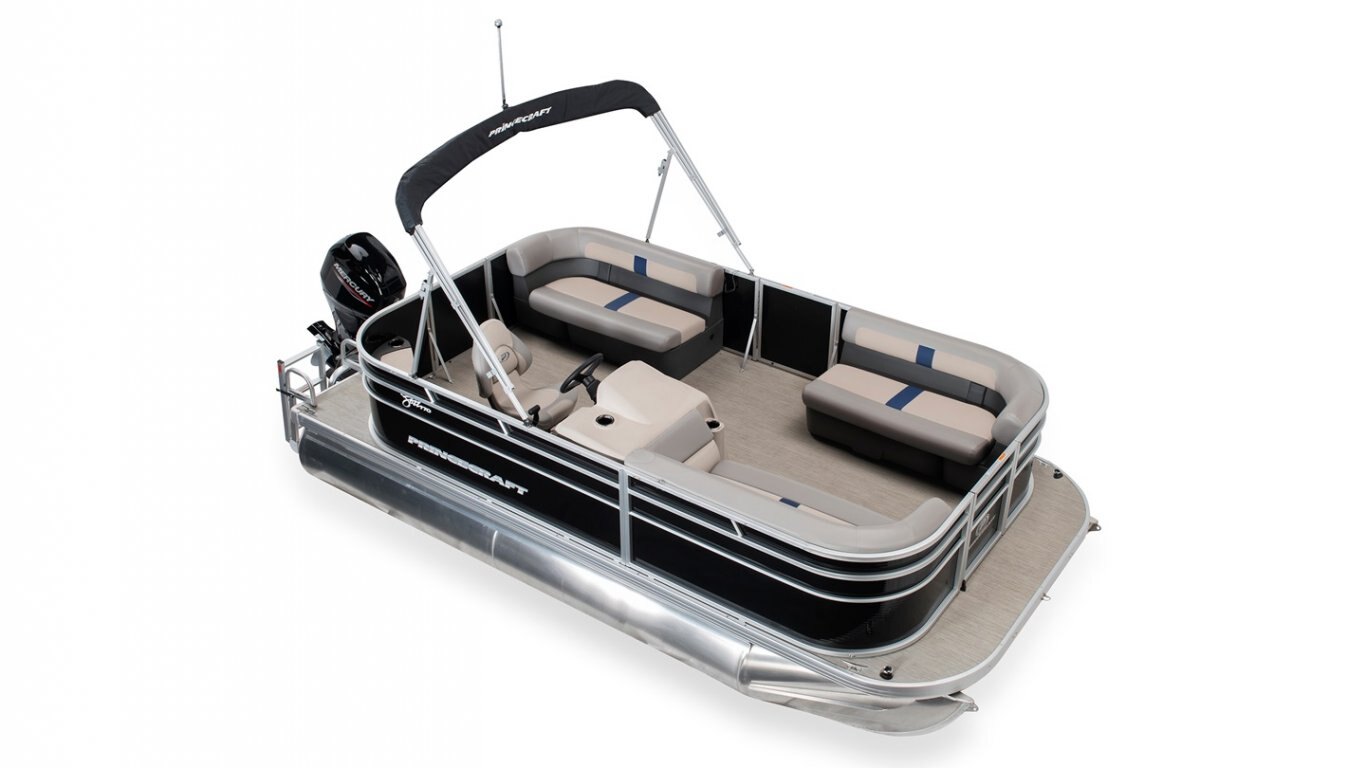

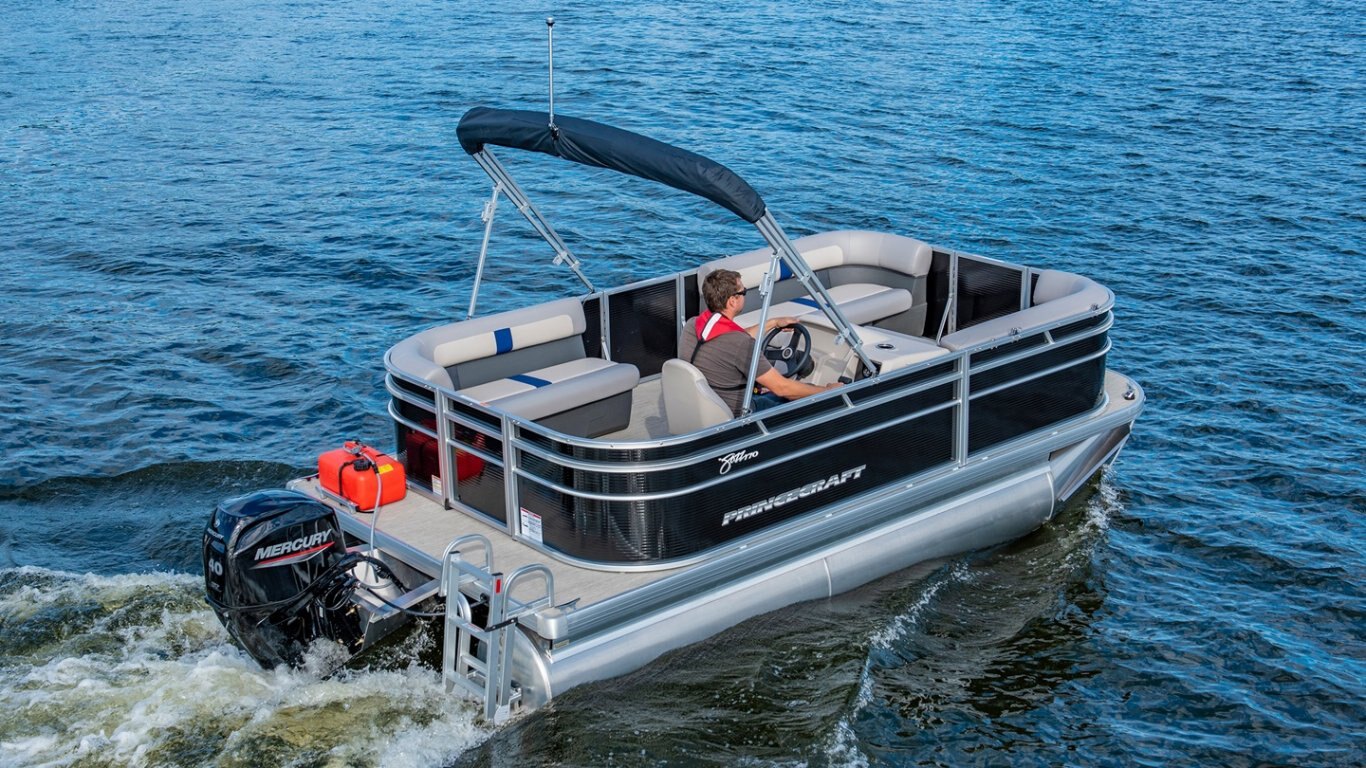

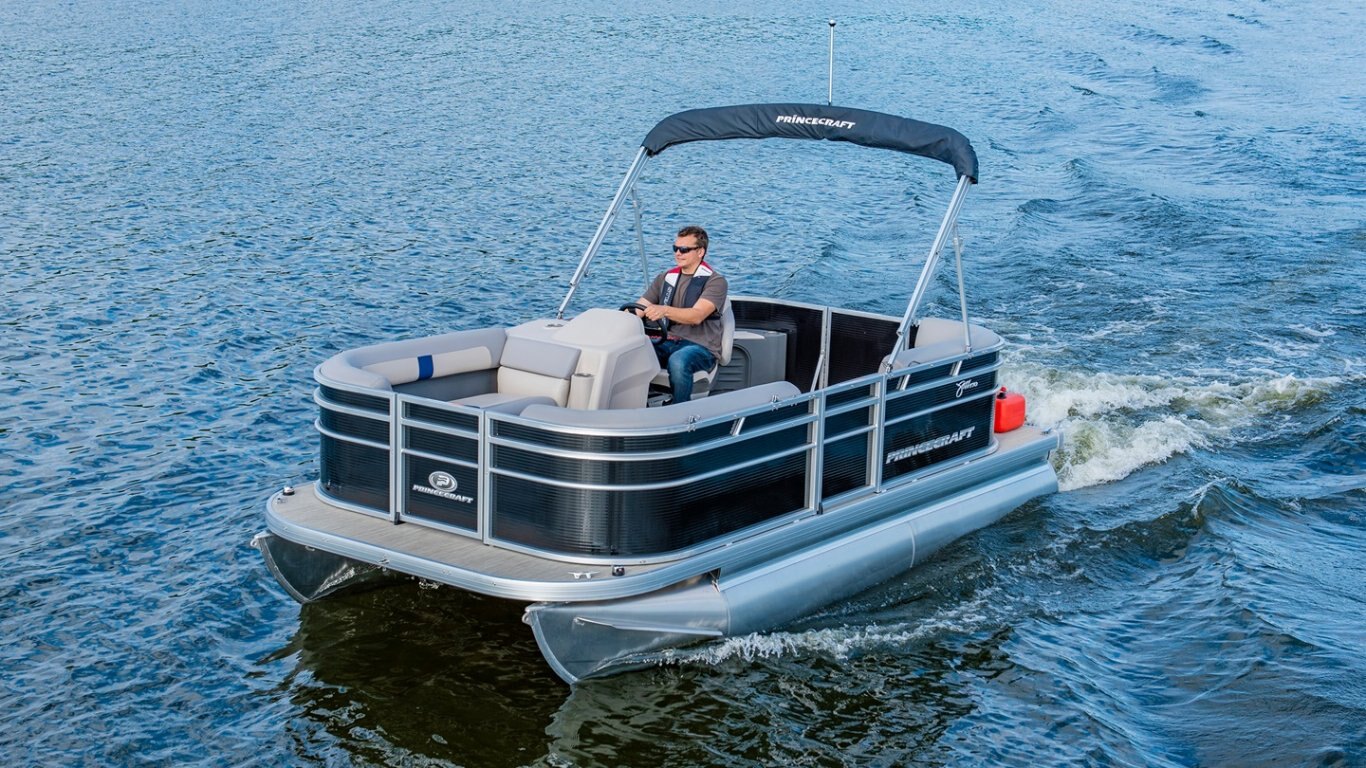

Princecraft JAZZ 170

  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Princecraft JAZZ 170
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

GENERAL SPECIFICATIONS

  • Overall length : 5.4 m (17’-7”)
  • Deck length : 4.9 m (16'-1")
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.0 m (16’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 593 kg (1307 lb)
Specifications
Model
JAZZ
Category Name
Boat
Year
2023
Sale Type
New
Manufacturer
Princecraft
transport canada
  • Maximum HP capacity : 37 kW (50 HP)
  • Maximum weight capacity : 640 kg (1410 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5
nmma (usa)
  • Maximum HP capacity : 37 kW (50 HP)
  • Maximum weight capacity : 640 kg (1410 lb)
  • Maximum weight person capacity : 431 kg (951) lb)
  • Maximum person capacity : 7
gas tank
  • Type : Portable
features

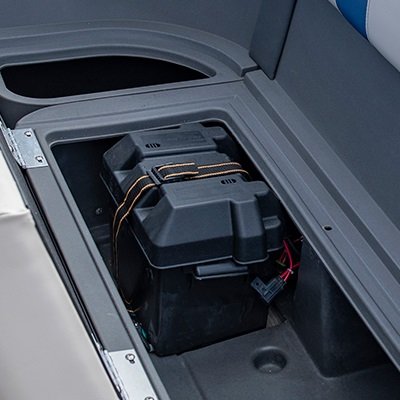

Princecraft JAZZ 170 Battery storage

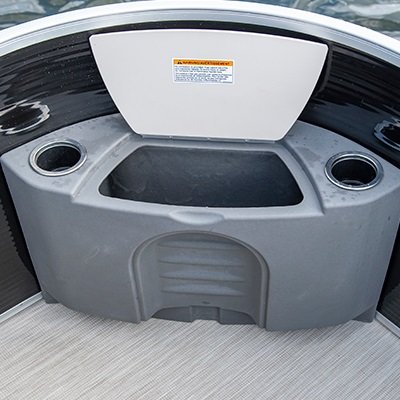

Princecraft JAZZ 170 Bow storage​​​​​​​
Princecraft JAZZ 170 Rotomolded helm console with Concert package
Princecraft JAZZ 170 Swivel folding seats

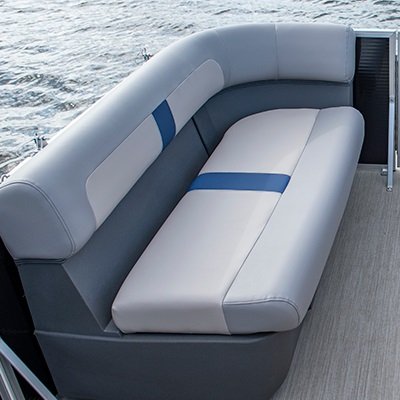

Princecraft JAZZ 170 Chaise lounge​​​​​​​
Princecraft JAZZ 170 Portable gas tank​​​​​​​

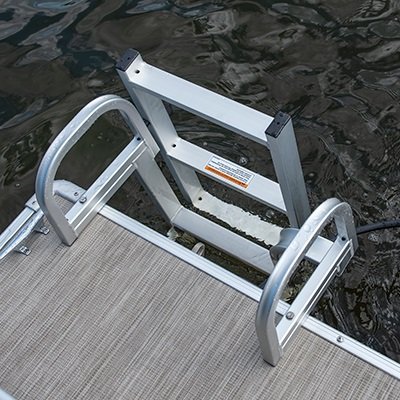

Princecraft JAZZ 170 Stern boarding ladder​​​​​​​
Princecraft JAZZ 170 Storage under console​​​​​​​
Princecraft JAZZ 170 Storage under all lounges
construction features
  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats
helm
  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switches
  • Push on/off console courtesy light
instrumentation
  • Voltmeter
furniture
  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • 4 swivel folding seats
  • Folding swivel driver seat
  • 1 chaise lounge
  • Storage under all lounges
tops
  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options
other standard features
  • Stern telescopic stainless steel boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting brackets
  • Battery box
look and configuration
  • Graphic package: Graphic set including a metallic gray stripe all around
floor covering
  • Select grey vinyl floor covering (Teak Supreme Solid )…UE
  • Select grey vinyl with Black lines floor covering (Teak Supreme 2)…UE
propulsion and autonomy
  • Tilt steering mechanism and slider for driver seat…UE
comfort and entertainment
  • 2 pontoon rail boat fender hangers
  • Removable privacy enclosure installed in the bimini top
  • Captain's chair with swivel…UE
  • Bow beige pedestal mount removable table with cup holders
storage and fishing accessories
  • Stern storage conversion kit into an aerated livewell and support for 3 rod holders
tops and canvas
  • Trailer cover (black)
  • Mooring cover (black)
  • Double bimini top including stern bimini canvas (black)
  • Full camper enclosure including stern bimini canvas (black)
miscellaneous
  • Battery switch: onboard power shut down (Forced with 250 & up)
trailers
  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
