ID # 24835866

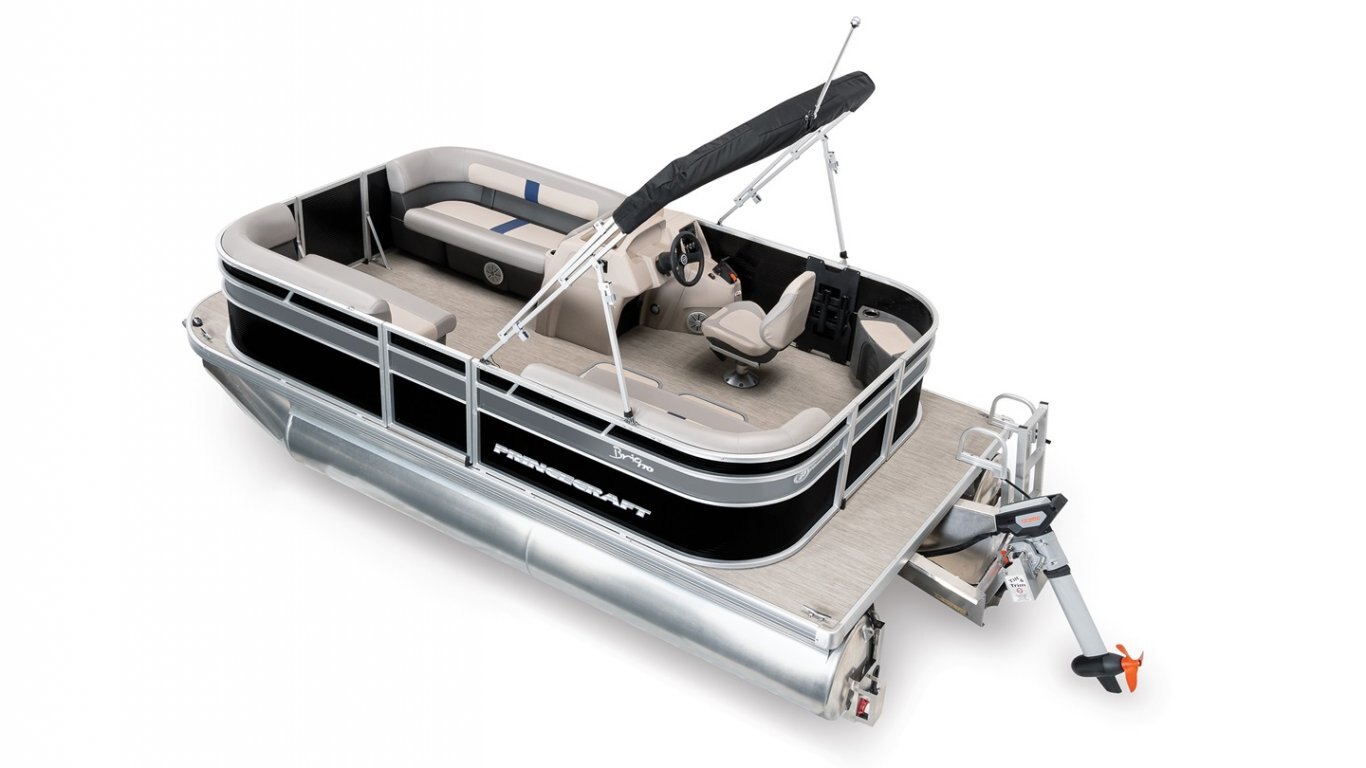

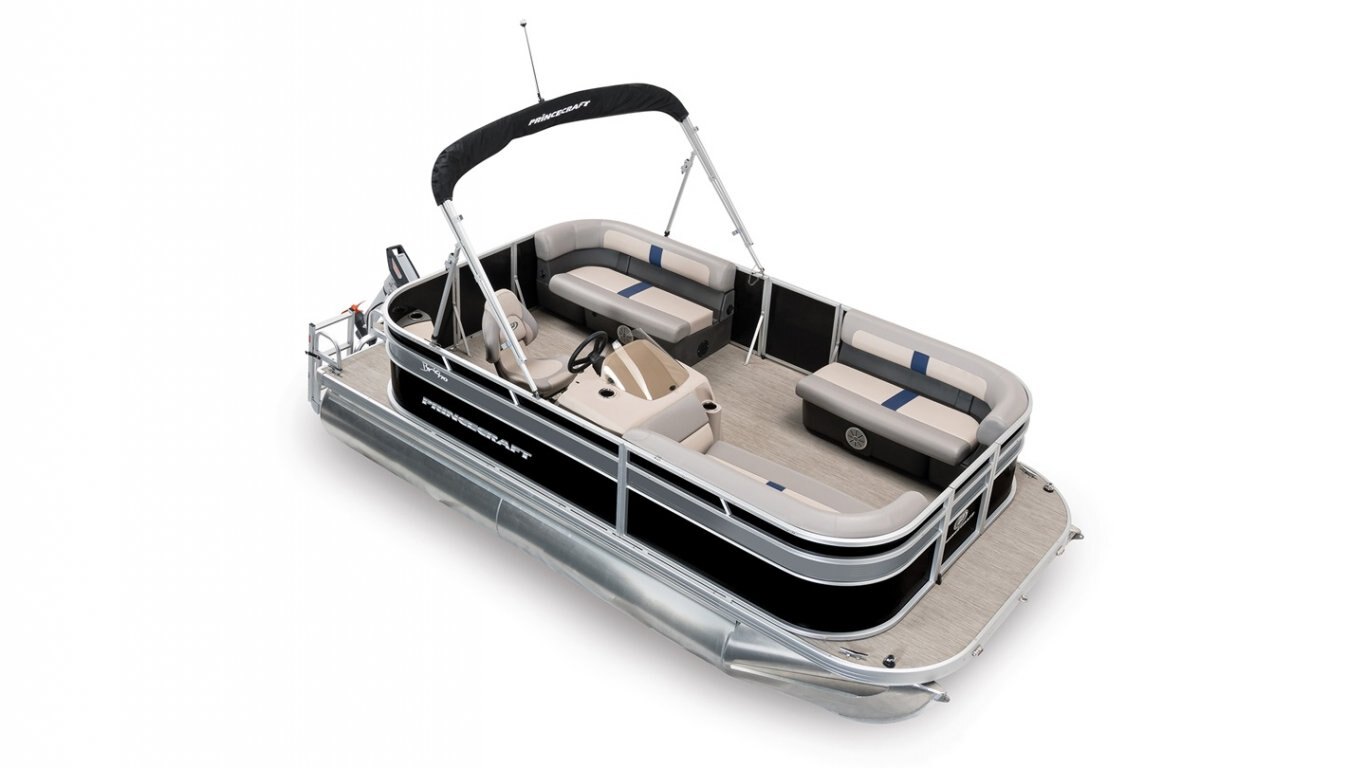

Princecraft BRIO 170

  • Princecraft BRIO 170
  • Princecraft BRIO 170
  • Princecraft BRIO 170
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

GENERAL SPECIFICATIONS

  • Overall length : 5.4 m (17’-7”)
  • Deck length : 4.9 m (16'-1")
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.0 m (16’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 619 kg (1365 lb)
Specifications
Model
BRIO
Category Name
Boat
Year
2023
Sale Type
New
Manufacturer
Princecraft
transport canada
  • Maximum propulsive power : 48V / Cruise 12.0R (approx. 25 HP)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5
nmma (usa)
  • Maximum propulsive power : 48V / Cruise 12.0R (approx. 25 HP)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 462 kg (1018 lb)
  • Maximum person capacity : 7
features

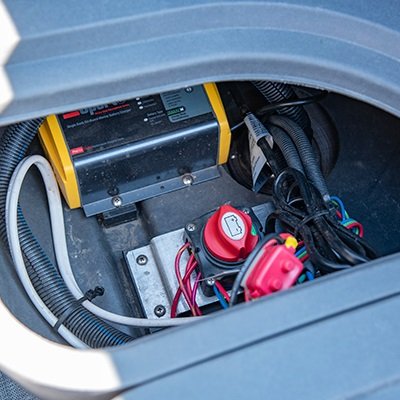

Princecraft BRIO 170 Battery switch allowing the onboard power shut down
Princecraft BRIO 170 Optional Concert package including controls for Jensen Stereo, horn, docking lights, and in-dash USB
Princecraft BRIO 170 Optional controls for electric engine

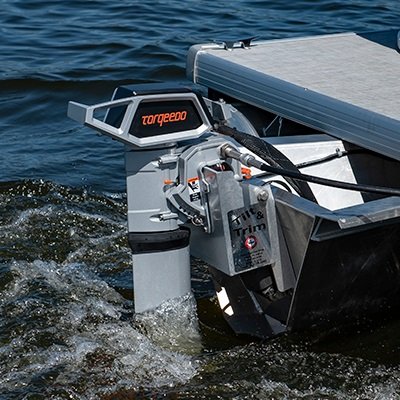

Princecraft BRIO 170 Optional Torqeedo electric engine

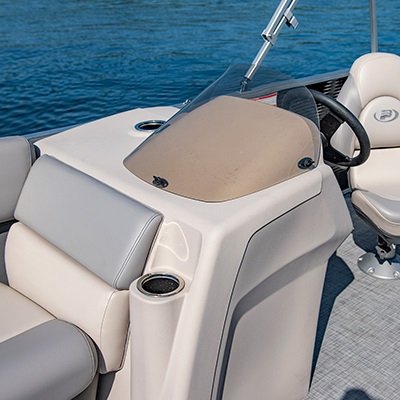

Princecraft BRIO 170 Rotomolded helm console with Concert package
Princecraft BRIO 170 Driver console with optional Concert package​​​​​​​
Princecraft BRIO 170 Floor battery storage with optional 24V Battery ​​​​​​​
Princecraft BRIO 170 Front lounger​​​​​​​
Princecraft BRIO 170 Storage under all lounges​​​​​​​
Princecraft BRIO 170 Storage under console​​​​​​​
construction features
  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats
helm
  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switches
  • Push on/off console courtesy light
instrumentation

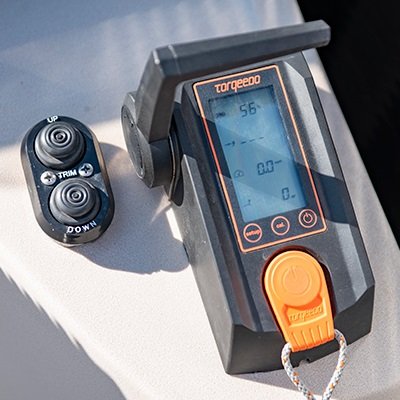

  • Remote throttle with integrated display (indicating battery voltage, battery charge, speed, remaining range at current speed, and input power consumption)
  • Voltmeter for accessory battery
furniture
  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • 2 swivel folding seats
  • Folding swivel driver seat
  • 1 stern storage module
  • 1 chaise lounge
  • Storage under all lounges
tops
  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options
other standard features
  • Stern telescopic stainless steel boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting brackets
  • Battery box
look and configuration
  • Graphic package: Graphic set including a metallic gray stripe all around
floor covering
  • Select grey vinyl floor covering (Teak Supreme Solid )…UE
  • Select grey vinyl with Black lines floor covering (Teak Supreme 2)…UE
propulsion and autonomy
  • Tilt steering mechanism and slider for driver seat for Torqeedo Cruise 12.0 RL only…upgrade exchange
  • 1 Torqeedo battery 24V Power 24-3500 with Torqeedo intelligent charger (14h required for 0 - 100%)
  • 2 Torqeedo batteries 24V Power 24-3500 with 2 Torqeedo intelligent chargers (14h required for 0 - 100%) and 1 additional in-floor battery storage
  • 1 Torqeedo battery 24V Power 24-3500 with Torqeedo FAST charger (5h required for 0 - 100%)
  • 2 Torqeedo batteries 24V Power 24-3500 with 2 Torqeedo FAST chargers (5h required for 0 - 100%) and 1 additional in-floor battery storage
  • 1 Torqeedo battery 48V Power 48-5000 with Torqeedo intelligent charger (9h required for 0 - 100%) (Mandatory/Included in the package price with the Cruise 6.0 RL)
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo intelligent chargers (9h required for 0 - 100%) and 1 additional in-floor battery storage (for Cruise 6.0 RL only)…UE
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo intelligent chargers (9h required for 0 - 100%) and 1 additional in-floor battery storage (Mandatory/Included in the package price with the Cruise 12.0 RL)
  • 1 Torqeedo battery 48V Power 48-5000 with Torqeedo FAST charger (5h required for 0 - 100%) (for Cruise 6.0 RL only)…UE
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo FAST chargers (5h required for 0 - 100%) and 1 additional in-floor battery storage (for Cruise 6.0 RL only)…UE
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo FAST chargers (5h required for 0 - 100%) and 1 additional in-floor battery storage (for Cruise 6.0 RL only)…UE
comfort and entertainment
  • 2 pontoon rail boat fender hangers
  • Removable privacy enclosure installed in the bimini top
  • Captain's chair with swivel…UE
  • Bow beige pedestal mount removable table with cup holders
storage and fishing accessories
  • Stern storage conversion kit into an aerated livewell and support for 3 rod holders
  • In-floor storage (can be convert into a battery storage)
tops and canvas
  • Trailer cover (black)
  • Mooring cover (black)
  • Double bimini top including stern bimini canvas (black)
  • Full camper enclosure including stern bimini canvas (black)
trailers
  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
