ID # 24680137

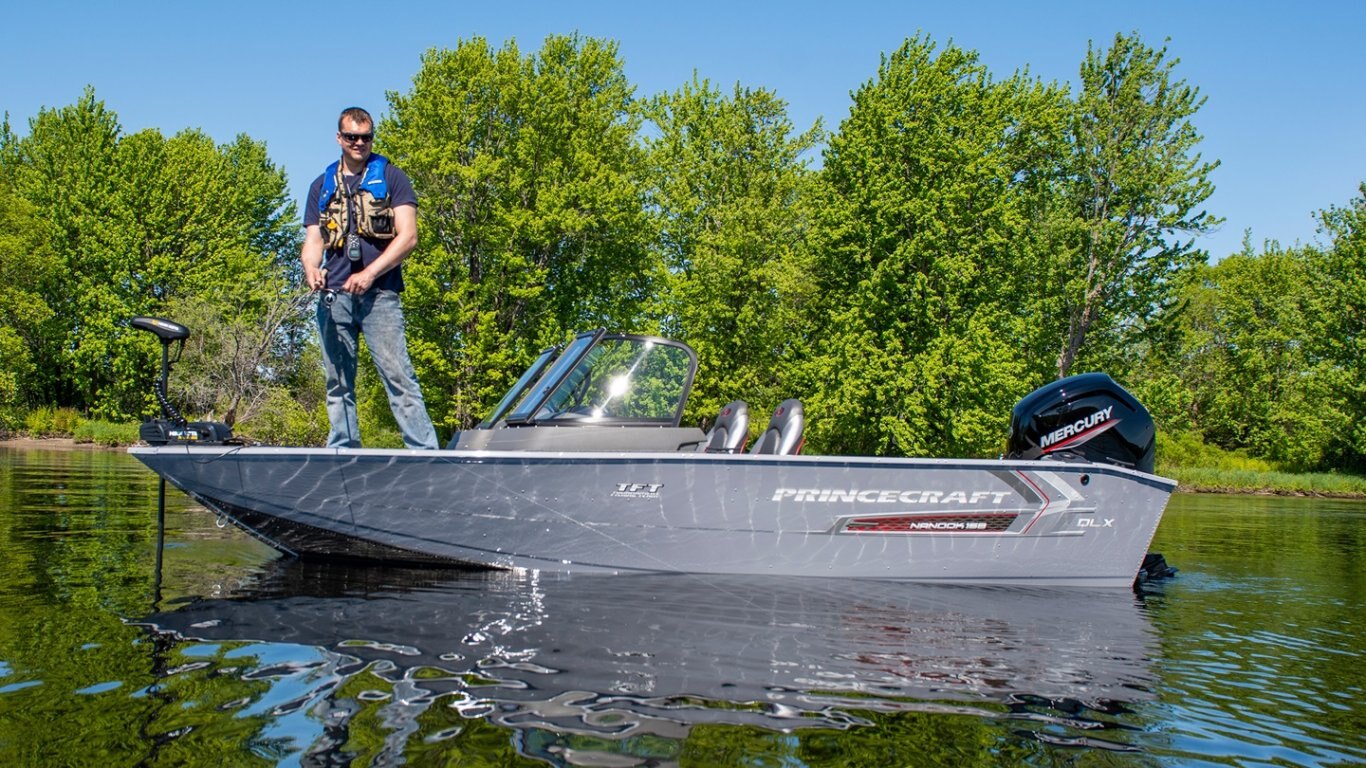

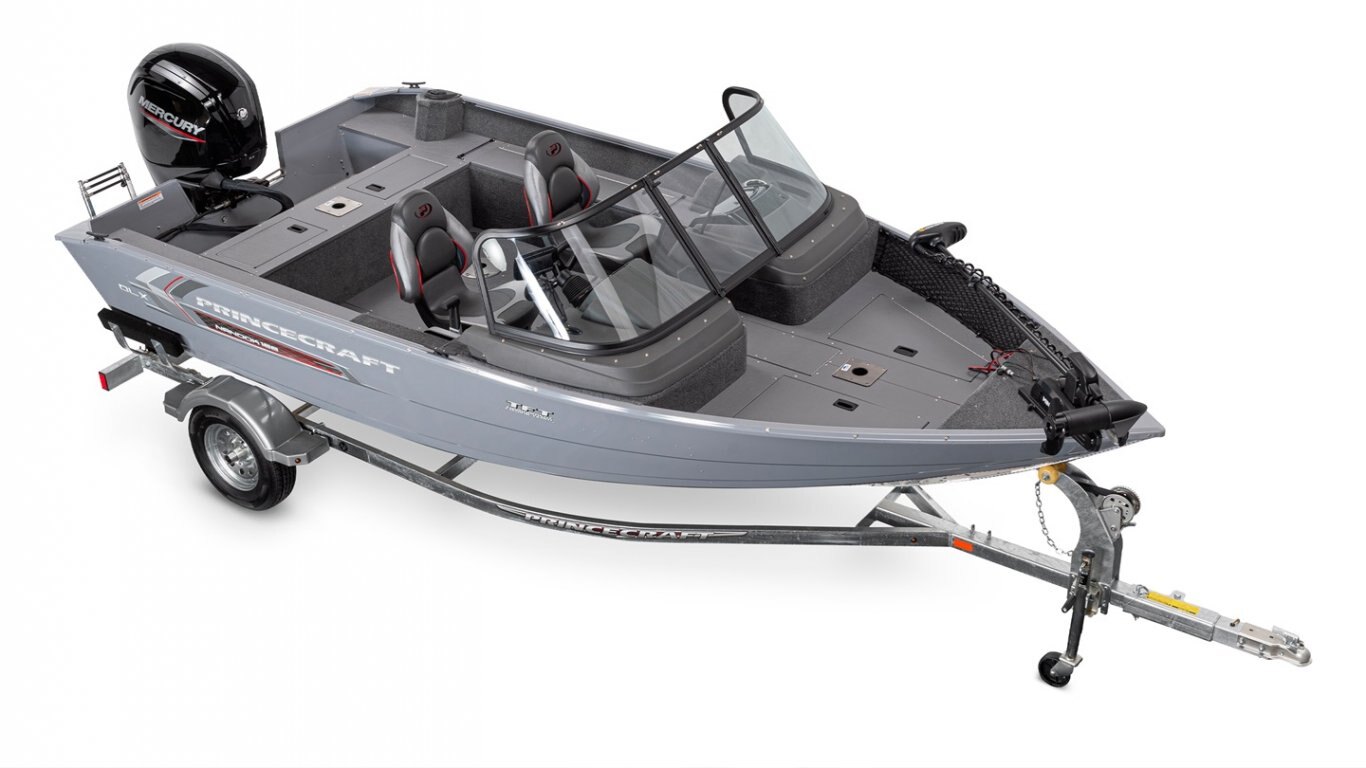

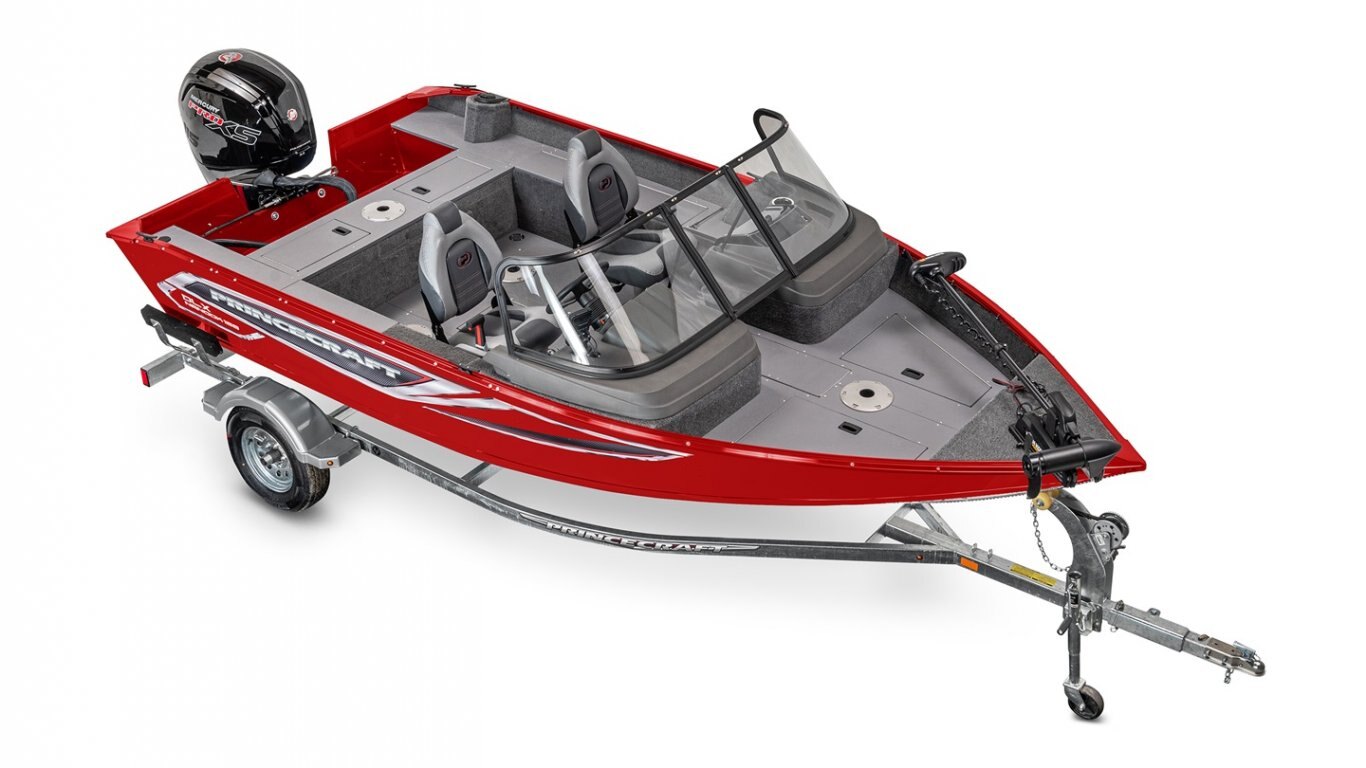

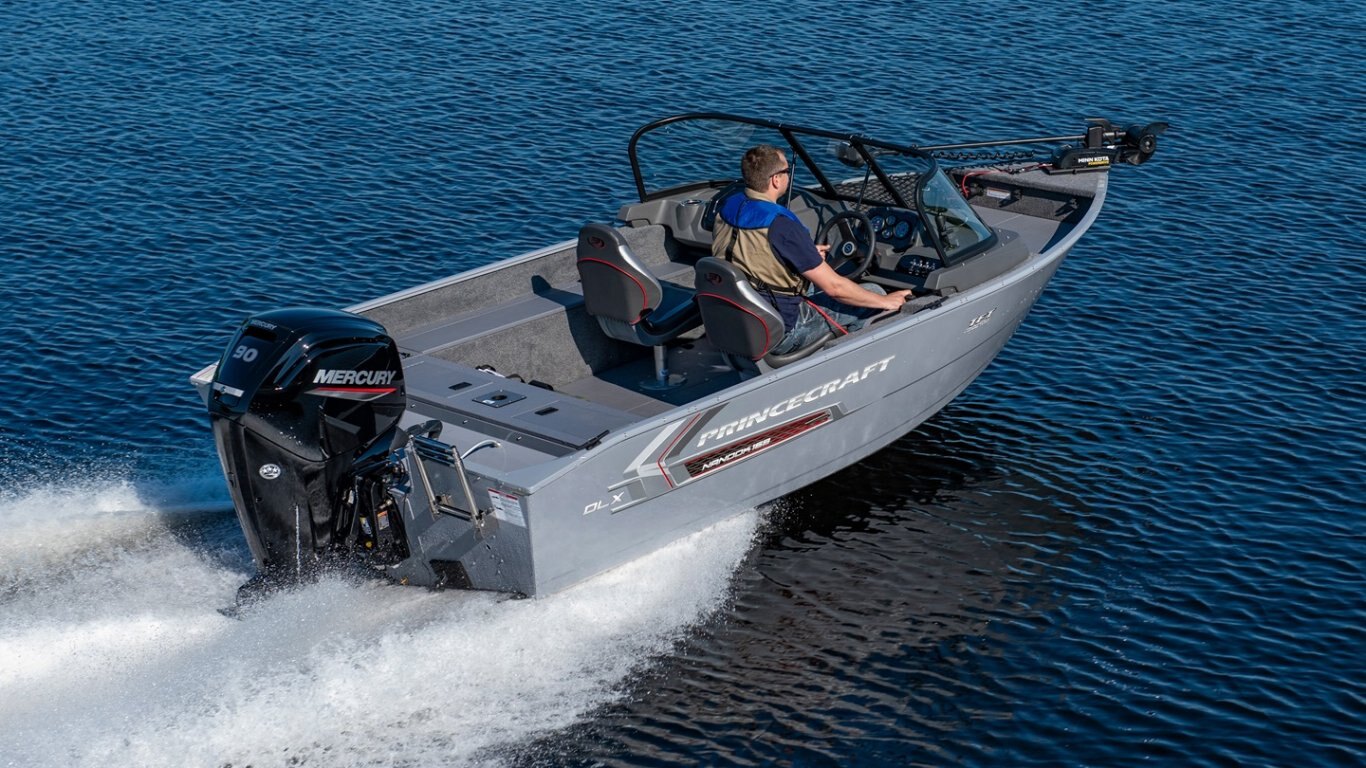

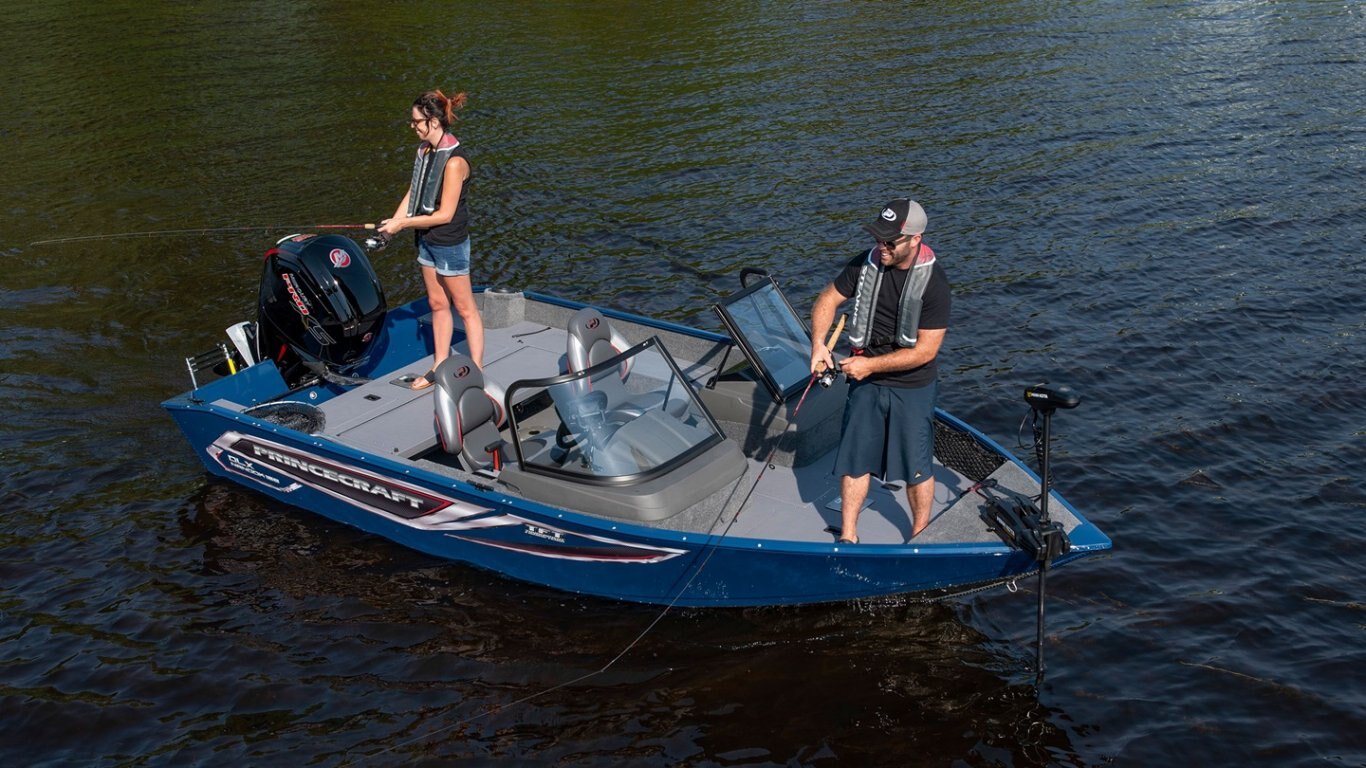

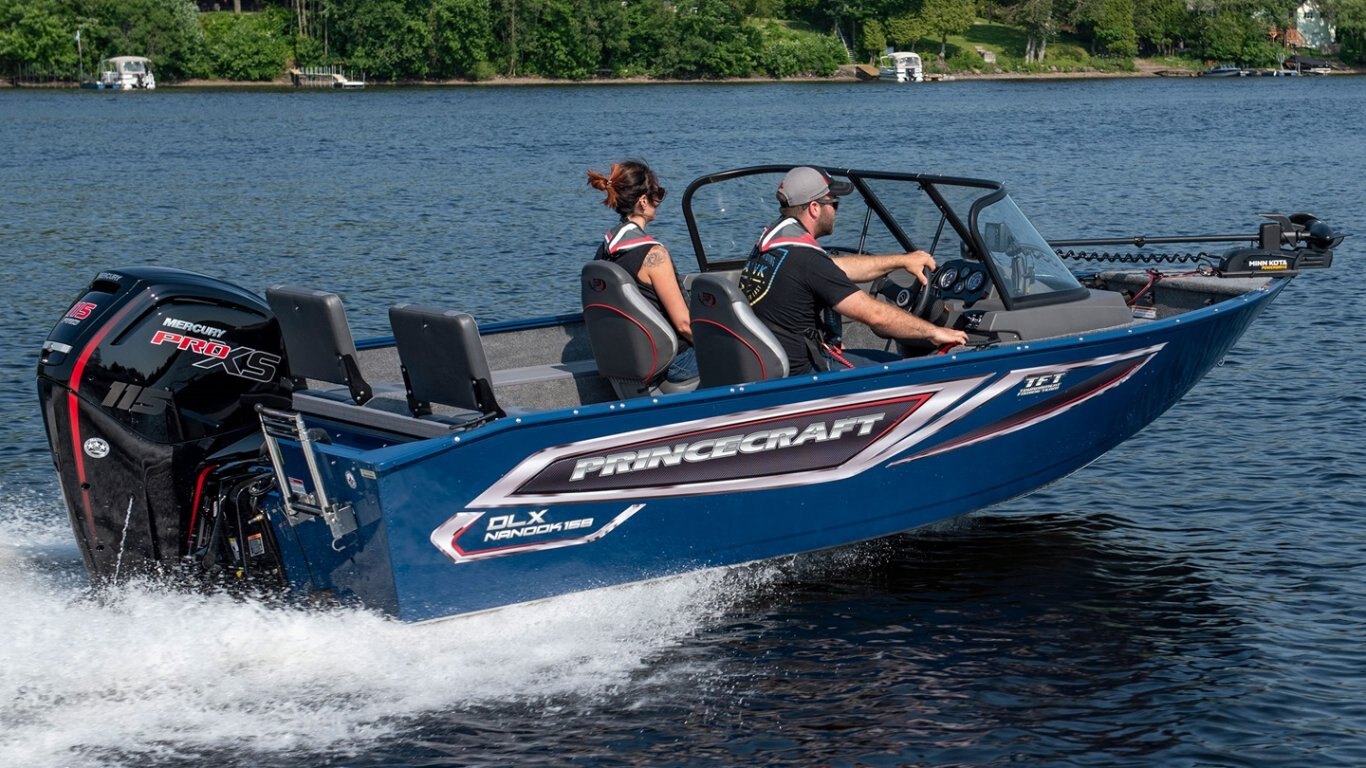

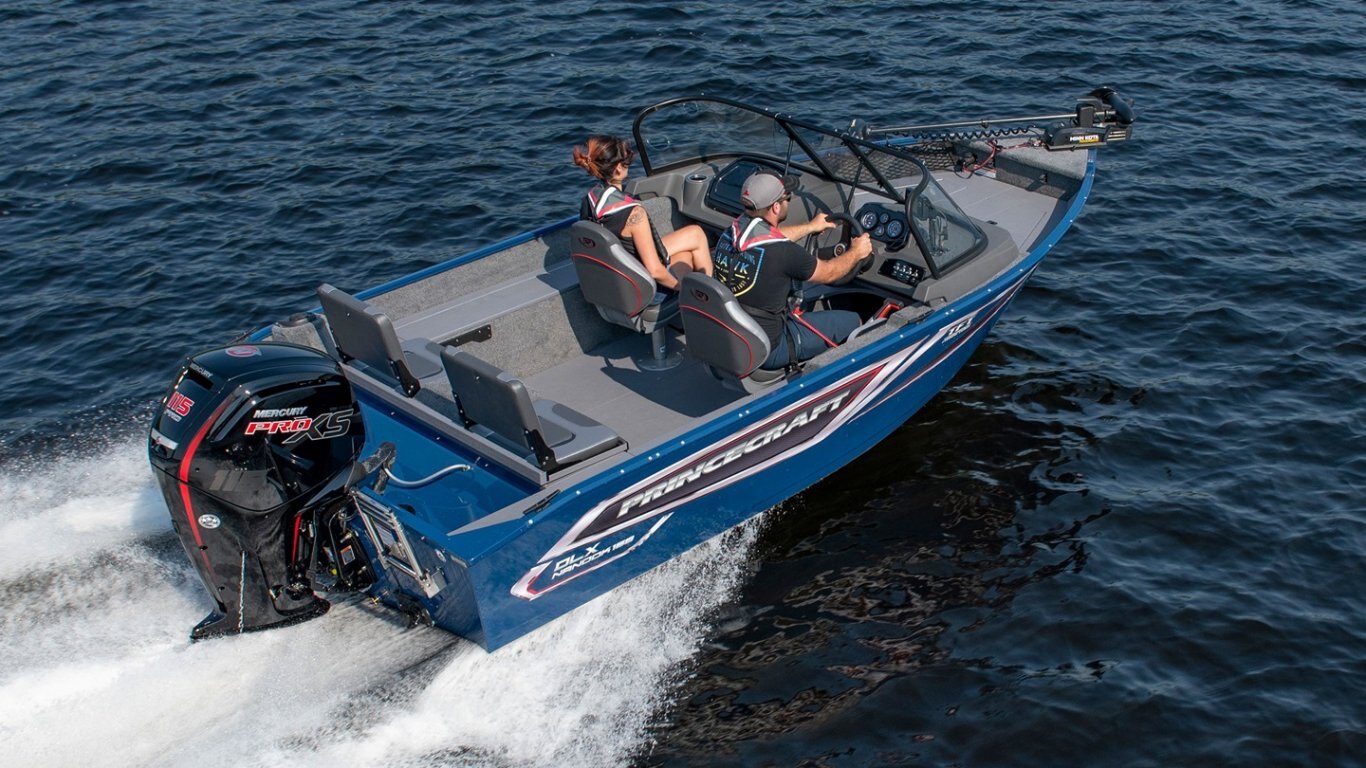

Princecraft NANOOK® 168 DLX WS

  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS
  • Princecraft NANOOK® 168 DLX WS

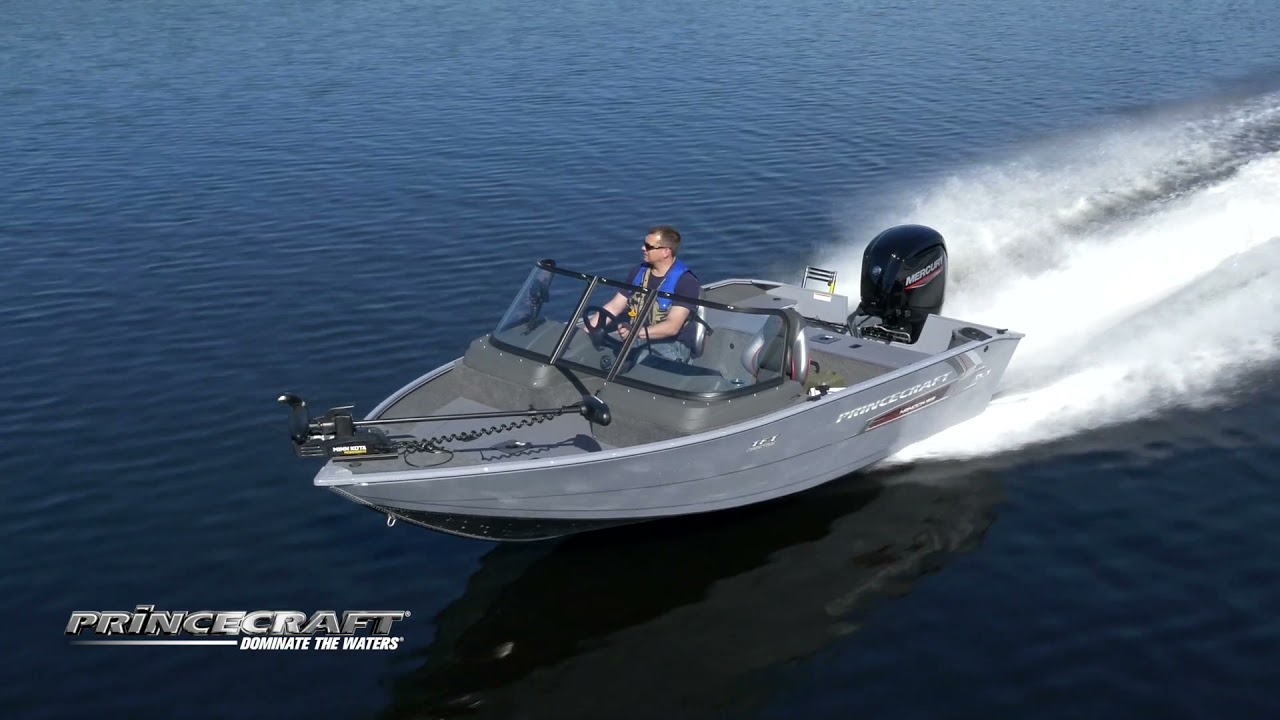

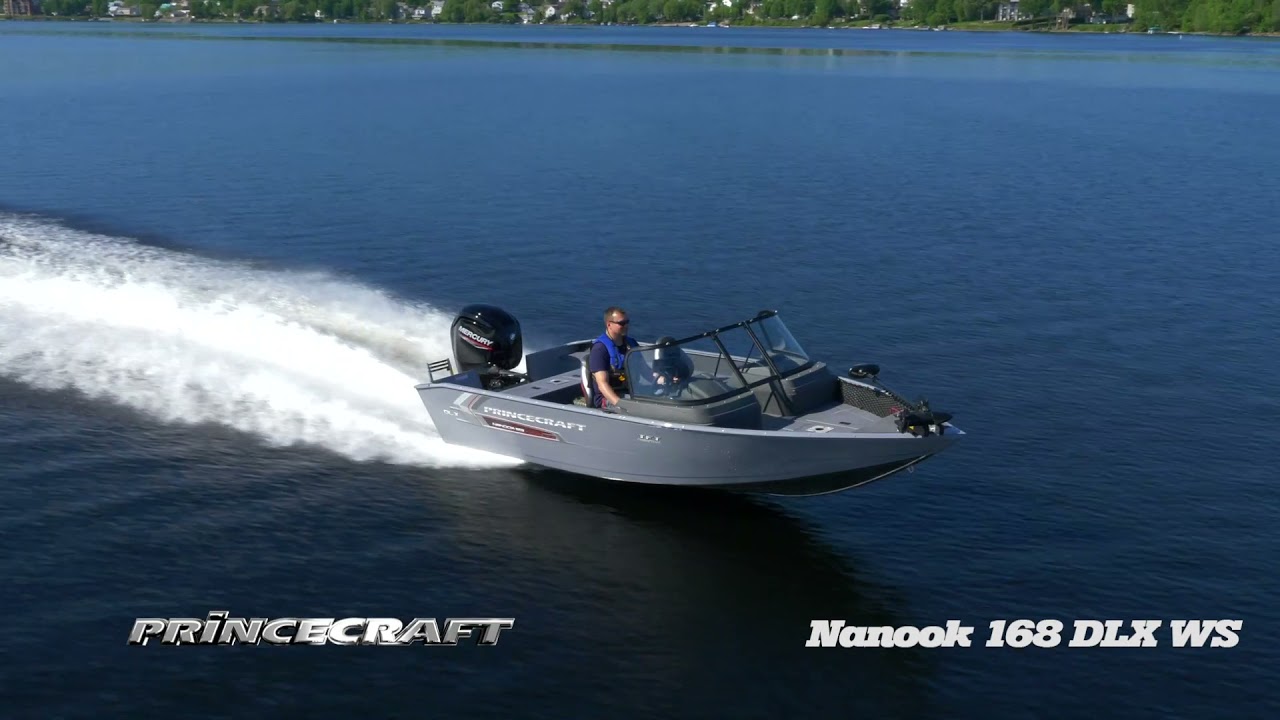

  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

GENERAL SPECIFICATIONS

  • Center Line : 5.0 m (16’-6”)
  • Beam : 2.2 m (88”)
  • Chine Width : 1.8 m (71”)
  • Maximum Depth : 0.8 m (33”)
  • Approximate Draft : 0.7 m (28”)
  • Transom Height : 0.5 m (20”)
  • Approximate Weight : 474 kg (1044 lb.)
  • Dead Rise (degres) : 13
Specifications
Model
NANOOK®
Category Name
Boat
Year
2023
Sale Type
New
Manufacturer
Princecraft
transport canada
  • Maximum HP Capacity : 86 kW (115 HP)
  • Maximum Weight Capacity : 600 kg (1323 lb.)
  • Maximum Weight Person Capacity : 300 kg (661 lb.)
  • Maximum Person Capacity : 4
nmma (usa)
  • Max. HP cap. : 86 kW (115 HP)
  • Max. weight cap. : 600 kg (1323 lb.)
  • Maximum weight person capacity : 318 kg (700 lb.)
  • Maximum person capacity : 5
aluminum thickness
  • Bottom :  2.2 mm (.087")
  • Side : 1.8 mm (.072")
gas tank
  • Built-in :   ≤ 72 L (19 U.S. gal.)
features
Princecraft NANOOK® 168 DLX WS Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console
Princecraft NANOOK® 168 DLX WS 2 folding seats
Princecraft NANOOK® 168 DLX WS Instrumentation: tachometer, speed, trim, and fuel gauges

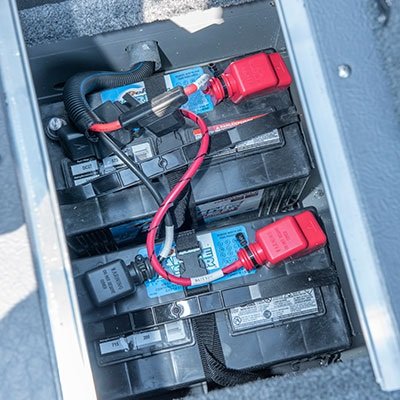

Princecraft NANOOK® 168 DLX WS Battery storage (batteries not included)

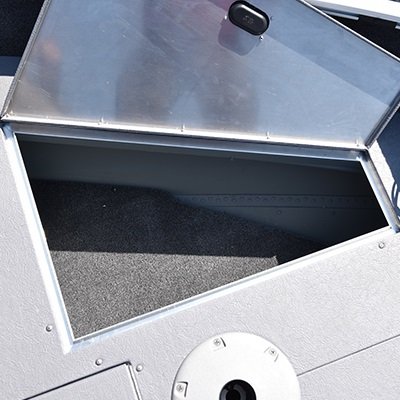

Princecraft NANOOK® 168 DLX WS Bow raised casting platform with large storage compartment
Princecraft NANOOK® 168 DLX WS Storage under bow raised fishing platform
Princecraft NANOOK® 168 DLX WS Driver console (Optional Sonar) ​​​​​​​

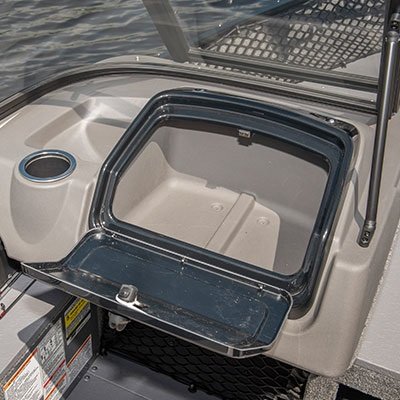

Princecraft NANOOK® 168 DLX WS Passenger console with glove box
Princecraft NANOOK® 168 DLX WS Large lockable rod organizer with tubes for 10 rods in the bow casting platform​​​​​​​

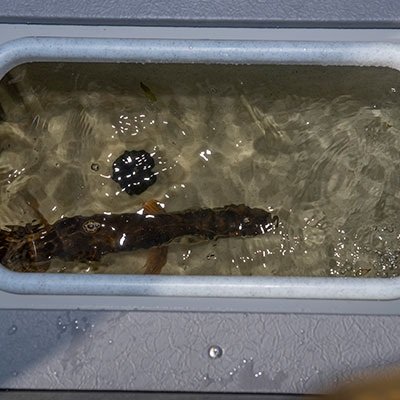

Princecraft NANOOK® 168 DLX WS Stern electric-filled aerated livewell (61 L/16 U.S.gal.)​​​​​​​
hull and deck features
  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices with a glossy finish including decal package
  • Reverse chine hull design
  • Aluminum clad transom
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from console to bow)
  • Rigging tube under flooring (from stern to console)
  • Stainless steel bow and stern eyes
  • 4 nylon cleats
  • BOW RAISED CASTING PLATFORM
  • Storage under casting platform
  • Compression latches on all storage
  • Deep cycle battery storage compartment
  • Seat mount floor base
  • Grids allowing air circulation in the compartments
  • Large storage compartment
  • Large lockable rod organizer with tubes for 10 rods
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Splashwell extension
  • Storage compartment
fishing features
  • 7-foot rod storage without support
  • 12V or 24V bow trolling motor plug and receptacle with wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • STERN SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (44", 77 L/20 U.S. gal.)
  • Overflow
  • Light
  • Insulated lid
  • Protection filter on the filling pump
seats
  • 6 floor seat bases
  • 2 folding seats with no-pinch hinges
console
  • Twin consoles with steering system
  • Glove box
  • Black anodized walk-thru tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack steering system
  • Storage under consoles
instrumentation
  • Tachometer, speedometer, trim, and fuel gauges
other standard features
  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • Electric bilge pump
  • Navigation lights
  • Factory-installed snap fasteners for canvas camper enclosures and mooring top
  • Interior light(s)
  • 2 cup holders
  • 3 battery holders
  • Emergency reboarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl
look and configuration
  • Team Princecraft special decal package…UE
  • Deluxe Princecraft decal package…UE
propulsion and autonomy
  • Tilt steering with slider for captain's chair…UE
  • SeaStar® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
  • MotorGuide® Xi3-55FW wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 54", 70 lb. peak thrust)
  • Minn Kota® 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota® 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
  • Minn Kota® 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with iPilot and bracket
  • Trolling motor onboard charger for 1 - 12V battery (ProSport 6)
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)
comfort and entertainment
  • Deluxe folding seats…UE (replacing standard seats)
  • Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (11") and seat mount with auto-lock handle
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • RSP Combo: Removable aft flip seats and 2 cup holders
storage and fishing accessories
  • Downrigger supports (black)
  • Downrigger supports (grey)
  • Downrigger supports (red)
  • Downrigger supports (blue)
  • PrinceTrak installation plate
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)
console and electronic
  • Sonar Lowrance® Hook2 4x with RAM mount
  • Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar Humminbird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 G2 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 (built-in) (the bathymetric depth maps are not included)
  • SmartCraft gauges (tachometer, speedometer and trim)…UE
  • Active trim: automatic trim system
  • Active trim: automatic trim system
  • Active trim: automatic trim system
  • Active trim: automatic trim system
tops and canvas
  • Trailer cover (black)
  • Sun top with bimini canvas connected to windshield including the bimini structure (black)
  • Complete conversion from sun top to full top (black)
miscellaneous
  • Livewell minnow bucket
trailers
  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
