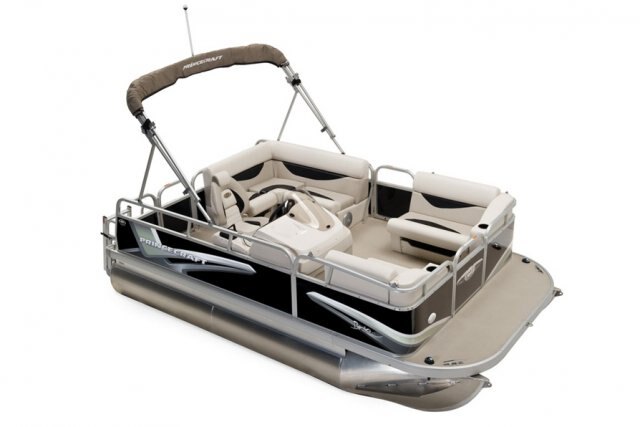

Light and compact, the Brio Series aluminum pontoon boats are very easy to tow and handle. Brio is your ticket to freedom! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Overall length : 4.6 m (15’-1”)
Deck length : 4.3 m (14'-1")
Beam : 2.3 m (7'-6")
Pontoon length : 4.3 m (14’-3”)
Pontoon diameter : 0.58 m (23”)
Pontoon aluminum thickness : 2.0 mm (.080")
Approximate weight : 501 kg (1104 lb.) |
|
TRANSPORTS CANADA
Maximum HP capacity : 12 kW (15 HP)
Maximum weight capacity : 474 kg (1044 lb.)
Maximum person capacity : 4
Maximum weight person capacity : 382 kg (842 lb.) |
|
NMMA (USA)
Maximum HP capacity : 12 kW (15 HP.)
Maximum weight cap.acity : 474 kg (1044 lb.)
Maximum person capacity : 6
Maximum weight person cap.acity : 382 kg (842 lb.) |
|
GAS TANK
With hose & bulb : PORTABLE |
|
FEATURES
CONSTRUCTION FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
2 ½" heavy-duty extruded Z-aluminum cross channels
1 1/4" anodized aluminum rails
Sealed pontoon bulkheads with top mounted air plug (23")
V-shaped aluminum engine pod
Pressure-treated wood deck covered with marine grade carpet
Extruded aluminum full-length pontoon keels
Extruded aluminum full-length pontoon skirting
Walk-thru bow gate with lift and lock hinges
Walk-thru rear gate with lift and lock hinges
Port side gate with lift and lock hinges
Rear swim platform
Stainless steel bow eye
Lifting eyes
4- 6" chromed deck cleats |
|
HELM
Rotomolded helm console with acrylic top
Molded dash panel with black inserts and lighted switches
160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input in console
4 waterproof speakers ( 6 ½" )
Electric horn
12V outlet
Quick release smoked windscreen |
|
INSTRUMENTATION
Tachometer, voltmeter and trim gauges |
|
FURNITURE
Plush and heavy weight upholstery
Driver's swivel folding seat
Storage under all lounges |
|
TOPS
Color coordinated or taupe convertible buggy bimini top
Bimini top latches and traveling struts
Canvas camper enclosure & covers' snap fasteners |
|
OTHER FEATURES
Cup holders
Navigation lights
Interior lighting
Transducer mounting bracket
Battery box |
|
OPTIONS FACTORY INSTALLED OPTIONS Anti-skid vinyl floor covering...upgrade exchange
Tilt steering mechanism and slider for driver seat…upgrade exchange
Mood Package: stern snack table, stern ladder and door on the side of the console
Console door...upgrade exchange
Raised rail upgrade |
|
DEALER INSTALLED OPTIONS
Stern boarding ladder
Removable privacy enclosure
Stern beige pedestal mount removable snack table with chromed cup holders |
|
DEALER INSTALLED OPTIONS (CANVAS)
Trailer cover
Mooring cover
Front deck cover
Full camper enclosure with bimini top canvas |
|
COLORS
Black with True Mica Mist "Cut Loop" Carpet (20 oz.) |
|
MERCURY OUTBOARD ENGINES (for regular 2-log pontoons)
Mercury 9.9 ELPT BF 4S
Mercury 15 ELPT Pro-Kicker 4S |
|
OPTIONAL TRAILER(S)
PAINTED SINGLE AXLE BUNK SUPPORT STYLE TRAILER
Carpeted fixed bunks
Sealed hubs, swivel tongue jack and 2" ball coupler
Factory-balanced wheels
LED lights
Tire size: ST175/80R13C
Weight: 207 kg (456 lb.)
1027 kg (2264 lb.) carrying capacity |
|
TRAILER OPTIONS
Deluxe transom tie downs…/pair
Painted motor pod support
Painted spare wheel ST175/80R13C radial with 5 lugs |
