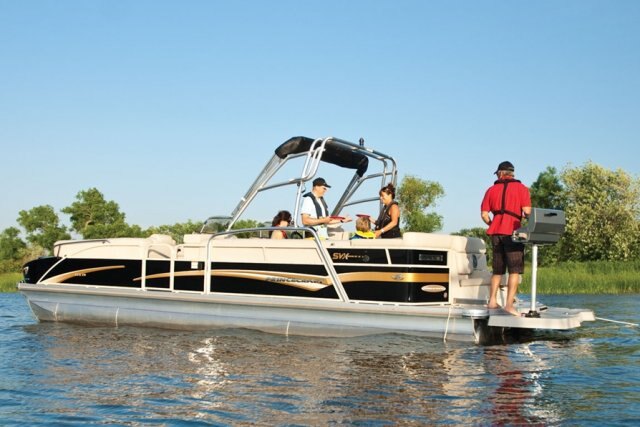

You dream of navigating aboard a luxurious, stylish, powerful and comfortable aluminum pontoon boat? Princecraft offers you the SVX Series' pontoons, with its racy look and ultra-sporty performance! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Overall length : 9.1 m (29'-10")
Deck length : 8.5 m (27'-10")
Beam : 2.6 m (8'-6")
Pontoon length : 8.2 m (26'-10")
Pontoon diameter : 0.64 m (25")
Pontoon aluminum thickness : 2.0 mm (.080")
Approximate weight : 2214 kg (4880 lb.) |
|
MANUFACTURER'S RECOMMENDATIONS (CANADA)
Maximum HP capacity : 224 kW (300 HP)
Maximum weight capacity : 1399 kg (3085 lb.)
Maximum person capacity : 13
Maximum weight person capacity : 816 kg (1800 lb.) |
|
NMMA (USA)
Maximum HP capacity : 224 kW (300 HP)
Maximum weight cap.acity : 1399 kg (3085 lb.)
Maximum person capacity : 13
Maximum weight person cap.acity : 816 kg (1800 lb.) |
|
GAS TANK
Built-in : 208 L / 55 U.S. gal. |
|
FEATURES
CONSTRUCTION FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
2 ½" heavy-duty extruded Z-aluminum cross channels
1 1/4" painted aluminum rails
Sealed pontoon bulkheads with top mounted air plug (25")
Triple pontoon with under deck spray shield
Motor compartment integrated to 3rd log
Lifting strakes
Pressure-treated wood deck covered with marine grade carpet
Extruded aluminum full-length pontoon keels
Extruded aluminum full-length pontoon skirting
Chromed corner castings
Rear padded sundeck
Walk-thru bow gate with lift and lock hinges
Walk-thru rear gate with lift and lock hinges
Port side gate with lift and lock hinges
Integrated full-width rear swim platform with four-step telescoping boarding ladder
Fiberglass bow sections with bumper racks
Stainless steel bow eye
2 stainless steel recessed cleats
2- 6" stainless steel deck cleats
Gate holder |
|
HELM
Raised helm
Large fiberglass helm console with cooler and galley unit (sink, faucet and portable water tank)
Power steering (I/O)
Molded dash panel with woodgrain inserts and lighted switches
Sport tilt steering mechanism
200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input in console
4 waterproof speakers ( 6 ½" )
Lowrance X-4 Pro fish/depth finder with water temperature
Electric horn
12V outlet
Push on/off console courtesy light
LED lighting under driver console
2 smoked windscreens |
|
INSTRUMENTATION
Mercury SmartCraft tachometer, voltmeter, speedometer, trim and fuel gauges |
|
FURNITURE
Ultra plush and heavy weight upholstery
Soft touch vinyl "Reflections Collection"
Upholstered gate panels
Roto-Cast furniture bases and backs
Fun Zone: rear facing lounge seat in stern area with armrest and cup holder
2 portable padded armrests trimmed in woodgrain with stainless steel cup holders
Reclining captain's chair on slide and swivel
3 chaise lounges
Storage in chaise lounges' reclined section
In-floor anchor and ski storage compartment
1 storage pouch
Storage under all lounges
Pop-up privacy enclosure
Stern two-tone pedestal mount snack table with drink holders |
|
TOPS
Color coordinated or taupe convertible buggy bimini top
Quick release bimini top latches and traveling struts
Canvas camper enclosure & covers' snap fasteners |
|
OTHER FEATURES
Wakeboard towing tower package, including aluminum towing tower and sun top
Cup holders
3 LED lighted cup holders on console
Halogen docking lights
Navigation lights
Floor mood lighting
Raised chromed letter logos
Transducer mounting bracket
Battery box |
|
OPTIONS FACTORY INSTALLED OPTIONS Anti-skid vinyl floor covering...upgrade exchange
Pop-up ski pole
Built-in chemical toilet on slider with holding tank and pump out (9.8 L / 2.6 U.S. gal.)
Premium High Power/Sub Audio System…upgrade exchange
Watertight radio remote control in stern area
Underwater lighting (2 lights)
Raised rail upgrade
12-volt, 2.7 cubic foot self ventilated galley refrigerator and 12V battery charger
12-volt, 2.7 cubic foot self ventilated galley refrigerator and 12V battery charger with alternator module system |
|
DEALER INSTALLED OPTIONS
Snap-in carpet with hole for optional table base (available with optional vinyl floor covering)
Bow two-tone rectangular pedestal mount removable snack table with chromed cup holders
Bow beige refreshment table with sliding top & cooler
Barbecue (BBQ) gas grill
Inflatable bow filler cushion with 12 V DC or 120 V AC inflation pump, storage bag and patch kit |
|
DEALER INSTALLED OPTIONS (CANVAS)
Trailer cover
Mooring cover
Front deck cover
Double bimini top
Half camper enclosure with front cockpit cover
Conversion kit for half camper enclosure into a full camper enclosure
Full camper enclosure
Full camper enclosure with privacy curtains |
|
COLORS
Black with Magnitude Mocha Carpet (32 oz.)
Carbon Bronze with Magnitude Mocha Carpet (32 oz.) |
|
MERCURY MERCRUISER INBOARD/OUTBOARD ENGINES
Mercruiser 4.3 L MPI (220 HP)
Mercruiser 5.0 L MPI (260 HP)
Mercruiser 350 MAG (300 HP) |
|
OPTIONAL TRAILER(S)
GALVANIZED TRIDEM AXLE BUNK SUPPORT STYLE TRAILER (FOR 3 LOG MODELS )
Carpeted fixed bunks
Sealed hubs, swivel tongue jack and 2" ball coupler
Disc brakes (on all axles)
Factory-balanced wheels
LED lights
Tire size: ST175/80R13 C radial
Weight: 548 kg (1 208 lb.)
3 160 kg (6 966 lb.) carrying capacity |
|
TRAILER OPTIONS
Conversion kit for three log pontoon models (same kit for O/B & I/O versions)
Deluxe transom tie downs…/pair
Galvanized motor pod support
Galvanized spare wheel ST175/80R13 C radial with 5 lugs |
