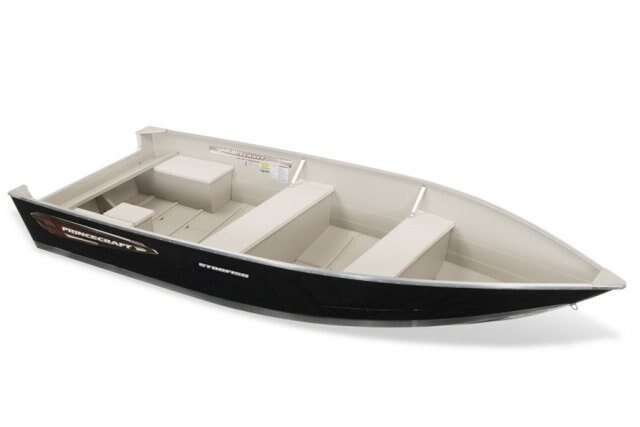

Princecraft aluminum utility boats provide lightweight and compact models, built to give you years of satisfaction. |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Center Line : 4.9 m (16'-0")
Beam : 1.9 m (73")
Chine Width : 1.6 m (63")
Maximum Depth : 0.7 m (29")
Approximate Draft : 0.4 m (17")
Transom Height : 0.4 m (15")
Approx. Weight : 138 kg (304 lb.)
Dead Rise : 2 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 30 kW (40 HP)
Maximum Weight Capacity : 498 kg (1097 lb.)
Maximum Person Capacity : 4
Maximum Weight Person Capacity : 300 kg (661 lb.) |
|
NMMA (USA)
Max. HP cap. : 30 kW (40 HP)
Max. weight cap. : 499 kg (1100 lb.)
Maximum person capacity : 5
Maximum weight person capacity : 291 kg (641 lb.) |
|
ALUMINUM THICKNESS
Bottom : 1.8 mm (.072")
Side : 1.6 mm (.064") |
|
GAS TANK
Type : PORTABLE |
|
FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Non-skid anti-glare interior paint finish
Reverse chine hull design
Aluminum clad transom
Full-width self-draining splashwell
Twin plating at the chine
Heavy-duty tubular seat to gunnel braces
Bow eye and stern handles |
|

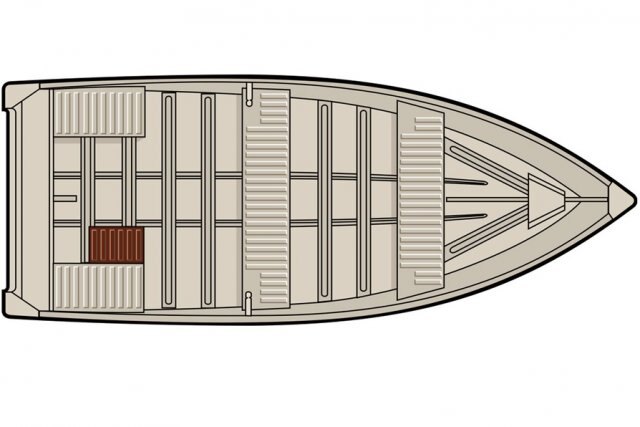

SEATS
Parallel seats at stern
Bulkhead center seat
Bow bench seat
Durable ribbed polyethylene seat covering |
|
OPTIONS DEALER INSTALLED OPTIONS
Sun top
Seat Package: folding seat, detachable swivel plate with auto-lock handle and extrusion
Complete side console: bezel, hub, steering wheel, 12'-6'' cable & detachable smoked windscreen |
|
COLORS
Black |
|

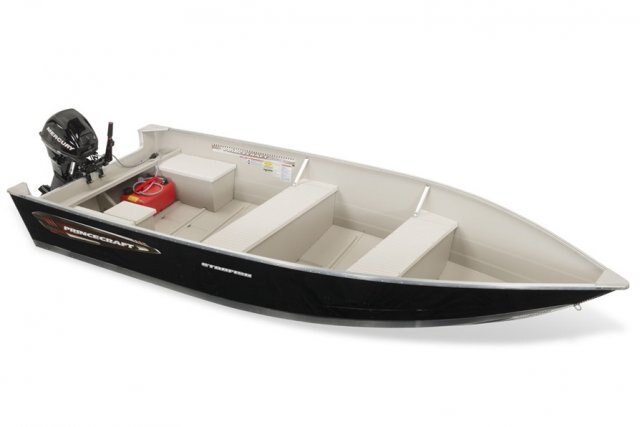

MERCURY OUTBOARD ENGINE OPTIONS
Mercury 5 M 4S
Mercury 6 M 4S
Mercury 8 M 4S
Mercury 9.9 M 4S
Mercury 15 M 4S
Mercury 20 M 4S
Mercury 20 EH 4S
Mercury 25 M 4S
Mercury 25 EH 4S |
|

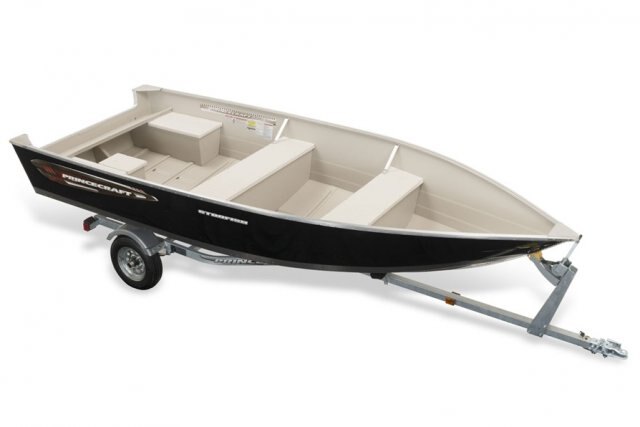

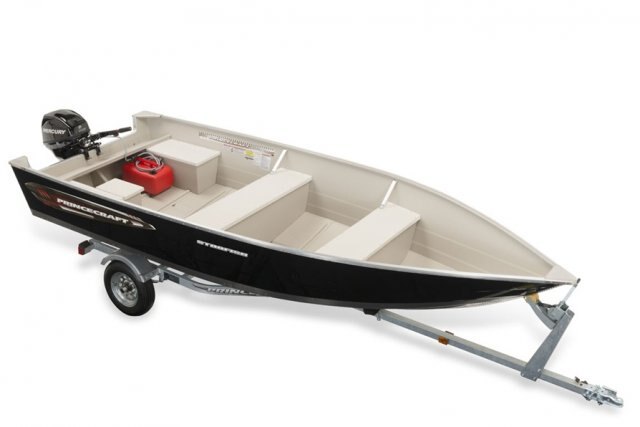

OPTIONAL TRAILER(S)
Galvanized bunk style trailer
Single axle
Carpeted fixed bunks
Built-in steps & composite fenders
Sealed hubs
2" ball coupler
Factory balanced steel wheel
860 kg (1 895 lb.) carrying capacity
Tire size : 5.30 x 12" C
Weight : 90 kg (198 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Deluxe transom tie downs…/pair
Transom saver motor support bar
Galvanized spare wheel 5.30 x 12" C with 5 lugs |
|
TRAILER COLORS
Galvanized
Galvanized with swivel tongue jack |
