Princecraft aluminum utility boats provide lightweight and compact models, built to give you years of satisfaction. |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Center Line : 5.0 m (16'-4")
Beam : 2.1 m (83")
Chine Width : 1.8 m (69")
Maximum Depth : 0.8 m (30")
Approximate Draft : 0.6 m (22")
Transom Height : 0.5 m (20")
Approx. Weight : 181 kg (400 lb.)
Dead Rise : 10 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 37 kW (50 HP)
Maximum Weight Capacity : 623 kg (1373 lb.)
Maximum Person Capacity : 5
Maximum Weight Person Capacity : 375 kg (827 lb.) |
|
NMMA (USA)
Max. HP cap. : 37 kW (50 HP)
Max. weight cap. : 602 kg (1328 lb.)
Maximum person capacity : 6
Maximum weight person capacity : 394 kg (869 lb.) |
|
ALUMINUM THICKNESS
Bottom : 2.3 mm (.090")
Side : 1.8 mm (.072") |
|
GAS TANK
Type : PORTABLE |
|
FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Non-skid anti-glare interior paint finish
Reverse chine hull design
Aluminum clad transom
Full-width self-draining splashwell
Twin plating at the chine
Heavy-duty tubular seat to gunnel braces
Stainless steel bow and stern eyes |
|
SEATS
Parallel seats at stern
Bulkhead center seat
Bow bench seat
Durable ribbed polyethylene seat covering |
|
OPTIONS DEALER INSTALLED OPTIONS Sun top
Seat Package: folding seat, detachable swivel plate with auto-lock handle and extrusion
Complete side console: bezel, hub, steering wheel, 13' cable & detachable smoked windscreen |
|
COLORS
Black |
|
MERCURY OUTBOARD ENGINE OPTIONS
Mercury 20 ML 4S
Mercury 20 ELH 4S
Mercury 25 ML 4S
Mercury 25 ELH 4S
Mercury 25 ELHPT 4S
Mercury 30 ML GA 4S
Mercury 30 ELH GA 4S
Mercury 30 ELHPT 4S
Mercury 40 ELHPT 4S
Mercury 50 ELHPT 4S |
|

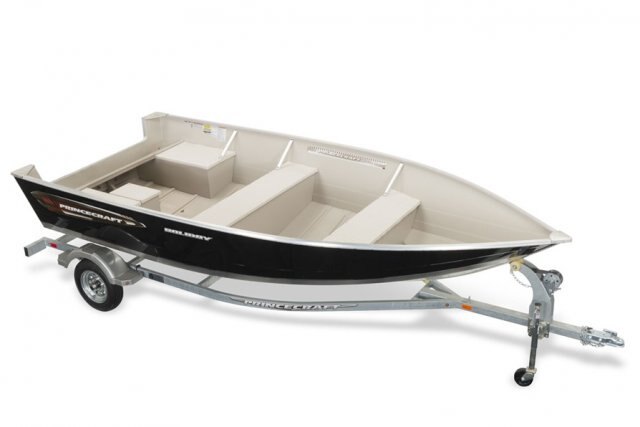

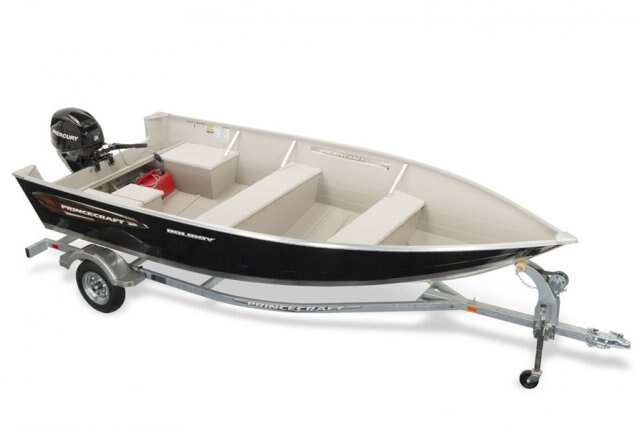

OPTIONAL TRAILER(S)
Galvanized bunk style trailer
Single axle
Carpeted fixed bunks
Built-in steps & composite fenders
Sealed hubs
2" ball coupler
Factory balanced steel wheel
805 kg (1 775 lb.) carrying capacity
Tire size : 5.30 x 12" C
Weight : 145 kg (320 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Deluxe transom tie downs…/pair
Transom saver motor support bar
Galvanized carpeted load guides
Galvanized spare wheel 5.30 x 12" C with 5 lugs |
|
TRAILER COLORS
Galvanized with swivel tongue jack
Galvanized with swivel tongue jack and swing tongue |
