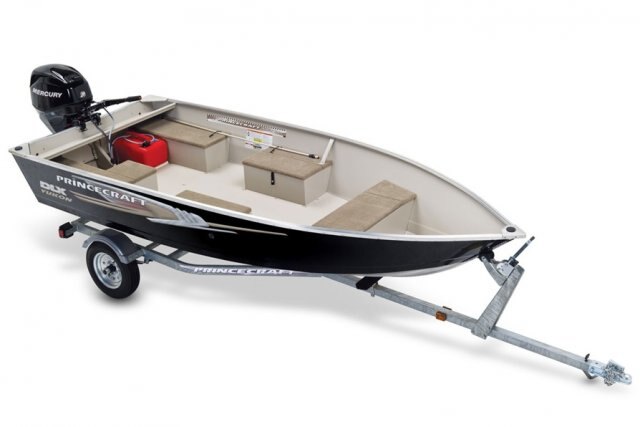

OVERVIEW With their flawless finish and ergonomic design, the fully equipped DLX Series' aluminum fishing boats are veritable "fishing machines". Try one and you'll see! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Center Line : 4.3 m (14'-3")
Beam : 1.7 m (68")
Chine Width : 1.4 m (57")
Maximum Depth : 0.7 m (28")
Approximate Draft : 0.4 m (17")
Transom Height : 0.5 m (20")
Approx. Weight : 177 kg (390 lb.)
Dead Rise : 2 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 19 kW (25 HP)
Maximum Weight Capacity : 373 kg (822 lb.)
Maximum Person Capacity : 3
Maximum Weight Person Capacity : 225 kg (496 lb.) |
|
NMMA (USA)
Max. HP cap. : 19 kW (25 HP)
Max. weight cap. : 372 kg (821 lb.)
Maximum person capacity : 4
Maximum weight person capacity : 214 kg (471 lb.) |
|
ALUMINUM THICKNESS
Bottom : 1.6 mm (.064")
Side : 1.6 mm (.064") |
|
GAS TANK
Type : PORTABLE |
|
FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Semi-V hull with square chine
Aluminum clad transom
Full-width self-draining splashwell
Twin plating at the chine
Rigging tube under flooring (bow to stern)
Heavy-duty tubular seat to gunnel braces
Stainless steel bow and stern eyes
2 center side storage compartments |
|
LIVEWELL(S)
BOW LIVEWELL (26", 39 L / 10 U.S. GAL.)
Electric-filled aerated [ SportFlo ]
Overflow
Protection filter on the filling pump |
|
SEATS
Parallel seats at stern covered with marine grade carpet
Bow bench seat covered with marine grade carpet |
|
OTHER FEATURES
Switch panel with Carling switches and indicator lights
Electric bilge pump
Navigation lights
1 battery holder
Transducer mounting plate(s)
Pressure-treated wood floor covered with marine grade vinyl |
|
OPTIONS DEALER INSTALLED OPTIONS
Sonar Lowrance X-4 Pro
Sonar Lowrance Elite-4x
Sonar Humminbird PiranhaMAX 175
Sonar / GPS Humminbird 386ci Combo
Trailer cover (black)
Mooring cover (taupe)
Sun top |
|
COLORS
Black with vinyl floor covering |
|
MERCURY OUTBOARD ENGINE OPTIONS
Mercury 9.9 ML 4S
Mercury 9.9 ELH 4S
Mercury 15 ML 4S
Mercury 15 ELH 4S
Mercury 20 ML 4S
Mercury 20 ELH 4S
Mercury 20 ELHPT 4S
Mercury 25 ML 4S
Mercury 25 ELH 4S
Mercury 25 ELHPT 4S |
|
OPTIONAL TRAILER(S)
Galvanized bunk style trailer
Single axle
Carpeted fixed bunks
Built-in steps & composite fenders
Sealed hubs
2" ball coupler
Factory balanced steel wheel
860 kg (1 895 lb.) carrying capacity
Tire size : 5.30 x 12" C
Weight : 90 kg (198 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Deluxe transom tie downs…/pair
Transom saver motor support bar
Galvanized spare wheel 5.30 x 12" C with 5 lugs |
|
TRAILER COLORS
Galvanized |
