OVERVIEW With their flawless finish and ergonomic design, the fully equipped DLX Series' aluminum fishing boats are veritable "fishing machines". Try one and you'll see! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Center Line : 4.9 m (16'-0")
Beam : 1.9 m (73")
Chine Width : 1.6 m (63")
Maximum Depth : 0.7 m (29")
Approximate Draft : 0.4 m (17")
Transom Height : 0.5 m (20")
Approx. Weight : 267 kg (588 lb.)
Dead Rise : 2 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 30 kW (40 HP)
Maximum Weight Capacity : 453 kg (998 lb.)
Maximum Person Capacity : 4
Maximum Weight Person Capacity : 300 kg (661 lb.) |
|
NMMA (USA)
Max. HP cap. : 30 kW (40 HP)
Max. weight cap. : 453 kg (998 lb.)
Maximum person capacity : 4
Maximum weight person capacity : 244 kg (539 lb.) |
|
ALUMINUM THICKNESS
Bottom : 1.8 mm (.072")
Side : 1.6 mm (.064") |
|
GAS TANK
Type : PORTABLE |
|

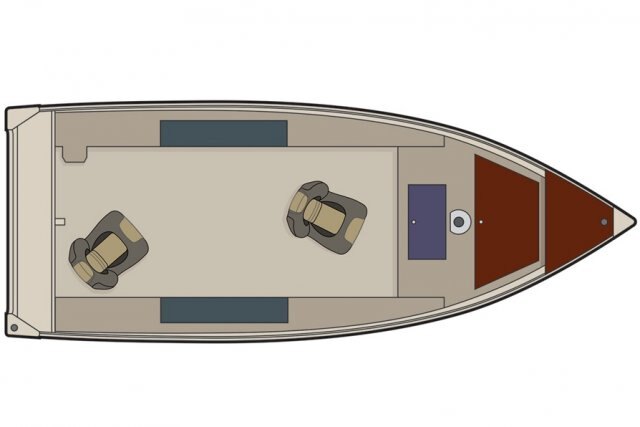

FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Reverse chine hull design
Aluminum clad transom
Full-width self-draining splashwell
Stainless steel bow and stern eyes
BOW RAISED CASTING PLATFORM
Electric-filled aerated livewell
Seat mount floor base
Large storage compartment |
|
FISHING FEATURES
2- 7 foot rod storage compartments without supports
Carpeted front deck |
|
LIVEWELL(S)
BOW LIVEWELL (34", 61 L / 16 U.S. GAL.)
Electric-filled aerated [ SportFlo ]
Overflow
Anti-spill cover
Protection filter on the filling pump |
|
SEATS
3 floor seat bases
2 folding seats |
|
OTHER FEATURES
Electric bilge pump
Navigation lights
1 handle
1 battery holder
Transducer mounting plate(s)
Pressure-treated wood floor covered with marine grade vinyl |
|
OPTIONS DEALER INSTALLED OPTIONS
Sonar Lowrance X-4 Pro
Sonar Lowrance Elite-4x
Sonar Humminbird PiranhaMAX 175
Sonar / GPS Humminbird 386ci Combo
Analog gauges (tachometer and speedometer)
Trailer cover (black)
Mooring cover (taupe)
Sun top
Complete stand-up high top with tonneau cover and curtains connected to console
Seat Package: folding seat, post and seat mount with auto-lock handle
Bicycle Seat Package: bicycle seat, post (27") and seat mount with auto-lock handle |
|
COLORS
Red with vinyl floor covering
Black with vinyl floor covering |
|
MERCURY OUTBOARD ENGINE OPTIONS
Mercury 20 ML 4S
Mercury 20 ELH 4S
Mercury 20 ELHPT 4S
Mercury 25 ML 4S
Mercury 25 ELH 4S
Mercury 25 ELHPT 4S
Mercury 30 ML GA 4S
Mercury 30 ELH GA 4S
Mercury 30 ELHPT 4S
Mercury 40 ELHPT 4S |
|

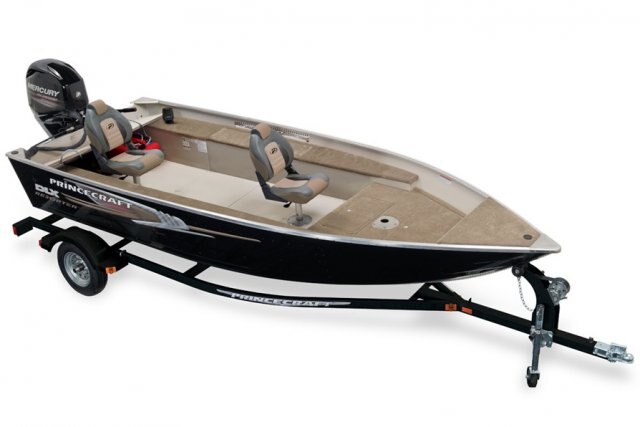

STANDARD TRAILER(S) AVAILABLE IN PACKAGE
Standard black bunk style trailer
Single axle
Carpeted fixed bunks
Built-in steps and composite fenders
Sealed hubs
2" ball coupler
LED lights
Factory balanced steel wheel
805 kg (1 775 lb.) carrying capacity
Tire size : 5.30 x 12" C
Weight : 145 kg (320 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Galvanized bunk style trailer with swivel tongue jack... upgrade exchange
Galvanized bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Black bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Deluxe transom tie downs…/pair
Transom saver motor support bar
Galvanized carpeted load guides
Painted carpeted load guides
Painted spare wheel 5.30 x 12" C with 5 lugs
Galvanized spare wheel 5.30 x 12" C with 5 lugs |
|
TRAILER COLORS
Galvanized - OPTION
Black |
