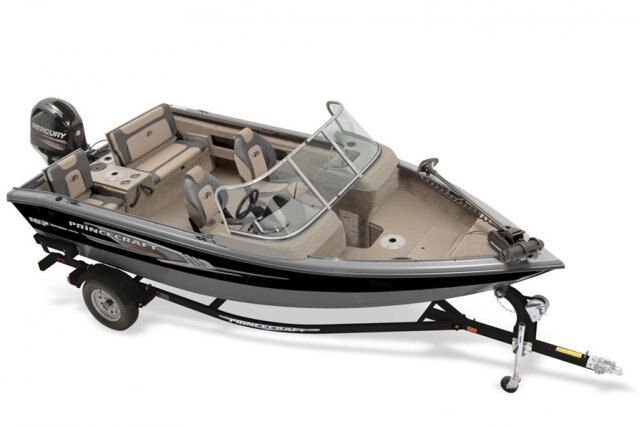

OVERVIEW Can't decide what you love more, fishing or water skiing? You no longer have to choose between them. Whatever your favorite activity of the moment, the aluminum boats of our Sport Series are sure to deliver maximum satisfaction! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
Center Line : 5.0 m (16'-6")
Beam : 2.3 m (90")
Chine Width : 1.8 m (71")
Maximum Depth : 0.9 m (34")
Approximate Draft : 0.7 m (29")
Transom Height : 0.5 m (20")
Approx. Weight : 494 kg (1090 lb.)
Dead Rise : 13 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 86 kW (115 H.P.)
Maximum Weight Capacity : 623 kg (1373 lb.)
Maximum Person Capacity : 4
Maximum Weight Person Capacity : 300 kg (662 lb.) |
|
NMMA (USA)
Max. HP cap. : 86 kW (115 HP)
Max. weight cap. : 623 kg (1373 lb.)
Maximum person capacity : 6
Maximum weight person capacity : 340 kg (750 lb.) |
|
ALUMINUM THICKNESS
Bottom : 2.3 mm (.090")
Side : 1.8 mm (.072") |
|
GAS TANK
Built-in : 77 L (20 U.S. gal.) |
|
FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Reverse chine hull design
Deep self-draining splashwell
Twin plating from bow to mid-ship
Rigging tube under flooring (bow to stern)
Stainless steel bow and stern eyes
4 chromed cleats
BOW RAISED CASTING PLATFORM
Storage under casting platform
Deep cycle battery storage compartment
Seat mount floor base
AFT RAISED CASTING PLATFORM
Battery storage compartment
2 fold-down jump seats
Electric-filled aerated livewell
Seat mount floor base |
|
FISHING FEATURES
7 foot rod storage compartment without supports
12V bow trolling motor plug & receptacle and wiring harness
Carpeted bow mounting trolling motor pad |
|
LIVEWELL(S)
STERN LIVEWELL (44", 77 L / 20 U.S. GAL.)
Electric-filled aerated [ SportFlo ]
Overflow
Anti-spill cover
Insulated lid
Protection filter on the filling pump
Removable divider |
|
SEATS
4 floor seat bases
2 folding seats |
|
CONSOLE
Twin consoles with steering system
Walk-thru tinted curved tempered glass windshield with door
Deluxe dash panel with switches and indicator lights
No-FeedBack steering system
Storage under driver's console with extensible cargo net
Storage under port side console with extensible cargo net |
|
INSTRUMENTATION
Tachometer
Speedometer
Fuel gauge |
|
OTHER FEATURES
Electric bilge pump
2 bow handles
Navigation lights
Canvas top snap fasteners
Interior light(s)
6 handles
4 cup holders
2 battery holders
Transducer mounting plate(s)
Pressure-treated wood floor covered with marine grade vinyl |
|
OPTIONS
FACTORY INSTALLED OPTIONS
Marine grade carpeted floor covering
Tilt steering with slider for captain's chair... upgrade exchange
Co-Pilot system for Minn Kota PD V2 trolling motor
160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input (1/8") in console |
|
DEALER INSTALLED OPTIONS
MotorGuide W55 wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
Minn Kota 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
Onboard charger for 1 – 12V battery
Parallel arm starboard side wiper
Sonar Lowrance X-4 Pro
Sonar Lowrance Elite-4x
Sonar/ GPS Lowrance HDS-5
Sonar Humminbird PiranhaMAX 175
Sonar / GPS Humminbird 386ci Combo
Sonar/ GPS Humminbird 788ci HD Combo
Bow rider seat cushions
Downrigger supports (grey)
Stern boarding ladder
Removable ski pylon
Trailer cover (black)
Mooring cover (taupe)
Complete stand-up high top with tonneau cover and curtains connected to windshield
Seat Package: folding seat, post and seat mount with auto-lock handle
Bicycle Seat Package: bicycle seat, post (27") and seat mount with auto-lock handle |
|
COLORS
Red with vinyl floor covering
Black with vinyl floor covering |
|
MERCURY OUTBOARD ENGINE OPTIONS
Mercury 50 ELPT 4S
Mercury 60 ELPT 4S
Mercury 75 ELPT 4S
Mercury 90 ELPT 4S
Mercury 115 ELPT 4S |
|
STANDARD TRAILER(S) AVAILABLE IN PACKAGE
Standard black bunk style trailer
Single axle
Carpeted fixed bunks and load guides
Built-in steps and composite fenders
Sealed hubs and swivel tongue jack
2" ball coupler
LED lights
Factory balanced steel wheel
1 086 kg (2 394 lb.) carrying capacity
Radial tire size : ST175/80R13 C
Weight: 150 kg (331 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Galvanized bunk style trailer with swivel tongue jack... upgrade exchange
Galvanized bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Black bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Heavy-duty galvanized bunk style trailer with swivel tongue jack and swing tongue... upgrade exchange
Deluxe transom tie downs…/pair
Transom saver motor support bar
ST175/80R13 C painted spare wheel with 5 lugs
ST175/80R13 C galvanized spare wheel with 5 lugs |
|
TRAILER COLORS
Galvanized - OPTION
Black |
