OVERVIEW Can't decide what you love more, fishing or water skiing? You no longer have to choose between them. Whatever your favorite activity of the moment, the aluminum boats of our Sport Series are sure to deliver maximum satisfaction! |
|
SPECIFICATIONS GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Center Line : 5.3 m (17'-5")
Beam : 2.3 m (92")
Chine Width : 1.9 m (75")
Maximum Depth : 1.0 m (40")
Approximate Draft : 0.8 m (30")
Transom Height : 0.6 m (25")
Approx. Weight : 603 kg (1330 lb.)
Dead Rise : 15 degrees |
|
TRANSPORTS CANADA
Maximum HP Capacity : 112 kW (150 HP)
Maximum Weight Capacity : 713 kg (1572 lb.)
Maximum Person Capacity : 5
Maximum Weight Person Capacity : 450 kg (992 lb.) |
|
NMMA (USA)
Max. HP cap. : 112 kW (150 HP)
Max. weight cap. : 713 kg (1572 lb.)
Maximum person capacity : 7
Maximum weight person capacity : 413 kg (910 lb.) |
|
ALUMINUM THICKNESS
Bottom : 2.5 mm (.100")
Side : 1.8 mm (.072") |
|
GAS TANK
Built-in : 98 L (26 U.S. gal.) |
|
FEATURES
HULL AND DECK FEATURES
HULL AND DECK FEATURES
5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
High gloss exterior High Solids urethane paint and decal package
Reverse chine hull design
Deep self-draining splashwell
Twin plating from bow to mid-ship
Twin plating at the chine
Rigging tube under flooring (bow to stern)
Stainless steel bow and stern eyes
4 chromed cleats
BOW RAISED CASTING PLATFORM
Ice chest
Electric-filled aerated livewell
Seat mount floor base
AFT RAISED CASTING PLATFORM
Battery storage compartment
2 fold-down jump seats
Electric-filled aerated livewell
Seat mount floor base |
|
FISHING FEATURES
7 foot lockable rod storage compartment with supports
7 foot rod storage compartment without supports
In-floor lockable rod organizer for 4 rods
Rod strap
12V or 24V bow trolling motor plug & receptacle with wiring harness
Carpeted bow mounting trolling motor pad |
|
LIVEWELL(S)
BOW LIVEWELL (30", 64 L / 17 U.S. GAL.)
Electric-filled aerated [ ProFlo ]
Intermittent recirculation
Overflow
Light
Anti-spill cover
Insulated lid
Removable divider
Protection filter on the filling pump
STERN LIVEWELL (44", 77 L / 20 U.S. GAL.)
Electric-filled aerated [ SportFlo ]
Intermittent recirculation
Overflow
Removable minnow bucket
Light
Anti-spill cover
Insulated lid
Protection filter on the filling pump
Removable divider |
|
SEATS
6 floor seat bases
2 folding seats |
|
CONSOLE
Twin consoles with steering system
Walk-thru tinted curved tempered glass windshield with door
Deluxe dash panel with switches and indicator lights
No-FeedBack dual cable steering system
Storage under driver's console with extensible cargo net
Deep-cycle battery storage under the port side console |
|
INSTRUMENTATION
Tachometer
Speedometer
Fuel gauge |
|
OTHER FEATURES
Electric bilge pump
2 bow handles
Navigation lights
Canvas top snap fasteners
Interior light(s)
7 handles
4 cup holders
3 battery holders
Transducer mounting plate(s)
Pressure-treated wood floor covered with marine grade vinyl |
|
OPTIONS
FACTORY INSTALLED OPTIONS
Marine grade carpeted floor covering
Princecraft special decal package...upgrade exchange
Tilt steering with slider for captain's chair... upgrade exchange
Sea Star hydraulic steering system with tilt wheel and slider for captain's chair... upgrade exchange
Co-Pilot system for Minn Kota PD V2 trolling motor
Onboard charger for 2 - 12V batteries with an alternator module system
Kicker option: Mercury 9.9ELPT BF 4S Pro Kicker with remote control and connecting rod (must be equipped with the hydraulic steering system)
160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input (1/8") in console
SmartCraft gauges (speedometer, tachometer and trim)…upgrade exchange
Port side sleeper seat |
|
FACTORY INSTALLED OPTIONS
Marine grade carpeted floor covering
Princecraft special decal package...upgrade exchange
Tilt steering with slider for captain's chair... upgrade exchange
Sea Star hydraulic steering system with tilt wheel and slider for captain's chair... upgrade exchange
Co-Pilot system for Minn Kota PD V2 trolling motor
Onboard charger for 2 - 12V batteries with an alternator module system
Kicker option: Mercury 9.9ELPT BF 4S Pro Kicker with remote control and connecting rod (must be equipped with the hydraulic steering system)
160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8") in console
200-watt AM/FM/CD/Bluetooth Clarion Stereo compatible SAT with integrated USB plug and auxiliary input (1/8") in console
SmartCraft gauges (speedometer, tachometer and trim)…upgrade exchange
Port side sleeper seat |
|
COLORS
Red with vinyl floor covering
Black with vinyl floor covering |
|
MERCURY OUTBOARD ENGINE OPTIONS
Mercury 90 EXLPT 4S
Mercury 115 EXLPT 4S
Mercury 150 XL 4S |
|

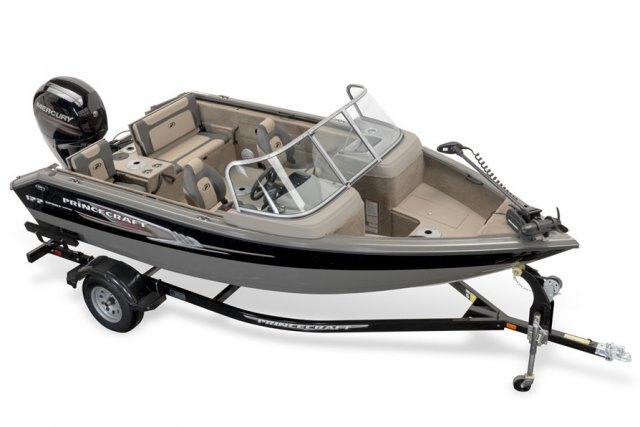

STANDARD TRAILER(S) AVAILABLE IN PACKAGE
Standard black bunk style trailer
Single axle
Carpeted fixed bunks and load guides
Built-in steps and composite fenders
Sealed hubs and swivel tongue jack
2" ball coupler
LED lights
Factory balanced steel wheel
1 071 kg (2 361 lb.) carrying capacity
Radial tire size : ST205/75R14 C
Weight : 229 kg (505 lb.) |
|
TRAILER(S) AND OPTIONAL ACCESORIES
Galvanized bunk style trailer with swivel tongue jack... upgrade exchange
Galvanized bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Black bunk style trailer with swivel tongue jack and swing tongue...upgrade exchange
Deluxe transom tie downs…/pair
Transom saver motor support bar
ST205/75R14 C painted spare wheel with 5 lugs
ST205/75R14 C galvanized spare wheel with 5 lugs
2- 14'' aluminum mag wheels with cap & nuts…upgrade exchange on painted trailer
2- 14'' aluminum mag wheels with cap & nuts…upgrade exchange on galvanized trailer
14" aluminum mag wheel (excluding cap and nuts) |
|
TRAILER COLORS
Galvanized - OPTION
Black |
