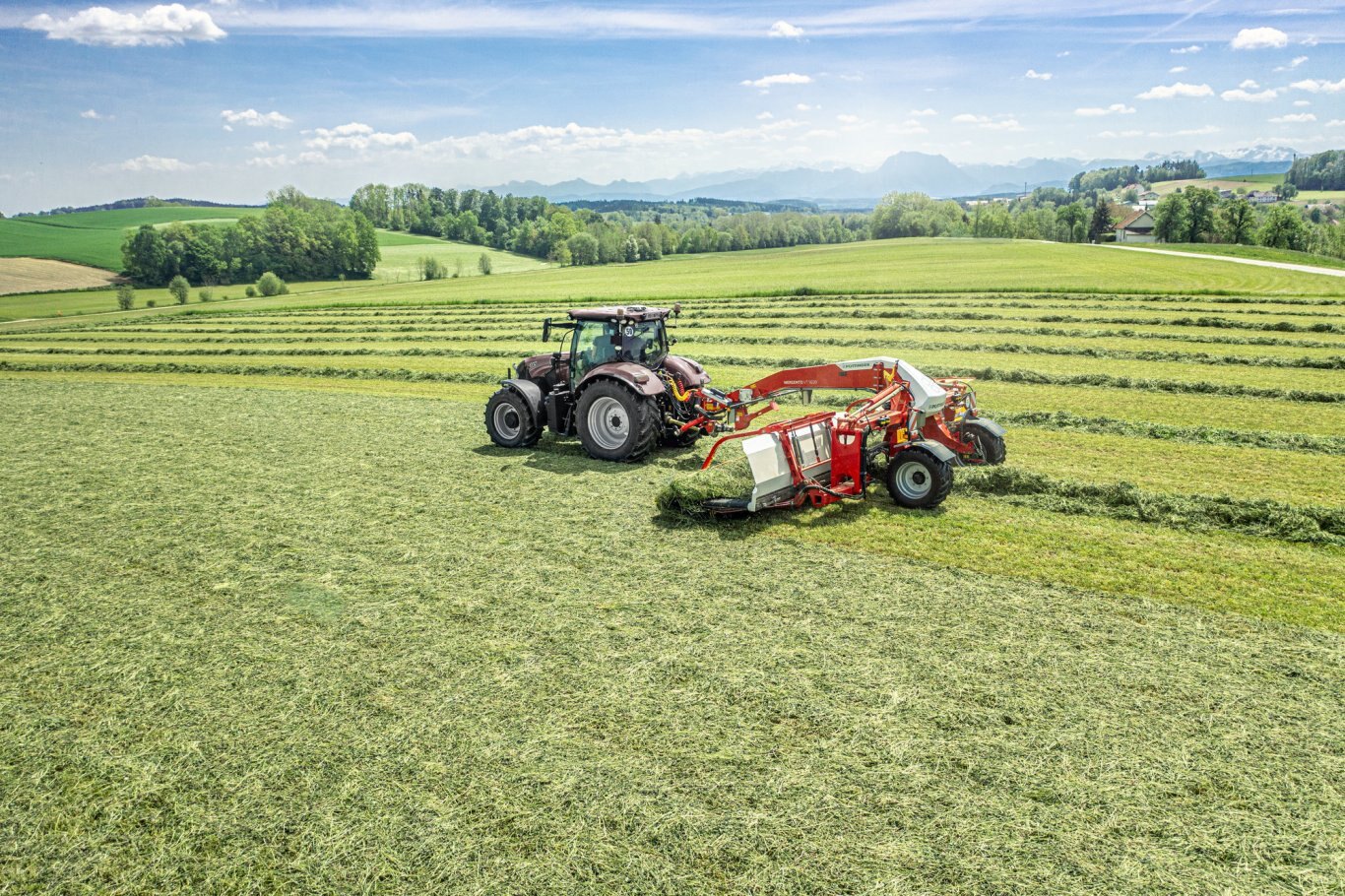

Welcome to a completely different world of raking. The MERGENTO VT 9220 represents a new generation of forage merging. The new PÖTTINGER merger with a working width of up to 9.2 m for a centre swath, or up to 8.6 m for a side swath, combines maximum versatility and unique reliability when raking any type of crop to deliver the highest quality forage. A real all-rounder.
| Working width center swath DIN | 26'3'' - 30'2'' (8 - 9,2 m) |
| Working width side swath DIN | 24'11'' - 28'3'' (7,6 - 8,6 m) |
| Swath width center swath | 2'7'' - 6'7'' (0,8 - 2 m) |
| Swath width side swath with swath curtain | 1'4'' - 4'7'' (0,4 - 1,4 m) |
| Swath placement options | Center swath, side swath, both sides, center and side swath |

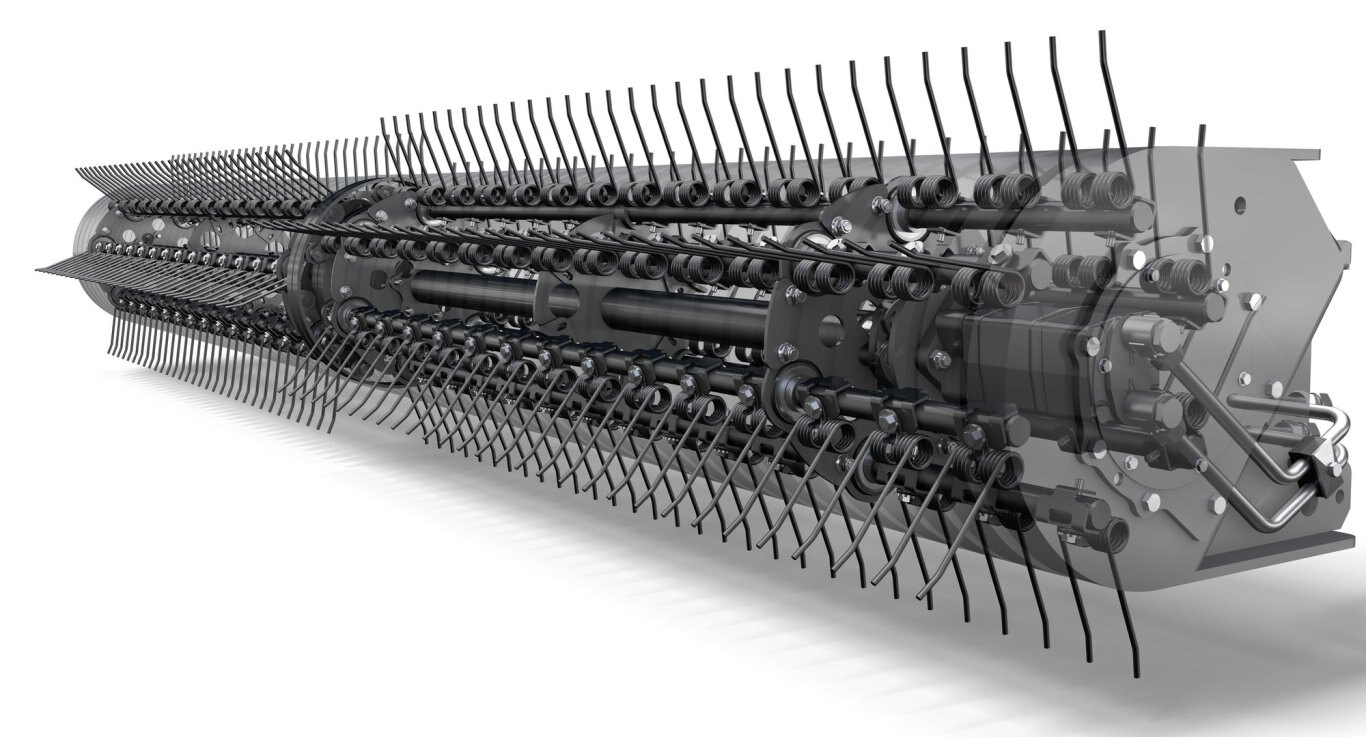

| Number of pick-up belt units | 2 pcs. |
| Pick-up width DIN | 12'2'' (3,7 m) |
| Transport width | 9'10'' (3 m) |
| Transport height | 13'1'' (3,99 m) |
| Transport length | 19' (5,8 m) |
| Parking height | 13'1'' (3,99 m) |
| PTO speed | 540 rpm |
| Weight | 10472 lbs (4750 kg) |
| Power requirement | 90 hp |
| Mounting | Trailed hydraulic folding |
| Tires on transport chassis | 400/70-20 |
| Ground scanning pick-up unit | Roller chassis |
| Pick-up height adjustment system | Infinitely variable on each side |
