Engine Type
4-stroke twin cylinder DOHC
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/Turf/Ultra Turf, Drive modes: Comfort, Standard, Sport, Tow/Haul
Driveline Features
Drive mode-specific engine braking, hill assist, and creep in drive and reverse
Fuel System/Battery
Electronic fuel injection
Cylinders Displacement
1498 cc
Transmission/Final Drive
STEELDRIVE automatic transmission: D/R/P
Wheelbase
127" (322.6 cm)
Hitch Type
Standard 2" (5 cm) receiver
Curb Weight
3,413 lbs. (1548 kg)
Box Capacity
1,300 lbs. (590 kg)
Fuel Capacity
13.6 gal (51.5 L)
Turning Radius
19.4 ft (6 m)

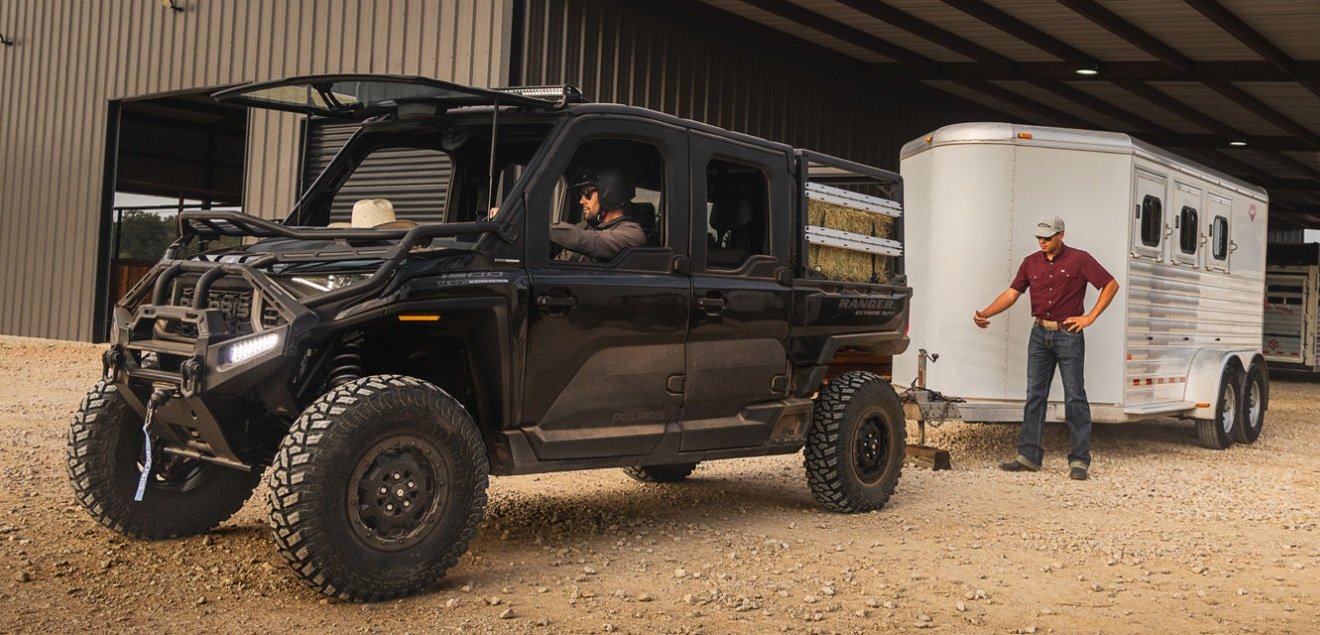

Towing Capacity
3,500 lbs. (1588 kg)
Ground Clearance
16" (40.6 cm)
Payload Capacity
1,420 lbs. (644 kg)
Estimated Dry Weight
3,315 lbs. (1503 kg)
Bed Box Dimensions (L X W X H)
43.4 x 56 x 13.4" (110.2 x 142.2 x 34 cm)
Overall Vehicle Size (L X W X H)
164 x 65 x 79" (416.5 x 165 x 200 cm)
Winch
Pro Series 6,000 LB Winch with synthetic rope, Auto Stop, wireless remote and Rapid Rope Recovery
Door Type
Powered, tinted window doors-front and rear
Cargo System
Electronic lift dump box with Lock & Ride MAX accessory integration
Vehicle Protection
Large steel bumper, full-coverage skid plate, bumper D-rings, and top bar

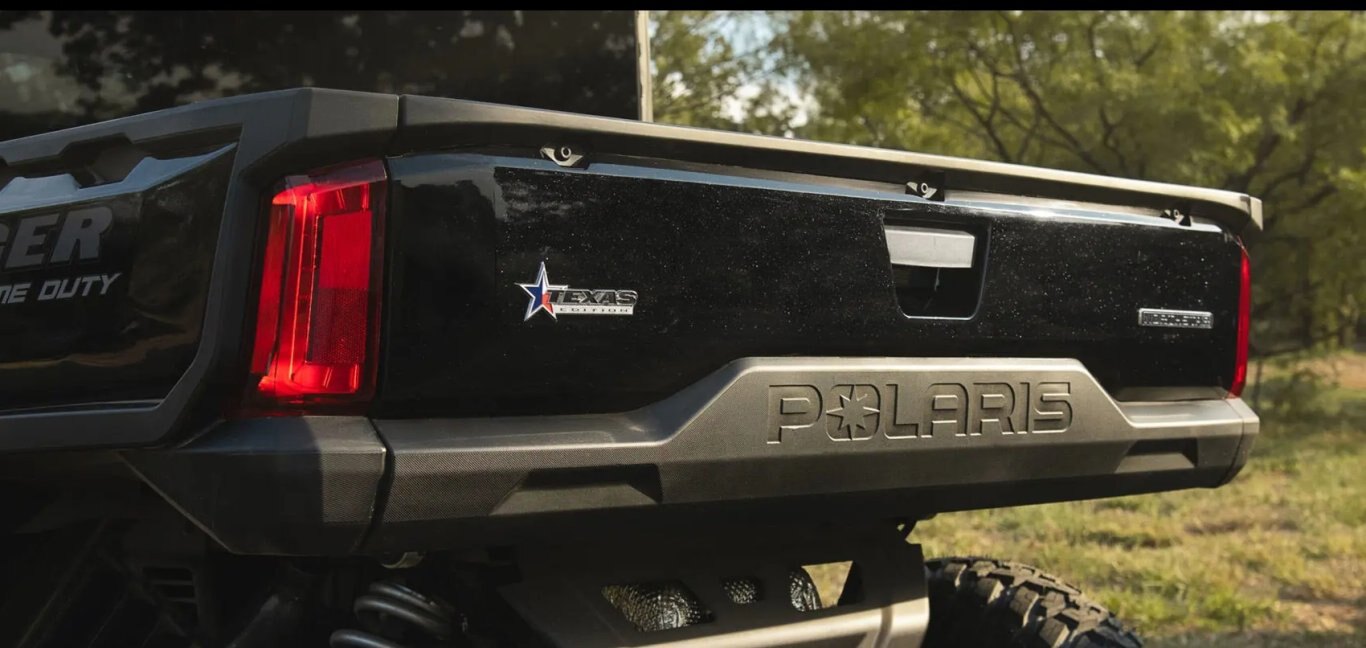

Lighting

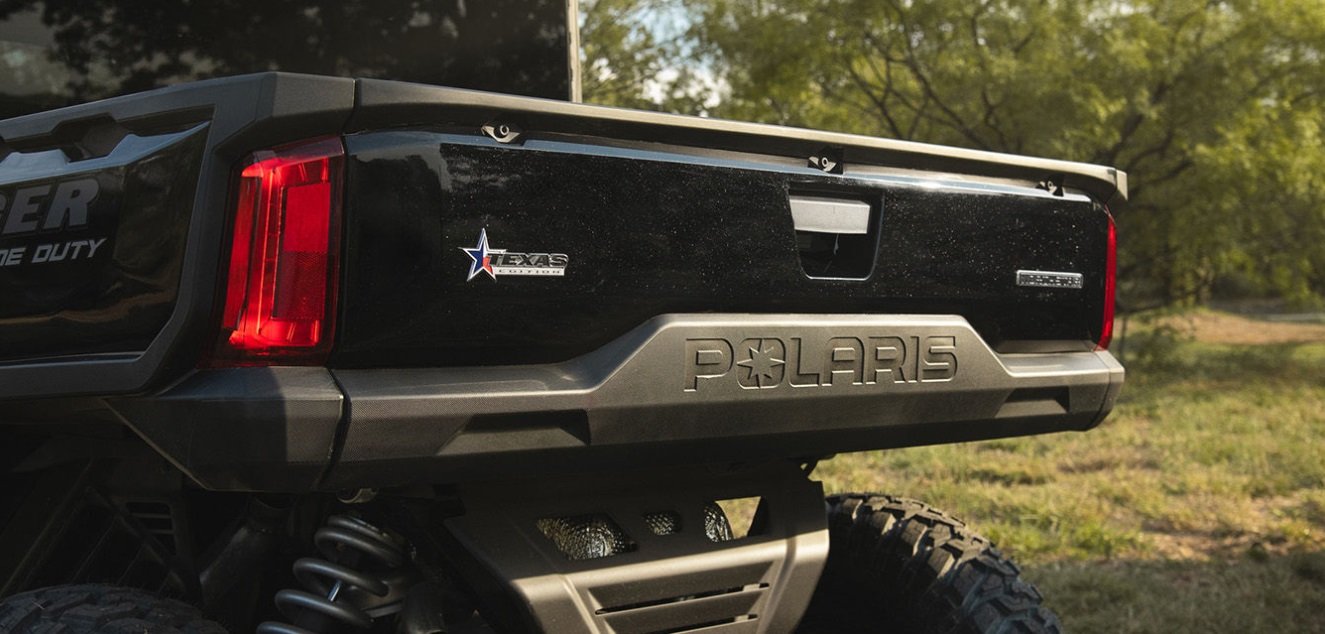

LED headlights with LED taillights, LED rear work light, LED dome light, door puddle lighting, front LED auxiliary lights, interior accent lighting, lighting modes: low, high, accent, blackout. Blackout mode switches off the headlights and dims interior lighting
Electrical System
140-amp charging system, Polaris PULSE electrical system (3-position hood and 3-position roof), USB charger, trickle charger, 12-volt accessory outlet, battery trickle-charging port
Steering
Tilt & telescoping adjustment

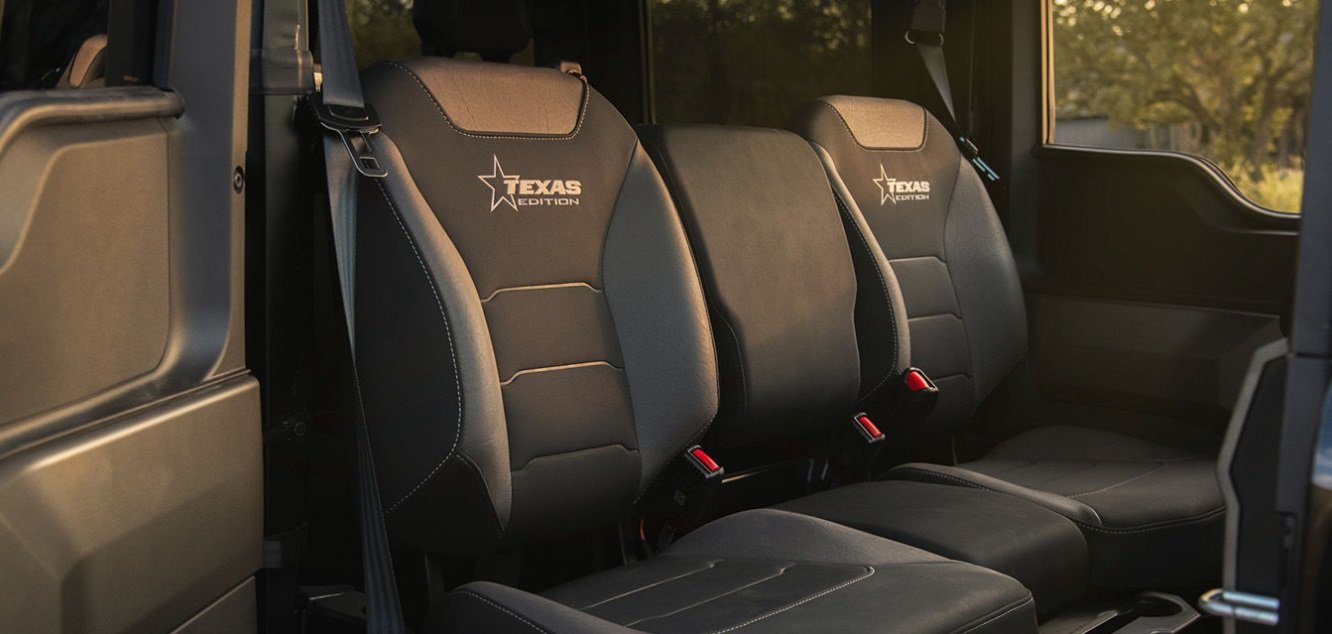

Seat Type
6-person, dual-row, superior contoured, bolstered bench seats with 3-point harness, heated front row seats, adjustable driver seat, and flip-down arm rest
Cab Components
Factory-installed cab system with tinted powered doors, roof, tip-out glass windshield, tinted glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
Speed Limiting
Speed limiting controlled in RIDE COMMAND
Driver Instrumentation
Driver forward information center with 4" color display and analog speedometer and tachometers: user-selectable blue/red backlighting and brightness, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, oil pressure, transmission indicator, EPS indicator, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS

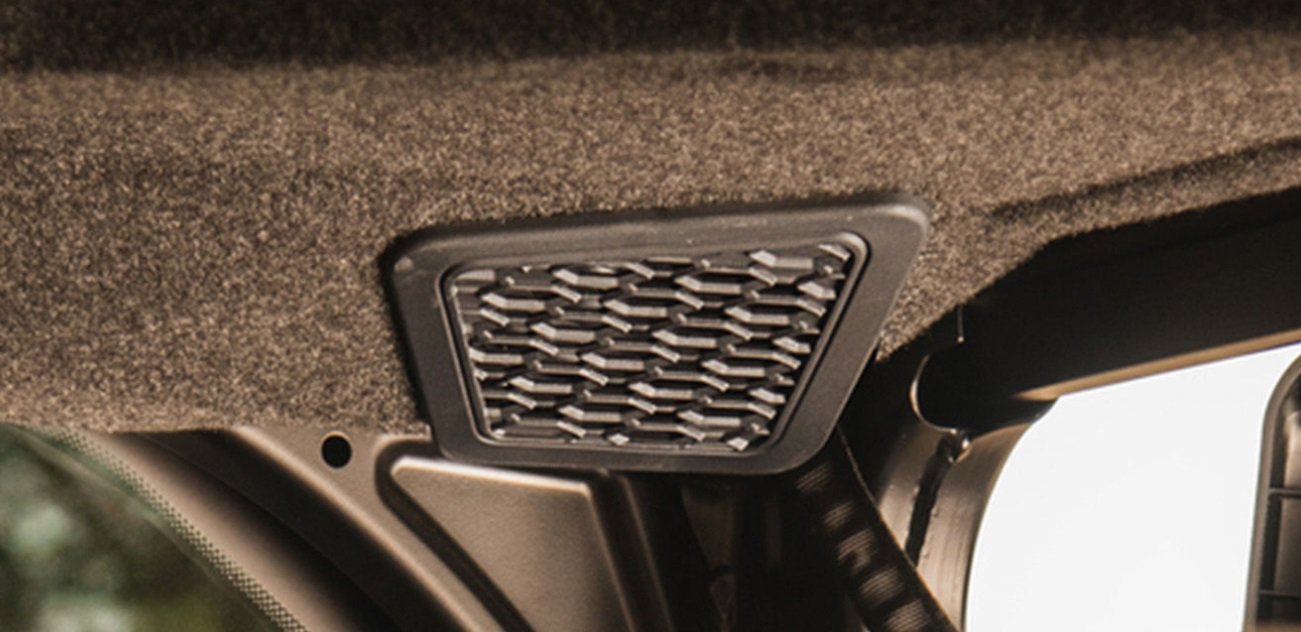

Heat And/or Air Conditioning
Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings
