Penta - SINGLE AUGER STATIONARY 5030

  • Penta SINGLE AUGER STATIONARY 5030
  • Penta SINGLE AUGER STATIONARY 5030
  • Penta SINGLE AUGER STATIONARY 5030
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

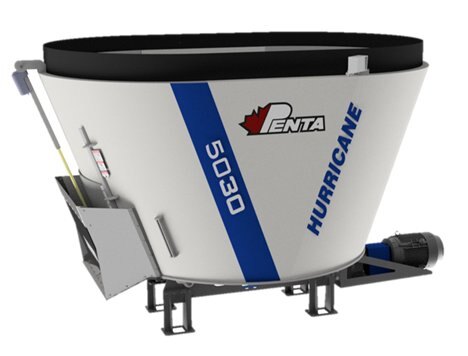

SINGLE AUGER STATIONARY 5030

Penta Stationary Vertical Mixers are compact and convenient machines with a high capacity and low power consumption. Stationary Mixers offer the possibility to use more economical feed boxes with less horsepower to distribute the feed. The mixers run at a reduced constant RPM as opposed to mobile mixers, and full clean out can be arranged through a variable drive and gearbox. All mixers are built on a subframe and supports can be ordered to put the machine at the desired height. The machine is operated by a frequency changer which makes sure that the machine starts slowly and without any increase in power. The frequency changer also enables acceleration as required. Contact Penta for door location and HP requirements.

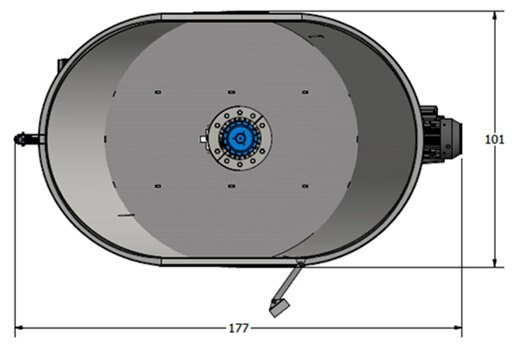

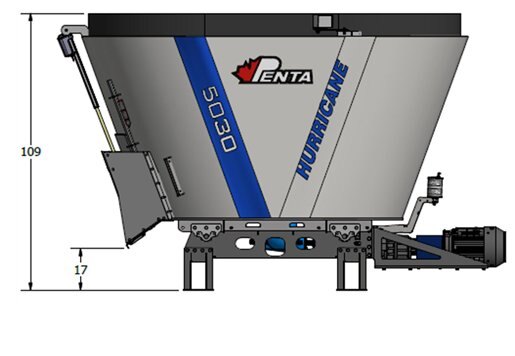

 Specifications
Specifications Imperial Metric
Capacity 9" Rubber 505 cu ft 14 m3
Total Width 101 in 256 cm
Total Length 177 in 450 cm
Total Height 109 in 278 cm
Loading Height 104 in 265 cm
Chute Height 17 in 43 cm



Model Description
Auger Thickness (Optional 3/4") 1/2"
Floor Thickness 3/4"
2-Speed Gearbox Standard
Max lbs of Feed in Mixer 9,090 lbs
Magnets Optional
Hydraulic Power Pack Yes



Drive Systems and Electrical Requirements
Drive Style Electrical Service Required
Direct, 40hp 240V single phase, 200A
480V three phase, 70A
600V three phase, 50A
Direct, 50hp 240V single phase, 225A
480V three phase, 80A
600V three phase, 60A
Specifications
Model
SINGLE AUGER STATIONARY 5030
Category Name
Trailers
Year
2021
Sale Type
New
Manufacturer
Penta
Width
101 in
Height
109 in
Cu. Ft.
505
features

  Electronic Controls

Penta SINGLE AUGER STATIONARY 5030 The mixers are able to run at a reduced constant RPM using electronic controls.

  • Variable Speed Drive

  • Speed up

  • Reverse

  • Slow down

  • Remote Door Controls

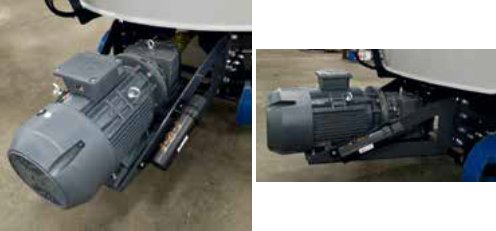

  Driveline

Penta SINGLE AUGER STATIONARY 5030 To transfer electronic power to the mixer there are a variety of ways to use a single motor or motors together.

Drives offered:

  • Belt Drives

  • Direct Drives

  • PTO Drive

  • 2 Speed Gear Box

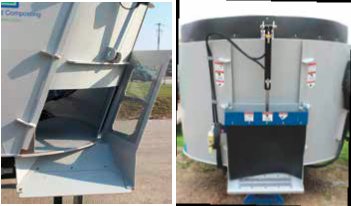

  Doors

Penta SINGLE AUGER STATIONARY 5030 There are two door options available for the stationary mixer. Each stationary mixer can be customized and multiple door options are available on a single unit.

Placement options:

  • End Doors

  • Corner Doors
  Conveyor

Penta SINGLE AUGER STATIONARY 5030 Conveyors for the stationary mixer come in 3 size options and are built for long life and dependability using the heaviest cast chain in the industry.

  • Available sizes: Bases 4'-4.5'-5'-6', Wing 9'-10'

  • Option to upgrade to stainless rails available

  • Powered by Electronic 3 HP Motor
