C-Shank

C-shank units are available with 200-270 lb trip pressure. 7” sweeps are standard, with the option of 9” sweeps also available if needed.

Durability & Innovation

Effective tillage matters. Whether you’re warming up a seedbed, mulching tough trash, managing compaction, or minimizing erosion – you need tillage equipment that is effective, reliable, and straight-forward.

Penta tillage tools are built to withstand the tough task of preparing fields. Found in every tool are solid frames, heavy duty components, and durable harrows.

Heavy duty build doesn’t compromise ease of use. By combining an industry-exclusive depth control design, excellent clearance for trash flow, and low maintenance components, Penta tillage tools help you accomplish your field work trouble free.

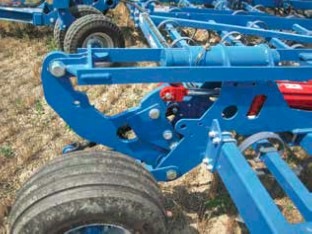

Depth Control

The unique mechanical depth control system allows the operator to set the cultivator at specific working depths. As the cultivator is lowered, the depth control collar contacts the stop on the front arm, removing the load of the cultivator from the hydraulics and onto the depth stop. With no load on the hydraulics, and with a precise mechanical depth setting, the operator is assured trouble free and accurate operation.

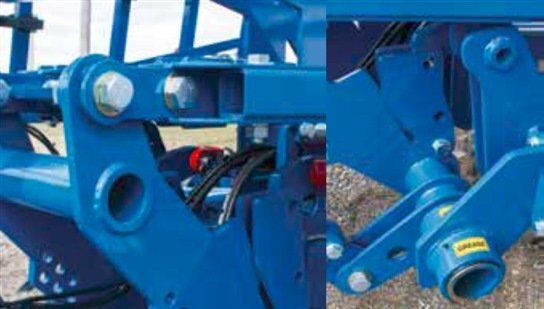

Lift Cylinder

Slotted wing lift cylinder mounts allow wings to pivot up to 5 degrees in either direction. This allows for uncompromising terrain following, as well as eliminating load on the wing cylinders when in field position.

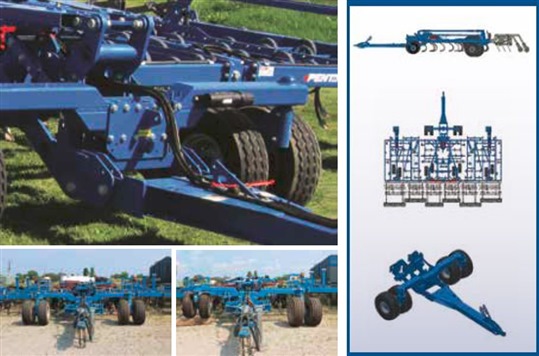

Floating Hitch

The 300 floating hitch can be added onto the 200 Series Cultivator.
The 300 floating hitch improves upon existing floating hitch technology by adding an oscillating front caddy. The floating hitch allows the cultivator to contour over hills and valleys with more precision than a fixed hitch cultivator, while the oscillation of the front caddy means that all mainframe wheels are in constant contact with the ground, giving you better ground contact.
By adding this hitch feature to an already effective cultivator, the 200 series provides even and precise tillage depth in all conditions.

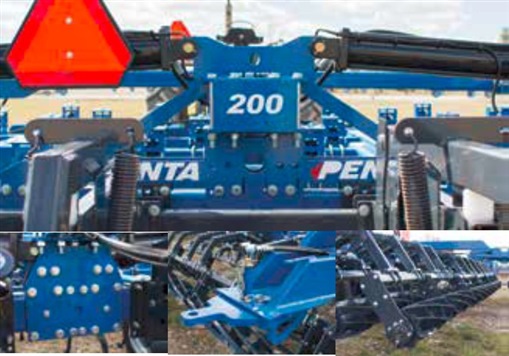

Rugged Linkages

Rugged linkages and large wear points provide maximum weight bearing and minimum wear – construction designed to provide long life to the frame. Additionally, the 200 series has been designed with positive tongue weight, making the unit stable and easy to attach or detach.

Gauge Wheels

Adjustable gauge wheels are standard on all units 30’ wide and larger, and available as an option on smaller units.

Caster Wheels

Caster / swivel gauge wheels are optional on all models in lieu of the fixed gauge wheels.

Solid Frame

The Penta 200 Series Cultivator is built with a solid frame. The frame’s depth from front to rear of the machine allows for an exclusive depth control design and excellent clearance of trash flow.

Harrows

Penta offers various harrow combinations to suit your tillage needs. Combinations include single or double basket rollers, 3 row finger tines or 3 bar spike harrows with or without a single basket, and 5 bar spike harrows.

Standard Equipment

• All baskets standard with flat bar

*Additional harrows may be available – talk to your local Penta tillage dealer for more information.
