ID # 15498346

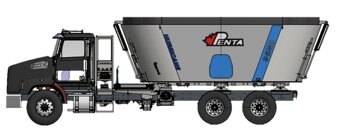

Penta 9630 Truck Mount

  • Penta 9630 Truck Mount
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
DOUBLE AUGER TRUCK MOUNT

Penta Truck Mount Mixers are specially designed to suit the needs of larger operations, or applications where tough terrain and longer distances are encountered. Farmers will have faster than average mixing times, and the capacity to process different forage components and micro ingredients with maximum efficiency.
 Specifications
Specifications Imperial Metric
Capacity 9" Rubber 965 cu ft 27 m3
Total Width 101 in 257 cm
Total Length 333 in 846 cm
Empty Weight 23,547 lbs 10,680 kg

Truck Requirements
HP 425 - 475
Front Axle 20,000 lbs
Rear Axle 46,000 lbs
Preferred Transmission Allison 4500RDS
Cab to Axle (A) 175"
End of Frame (B) 96"
Overall Height (C) 130"
Approximate Overall Height w/rubber (D) 136"
Conveyor Clearance (E) 44"
Corner Door 26"
 Features

File Controls

  • Digital Screen
  • Joystick
  • Oil Temperature Monitor
  • Oil Pressure Monitor
  • Optional Cameras



FileConveyor

Conveyors are configured to match the individual needs of the operator.

  • Dog Leg System
  • Slide Out Conveyors
  • Designed to be Grain Ration Ready

FileTub & Auger

The angled curve of the tub and baffles are designed to work with our Hurricane augers for the best mix possible and provides easy clean out.

  • Stainless Steel Tub Liner included in the truck mount mixers increases the longevity of the life of the tub
  • Massive front and rear material doors increase efficiency in unloading and clean out

FileDrive System

  • Hydraulic Pumps
  • Poclain Wheel Motors
  • Hoses
  • Oil Reservoir
  • Valve Blocks
  • Mechanical Truck Mount available for models 4130 and 5030

File File

Truck%20Mount%20Truck%20Measurements





Specifications
Model
9630 Truck Mount
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Penta
