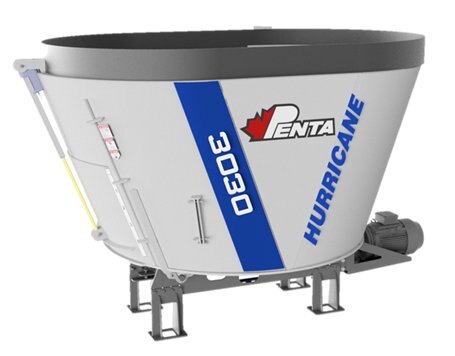

Penta 3030 Stationary Mixers

  • Penta 3030 Stationary Mixers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
SINGLE AUGER STATIONARY

Penta Stationary Vertical Mixers are compact and convenient machines with a high capacity and low power consumption. Stationary Mixers offer the possibility to use more economical feed boxes with less horsepower to distribute the feed. The mixers run at a reduced constant RPM as opposed to mobile mixers, and full clean out can be arranged through a variable drive and gearbox. All mixers are built on a subframe and supports can be ordered to put the machine at the desired height. The machine is operated by a frequency changer which makes sure that the machine starts slowly and without any increase in power. The frequency changer also enables acceleration as required. Contact Penta for door location and HP requirements.
 Specifications
Specifications Imperial Metric
Capacity 9" Rubber 355 cu ft 10 m3

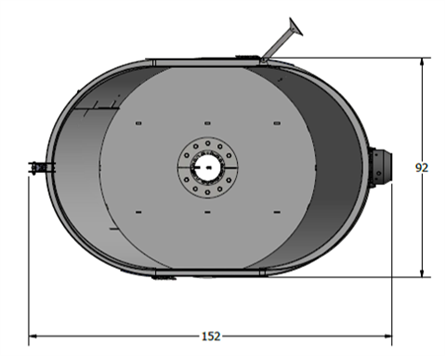

Total Width 92 in 234 cm
Total Length 152 in 386 cm

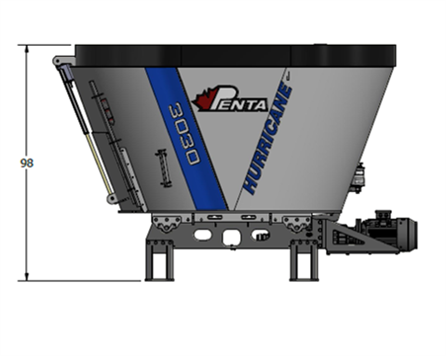

Total Height 98 in 248 cm
Loading Height 93 in 236 cm
Chute Height 17 in 42 cm

Model Description
Auger Thickness (Optional 3/4") 1/2"
Floor Thickness 3/4"
2-Speed Gearbox Standard
Max lbs of Feed in Mixer 6,390 lbs
Magnets Optional
Hydraulic Power Pack Yes

Drive Systems and Electrical Requirements
Drive Style Electrical Service Requirement
Belts, 2x10hp 240V single phase, 100A
Belts, 2x10hp 240V single phase, 150A
Direct, 30hp 240V single phase, 150A
480V three phase, 45A
600V three phase, 35A
 Features

File Electronic Controls

The mixers are able to run at a reduced constant RPM using electronic controls.

  • Variable Speed Drive
  • Speed up
  • Reverse
  • Slow down
  • Remote Door Controls



FileDriveline

To transfer electronic power to the mixer there are a variety of ways to use a single motor or motors together.

Drives offered:

  • Belt Drives
  • Direct Drives
  • PTO Drive
  • 2 Speed Gear Box

FileDoors

There are two door options available for the stationary mixer. Each stationary mixer can be customized and multiple door options are available on a single unit.

Placement options:

  • End Doors
  • Corner Doors

FileConveyor

Conveyors for the stationary mixer come in 3 size options and are built for long life and dependability using the heaviest cast chain in the industry.

  • Available sizes: Bases 4'-4.5'-5'-6', Wing 9'-10'
  • Option to upgrade to stainless rails available
  • Powered by Electronic 3 HP Motor

File File



Specifications
Model
3030 Stationary Mixers
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Penta
