In Stock
Price: Contact for price

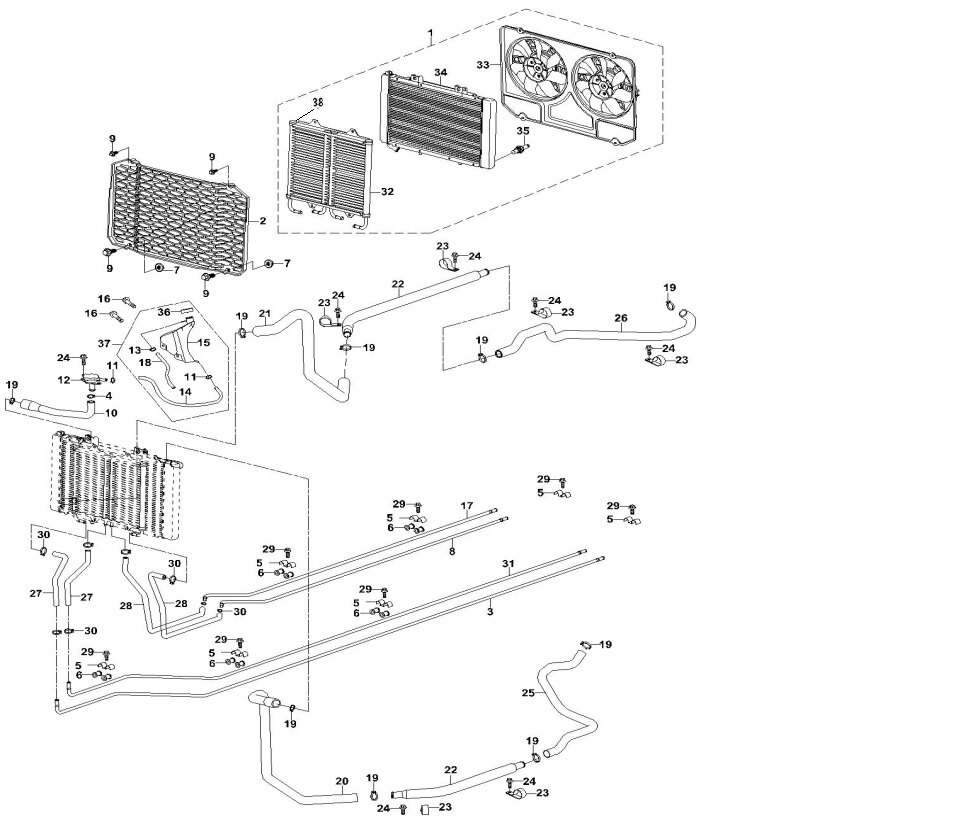

COOLING SYSTEM

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P312001192000000
P312001192000000
Radiator Assy
0
1
1
P311001825270000
P311001825270000
Radiator Cover
0
1
2
P312001155150000
P312001155150000
Metal Oil Pipe ?
0
1
3
PJ00000907300200
PJ00000907300200
Locking Hoop C
0
1
4
P115000190170000
P115000190170000
M - Clip
0
8
5
P115000155140000
P115000155140000
Rubber Block
0
10
6
BGB6177-M6
BGB6177-M6
Hexagon Flange Nut M6
0
4
8
P312001190180000
P312001190180000
Water Inlet Pipe III
0
1
9
PJ00000907100200
PJ00000907100200
Elastic Hoop C
0
2
10
P312001192700000
P312001192700000
Water Inlet
0
1
11
PJ00000907100300
PJ00000907100300
Elastic Hoop D
0
1
12
P107000193130000
P107000193130000
Water Inlet Pipe, Second Water Tank
0
1
13
P107000193210000
P107000193210000
Second Water Tank
0
1
15
P107000193220000
P107000193220000
Outlet Pipe, Second Water Tank
0
1
16
PJ00000907300300
PJ00000907300300
Locking Hoop D
0
9
17
P312001190050000
P312001190050000
Outlet Pipe II
0
1
18
P312001190030000
P312001190030000
Water Inlet Pipe?
0
1
19
P312001190120000
P312001190120000
Metal Water Pipe I
0
2
20
P116000190150000
P116000190150000
Water Pipe Clip ?
0
6
21
BGB16674-M6×16
BGB16674-M6×16
Hexagon Flange Bolt M6×16
0
7
22
P312001190040000
P312001190040000
Outlet Pipe I
0
1
24
P312001155040000
P312001155040000
High Pressure Rubber Fuel Pipe?
0
2
25
P312001155050000
P312001155050000
High Pressure Rubber Fuel Pipe II
0
2
26
BGB16674-M6×12
BGB16674-M6×12
Hexagon Flange Bolt M6×12
0
7
27
PJ00000907300000
PJ00000907300000
Locking Hoop A
0
12
29
P3110011924A0000
P3110011924A0000
Cooler Fan
0
1
30
P3090011926A0000
P3090011926A0000
Water Tank
0
1
31
P115000391300000
P115000391300000
Water Temp Sensor
0
1
32
P115000193110000
P115000193110000
Second Water Tank Cap
0
1
33
P107000193000000
P107000193000000
Second Water Tank Assy
0
1
34
P3110011554A0000
P3110011554A0000
Oil Cooler L
0
1
Overview

Radiator Assy .

Radiator Assy of #:ENGINE - COOLING SYSTEM

Radiator Cover .

Radiator Cover of #:ENGINE - COOLING SYSTEM

Metal Oil Pipe ? .

Metal Oil Pipe Ⅱ of #:ENGINE - COOLING SYSTEM

Locking Hoop C .

Locking Hoop C of #:ENGINE - COOLING SYSTEM

M - Clip .

M - Clip of #:ENGINE - COOLING SYSTEM

Rubber Block .

Rubber Block of #:ENGINE - COOLING SYSTEM

Hexagon Flange Nut M6 .

Hexagon Flange Nut M6 of #:ENGINE - COOLING SYSTEM

Water Inlet Pipe III .

Water Inlet Pipe III of #:ENGINE - COOLING SYSTEM

Elastic Hoop C .

Elastic Hoop C of #:ENGINE - COOLING SYSTEM

Water Inlet .

Water Inlet of #:ENGINE - COOLING SYSTEM

Elastic Hoop D .

Elastic Hoop D of #:ENGINE - COOLING SYSTEM

Water Inlet Pipe, Second Water Tank .

Water Inlet Pipe, Second Water Tank of #:ENGINE - COOLING SYSTEM

Second Water Tank .

Second Water Tank of #:ENGINE - COOLING SYSTEM

Outlet Pipe, Second Water Tank .

Outlet Pipe, Second Water Tank of #:ENGINE - COOLING SYSTEM

Locking Hoop D .

Locking Hoop D of #:ENGINE - COOLING SYSTEM

Outlet Pipe II .

Outlet Pipe II of #:ENGINE - COOLING SYSTEM

Water Inlet Pipe? .

Water Inlet PipeⅡ of #:ENGINE - COOLING SYSTEM

Metal Water Pipe I .

Metal Water Pipe I of #:ENGINE - COOLING SYSTEM

Water Pipe Clip ? .

Water Pipe Clip Ⅲ of #:ENGINE - COOLING SYSTEM

Hexagon Flange Bolt M6×16 .

Hexagon Flange Bolt M6×16 of #:ENGINE - AIR INTAKE

Outlet Pipe I .

Outlet Pipe I of #:ENGINE - COOLING SYSTEM

High Pressure Rubber Fuel Pipe? .

High Pressure Rubber Fuel PipeⅠ of #:ENGINE - COOLING SYSTEM

High Pressure Rubber Fuel Pipe II .

High Pressure Rubber Fuel Pipe II of #:ENGINE - COOLING SYSTEM

Hexagon Flange Bolt M6×12 .

Hexagon Flange Bolt M6×12 of #:ENGINE - COOLING SYSTEM

Locking Hoop A .

Locking Hoop A of #:ENGINE - COOLING SYSTEM

Cooler Fan .

Cooler Fan of #:ENGINE - COOLING SYSTEM

Water Tank .

Water Tank of #:ENGINE - COOLING SYSTEM

Water Temp Sensor .

Water Temp Sensor of #:ENGINE - COOLING SYSTEM

Second Water Tank Cap .

Second Water Tank Cap of #:ENGINE - COOLING SYSTEM

Second Water Tank Assy .

Second Water Tank Assy of #:ENGINE - COOLING SYSTEM

Oil Cooler L .

Oil Cooler L of #:ENGINE - COOLING SYSTEM
