 Back to results
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
  • SEAT
In Stock
Price: Contact for price

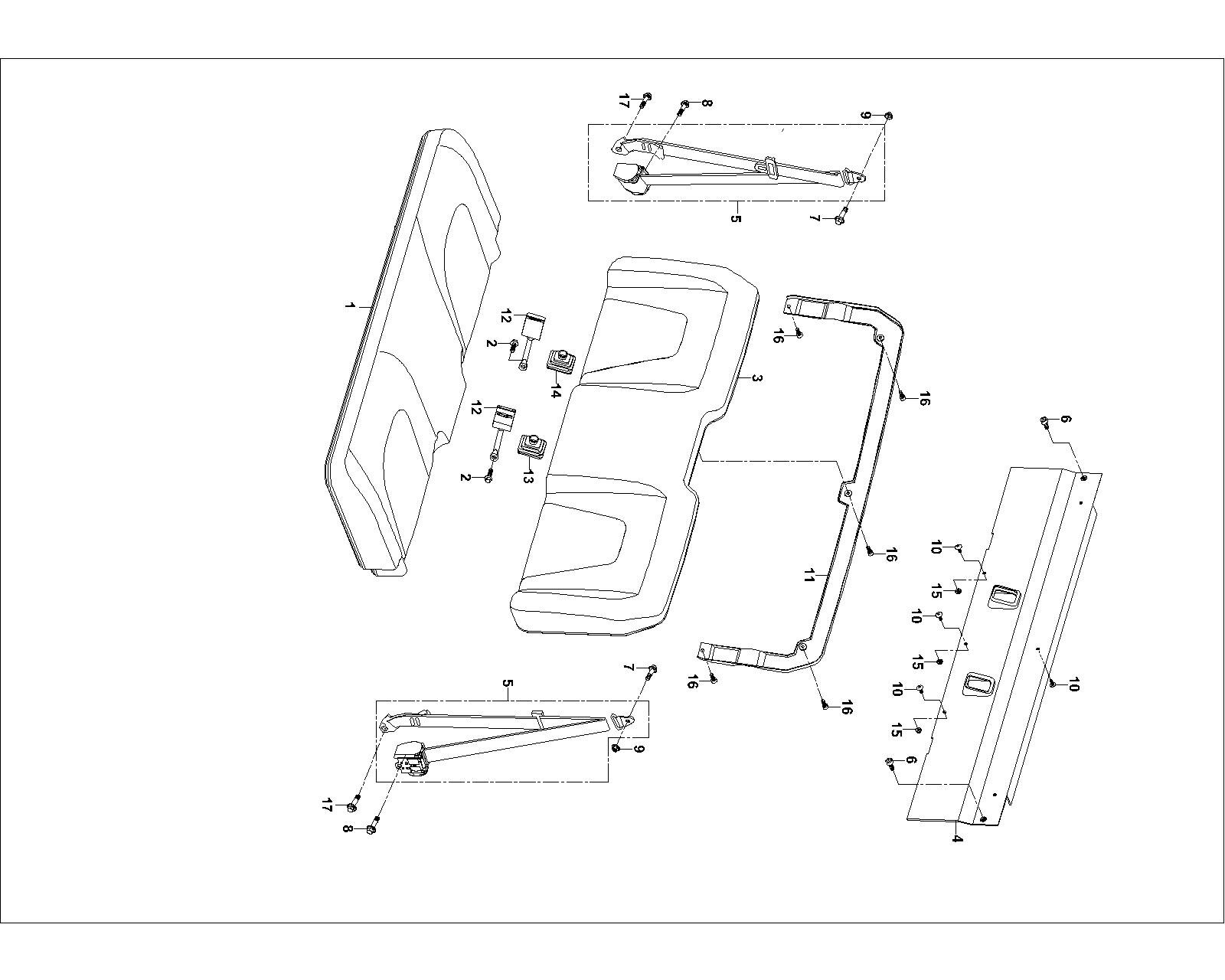

SEAT

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P312001711100000
P312001711100000
Seat Bottom
0
1
1
P312001712100000
P312001712100000
Seat Back
0
1
2
P31200182603000023
P31200182603000023
Rear Protection Plate I, Seat
0
1
3
P312001751100000
P312001751100000
Safety Belt
0
2
4
PJ00000902250400
PJ00000902250400
Socket Hexagon Screw M6×20
0
2
5
PJ00000902100400
PJ00000902100400
Hexagon Step Bolt With Pan M10×?14×5×22
0
2
6
BGB16674-M10×1.25×20
BGB16674-M10×1.25×20
Hexagon Flange Bolt M10×1.25×20
0
2
7
BGB6187-M10×1.25
BGB6187-M10×1.25
Hexagon Flange Locked Nut M10×1.25
0
2
8
PJ00000905200500
PJ00000905200500
Cross Large Plate Head Screw M6×16
0
4
9
P312001826070000
P312001826070000
Pressing Regula, Backrest
0
1
10
P312001751200000
P312001751200000
Lock Catch I, Safety Belt
0
2
11
PJ00000932600000
PJ00000932600000
Left Sheath,Safety Belt Socket
0
1
12
PJ00000932600100
PJ00000932600100
Right Sheath,Safety Belt Socket
0
1
13
BGB6177-M6
BGB6177-M6
Hexagon Flange Nut M6
0
3
14
PJ00000902250100
PJ00000902250100
Socket Hexagon Screw M6×16
0
5
15
PJ00000902100600
PJ00000902100600
Hexagon Step Bolt With Pan M10×?14×9×25
0
2
Overview

Seat Bottom .

Seat Bottom of #:BODY - SEAT

Seat Back .

Seat Back of #:BODY - SEAT

Rear Protection Plate I, Seat .

Rear Protection Plate I, Seat of #:BODY - SEAT

Safety Belt .

Safety Belt of #:BODY - SEAT

Socket Hexagon Screw M6×20 .

Socket Hexagon Screw M6×20 of #:BODY - SEAT

Hexagon Step Bolt With Pan M10×?14×5×22 .

Hexagon Step Bolt With Pan M10×Φ14×5×22 of #:BODY - SEAT

Hexagon Flange Bolt M10×1.25×20 .

Hexagon Flange Bolt M10×1.25×20 of #:BODY - SEAT

Hexagon Flange Locked Nut M10×1.25 .

Hexagon Flange Locked Nut M10×1.25 of #:BODY - SEAT

Cross Large Plate Head Screw M6×16 .

Cross Large Plate Head Screw M6×16 of #:BODY - HOOD & FRONT FASCIA

Pressing Regula, Backrest .

Pressing Regula, Backrest of #:BODY - SEAT

Lock Catch I, Safety Belt .

Lock Catch I, Safety Belt of #:BODY - SEAT

Left Sheath,Safety Belt Socket .

Left Sheath,Safety Belt Socket of #:BODY - SEAT

Right Sheath,Safety Belt Socket .

Right Sheath,Safety Belt Socket of #:BODY - SEAT

Hexagon Flange Nut M6 .

Hexagon Flange Nut M6 of #:BODY - SEAT

Socket Hexagon Screw M6×16 .

Socket Hexagon Screw M6×16 of #:BODY - SEAT BASE & SIDE PANELS

Hexagon Step Bolt With Pan M10×?14×9×25 .

Hexagon Step Bolt With Pan M10×Φ14×9×25 of #:BODY - SEAT
