In Stock
Price: Contact for price

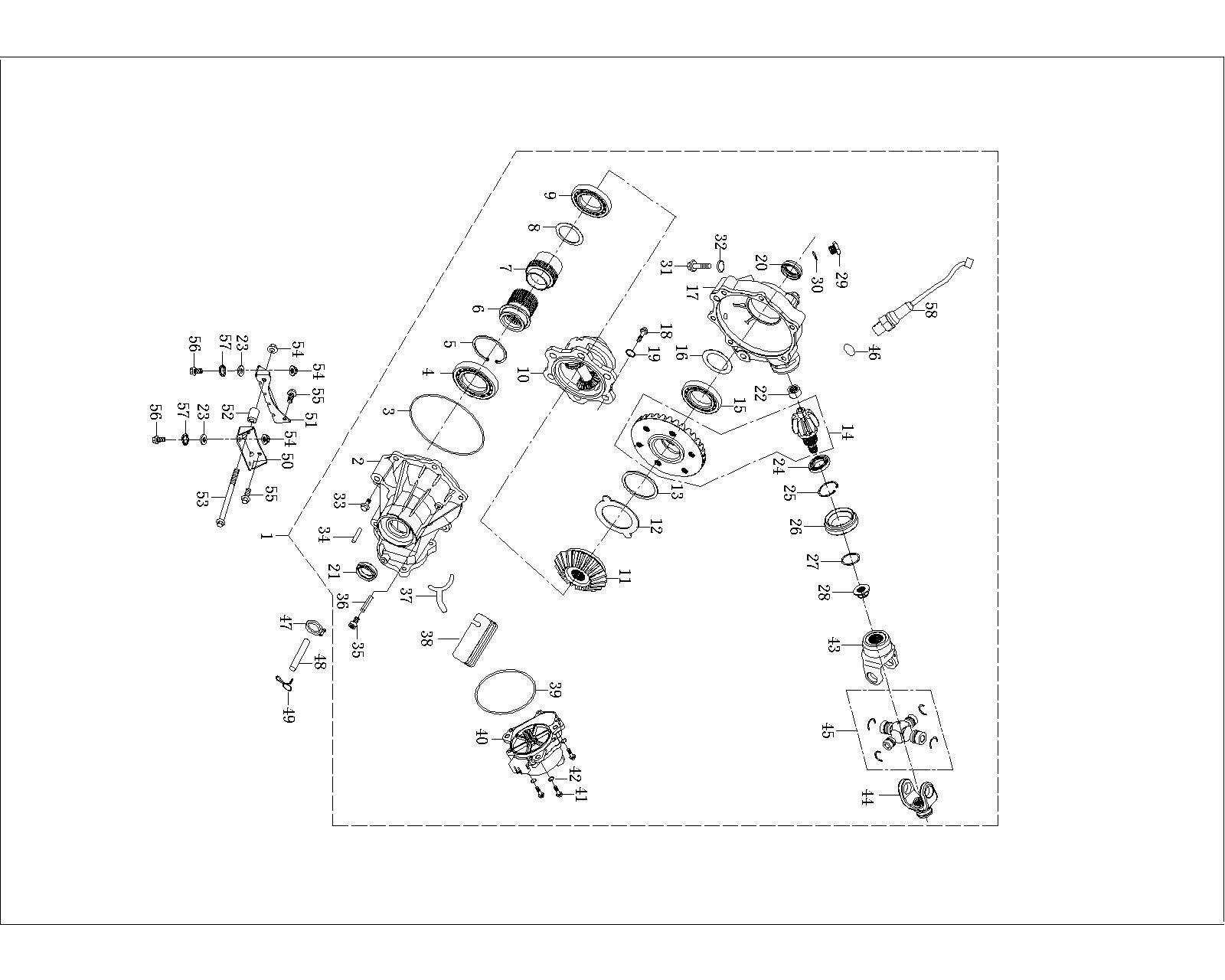

FRONT GEARCASE

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P312001271000000
P312001271000000
Front Differential Assy
0
1
1
P107000271030000
P107000271030000
Front Axle Gear Box Cover
0
1
2
BGB3452.1-Φ140×Φ2.65
BGB3452.1-Φ140×Φ2.65
O-Ring ?140×?2.65
0
1
3
BGB276-16007
BGB276-16007
Deep Groove Ball Bearing ?35×?62×9
0
1
4
P115000271150000
P115000271150000
Divide Device Connection
0
1
5
P107000271140000
P107000271140000
Sliding Sleeve
0
1
6
PJ00000273000300
PJ00000273000300
Adjustment Gasket ?71×?83×0.1
0
1
7
BGB276-61912
BGB276-61912
Deep Groove Ball Bearing 61912
0
1
8
P115000271120000
P115000271120000
Transfer Gear
0
1
9
P115000271110000
P115000271110000
Bevel Gear?Front Axle
0
1
10
P115000271080000
P115000271080000
Anti-Rotation Gasket
0
1
11
PJ00000273000600
PJ00000273000600
Adjustment Gasket ?40×?57×0.1
0
1
12
P107000271510000
P107000271510000
Drive&Driven Gears Assy, Front Axle
0
1
13
PJ00000273000000
PJ00000273000000
Adjustment Gasket ??50×?61.5
0
1
14
P107000271040000
P107000271040000
Front Axle Gear Box
0
1
15
BGB5783-M10×1.25×16
BGB5783-M10×1.25×16
Bolt M10×1.25×16
0
6
16
P115000911220000
P115000911220000
Front Diff. Output Shaft Oil Seal?24×?38×8
0
2
17
P115000929010000
P115000929010000
Needle Bearing ?15×?21×12
0
1
18
BGB97.1-10
BGB97.1-10
Plain washer ?10
0
4
19
GBG276-1994-6007
GBG276-1994-6007
Deep Groove Ball Bearing 6007
0
1
20
BGB893.1-d0=62
BGB893.1-d0=62
Circlip D0=62
0
1
21
P115000911150000
P115000911150000
Oil Seal ?48×?65×9, Driving Tooth
0
1
22
P115000271390000
P115000271390000
O-Ring ?14×?7 , Driving Tooth
0
1
23
BGB6187-M14×1.5-C
BGB6187-M14×1.5-C
Hexagon Flange Locked Nut M14×1.5
0
1
24
P115000271520000
P115000271520000
Bolt M14×1.5×10
0
1
25
BGB6659-φ12.5×φ1.5
BGB6659-φ12.5×φ1.5
Rubber O-Ring ?12.5×?1.5
0
1
26
BGB16674-M10×1.25×16
BGB16674-M10×1.25×16
Hexagon Flange Bolt M10×1.25×16
0
1
27
P115000272630000
P115000272630000
Oil drain plug O-Ring ?1.5×?9
0
1
28
BGB16674-M8×25
BGB16674-M8×25
Hexagon Flange Bolt M8×25
0
6
29
P107000271220000
P107000271220000
Air Tap,Front Axle
0
1
30
P103000271170000
P103000271170000
Inner Hexagon Screw With Flat Head M8×10
0
1
31
P115000271160000
P115000271160000
Cylindrical Pin ?5×75
0
1
32
P115000271190000
P115000271190000
Fork
0
1
33
P115000271200000
P115000271200000
Spline
0
1
34
P115000271410000
P115000271410000
O-Ring ?80×?1.8
0
1
35
P115000271210000
P115000271210000
Transfer Case Assembly
0
1
36
BGB70.1-M8×20
BGB70.1-M8×20
Hexagon Socket Cap Screw M8×20
0
3
37
BGB97.1-8
BGB97.1-8
Plain washer 8
0
4
38
PJ00000254000700
PJ00000254000700
Connection Fork E
0
1
39
PJ00000254000200
PJ00000254000200
Connection Fork C
0
1
41
BGB3452.1-φ19×φ1.8
BGB3452.1-φ19×φ1.8
Rubber O-Ring ?19×?1.8
0
1
42
PJ00000907100200
PJ00000907100200
Elastic Hoop C
0
1
43
PJ00000274000000
PJ00000274000000
Pipe A
0
1
44
PJ00000907400000
PJ00000907400000
Steel Clip ?10
0
1
45
P112000515220000
P112000515220000
Left Mounting Plate
0
1
46
P112000515230000
P112000515230000
Right Mounting Plate
0
1
47
PJ00000929004000
PJ00000929004000
Cylindrical Bush ?10.5×?22×36.5
0
1
48
BGB16674-M10×1.25×145
BGB16674-M10×1.25×145
Hexagon Flange Bolt M10×1.25×145
0
1
49
BGB6187-M10×1.25
BGB6187-M10×1.25
Hexagon Flange Locked Nut M10×1.25
0
5
50
BGB16674-M10×1.25×20
BGB16674-M10×1.25×20
Hexagon Flange Bolt M10×1.25×20
0
4
51
BGB93-10
BGB93-10
Spring Washer?10
0
4
52
P107000363000000
P107000363000000
Speed Sensor
0
1
