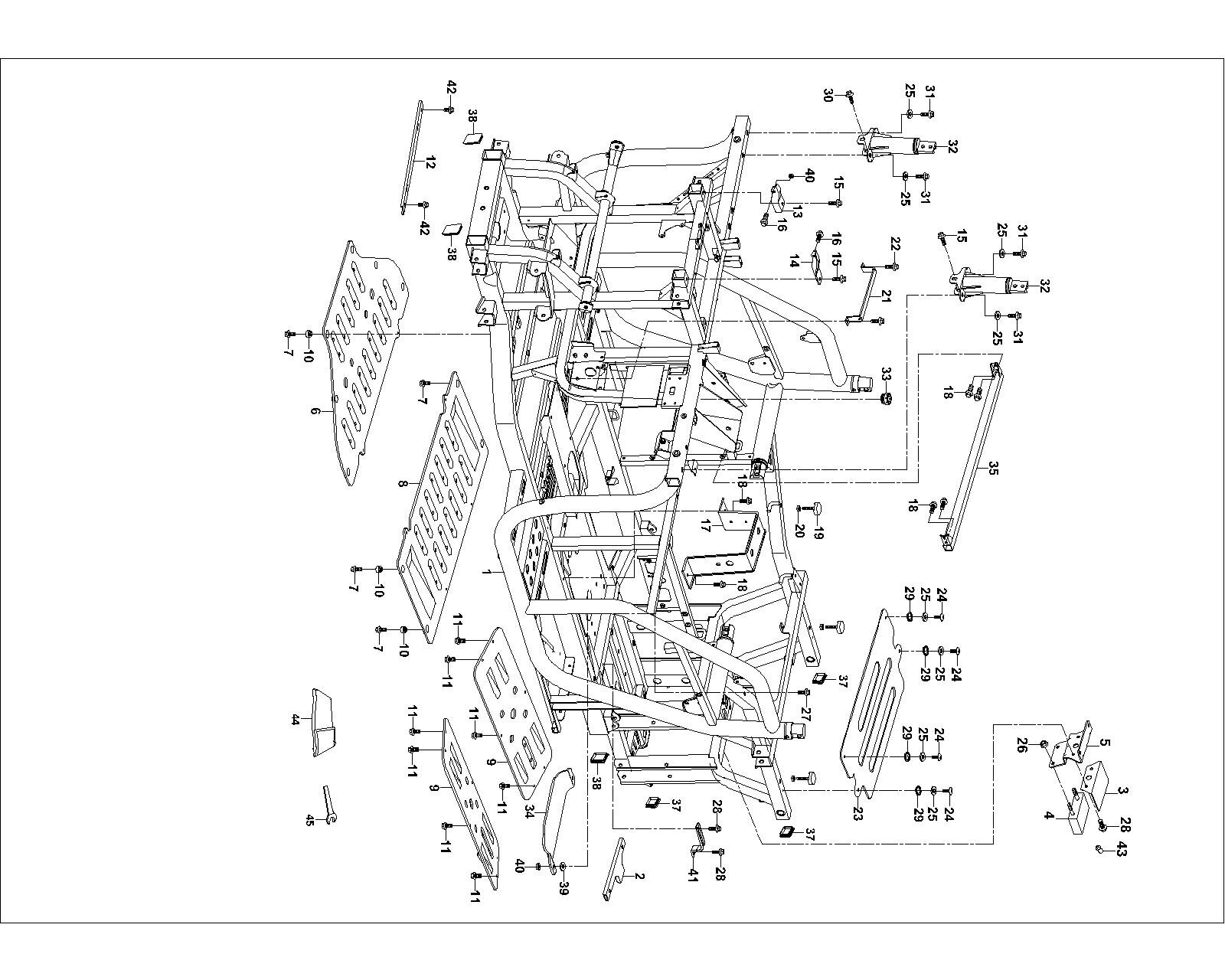

Hisun PArts

Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P312001511000000
P312001511000000
Frame Joint Parts
0
1
1
P312001515210000
P312001515210000
Mounting Plate,Battery Box
0
1
2
P312001515800000
P312001515800000
License Light Insulation Plate
0
1
3
P311001353250000
P311001353250000
Rear License Plate Lamps
0
1
4
P312001515370000
P312001515370000
License Mounting Plate
0
1
5
P312001825050000
P312001825050000
Front Bottom Protective Plate
0
1
6
P312001825060000
P312001825060000
Middle Lower Protective Plate
0
1
7
P312001825070000
P312001825070000
Rear Lower Protective Plate I
0
2
8
P115000515240000
P115000515240000
Cap Washer
0
10
9
P312001192060000
P312001192060000
Mounting Bracket ?, Radiator
0
1
12
P312001515560000
P312001515560000
Supporting Plate,Battery Box
0
1
13
PJ00000931550000
PJ00000931550000
Spiral Cushion Gasket
0
4
14
BGB6177-M8
BGB6177-M8
Hexagon Flange Nut M8
0
4
15
P312001515550000
P312001515550000
Foot Pedal Support Bracket
0
2
16
P312001515160000
P312001515160000
Cargo Box Insulation Plate
0
1
17
BGB6177-M6
BGB6177-M6
Hexagon Flange Bolt M6
0
2
18
BGB16674-M6×25
BGB16674-M6×25
Hexagon Flange Bolt M6×25
0
2
19
BGB16674-M6×16
BGB16674-M6×16
Hexagon Flange Bolt M6×16
0
4
20
BGB93-6
BGB93-6
Spring Washer 6
0
4
21
BGB16674-M10×1.25×70
BGB16674-M10×1.25×70
Hexagon Flange Bolt M10×1.25×70
0
2
22
BGB16674-M10×1.25×20
BGB16674-M10×1.25×20
Hexagon Flange Bolt M10×1.25×20
0
4
23
P312001515100000
P312001515100000
Mounting Plate, Front Segment Of Roof Rod
0
2
24
PJ00000933400000
PJ00000933400000
H-Shaped Rubber Ring
0
2
25
P312001515780000
P312001515780000
Clutch Outtake Cover
0
1
26
P312001515540000
P312001515540000
Seat Support Plate I
0
1
27
BGB16674-M10×1.25×25
BGB16674-M10×1.25×25
Hexagon Flange Bolt M10×1.25×25
0
8
28
PJ00000924020200
PJ00000924020200
Plastic Plug 40×40
0
2
29
PJ00000924200100
PJ00000924200100
Plastic Plug 60×40
0
4
30
BGB96.1-6
BGB96.1-6
Plain washer 6
0
2
31
BGB6177.1-M6
BGB6177.1-M6
Hexagon Flange Nut M6
0
4
32
P312001515580000
P312001515580000
Press Plate
0
1
33
BGB16674-M8×16
BGB16674-M8×16
Hexagon Flange Bolt M8×16
0
2
34
PJ00000384130000
PJ00000384130000
Position Light Bulb 12V?W5W
0
1
35
P115000891000000
P115000891000000
Tool Kit
0
1
36
P116000891020000
P116000891020000
Adjustment wrench, Shock Absorber
0
1
Overview

Frame Joint Parts .

Frame Joint Parts of #:CHASSIS - FRAME

Mounting Plate,Battery Box .

Mounting Plate,Battery Box of #:CHASSIS - FRAME

License Light Insulation Plate .

License Light Insulation Plate of #:CHASSIS - FRAME

Rear License Plate Lamps .

Rear License Plate Lamps of #:CHASSIS - FRAME

License Mounting Plate .

License Mounting Plate of #:CHASSIS - FRAME

Front Bottom Protective Plate .

Front Bottom Protective Plate of #:CHASSIS - FRAME

Middle Lower Protective Plate .

Middle Lower Protective Plate of #:CHASSIS - FRAME

Rear Lower Protective Plate I .

Rear Lower Protective Plate I of #:CHASSIS - FRAME

Cap Washer .

Cap Washer of #:CHASSIS - FRAME

Mounting Bracket ?, Radiator .

Mounting Bracket Ⅲ, Radiator of #:CHASSIS - FRAME

Supporting Plate,Battery Box .

Supporting Plate,Battery Box of #:CHASSIS - FRAME

Spiral Cushion Gasket .

Spiral Cushion Gasket of #:CHASSIS - FRAME

Hexagon Flange Nut M8 .

Hexagon Flange Nut M8 of #:CHASSIS - FRAME

Foot Pedal Support Bracket .

Foot Pedal Support Bracket of #:CHASSIS - FRAME

Cargo Box Insulation Plate .

Cargo Box Insulation Plate of #:CHASSIS - FRAME

Hexagon Flange Bolt M6 .

Hexagon Flange Bolt M6 of #:CHASSIS - FRAME

Hexagon Flange Bolt M6×25 .

Hexagon Flange Bolt M6×25 of #:CHASSIS - FRAME

Hexagon Flange Bolt M6×16 .

Hexagon Flange Bolt M6×16 of #:CHASSIS - FRAME

Spring Washer 6 .

Spring Washer 6 of #:CHASSIS - FRAME

Hexagon Flange Bolt M10×1.25×70 .

Hexagon Flange Bolt M10×1.25×70 of #:CHASSIS - FRAME

Hexagon Flange Bolt M10×1.25×20 .

Hexagon Flange Bolt M10×1.25×20 of #:CHASSIS - BUMPER & RACKS

Mounting Plate, Front Segment Of Roof Rod .

Mounting Plate, Front Segment Of Roof Rod of #:CHASSIS - FRAME

H-Shaped Rubber Ring .

H-Shaped Rubber Ring of #:CHASSIS - FRAME

Clutch Outtake Cover .

Clutch Outtake Cover of #:CHASSIS - FRAME

Seat Support Plate I .

Seat Support Plate I of #:CHASSIS - FRAME

Hexagon Flange Bolt M10×1.25×25 .

Hexagon Flange Bolt M10×1.25×25 of #:CHASSIS - FRAME

Plastic Plug 40×40 .

Plastic Plug 40×40 of #:CHASSIS - FRAME

Plastic Plug 60×40 .

Plastic Plug 60×40 of #:CHASSIS - FRAME

Plain Washer 6 .

Plain washer 6 of #:CHASSIS - FRAME

Hexagon Flange Nut M6 .

Hexagon Flange Nut M6 of #:CHASSIS - FRAME

Press Plate .

Press Plate of #:CHASSIS - FRAME

Hexagon Flange Bolt M8×16 .

Hexagon Flange Bolt M8×16 of #:CHASSIS - FRAME

Position Light Bulb 12V?W5W .

Position Light Bulb 12V;W5W of #:CHASSIS - FRAME

Tool Kit .

Tool Kit of #:CHASSIS - FRAME

Adjustment Wrench, Shock Absorber .

Adjustment wrench, Shock Absorber of #:CHASSIS - FRAME
