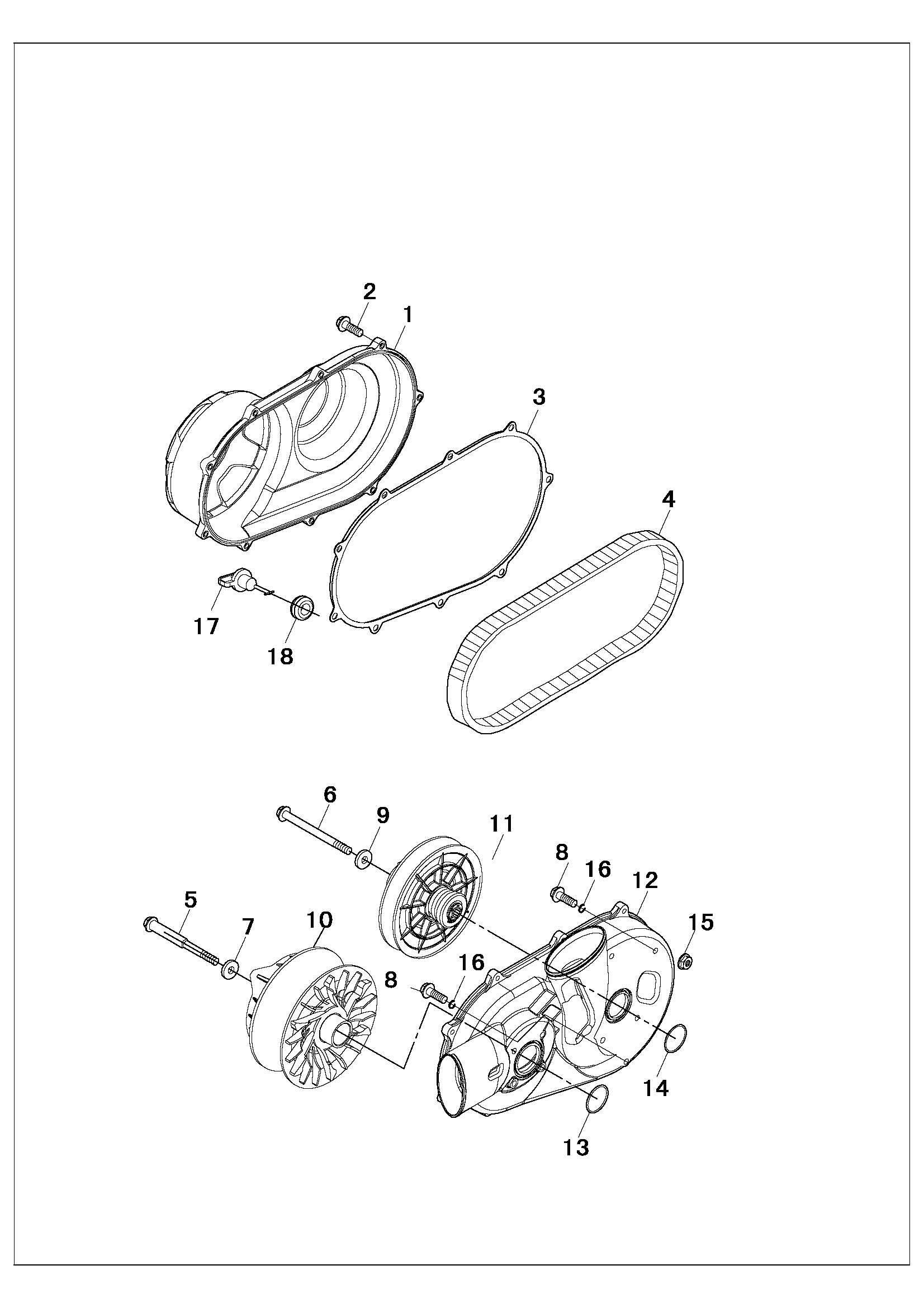

CLUTCH

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P0100001152A0000
P0100001152A0000
Cover,Clutch,Outer
0
1
1
BGB5789M628
BGB5789M628
Hexagon flange bolts M6×30
0
9
2
P010000115230000
P010000115230000
Seal,Clutch Cover
0
1
3
P012000213000004
P012000213000004
Cvt Belt
0
1
4
P010000214010000
P010000214010000
Bolts M12×145
0
1
5
P010000214020000
P010000214020000
Bolts M10×110
0
1
6
PJ00000906004000
PJ00000906004000
Washer 12×30×3
0
1
7
BGB5787M622
BGB5787M622
Hexagon flange bolts M6×22
0
9
8
P010000211060000
P010000211060000
Bushing ?11×?30×8
0
1
9
P012000211000100
P012000211000100
Driver Pulley Assy
0
1
10
P010000212000000
P010000212000000
Driven Pulley Assy
0
1
11
P0100001151A0000
P0100001151A0000
Cover,Clutch,Inner
0
1
12
PJ00000912015900
PJ00000912015900
ORing 56.75×3.53
0
1
13
PJ00000912015600
PJ00000912015600
ORing 50×4
0
2
14
BGB61872M6
BGB61872M6
SelfLocking Nut M6
0
9
15
BGB936
BGB936
Spring Washer ?6
0
1
16
P003000115040000
P003000115040000
Drain Plug,Clutch Cover
0
1
17
P003000115030000
P003000115030000
Damper
0
0
Overview

Cover,Clutch,Outer .

Cover,Clutch,Outer of #:Engine - CLUTCH

Hexagon Flange Bolts M6×30 .

Hexagon flange bolts M6×30 of #:Engine - CLUTCH

Seal,Clutch Cover .

Seal,Clutch Cover of #:Engine - CLUTCH

Cvt Belt .

Cvt Belt of #:Engine - CLUTCH

Bolts M12×145 .

Bolts M12×145 of #:Engine - CLUTCH

Bolts M10×110 .

Bolts M10×110 of #:Engine - CLUTCH

Washer 12×30×3 .

Washer 12×30×3 of #:Engine - CLUTCH

Hexagon Flange Bolts M6×22 .

Hexagon flange bolts M6×22 of #:Engine - CLUTCH

Bushing ?11×?30×8 .

Bushing ∅11×∅30×8 of #:Engine - CLUTCH

Driver Pulley Assy .

Driver Pulley Assy of #:Engine - CLUTCH

Driven Pulley Assy .

Driven Pulley Assy of #:Engine - CLUTCH

Cover,Clutch,Inner .

Cover,Clutch,Inner of #:Engine - CLUTCH

ORing 56.75×3.53 .

ORing 56.75×3.53 of #:Engine - CLUTCH

ORing 50×4 .

ORing 50×4 of #:Engine - CLUTCH

SelfLocking Nut M6 .

SelfLocking Nut M6 of #:Engine - CLUTCH

Spring Washer ?6 .

Spring Washer ∅6 of #:Engine - Crankcase Covers

Drain Plug,Clutch Cover .

Drain Plug,Clutch Cover of #:Engine - Crankcase Covers

Damper .

Damper of #:Engine - Crankcase Covers
