 Back to results
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
  • OIL PUMP
In Stock
Price: Contact for price

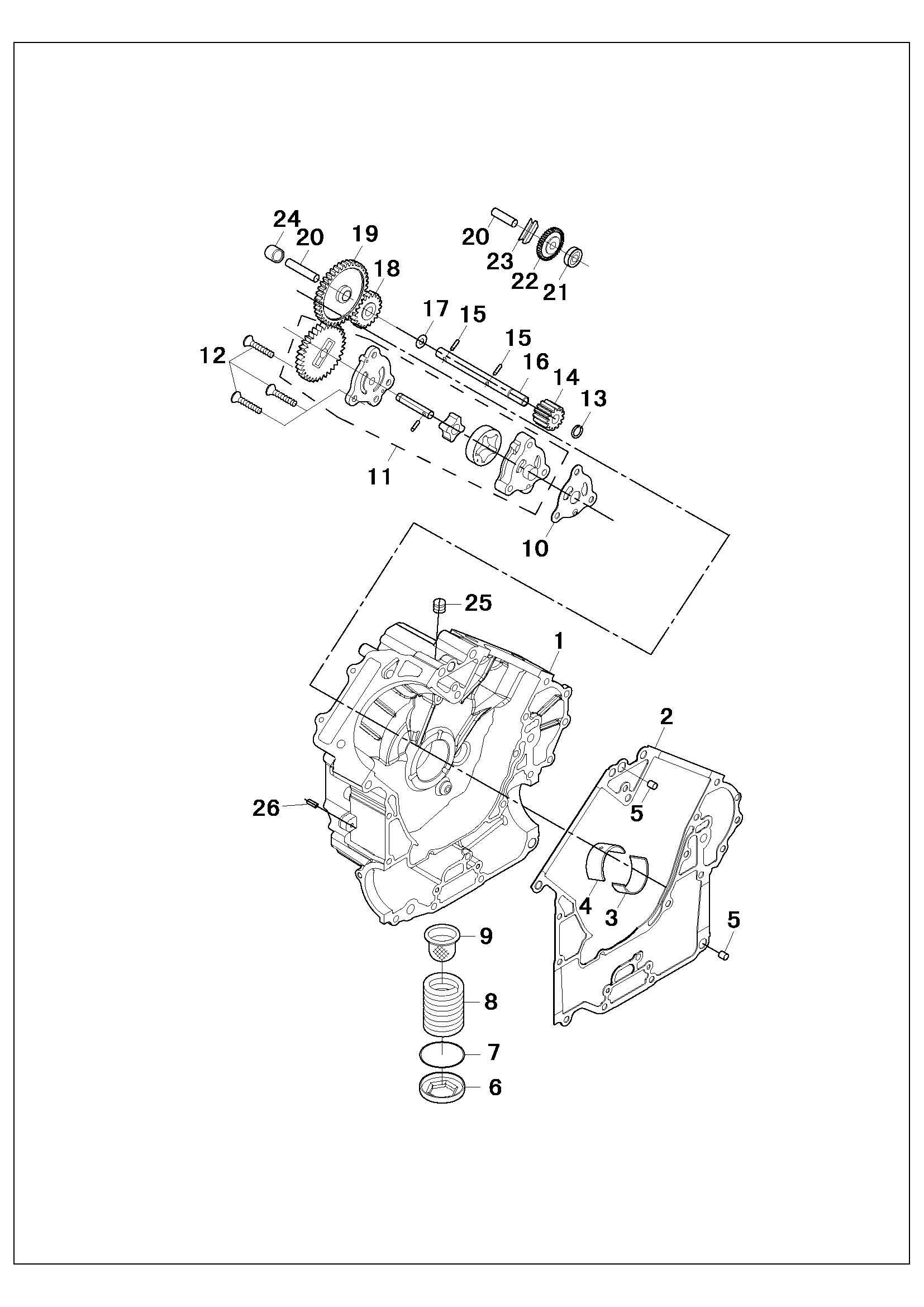

OIL PUMP

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P0120001110A0000
P0120001110A0000
Right Crankcase Assy
0
1
2
P010000134010000
P010000134010000
Gasket,Crankcase
0
2
3
P010000134020000
P010000134020000
Crankshaft Bearing RB9173KU
0
2
4
PJ00000908020300
PJ00000908020300
Crankshaft Bearing RB9173KL
0
2
5
P002000111070000
P002000111070000
Pin,Dowel 10×16
0
1
6
PJ00000912014700
PJ00000912014700
Blind Nut,Oil Drainage
0
1
7
P002000152040000
P002000152040000
ORing 36×3.5
0
1
8
P002000152030000
P002000152030000
Filter Spring
0
1
9
P010000151010000
P010000151010000
Oil Filter Strainer
0
1
10
P010000151100000
P010000151100000
Oil Pump Assy
0
1
11
BGB8191M630
BGB8191M630
Cross recessed countersunk head screw M6×30
0
3
12
BGB894110
BGB894110
Circlip for shaft ?10
0
1
13
P010000197090000
P010000197090000
Water pump driven gear
0
1
14
PJ00000908010800
PJ00000908010800
Pin ?4×21
0
2
15
P010000197070001
P010000197070001
Water Pump Shaft?
0
1
16
PJ00000906001300
PJ00000906001300
Washer 10.3×17×1
0
1
17
P010000197080000
P010000197080000
Water Pump driving gear
0
1
18
P010000150020000
P010000150020000
Oil Pump Middle Gear
0
1
19
P010000245040000
P010000245040000
Duplicate Gear Shaft ?10×50
0
2
20
BGB2766200RS
BGB2766200RS
Bearing 6200RS
0
1
21
P010000153080000
P010000153080000
Oil Separator
0
1
22
P010000153090000
P010000153090000
Seal 1PKVS0020CA4
0
1
23
P010000110350000
P010000110350000
Bushing ?10×?20×11
0
1
24
PJ00000904060200
PJ00000904060200
Screw Plug NPT1/8
0
1
25
PJ00000908010100
PJ00000908010100
Pin ?6×12
0
1
Overview

Right Crankcase Assy .

Right Crankcase Assy of #:Engine - OIL PUMP

Gasket,Crankcase .

Gasket,Crankcase of #:Engine - OIL PUMP

Crankshaft Bearing RB9173KU .

Crankshaft Bearing RB9173KU of #:Engine - OIL PUMP

Crankshaft Bearing RB9173KL .

Crankshaft Bearing RB9173KL of #:Engine - OIL PUMP

Pin,Dowel 10×16 .

Pin,Dowel 10×16 of #:Engine - OIL PUMP

Blind Nut,Oil Drainage .

Blind Nut,Oil Drainage of #:Engine - OIL PUMP

ORing 36×3.5 .

ORing 36×3.5 of #:Engine - OIL PUMP

Filter Spring .

Filter Spring of #:Engine - OIL PUMP

Oil Filter Strainer .

Oil Filter Strainer of #:Engine - OIL PUMP

Oil Pump Assy .

Oil Pump Assy of #:Engine - OIL PUMP

Cross Recessed Countersunk Head Screw M6×30 .

Cross recessed countersunk head screw M6×30 of #:Engine - OIL PUMP

Circlip For Shaft ?10 .

Circlip for shaft ∅10 of #:Engine - OIL PUMP

Water Pump Driven Gear .

Water pump driven gear of #:Engine - OIL PUMP

Pin ?4×21 .

Pin ∅4×21 of #:Engine - OIL PUMP

Water Pump Shaft? .

Water Pump ShaftⅠ of #:Engine - OIL PUMP

Washer 10.3×17×1 .

Washer 10.3×17×1 of #:Engine - OIL PUMP

Water Pump Driving Gear .

Water Pump driving gear of #:Engine - OIL PUMP

Oil Pump Middle Gear .

Oil Pump Middle Gear of #:Engine - OIL PUMP

Duplicate Gear Shaft ?10×50 .

Duplicate Gear Shaft ∅10×50 of #:Engine - OIL PUMP

Bearing 6200RS .

Bearing 6200RS of #:Engine - OIL PUMP

Oil Separator .

Oil Separator of #:Engine - OIL PUMP

Seal 1PKVS0020CA4 .

Seal 1PKVS0020CA4 of #:Engine - OIL PUMP

Bushing ?10×?20×11 .

Bushing ∅10×∅20×11 of #:Engine - OIL PUMP

Screw Plug NPT1/8 .

Screw Plug NPT1/8 of #:Engine - OIL PUMP

Pin ?6×12 .

Pin ∅6×12 of #:Engine - OIL PUMP
