In Stock
Price: Contact for price

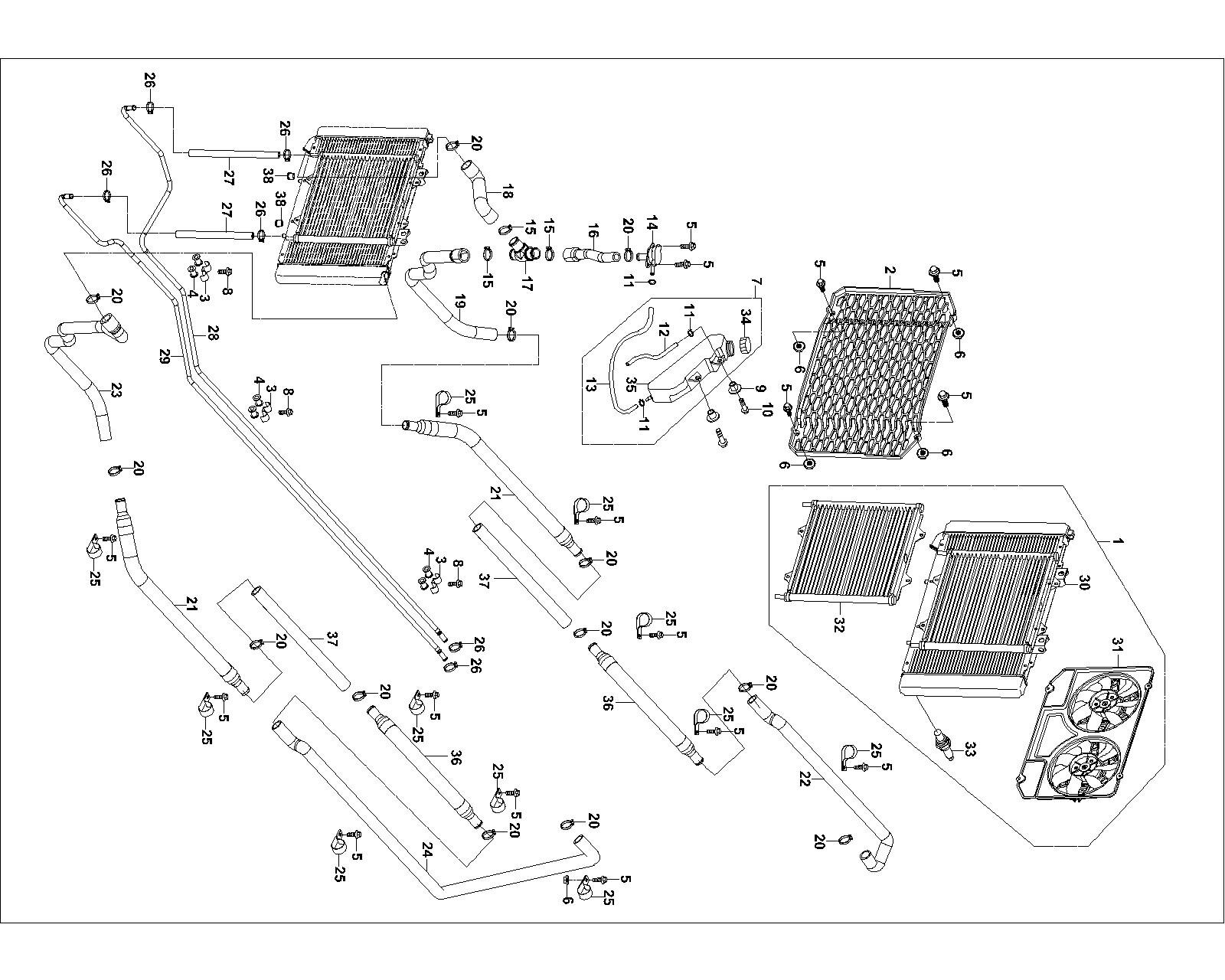

COOLING SYSTEM

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P309001192000000
P309001192000000
Radiator Assy
0
1
1
P309001825270000
P309001825270000
Radiator Cover
0
1
2
P115000190170000
P115000190170000
M - Clip
0
2
3
P115000155140000
P115000155140000
Rubber Block
0
4
4
BGB6177.1-M6
BGB6177.1-M6
Hexagon Flange Nut M6
0
3
5
P115000193000000
P115000193000000
Second Water Tank Assy
0
1
6
BGB16674-M6×12
BGB16674-M6×12
Hexagon Flange Bolt M6×12
0
2
7
PJ00000929301500
PJ00000929301500
Turnup Liner ?6.5×?22×6.5
0
2
8
BGB16674-M6×16
BGB16674-M6×16
Hexagon Flange Bolt M6×16
0
2
9
PJ00000907100200
PJ00000907100200
Elastic Hoop C
0
3
10
P115000193130000
P115000193130000
Outlet Pipe, Second Water Tank
0
1
11
P115000193220000
P115000193220000
Water Inlet Pipe, Second Water Tank
0
1
12
P301001192700000
P301001192700000
Filler
0
1
13
PJ00000907301700
PJ00000907301700
Locking Hoop R
0
3
14
P309001190190000
P309001190190000
Water Inlet Pipe Iv
0
1
15
P311001190020000
P311001190020000
Tee Branch Pipe,Water Inlet
0
1
16
P309001190180000
P309001190180000
Water Inlet Pipe III
0
1
17
P309001190030000
P309001190030000
Water Inlet Pipe II
0
1
18
PJ00000907300300
PJ00000907300300
Locking Hoop D
0
15
19
P309001190120000
P309001190120000
Metal Water Pipe I
0
2
20
P309001190010000
P309001190010000
Water Inlet Pipe I
0
1
21
P309001190050000
P309001190050000
Water Outlet Pipe II
0
1
22
P309001190040000
P309001190040000
Outlet Pipe I
0
1
23
P116000190150000
P116000190150000
Water Pipe Clip III
0
11
24
PJ00000907300000
PJ00000907300000
Locking Hoop A
0
6
25
P309001155040000
P309001155040000
High Pressure Rubber Fuel Pipe I
0
2
26
P309101155130000
P309101155130000
Metal Oil Pipe I
0
1
27
P309101155150000
P309101155150000
Metal Oil Pipe II
0
1
28
P3090011926A0000
P3090011926A0000
Water Tank
0
1
29
P3090011924A0000
P3090011924A0000
Cooler Fan
0
1
30
P3090011552A0000
P3090011552A0000
Oil Cooler
0
1
31
P115000391300000
P115000391300000
Water Temp Sensor
0
1
32
P115000193100000
P115000193100000
Secondary Water Tank Cover
0
1
33
P115000193210000
P115000193210000
Second Water Tank
0
1
35
P309101190060000
P309101190060000
Outlet Pipe III
0
2
36
P309101192120000
P309101192120000
Mounting Busher
0
2
Overview

Radiator Assy .

Radiator Assy of #:Engine - Cooling Assembly

Radiator Cover .

Radiator Cover of #:Engine - COOLING SYSTEM

M - Clip .

M - Clip of #:Engine - COOLING SYSTEM

Rubber Block .

Rubber Block of #:Engine - Cooling System

Hexagon Flange Nut M6 .

Hexagon Flange Nut M6 of #:Engine - AIR INTAKE

Second Water Tank Assy .

Second Water Tank Assy of #:Engine - Cooling Assembly

Hexagon Flange Bolt M6×12 .

Hexagon Flange Bolt M6×12 of #:Engine - COOLING SYSTEM

Turnup Liner ?6.5×?22×6.5 .

Turnup Liner Φ6.5×Φ22×6.5 of #:Engine - COOLING SYSTEM

Hexagon Flange Bolt M6×16 .

Hexagon Flange Bolt M6×16 of #:Engine - Engine & Mounts

Elastic Hoop C .

Elastic Hoop C of #:Engine - Cooling Assembly

Outlet Pipe, Second Water Tank .

Outlet Pipe, Second Water Tank of #:Engine - COOLING SYSTEM

Water Inlet Pipe, Second Water Tank .

Water Inlet Pipe, Second Water Tank of #:Engine - COOLING SYSTEM

Filler .

Filler of #:Engine - Cooling Assembly

Locking Hoop R .

Locking Hoop R of #:Engine - COOLING SYSTEM

Water Inlet Pipe Iv .

Water Inlet Pipe Iv of #:Engine - Cooling Assembly

Tee Branch Pipe,Water Inlet .

Tee Branch Pipe,Water Inlet of #:Engine - Cooling Assembly

Water Inlet Pipe III .

Water Inlet Pipe III of #:Engine - COOLING SYSTEM

Water Inlet Pipe II .

Water Inlet Pipe II of #:Engine - COOLING SYSTEM

Locking Hoop D .

Locking Hoop D of #:Engine - Cooling System

Metal Water Pipe I .

Metal Water Pipe I of #:Engine - Cooling Assembly

Water Inlet Pipe I .

Water Inlet Pipe I of #:Engine - COOLING SYSTEM

Water Outlet Pipe II .

Water Outlet Pipe II of #:Engine - COOLING SYSTEM

Outlet Pipe I .

Outlet Pipe I of #:Engine - COOLING SYSTEM

Water Pipe Clip III .

Water Pipe Clip III of #:Engine - COOLING SYSTEM

Locking Hoop A .

Locking Hoop A of #:Engine - Cooling System

High Pressure Rubber Fuel Pipe I .

High Pressure Rubber Fuel Pipe I of #:Engine - COOLING SYSTEM

Metal Oil Pipe I .

Metal Oil Pipe I of #:Engine - COOLING SYSTEM

Metal Oil Pipe II .

Metal Oil Pipe II of #:Engine - COOLING SYSTEM

Water Tank .

Water Tank of #:Engine - Cooling Assembly

Cooler Fan .

Cooler Fan of #:Engine - Cooling Assembly

Oil Cooler .

Oil Cooler of #:Engine - Cooling Assembly

Water Temp Sensor .

Water Temp Sensor of #:Engine - Cooling Assembly

Secondary Water Tank Cover .

Secondary Water Tank Cover of #:Engine - Cooling Assembly

Second Water Tank .

Second Water Tank of #:Engine - Cooling Assembly

Outlet Pipe III .

Outlet Pipe III of #:Engine - COOLING SYSTEM

Mounting Busher .

Mounting Busher of #:Engine - COOLING SYSTEM
