In Stock
Price: Contact for price

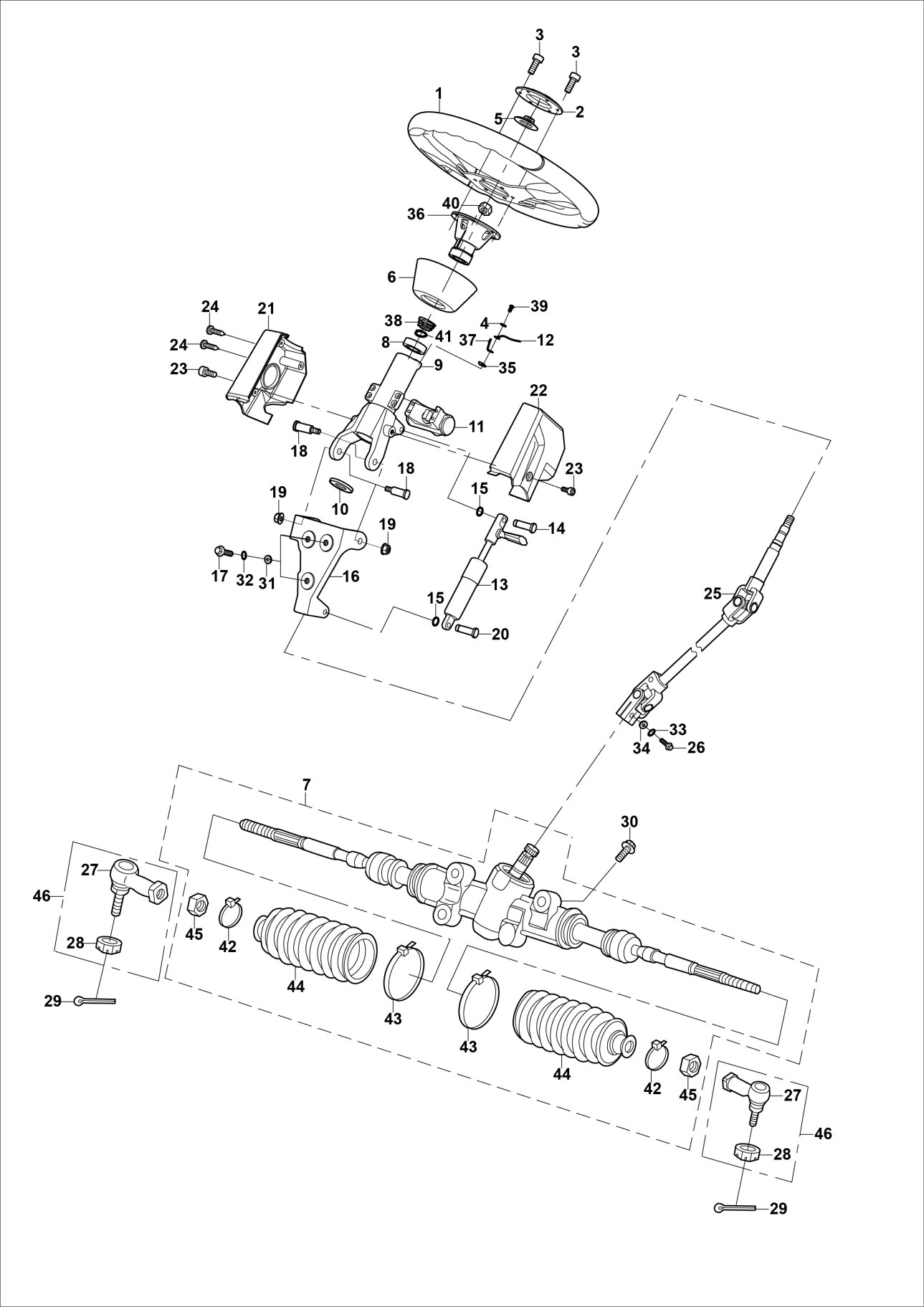

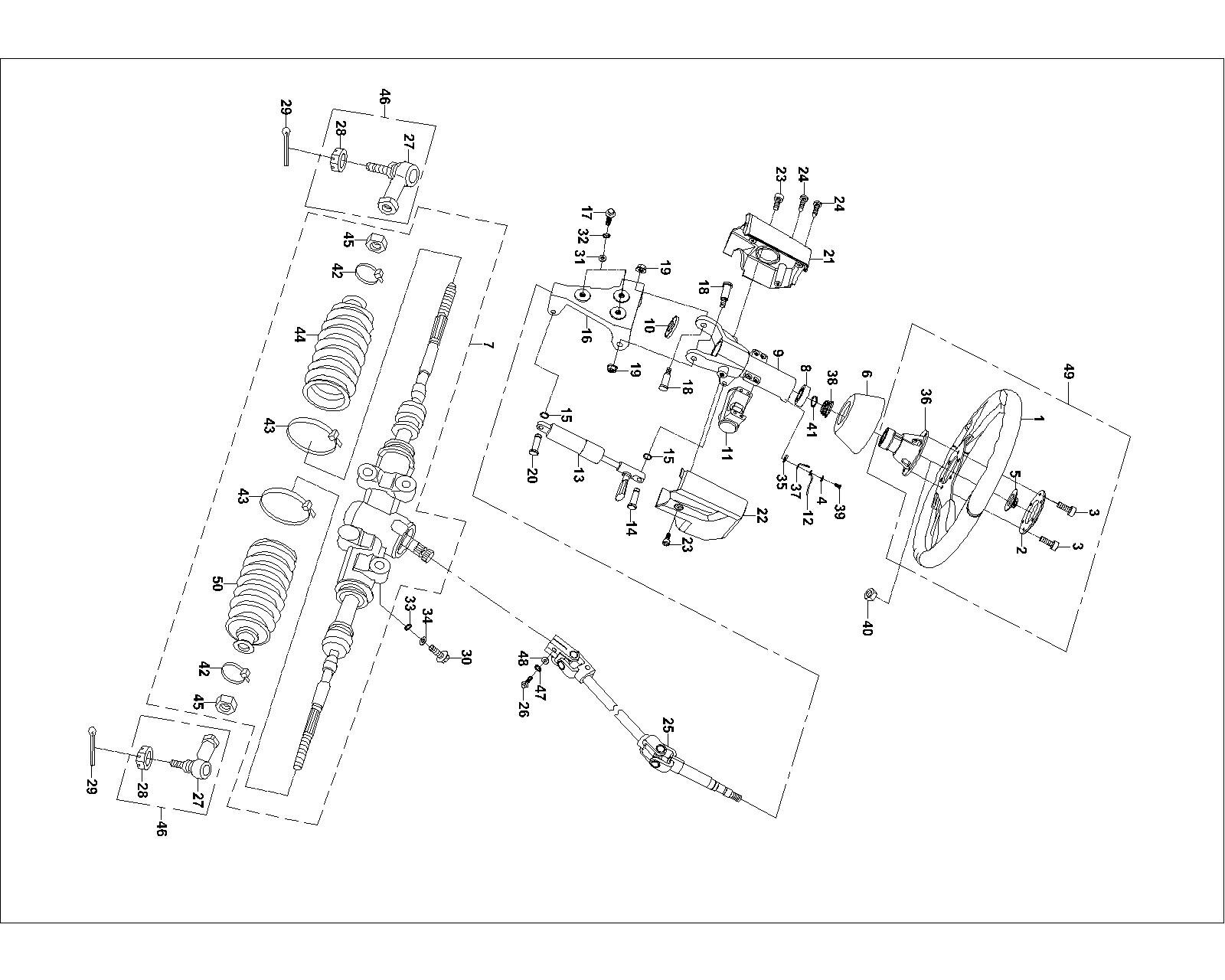

Steering

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
1
P311001611200000
P311001611200000
Fixed Cap, Steering Wheel
0
1
2
BGB70.1-M5×20-B
BGB70.1-M5×20-B
Socket Hexagon Screw M5×20
0
6
3
P311001346110000
P311001346110000
Insulation Plate, Horn I
0
1
4
P311001346180000
P311001346180000
On-Off Switch, Hom
0
1
5
P311001823050000
P311001823050000
Lower Cover I
0
1
6
P315001641000000
P315001641000000
Steering Gear Assy
0
1
7
BGB276-6003-2RZ
BGB276-6003-2RZ
Deep Groove Ball Bearing 6003-2Rz
0
1
8
P311001612200000
P311001612200000
Direction Driveshaft Assy
0
1
9
BGB276-6805
BGB276-6805
Deep Groove Ball Bearing 6805
0
1
10
P311001372000000
P311001372000000
Ignition Switch
0
1
11
P311001346130000
P311001346130000
Earth Conductor,Horn
0
1
12
P309001612300100
P309001612300100
Hydraumatic Spring Assy
0
1
13
PJ00000929710100
PJ00000929710100
Pin ?8×34
0
1
14
BGB896-5
BGB896-5
Washer 5
0
2
15
P311001612100000
P311001612100000
Steering Column
0
1
16
BGB16674-M10×1.25×16
BGB16674-M10×1.25×16
Hexagon Flange Bolt M10×1.25×16
0
3
17
PJ00000902160000
PJ00000902160000
Step Bolt M6×?10×2.5×30.5
0
2
18
BGB6187-M6
BGB6187-M6
Hexagon Flange Locked Nut M6
0
2
19
PJ00000929710200
PJ00000929710200
Pin?8×45
0
1
20
P312001823070000
P312001823070000
Lower Cover ? ,Ignition Switch
0
1
21
P312001823060000
P312001823060000
Steering Column Cover ?
0
1
22
PJ00000902250000
PJ00000902250000
Socket Hexagon Screw M6×12
0
2
23
BGB845-ST3.9×13
BGB845-ST3.9×13
Cross Recessed Pan Head Tapping Screw St3.9×13
0
3
25
BGB16674-M8×30
BGB16674-M8×30
Hexagon Flange Bolt M6×30
0
1
27
BGB9459-M14×1.5
BGB9459-M14×1.5
Hexagon Thin Slotted Nut M14×1.5
0
2
28
BGB91-2×30
BGB91-2×30
Pin 2×30
0
2
29
BGB16674-M10×1.25×35
BGB16674-M10×1.25×35
Hexagon Flange Bolt M10×1.25×35
0
4
30
PJ00000906000700
PJ00000906000700
Gasket 10×32×5
0
3
31
BGB97.1-10
BGB97.1-10
Plain Washer ?10
0
2
32
BGB93-10
BGB93-10
Spring Washer ?10
0
2
33
P311001346120000
P311001346120000
Insulation Plate, Horn Ii
0
1
34
P311001611300000
P311001611300000
Connecting Cap, Steering Wheel
0
1
35
P311001346150000
P311001346150000
Connecting Plate, Horn
0
1
36
P311001346170000
P311001346170000
Spring, Horn
0
1
37
BGB818-M4×8
BGB818-M4×8
Cross Plate Head Tapping Screw M4×8
0
1
38
BGB6187-M12×1.25
BGB6187-M12×1.25
Hexagon Flange Lock Nut M12×1.25
0
1
39
BGB894.1-d0=17
BGB894.1-d0=17
Circlip D0=17
0
1
40
PJ00000907100700
PJ00000907100700
Elastic Hoop H
0
2
41
P115000641060000
P115000641060000
Clamp
0
2
42
P115000641030000
P115000641030000
Rubber Boot ?
0
1
43
BGB6107-M14×1.5
BGB6107-M14×1.5
Hexagon Nut M14×1.5
0
2
44
P311001642000000
P311001642000000
Steering Gear Ball Joint
0
2
45
BGB93-8
BGB93-8
Spring Washer8
0
1
46
BGB97.1-8
BGB97.1-8
Plain Washer 8
0
1
47
P311001611000000
P311001611000000
Steering Wheel Assy
0
1
48
P313001641040000
P313001641040000
Dust-Proof Cover ?
0
1
Overview

Fixed Cap, Steering Wheel .

Fixed Cap, Steering Wheel of #:Steering - Steering

Socket Hexagon Screw M5×20 .

Socket Hexagon Screw M5×20 of #:Steering - Steering

Insulation Plate, Horn I .

Insulation Plate, Horn I of #:Steering - Steering Assembly

On-Off Switch, Hom .

On-Off Switch, Hom of #:Steering - Steering

Lower Cover I .

Lower Cover I of #:Steering - Steering Assembly

Steering Gear Assy .

Steering Gear Assy of #:Steering - Steering

Deep Groove Ball Bearing 6003-2Rz .

Deep Groove Ball Bearing 6003-2Rz of #:Steering - Steering

Direction Driveshaft Assy .

Direction Driveshaft Assy of #:Steering - Steering Assembly

Deep Groove Ball Bearing 6805 .

Deep Groove Ball Bearing 6805 of #:Steering - Steering

Ignition Switch .

Ignition Switch of #:Steering - Steering Assembly

Earth Conductor,Horn .

Earth Conductor,Horn of #:Steering - Steering Assembly

Hydraumatic Spring Assy .

Hydraumatic Spring Assy of #:Steering - Steering Assembly

Pin ?8×34 .

Pin Φ8×34 of #:Steering - Steering

Washer 5 .

Washer 5 of #:Steering - Steering

Steering Column .

Steering Column of #:Steering - Steering Assembly

Hexagon Flange Bolt M10×1.25×16 .

Hexagon Flange Bolt M10×1.25×16 of #:Steering - Steering

Step Bolt M6×?10×2.5×30.5 .

Step Bolt M6×Φ10×2.5×30.5 of #:Steering - Steering

Hexagon Flange Locked Nut M6 .

Hexagon Flange Locked Nut M6 of #:Steering - Steering

Pin?8×45 .

Pinφ8×45 of #:Steering - Steering

Lower Cover ? ,Ignition Switch .

Lower Cover Ⅲ ,Ignition Switch of #:Steering - Steering Assembly

Steering Column Cover ? .

Steering Column Cover Ⅱ of #:Steering - Steering

Socket Hexagon Screw M6×12 .

Socket Hexagon Screw M6×12 of #:Steering - Steering

Cross Recessed Pan Head Tapping Screw St3.9×13 .

Cross Recessed Pan Head Tapping Screw St3.9×13 of #:Steering - Steering

Hexagon Flange Bolt M6×30 .

Hexagon Flange Bolt M6×30 of #:Steering - Steering

Hexagon Thin Slotted Nut M14×1.5 .

Hexagon Thin Slotted Nut M14×1.5 of #:Steering - Steering

Pin 2×30 .

Pin 2×30 of #:Steering - Steering

Hexagon Flange Bolt M10×1.25×35 .

Hexagon Flange Bolt M10×1.25×35 of #:Steering - Steering

Gasket 10×32×5 .

Gasket 10×32×5 of #:Steering - Steering

Plain Washer ?10 .

Plain Washer Φ10 of #:Steering - Steering

Spring Washer ?10 .

Spring Washer Φ10 of #:Steering - Steering

Insulation Plate, Horn Ii .

Insulation Plate, Horn Ii of #:Steering - Steering Assembly

Connecting Cap, Steering Wheel .

Connecting Cap, Steering Wheel of #:Steering - Steering Assembly

Connecting Plate, Horn .

Connecting Plate, Horn of #:Steering - Steering Assembly

Spring, Horn .

Spring, Horn of #:Steering - Steering Assembly

Cross Plate Head Tapping Screw M4×8 .

Cross Plate Head Tapping Screw M4×8 of #:Steering - Steering

Hexagon Flange Lock Nut M12×1.25 .

Hexagon Flange Lock Nut M12×1.25 of #:Steering - Steering

Circlip D0=17 .

Circlip D0=17 of #:Steering - Steering

Elastic Hoop H .

Elastic Hoop H of #:Steering - Steering

Clamp .

Clamp of #:Steering - Steering

Rubber Boot ? .

Rubber Boot Ⅰ of #:Steering - Steering Assembly

Hexagon Nut M14×1.5 .

Hexagon Nut M14×1.5 of #:Steering - Steering

Steering Gear Ball Joint .

Steering Gear Ball Joint of #:Steering - Steering Assembly

Spring Washer8 .

Spring Washer8 of #:Steering - Steering

Plain Washer 8 .

Plain Washer 8 of #:Steering - Steering

Steering Wheel Assy .

Steering Wheel Assy of #:Steering - Steering

Dust-Proof Cover ? .

Dust-Proof Cover Ⅱ of #:Steering - Steering
