Hisun PArts
In Stock
Price:
Contact for price

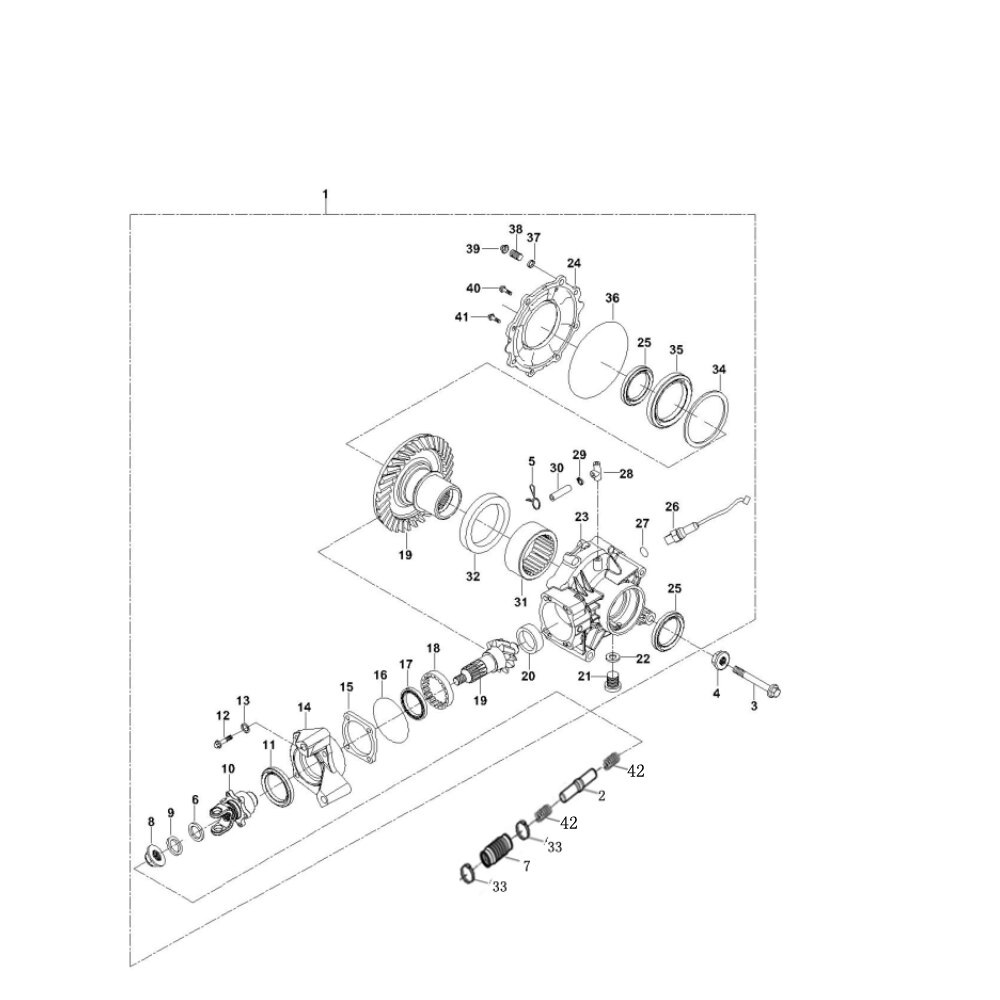

Rear Gear Case
-
Stock # Drive Train
1000 Available
Parts
Overview
Contact Information
Location
No
Old Part No
New Part No
Description
Price
QTY
Rear Reducer Assy .
Rear Reducer Assy of #:Drive Train - Rear Gear CaseRear Drive Shaft M .
Rear Drive Shaft M of #:Drive Train - Rear Gear CaseBolt M10×1.25×120 .
Bolt M10×1.25×120 of #:Drive Train - Rear Gear CaseHexagon Flange Locked Nut M10×1.25 .
Hexagon Flange Locked Nut M10×1.25 of #:Drive Train - Gear ShiftSteel Clip ?10 .
Steel Clip Φ10 of #:Drive Train - Rear Differential AssemblyO Ring Gasket, Rear Driving Gear .
O Ring Gasket, Rear Driving Gear of #:Drive Train - Rear Gear CaseRubber Dust-Cover Q .
Rubber Dust-Cover Q of #:Drive Train - Rear Gear CaseHexagon Flange Lock Nut M12×1.25 .
Hexagon Flange Lock Nut M12×1.25 of #:Drive Train - Rear Gear CaseWasher, Drive Shaft .
Washer, Drive Shaft of #:Drive Train - Rear Differential AssemblyConnection Fork G .
Connection Fork G of #:Drive Train - Rear Gear CaseOil Seal ?61×?35×9 .
Oil Seal Φ61×Φ35×9 of #:Drive Train - Rear Gear CaseHexagon Flange Bolt M8×35 .
Hexagon Flange Bolt M8×35 of #:Drive Train - Rear Gear CasePlain Washer 8 .
Plain Washer 8 of #:Drive Train - Gear ShiftMount Bracket,Parking Brake .
Mount Bracket,Parking Brake of #:Drive Train - Rear Differential AssemblyAdjustment Washer ?78×?93×0.1 .
Adjustment Washer Φ78×Φ93×0.1 of #:Drive Train - Rear Gear CaseO-Ring Gasket ?3.1×?63.8 .
O-Ring Gasket Φ3.1×Φ63.8 of #:Drive Train - Rear Gear CaseDeep Groove Ball Bearing 6305 .
Deep Groove Ball Bearing 6305 of #:Drive Train - Rear Gear CaseSleeve .
Sleeve of #:Drive Train - Rear Differential AssemblyDrive&Driven Gears Assy, Rear Axle .
Drive&Driven Gears Assy, Rear Axle of #:Drive Train - Rear Gear CaseNeedlebearing ?22×?30×13 .
Needlebearing Φ22×Φ30×13 of #:Drive Train - Rear Gear CaseHexagon Flange Bolt M10×1.25×16 .
Hexagon Flange Bolt M10×1.25×16 of #:Drive Train - Rear Gear CaseOil Drain Plug O-Ring ?1.5×?9 .
Oil Drain Plug O-Ring Φ1.5×Φ9 of #:Drive Train - Rear Gear CaseRear Axle Gear Box .
Rear Axle Gear Box of #:Drive Train - Rear Gear CaseRear Axle Gear Box Cover .
Rear Axle Gear Box Cover of #:Drive Train - Rear Gear CaseOilseal?65×?90×9 .
Oilsealφ65×Φ90×9 of #:Drive Train - Rear Gear CaseSpeed Sensor .
Speed Sensor of #:Drive Train - Front GearcaseO-Ring Gasket, ?19×?1.8 .
O-Ring Gasket, Φ19×Φ1.8 of #:Drive Train - Rear Gear CaseAir Tap,Rear Axle .
Air Tap,Rear Axle of #:Drive Train - Rear Gear CaseElastic Hoop E .
Elastic Hoop E of #:Drive Train - Rear Differential AssemblyVent Pipe B .
Vent Pipe B of #:Drive Train - Rear Differential AssemblyNeedlebearing ?55×?67×20 .
Needlebearing Φ55×Φ67×20 of #:Drive Train - Rear Gear CaseWasher A,Drive Shaft .
Washer A,Drive Shaft of #:Drive Train - Rear Gear CaseAdjustment Gasket ?55.2×?66.8×1.7 .
Adjustment Gasket Φ55.2×Φ66.8×1.7 of #:Drive Train - Rear Gear CaseDeep Groove Ball Bearing 16017 .
Deep Groove Ball Bearing 16017 of #:Drive Train - Rear Gear CaseO-Ring ?3.1×?150, Rear Differential Case Cover .
O-Ring Φ3.1×Φ150, Rear Differential Case Cover of #:Drive Train - Rear Gear CaseCopper Washer .
Copper Washer of #:Drive Train - Rear Differential AssemblyInner Hexagon Half-Round Screw M8×45 .
Inner Hexagon Half-Round Screw M8×45 of #:Drive Train - Rear Gear CaseHexagon Flange Locked Nut M8 .
Hexagon Flange Locked Nut M8 of #:Drive Train - Rear Gear CaseHexagon Flange Bolt M8×25 .
Hexagon Flange Bolt M8×25 of #:Drive Train - Rear Gear CaseHexagon Flange Bolt M10×1.25×25 .
Hexagon Flange Bolt M10×1.25×25 of #:Drive Train - Rear Gear CaseCompression Spring .
Compression Spring of #:Drive Train - Rear Gear Case
