In Stock
Price: Contact for price

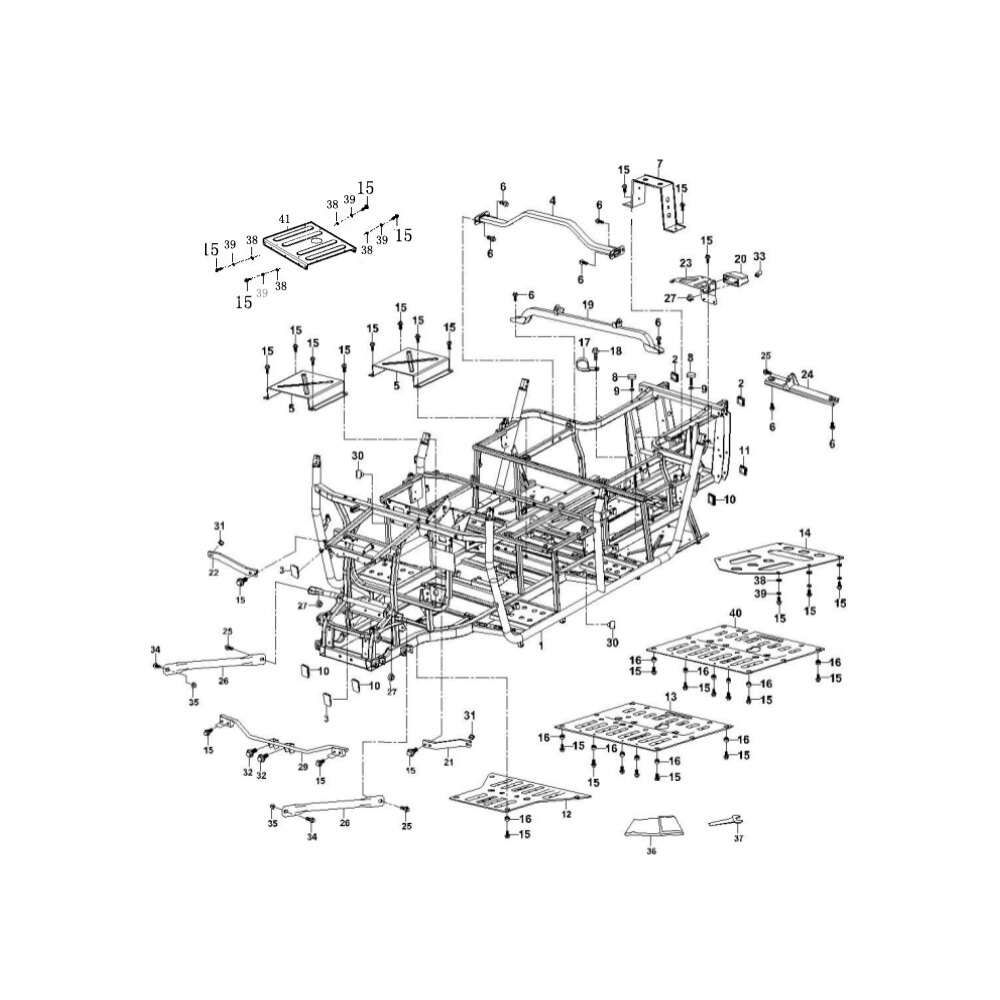

Frame

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P309101511000001
P309101511000001
Frame Joint Parts
0
1
1
PJ00000924200000
PJ00000924200000
Plastic Plug 25×40
0
2
2
PJ00000924020100
PJ00000924020100
Plastic Plug 30×30
0
2
3
P309001515540000
P309001515540000
Seat Support Plate I
0
1
4
P309001515550000
P309001515550000
Support Plate, Footrest
0
2
5
BGB16674-M8×16
BGB16674-M8×16
Hexagon Flange Bolt M8×16
0
8
6
P309001515560000
P309001515560000
Support Plate, Batterybox
0
1
7
PJ00000931550000
PJ00000931550000
Adjust Damping Washer
0
2
8
PJ00000924200100
PJ00000924200100
Plastic Plug 60×40
0
4
9
PJ00000924020200
PJ00000924020200
Plastic Plug 40×40
0
2
10
P112000825050000
P112000825050000
Front Bottom Protective Plate
0
1
11
P116000825060000
P116000825060000
Middle Bottom Protective Plate
0
1
12
P309001515570000
P309001515570000
Protective Plate, Rear Axle
0
1
13
P115000515240000
P115000515240000
Cap Washer
0
13
14
P116000190150000
P116000190150000
Water Pipe Clip III
0
1
15
P309101515590000
P309101515590000
Lock Catch Fixed Support, Safety Belt
0
1
16
P311001353250000
P311001353250000
Rear License Plate Lamps
0
1
17
P309002515030000
P309002515030000
Light Mounting Support I
0
1
18
P309002515040000
P309002515040000
Light Mounting Support Ii
0
1
19
P309001515370000
P309001515370000
License Mounting Plate
0
1
20
P309101519210000
P309101519210000
Mounting Bracket I, Rear Axle
0
1
21
BGB16674-M10×1.25×20
BGB16674-M10×1.25×20
Hexagon Flange Bolt M10×1.25×20
0
4
22
P309001513010000
P309001513010000
Bumper Holder I
0
2
23
BGB6177.1-M6
BGB6177.1-M6
Hexagon Flange Nut M6
0
2
24
BGB6187-M10×1.25
BGB6187-M10×1.25
Hexagon Flange Locked Nut M10×1.25
0
2
26
PJ00000931151000
PJ00000931151000
Rubber Cusion ?10×20
0
2
27
PJ00000931250000
PJ00000931250000
Damping Pad ?7×2
0
2
28
BGB16674-M6×16
BGB16674-M6×16
Hexagon Flange Bolt M6×16
0
2
29
PJ00000384310000
PJ00000384310000
Position Lamp 12V;W5W
0
1
30
BGB16674-M8×20
BGB16674-M8×20
Hexagon Flange Bolt M8×20
0
2
31
BGB6177.1-M8
BGB6177.1-M8
Nut M8
0
2
32
P115000891000000
P115000891000000
Tool Kit
0
1
33
P116000891020000
P116000891020000
Shock Absorber Adjusting Wrench
0
1
34
BGB96.1-6
BGB96.1-6
Plain Washer 6
0
10
35
BGB93-6
BGB93-6
Spring Washer 6
0
10
37
P315001519200001
P315001519200001
Insulation Board Assy,Rear Axle
0
1
Overview

Frame Joint Parts .

Frame Joint Parts of #:Chassis - Frame

Plastic Plug 25×40 .

Plastic Plug 25×40 of #:Chassis - Frame

Plastic Plug 30×30 .

Plastic Plug 30×30 of #:Chassis - Frame

Seat Support Plate I .

Seat Support Plate I of #:Chassis - Frame

Support Plate, Footrest .

Support Plate, Footrest of #:Chassis - Frame

Hexagon Flange Bolt M8×16 .

Hexagon Flange Bolt M8×16 of #:Chassis - Frame

Support Plate, Batterybox .

Support Plate, Batterybox of #:Chassis - Frame

Adjust Damping Washer .

Adjust Damping Washer of #:Chassis - Frame

Plastic Plug 60×40 .

Plastic Plug 60×40 of #:Chassis - Frame

Plastic Plug 40×40 .

Plastic Plug 40×40 of #:Chassis - Frame

Front Bottom Protective Plate .

Front Bottom Protective Plate of #:Chassis - Frame

Middle Bottom Protective Plate .

Middle Bottom Protective Plate of #:Chassis - Frame

Protective Plate, Rear Axle .

Protective Plate, Rear Axle of #:Chassis - Frame

Cap Washer .

Cap Washer of #:Chassis - Frame

Water Pipe Clip III .

Water Pipe Clip III of #:Chassis - Frame

Lock Catch Fixed Support, Safety Belt .

Lock Catch Fixed Support, Safety Belt of #:Chassis - Frame

Rear License Plate Lamps .

Rear License Plate Lamps of #:Chassis - Frame

Light Mounting Support I .

Light Mounting Support I of #:Chassis - Frame

Light Mounting Support Ii .

Light Mounting Support Ii of #:Chassis - Frame

License Mounting Plate .

License Mounting Plate of #:Chassis - Frame

Mounting Bracket I, Rear Axle .

Mounting Bracket I, Rear Axle of #:Chassis - Frame

Hexagon Flange Bolt M10×1.25×20 .

Hexagon Flange Bolt M10×1.25×20 of #:Chassis - Frame

Bumper Holder I .

Bumper Holder I of #:Chassis - Frame

Hexagon Flange Nut M6 .

Hexagon Flange Nut M6 of #:Chassis - Frame

Hexagon Flange Locked Nut M10×1.25 .

Hexagon Flange Locked Nut M10×1.25 of #:Chassis - Frame

Rubber Cusion ?10×20 .

Rubber Cusion Φ10×20 of #:Chassis - Frame

Damping Pad ?7×2 .

Damping Pad Φ7×2 of #:Chassis - Frame

Hexagon Flange Bolt M6×16 .

Hexagon Flange Bolt M6×16 of #:Chassis - Frame

Position Lamp 12V;W5W .

Position Lamp 12V;W5W of #:Chassis - Frame

Hexagon Flange Bolt M8×20 .

Hexagon Flange Bolt M8×20 of #:Chassis - Frame

Nut M8 .

Nut M8 of #:Chassis - Frame

Tool Kit .

Tool Kit of #:Chassis - Frame

Shock Absorber Adjusting Wrench .

Shock Absorber Adjusting Wrench of #:Chassis - Frame

Plain Washer 6 .

Plain Washer 6 of #:Chassis - Frame

Spring Washer 6 .

Spring Washer 6 of #:Chassis - Frame

Insulation Board Assy,Rear Axle .

Insulation Board Assy,Rear Axle of #:Chassis - Frame
