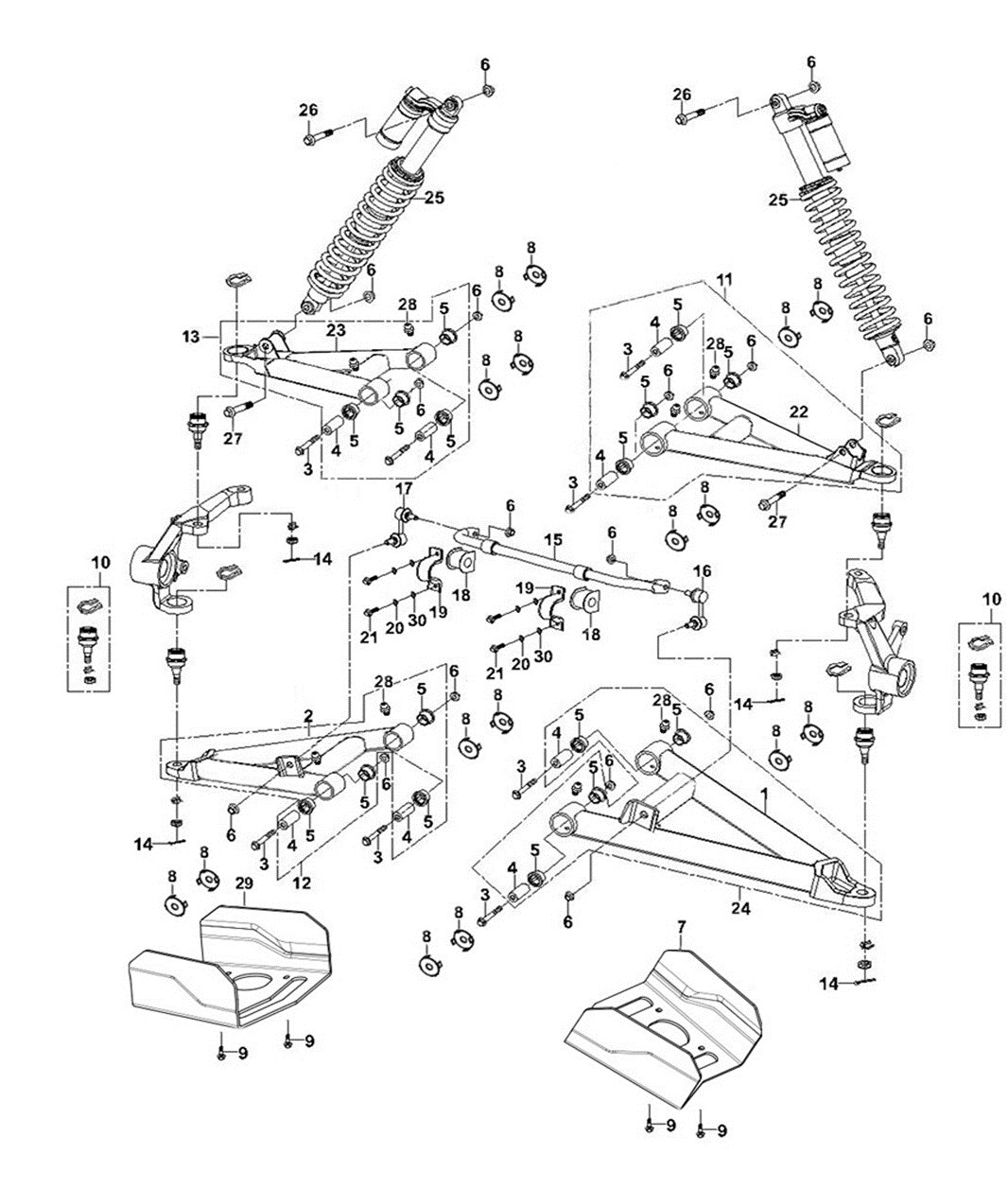

Front Suspension

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P3091015235A0001
P3091015235A0001
Front Left Lower Swing Arm
0
1
1
P3091015245A0001
P3091015245A0001
Front Right Lower Swing Arm
0
1
2
BGB16674M1012578
BGB16674M1012578
Heagon Flange Bolt M1012578
0
4
3
PJ00000929009400
PJ00000929009400
Cylindrical Bush ?103?23494
0
8
4
PJ00000925000201
PJ00000925000201
Bushing ?23?28
0
8
5
BGB6187M10125
BGB6187M10125
Heagon Flange Locked Nut M10125
0
14
6
P311001515650000
P311001515650000
Swing Arm Shield II?HSUN?
0
1
7
P311001515640000
P311001515640000
Swing Arm Shield I ?HSUN?
0
1
8
BGB16674M616
BGB16674M616
Heagon Flange Bolt M616
0
4
9
PJ000005250A0402
PJ000005250A0402
Ball Joint E,Steering Knuckle
0
4
10
P318001523000000
P318001523000000
Arm Assembly(Front Left Upper)
0
4
11
P309101524500001
P309101524500001
Arm Assembly(Front Right Lower)
0
4
12
P318001524000000
P318001524000000
Arm Assembly(Front Right Upper)
0
4
13
BGB912530
BGB912530
Pin Cotter 2.5×30
0
4
14
P3090015274A0000
P3090015274A0000
Anti-Roll Bar, Front Suspension
0
1
15
P115000557450000
P115000557450000
Right Ball Joint,Balancing Lever
0
1
16
P115000557440000
P115000557440000
Left Ball Joint,Balancing Lever
0
1
17
PJ00000931400100
PJ00000931400100
Bush 20×45
0
2
18
P115000515900000
P115000515900000
Mounting Cap,Cushion Rubber
0
2
19
BGB9310
BGB9310
Spring Washer10
0
4
20
PJ00000903480601
PJ00000903480601
Bolt Hexagon Flange Head M8×25
0
4
21
P3180015230A0000
P3180015230A0000
Arm Welding Kit(Front Left Upper )
0
1
22
P3180015240A0000
P3180015240A0000
Arm Welding Kit(Front Right Upper)
0
1
23
P309101523500001
P309101523500001
Arm Assembly(Front Left Lower)
0
2
24
PJ00000521000100
PJ00000521000100
Front Shock Absorber Q
0
4
25
BGB16674M1012555
BGB16674M1012555
Bolt Hexagon Flange Head M10×1.25-55
0
2
26
BGB16674M1012555
BGB16674M1012555
Bolt Hexagon Flange Head M10×1.25-60
0
2
27
P115000521080000
P115000521080000
Swing Arm Nozzle
0
2
28
P315001519460100
P315001519460100
Shield Cv ? (Black)
0
2
29
BGB97110
BGB97110
Washer 10
0
1
Overview

Front Left Lower Swing Arm .

Front Left Lower Swing Arm of #:Suspension - Front Suspension

Front Right Lower Swing Arm .

Front Right Lower Swing Arm of #:Suspension - Front Suspension

Heagon Flange Bolt M1012578 .

Heagon Flange Bolt M1012578 of #:Suspension - Rear Suspension

Cylindrical Bush ?103?23494 .

Cylindrical Bush Φ103Φ23494 of #:Suspension - Rear Suspension

Bushing ?23?28 .

Bushing Φ23Φ28 of #:Suspension - Rear Suspension

Heagon Flange Locked Nut M10125 .

Heagon Flange Locked Nut M10125 of #:Suspension - Rear Suspension

Swing Arm Shield II?HSUN? .

Swing Arm Shield II（HSUN） of #:Suspension - Front Suspension

Swing Arm Shield I ?HSUN? .

Swing Arm Shield I （HSUN） of #:Suspension - Front Suspension

Heagon Flange Bolt M616 .

Heagon Flange Bolt M616 of #:Suspension - Front Suspension

Ball Joint E,Steering Knuckle .

Ball Joint E,Steering Knuckle of #:Suspension - Front Suspension

Arm Assembly(Front Left Upper) .

Arm Assembly(Front Left Upper) of #:Suspension - Front Suspension

Arm Assembly(Front Right Lower) .

Arm Assembly(Front Right Lower) of #:Suspension - Front Suspension

Arm Assembly(Front Right Upper) .

Arm Assembly(Front Right Upper) of #:Suspension - Front Suspension

Pin Cotter 2.5×30 .

Pin Cotter 2.5×30 of #:Suspension - Front Suspension

Anti-Roll Bar, Front Suspension .

Anti-Roll Bar, Front Suspension of #:Suspension - Front Suspension

Right Ball Joint,Balancing Lever .

Right Ball Joint,Balancing Lever of #:Suspension - Front Suspension

Left Ball Joint,Balancing Lever .

Left Ball Joint,Balancing Lever of #:Suspension - Front Suspension

Bush 20×45 .

Bush 20×45 of #:Suspension - Front Suspension

Mounting Cap,Cushion Rubber .

Mounting Cap,Cushion Rubber of #:Suspension - Rear Suspension

Spring Washer10 .

Spring Washer10 of #:Suspension - Front Suspension

Bolt Hexagon Flange Head M8×25 .

Bolt Hexagon Flange Head M8×25 of #:Suspension - Front Suspension

Arm Welding Kit(Front Left Upper ) .

Arm Welding Kit(Front Left Upper ) of #:Suspension - Front Suspension

Arm Welding Kit(Front Right Upper) .

Arm Welding Kit(Front Right Upper) of #:Suspension - Front Suspension

Arm Assembly(Front Left Lower) .

Arm Assembly(Front Left Lower) of #:Suspension - Front Suspension

Front Shock Absorber Q .

Front Shock Absorber Q of #:Suspension - Front Suspension

Bolt Hexagon Flange Head M10×1.25-55 .

Bolt Hexagon Flange Head M10×1.25-55 of #:Suspension - Front Suspension

Bolt Hexagon Flange Head M10×1.25-60 .

Bolt Hexagon Flange Head M10×1.25-60 of #:Suspension - Front Suspension

Swing Arm Nozzle .

Swing Arm Nozzle of #:Suspension - Rear Suspension

Shield Cv ? (Black) .

Shield Cv Ⅲ (Black) of #:Suspension - Front Suspension

Washer 10 .

Washer 10 of #:Suspension - Rear Suspension
