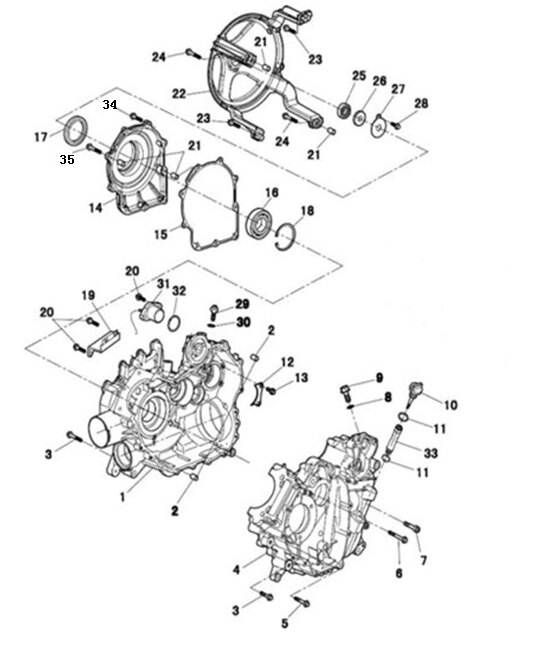

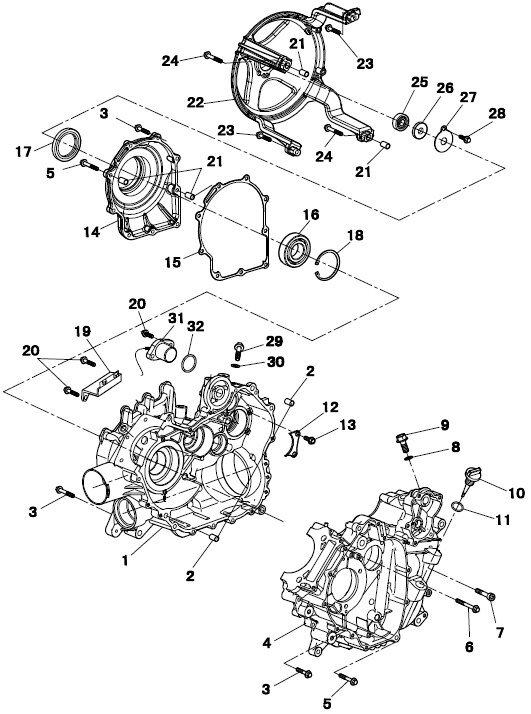

Crankcase

1000 Available
Parts
No
Old Part No
New Part No
Description
Price
QTY
0
P0150001110A0003
P0150001110A0003
Engine, Crankcase, Right Crankcase Assy
0
1
1
PJ00000908020500
PJ00000908020500
Pin,Dowel 91216
0
2
2
BGB5787M630
BGB5787M630
Hexagon Flange Bolts M630
0
12
3
P0150001120A0001
P0150001120A0001
Left Crankcase assembly
0
1
4
BGB5787M640
BGB5787M640
Hexagon Flange Bolts M640
0
2
5
BGB5787M685
BGB5787M685
Hexagon Flange Bolts M685
0
1
6
BGB70M840
BGB70M840
Hexagon Socket Head Cap Screws M840
0
3
7
PJ00000906010900
PJ00000906010900
Aluminum Washer 14221.5
0
1
8
PJ00000904050400
PJ00000904050400
Hexagon Flange Screw Plug M141.516
0
1
9
P007000156500100
P007000156500100
Oil Dipstck
0
1
10
PJ00000912012400
PJ00000912012400
O-Ring 183.5
0
1
11
P004000110130000
P004000110130000
Press Plate,Main Shaft Bearing
0
1
12
P004000113210100
P004000113210100
Bearing chock
0
1
13
P004000113220100
P004000113220100
Gasket
0
1
14
BGB27616010
BGB27616010
Bearing 16010
0
1
16
BGB89380
BGB89380
Circlip For Hole ?80
0
1
17
P004000171660100
P004000171660100
Bracket,Cvt Vent-Pipe
0
1
18
BGB907414M616
BGB907414M616
Hexagon Head Bolt And Plain Washer Assemblies M616
0
2
19
PJ00000908020300
PJ00000908020300
Pin,Dowel 1016
0
4
20
P004000113310000
P004000113310000
Shield Bracket,Clutch
0
1
21
BGB5789M632
BGB5789M632
Hexagon Flange Bolts M632
0
2
23
BGB2766201 2Z
BGB2766201 2Z
Bearing 62012Z
0
1
24
PJ00000911011200
PJ00000911011200
Oil Seal 12326
0
1
25
P004000110320000
P004000110320000
Press Plate,Bracket Oil Seal
0
1
26
BGB5787M616
BGB5787M616
Hexagon Flange Bolts M616
0
1
27
BGB5787M1012516
BGB5787M1012516
Hexagon Flange Bolts M101.2516
0
1
28
PJ00000906010400
PJ00000906010400
Aluminum Washer 10161.2
0
1
29
P012000365500000
P012000365500000
Sensor,Gear Shift Indicator
0
1
30
PJ00000912013800
PJ00000912013800
O-Ring 29.62.4
0
1
31
P309001006300000
P309001006300000
Guiding Tube,Oil Level
0
1
32
BGB5787M635
BGB5787M635
Bolts Hexagon flange M635
0
7
33
BGB5787M645
BGB5787M645
Bolts Hexagon flange M645
0
2
Overview

Engine, Crankcase, Right Crankcase Assy .

Engine, Crankcase, Right Crankcase Assy of #:Engine - Crankcase

Pin,Dowel 91216 .

Pin,Dowel 91216 of #:Engine - Crankcase

Hexagon Flange Bolts M630 .

Hexagon Flange Bolts M630 of #:Engine - Crankcase

Left Crankcase Assembly .

Left Crankcase assembly of #:Engine - Crankcase

Hexagon Flange Bolts M640 .

Hexagon Flange Bolts M640 of #:Engine - Crankcase

Hexagon Flange Bolts M685 .

Hexagon Flange Bolts M685 of #:Engine - Crankcase

Hexagon Socket Head Cap Screws M840 .

Hexagon Socket Head Cap Screws M840 of #:Engine - CYLINDER HEAD COMPONENTS

Aluminum Washer 14221.5 .

Aluminum Washer 14221.5 of #:Engine - Crankcase

Hexagon Flange Screw Plug M141.516 .

Hexagon Flange Screw Plug M141.516 of #:Engine - Crankcase

Oil Dipstck .

Oil Dipstck of #:Engine - Crankcase

O-Ring 183.5 .

O-Ring 183.5 of #:Engine - Crankcase

Press Plate,Main Shaft Bearing .

Press Plate,Main Shaft Bearing of #:Engine - Crankcase

Bearing Chock .

Bearing chock of #:Engine - Crankcase

Gasket .

Gasket of #:Engine - Crankcase

Bearing 16010 .

Bearing 16010 of #:Engine - Crankcase

Circlip For Hole ?80 .

Circlip For Hole ∅80 of #:Engine - Crankcase

Bracket,Cvt Vent-Pipe .

Bracket,Cvt Vent-Pipe of #:Engine - Crankcase

Hexagon Head Bolt And Plain Washer Assemblies M616 .

Hexagon Head Bolt And Plain Washer Assemblies M616 of #:Engine - Cam Chain & Tensioner

Pin,Dowel 1016 .

Pin,Dowel 1016 of #:Engine - Crankcase

Shield Bracket,Clutch .

Shield Bracket,Clutch of #:Engine - Crankcase

Hexagon Flange Bolts M632 .

Hexagon Flange Bolts M632 of #:Engine - Crankcase

Bearing 62012Z .

Bearing 62012Z of #:Engine - Crankcase

Oil Seal 12326 .

Oil Seal 12326 of #:Engine - Crankcase

Press Plate,Bracket Oil Seal .

Press Plate,Bracket Oil Seal of #:Engine - Crankcase

Hexagon Flange Bolts M616 .

Hexagon Flange Bolts M616 of #:Engine - Crankcase

Hexagon Flange Bolts M101.2516 .

Hexagon Flange Bolts M101.2516 of #:Engine - Crankcase

Aluminum Washer 10161.2 .

Aluminum Washer 10161.2 of #:Engine - Crankcase

Sensor,Gear Shift Indicator .

Sensor,Gear Shift Indicator of #:Engine - Crankcase

O-Ring 29.62.4 .

O-Ring 29.62.4 of #:Engine - Crankcase

Guiding Tube,Oil Level .

Guiding Tube,Oil Level of #:Engine - Crankcase

Bolts Hexagon Flange M635 .

Bolts Hexagon flange M635 of #:Engine - Crankcase

Bolts Hexagon Flange M645 .

Bolts Hexagon flange M645 of #:Engine - Crankcase
